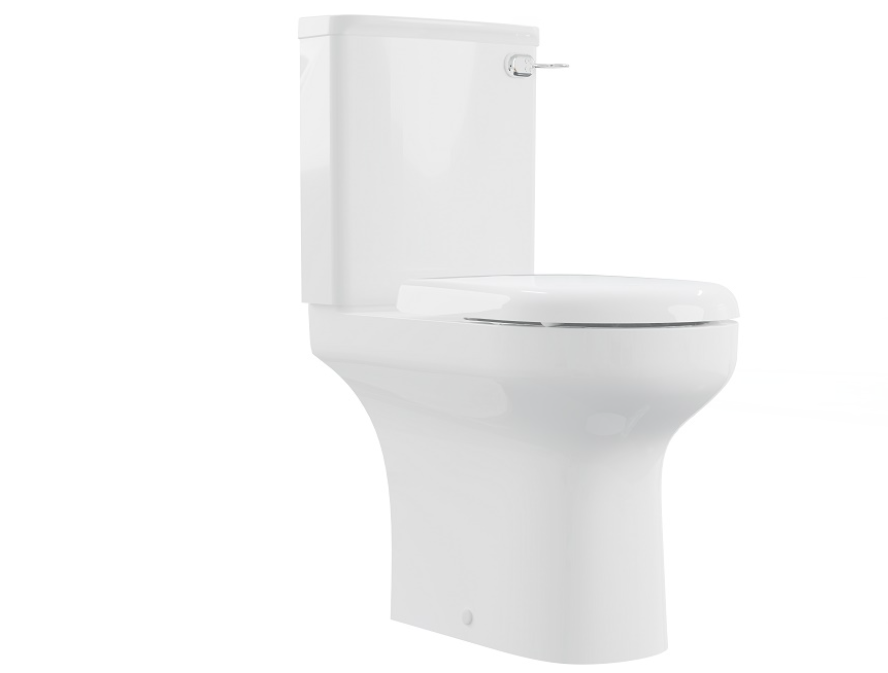

AKW Navlin Standard Height Close Coupled Toilet Pan 650mm (23571)

The AKW Navlin Standard Height Close Coupled Toilet Pan is a robust, hygienic, and practical ceramic pan suitable for a wide range of bathroom installations. Built to an impressive weight capacity of 400kg (60 stone), it is an excellent choice for inclusive and accessible bathroom settings including care homes, hospitals, and supported living facilities.

The rimless design with direct flushing significantly reduces bacteria build-up in comparison to traditional rimmed pans, making it easier to clean and more hygienic in everyday use. Rounded edges and corners further enhance safety, minimising the risk of injury — particularly important in care and accessible environments.

Installation is straightforward thanks to the horizontal outlet waste connection, and the pan comes supplied with a fixing kit. Cistern, flush mechanism, and seat are all sold separately, giving you the flexibility to configure the setup to suit your specific requirements.

What's included:

• 1 x ceramic toilet pan
• 1 x fixing kit

Please note: Cistern, flush mechanism, and seat are sold separately.

Key Features:

• High weight capacity — supports up to 400kg (60 stone)
• Rimless, direct flush design for improved hygiene and easier cleaning
• Rounded edges and corners for enhanced safety
• Horizontal outlet waste connection for straightforward installation
• Overflow pipe positioned 300mm above pan rim — compliant with current water regulations
• Supplied in recyclable, sustainable packaging
• Ceramic construction
• Product code: 23571

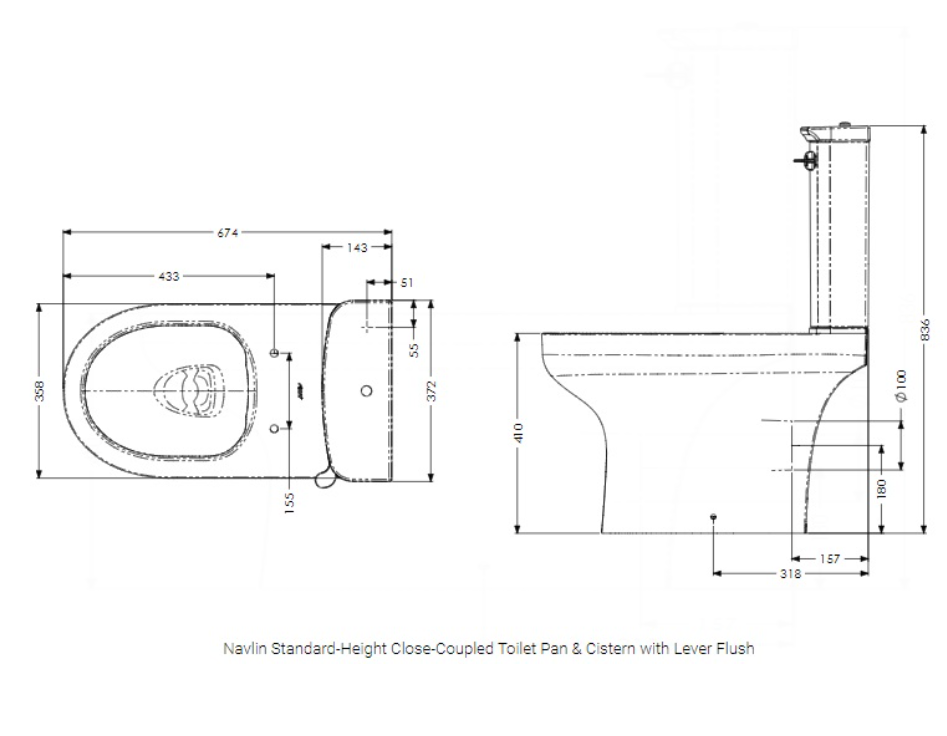

Specifications:

• Material: Ceramic
• Pan height: 410mm
• Pan width: 358mm
• Pan length: 674mm
