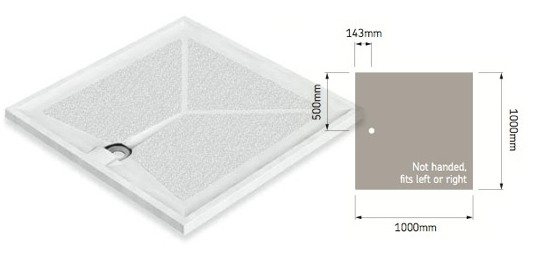

AKW Braddan 1000x1000mm Level Access Shower Tray & Gravity Waste (16071W)

AKW Braddan 1000x1000mm Level Access Shower Tray with Gravity Waste (16071W)

The AKW Braddan 1000x1000mm Level Access Shower Tray delivers the perfect combination of durability, safety, and accessibility. Designed for modern bathrooms and care environments, it offers a robust, low-profile design that ensures ease of access and long-lasting performance.

Key Features

• Slim 40mm Profile
  Enables level access or low-threshold installations, providing a smooth, step-free entry for easy access and a contemporary look.

• Integral Strength & Stability
  Built with reinforced structural support for exceptional strength, ensuring long-term reliability and user confidence.

• High Weight Capacity
  Supports up to 30 stone (190.5kg) point loading, making it ideal for chair users and carers in attendance.

• Flexible Installation Options

  • Non-handed design allows for both left- and right-hand installations, offering maximum layout flexibility.

  • Optional pipe duct kits simplify installation and help avoid re-routing existing pipework.

  • Suitable for wooden, concrete, and screeded floors, and fits seamlessly in corner or alcove settings.

• Quick, Easy Installation
  No under-tray foaming required—designed for a fast, clean, and efficient fitting process.

• Enhanced User Safety
  Features a slip-resistant surface to provide a safer showering experience.
  Optional 20mm and 40mm ramp kits allow easy wheelchair or carer access for semi-recessed and surface-mounted installations.

• Effective Water Drainage
  Incorporates a 35mm fall to waste for optimal water flow.
  Supplied complete with a TDTW 50 white ABS plastic gravity waste (25126) featuring:

  • Secure seals and precise location

  • Built-in filter

  • 50mm threaded waste fitting

  • 124mm depth below tray (144mm overall)

  • Also available in 19mm option

  • Compatible with Braddan, Multi Spec, and Tuff Form formers (with adaptor)

• Watertight & Reliable
  Comes with tiling upstands as standard to create a watertight seal between the tray and tiles.
  Factory-fitted upward waste option available for unbreachable floor installations.

• Lifetime Warranty
  Covered by AKW’s Lifetime Warranty (refer to terms and conditions) for complete peace of mind.

Contents

• 1 x Braddan 1000 x 1000mm Shower Tray (16071)

• 1 x TDTW 50 White ABS Plastic Gravity Waste (25126)
