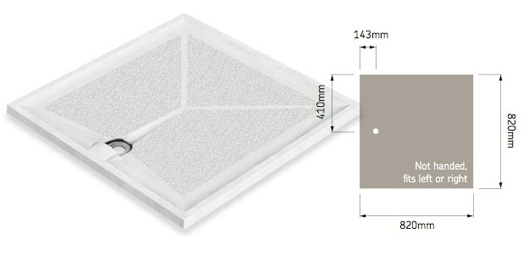

AKW Braddan 820x820mm Level Access Shower Tray & Gravity Waste (16470W)

AKW Braddan 820x820mm Level Access Shower Tray with Gravity Waste (16470W)

The AKW Braddan 820x820mm Level Access Shower Tray is designed to deliver safety, strength, and flexibility in every installation. Perfect for accessible bathrooms and wet room environments, it provides a durable and easy-to-fit solution that ensures long-term reliability and user comfort.

Key Features

• Slim 40mm Profile
  Allows for a level access or low-threshold shower installation, creating a seamless transition into the shower area for all users.

• Built-In Structural Strength
  Manufactured with integral reinforcement for added stability and durability—giving extra peace of mind.

• Exceptional Load Capacity
  Withstands up to 30 stone (190.5kg) point loading, making it ideal for chair users and carers in attendance.

• Flexible & Adaptable Design

  • Non-handed tray suitable for left or right-hand installations, offering complete layout flexibility.

  • Optional pipe duct kits available to simplify fitting and avoid re-routing existing pipework.

  • Suitable for wooden, concrete, or screeded floors, and ideal for both corner and alcove fittings.

• Fast & Simple Installation
  No under-tray foaming required, ensuring a quick, clean, and straightforward installation process.

• Enhanced Safety
  Slip-resistant surface provides greater confidence and safety during use.
  Optional 20mm and 40mm ramp kits are available to provide easy access for semi-recessed or surface-mounted installations.

• Efficient Water Drainage
  Features a 35mm fall to waste for effective water flow.
  Supplied complete with a TDTW 50 white ABS plastic gravity waste (25126) featuring:

  • Secure sealing and precise location

  • Built-in filter

  • 50mm threaded waste fitting

  • 124mm depth below tray (144mm overall)

  • Also available in a 19mm option

  • Compatible with Braddan, Multi Spec, and Tuff Form formers (with adaptor)

• Reliable & Watertight
  Comes with tiling upstands as standard to ensure a watertight seal between tray and tiles.
  Includes a factory-fitted upward waste option for unbreachable floor installations.

• Lifetime Warranty
  Supplied with AKW’s Lifetime Warranty (refer to terms and conditions) for total peace of mind.

Contents

• 1 x Braddan 820 x 820mm Shower Tray (16470)

• 1 x TDTW 50 White ABS Plastic Gravity Waste (25126)
