AKW Braddan 1000x700mm Level Access Shower Tray & Gravity Waste (16000W)

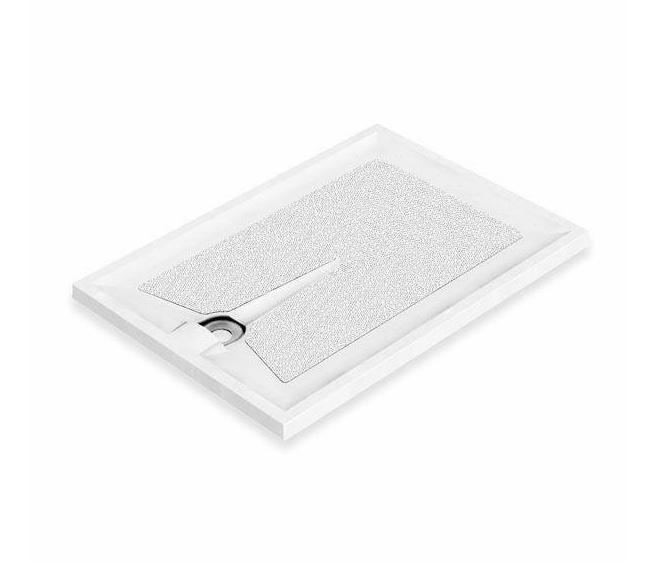

AKW Braddan 1000x700mm Level Access Shower Tray with Gravity Waste (Code 16000W)

The AKW Braddan 1000x700mm is a popular rectangular shower tray that works particularly well in narrower bathroom spaces where a square tray won't fit but a longer showering area is still desirable. At 1000mm long and 700mm wide, it provides a comfortable showering space while fitting neatly into alcove and corner installations.

Made from durable GRP with integral reinforcement, the Braddan supports up to 190.5kg (30 stone) and features a slip-resistant surface as standard. At just 40mm high, it can be surface mounted for a low step-in threshold, semi-recessed for a 20mm threshold, or fully recessed into the floor for complete level access — making it suitable for a wide range of domestic and accessibility projects.

No under-tray foaming is required, keeping installation clean and quick. The non-handed design works for both left and right-hand layouts. Tiling upstands are included as standard to ensure a watertight finish between the tray and wall tiles. Optional 20mm and 40mm ramp kits are available for semi-recessed or surface-mounted installations.

This pack includes a TDTW 50 White ABS Plastic Gravity Waste (Code 25126), which features a built-in filter, secure 50mm threaded fitting, and 124mm depth below tray.

Key Specifications:

• Size: 1000 × 700mm
• Material: GRP (Glass Reinforced Plastic)
• Height: 40mm
• Threshold: 0mm (recessed), 20mm (semi), or 40mm (surface mounted)
• Waste Position: Central
• Fall to Waste: 35mm
• Load Capacity: 190.5kg (30 stone)
• Floor Types: Timber, concrete, screeded
• Tiling Upstands: Included
• Warranty: Lifetime guarantee

What's Included:

• 1 × AKW Braddan 1000×700mm Shower Tray (Code 16000)
• 1 × TDTW 50 White ABS Plastic Gravity Waste (Code 25126)

Frequently Asked Questions

Who is the 1000x700mm Braddan best suited for? It's ideal for narrower bathrooms and en-suites where a square tray would be too wide. The 700mm depth keeps it compact while the 1000mm length still gives a comfortable showering area — a great choice for accessibility adaptations in tighter spaces.

Can this tray be used for full level access? Yes — when fully recessed into the floor it creates a 0mm threshold, suitable for wheelchair users and DDA-compliant installations.

Is under-tray foaming required? No, the Braddan's design eliminates the need for under-tray foaming entirely.

Can I fit a different waste to this tray? Yes. The Braddan is compatible with AKW's full range of gravity and pumped waste options. An upward discharge pumped waste is also available for installations where the floor cannot be breached.

Is it compatible with AKW shower screens? The 1000x700mm Braddan is compatible with AKW Standard, Silverdale, Sliding, Level Best, and Larenco screen ranges.

What is the warranty? The AKW Braddan carries a lifetime guarantee (terms and conditions apply).

Download AKW Braddan Specification Sheet
