AKW Braddan 1500x820mm Level Access Shower Tray & Gravity Waste (16531W)

AKW Braddan 1500x820mm Level Access Shower Tray with Gravity Waste (Code 16531W)

The AKW Braddan 1500x820mm combines a full 1500mm showering length with a generous 820mm width, making it one of the largest and most capable trays in the Braddan range. At this size, it delivers an exceptionally spacious showering area that suits taller users, care environments, and master bathrooms where both length and width are a priority. The 820mm depth provides noticeably more side-to-side space than the 1500x700mm, making assisted showering significantly more comfortable for both user and carer.

Made from durable GRP with integral reinforcement, the Braddan supports up to 190.5kg (30 stone) and features a slip-resistant surface as standard. At just 40mm high, it can be surface mounted for a low step-in threshold, semi-recessed for a 20mm threshold, or fully recessed into the floor for complete level access — making it suitable for the full range of domestic and accessibility projects.

No under-tray foaming is required, keeping installation clean and straightforward. The non-handed design works for both left and right-hand layouts. Tiling upstands are included as standard to ensure a watertight finish between the tray and wall tiles. Optional 20mm and 40mm ramp kits are available for semi-recessed or surface-mounted installations.

This pack includes a TDTW 50 White ABS Plastic Gravity Waste (Code 25126), which features a built-in filter, secure 50mm threaded fitting, and 124mm depth below tray.

Key Specifications:

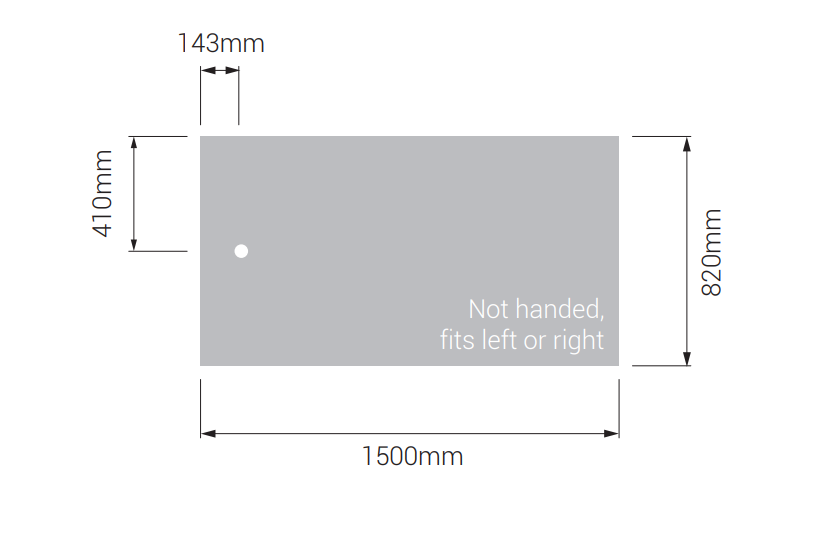

• Size: 1500 × 820mm
• Material: GRP (Glass Reinforced Plastic)
• Height: 40mm
• Threshold: 0mm (recessed), 20mm (semi), or 40mm (surface mounted)
• Waste Position: Central
• Fall to Waste: 35mm
• Load Capacity: 190.5kg (30 stone)
• Floor Types: Timber, concrete, screeded
• Tiling Upstands: Included
• Warranty: Lifetime guarantee

What's Included:

• 1 × AKW Braddan 1500×820mm Shower Tray (Code 16531)
• 1 × TDTW 50 White ABS Plastic Gravity Waste (Code 25126)

Frequently Asked Questions

How does the 1500x820mm compare to the 1500x700mm Braddan? Both are 1500mm long, but the 820mm width adds an extra 120mm of showering space over the 700mm version — a very significant difference in terms of comfort and room for movement. If your bathroom can accommodate the additional width, the 1500x820mm is the more spacious option, especially where assisted showering is required.

Can this tray be used for full level access? Yes — when fully recessed into the floor it creates a 0mm threshold, suitable for wheelchair users and DDA-compliant installations.

Is under-tray foaming required? No, the Braddan's design eliminates the need for under-tray foaming entirely.

Can I fit a different waste to this tray? Yes. The Braddan is compatible with AKW's full range of gravity and pumped waste options. An upward discharge pumped waste is also available for installations where the floor cannot be breached.

Is it compatible with AKW shower screens? The 1500x820mm Braddan is compatible with AKW Standard, Silverdale, Sliding, Level Best, and Larenco screen ranges.

What is the warranty? The AKW Braddan carries a lifetime guarantee (terms and conditions apply).
