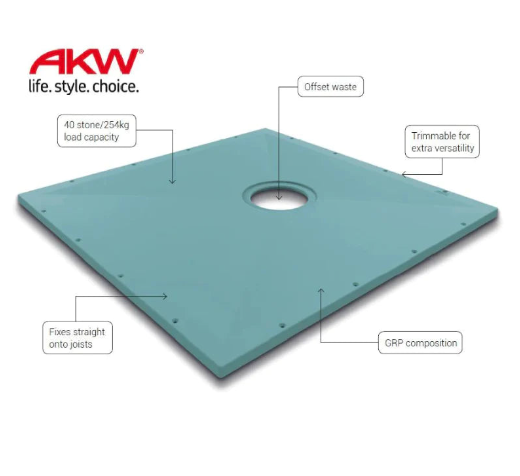

AKW Tuff Form Wet Floor Former 1500x1200mm (21045)

AKW Tuff Form Wet Floor Former 1500x1200mm (Code 21045)

Product Code: 21045

Technical Specifications

• Manufacturer: AKW

• Product Type: Wet Floor Former

• Model: Tuff Form

• Material: Compressed Glass Reinforced Plastic (GRP)

• Dimensions: 1500mm (L) x 1200mm (W)

• Depth: 22mm nominal

• Weight Capacity: 381kg (60 stone) evenly distributed load

• Trim Allowance: Up to 150mm reduction on three sides from the waste outlet without compromising structural strength

• Waste Compatibility: Standard gravity waste systems

• Waste Position: Offset (to facilitate installation around joists and existing pipework)

• Underside Design: Cross-hatch pattern for enhanced grip and non-slip stability during installation

• Fixing Points: Pre-formed pilot holes, semi-countersunk for secure fixing

• Floor Compatibility: Suitable for timber (wooden) floor installations

• Surface Finish: Smooth upper surface ready for vinyl or tiled floor finishes

• Installation Type: Level-access wet room / walk-in shower

• Compliance: Designed in accordance with accessibility and inclusive design standards

Key Product Features

• High Structural Integrity: Manufactured from compressed GRP to ensure excellent rigidity and long-term durability under high load conditions.

• Slimline Profile: At only 22mm thick, the Tuff Form integrates seamlessly with standard floor constructions for true level-access installations.

• Customisable Installation: The former can be trimmed on up to three sides by 150mm from the waste outlet to suit bespoke bathroom layouts while retaining full load capacity.

• Optimised Waste Location: The offset waste position reduces interference with floor joists and existing plumbing runs, simplifying installation.

• Ease of Fixing: Factory-formed pilot holes allow rapid and accurate securing to the subfloor.

• Improved Stability: The non-slip cross-hatch underside design eliminates the need for surface keying, preventing movement during installation.

• Versatile Finishing Options: Compatible with a wide range of floor coverings, including safety vinyl and tiles, and suitable for use with AKW screen, rail, and curtain systems.

Applications

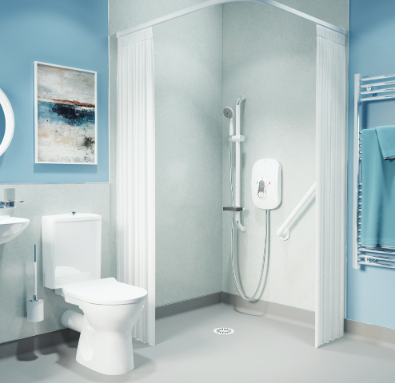

• Level-access wet rooms

• Accessible and adapted bathrooms

• New build and refurbishment projects

• Residential, healthcare, and commercial installations

Product Description

The AKW Tuff Form Wet Floor Former (1500 x 1200mm) is a high-performance, load-bearing shower base designed to deliver strength, stability, and design flexibility in level-access wet room environments. Constructed from compressed glass-reinforced plastic (GRP), it provides exceptional durability while maintaining a low-profile 22mm depth.

Its trim-to-fit capability, offset waste, and pre-formed fixing points ensure installation efficiency and adaptability across diverse site conditions. Engineered to meet demanding structural and accessibility requirements, the Tuff Form provides a robust platform for both vinyl and tiled wet room finishes.

Downloads

AKW Tuff Form Installation Instructions
