AKW Braddan 1000x800mm Level Access Shower Tray & Gravity Waste (16528W)

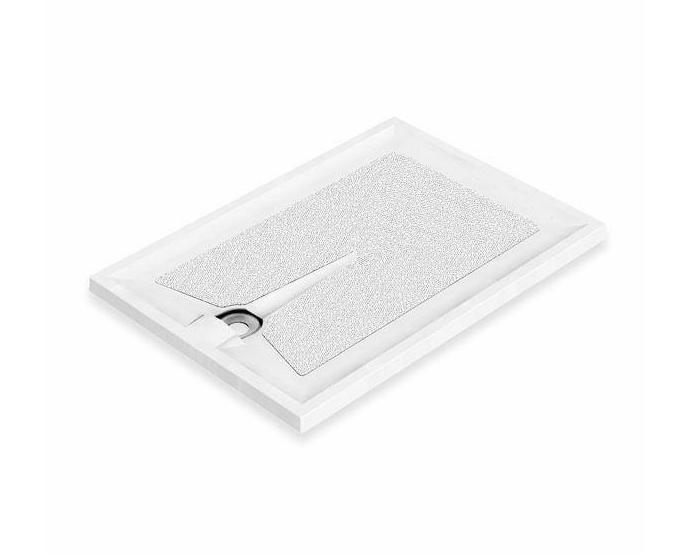

AKW Braddan 1000x800mm Level Access Shower Tray with Gravity Waste (Code 16528W)

The AKW Braddan 1000x800mm is a versatile rectangular shower tray that strikes an excellent balance between a generous showering area and a footprint that works across a wide range of bathroom layouts. At 1000mm long and 800mm wide, it offers noticeably more room than a standard 800x800mm square tray while still fitting comfortably into alcove and corner installations — making it one of the most adaptable sizes in the Braddan range.

Made from durable GRP with integral reinforcement, the Braddan supports up to 190.5kg (30 stone) and features a slip-resistant surface as standard. At just 40mm high, it can be surface mounted for a low step-in threshold, semi-recessed for a 20mm threshold, or fully recessed into the floor for complete level access — making it equally suitable for standard domestic bathrooms and accessibility-focused projects.

No under-tray foaming is required, keeping installation clean and straightforward. The non-handed design works for both left and right-hand layouts. Tiling upstands are included as standard to ensure a watertight finish between the tray and wall tiles. Optional 20mm and 40mm ramp kits are available for semi-recessed or surface-mounted installations.

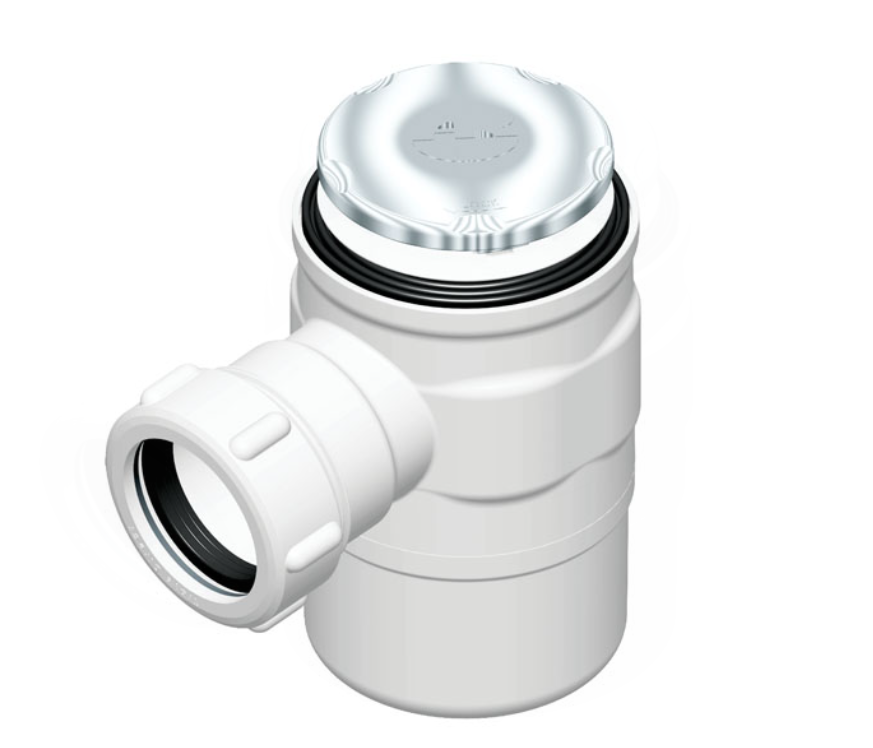

This pack includes a TDTW 50 White ABS Plastic Gravity Waste (Code 25126), which features a built-in filter, secure 50mm threaded fitting, and 124mm depth below tray.

Key Specifications:

• Size: 1000 × 800mm
• Material: GRP (Glass Reinforced Plastic)
• Height: 40mm
• Threshold: 0mm (recessed), 20mm (semi), or 40mm (surface mounted)
• Waste Position: Central
• Fall to Waste: 35mm
• Load Capacity: 190.5kg (30 stone)
• Floor Types: Timber, concrete, screeded
• Tiling Upstands: Included
• Warranty: Lifetime guarantee

What's Included:

• 1 × AKW Braddan 1000×800mm Shower Tray (Code 16528)
• 1 × TDTW 50 White ABS Plastic Gravity Waste (Code 25126)

Frequently Asked Questions

How does the 1000x800mm compare to the 1000x700mm Braddan? The 800mm depth gives you an extra 100mm of showering width compared to the 700mm version, making it a more comfortable choice for most adult users. If space allows, the 1000x800mm is generally the preferred option for day-to-day showering comfort.

Can this tray be used for full level access? Yes — when fully recessed into the floor it creates a 0mm threshold, suitable for wheelchair users and DDA-compliant installations.

Is under-tray foaming required? No, the Braddan's design eliminates the need for under-tray foaming entirely.

Can I fit a different waste to this tray? Yes. The Braddan is compatible with AKW's full range of gravity and pumped waste options. An upward discharge pumped waste is also available for installations where the floor cannot be breached.

Is it compatible with AKW shower screens? The 1000x800mm Braddan is compatible with AKW Standard, Silverdale, Sliding, Level Best, and Larenco screen ranges.

What is the warranty? The AKW Braddan carries a lifetime guarantee (terms and conditions apply).

📄 Download AKW Braddan Specification Sheet
