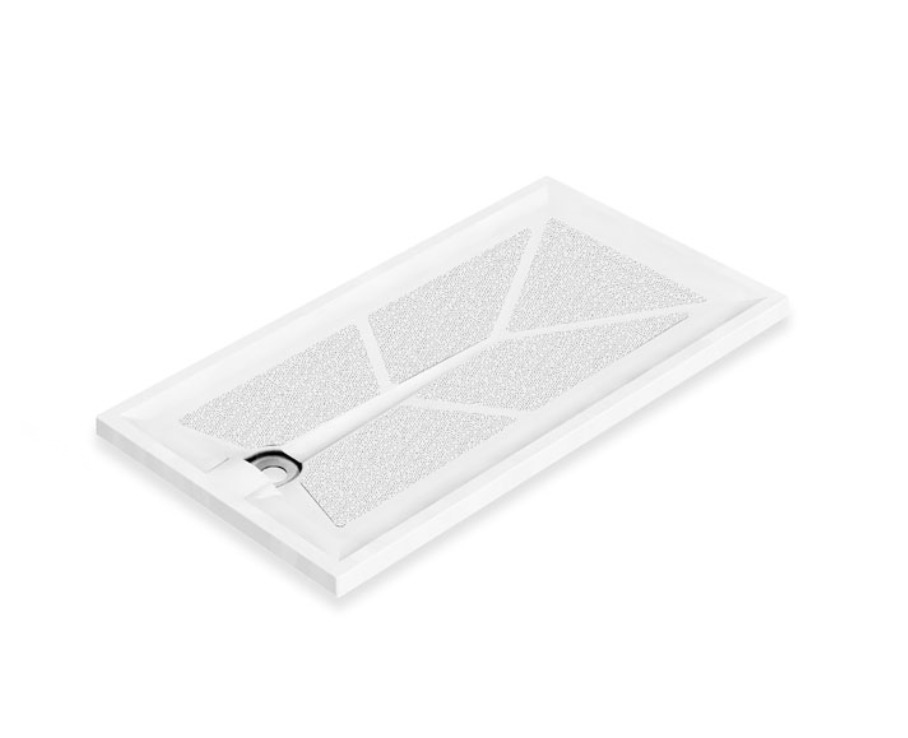

AKW Braddan 1200x700mm Level Access Shower Tray & Gravity Waste (16006W)

AKW Braddan 1200x700mm Level Access Shower Tray with Gravity Waste (Code 16006W)

The AKW Braddan 1200x700mm is one of the most versatile sizes in the range — long enough to provide a genuinely spacious showering experience, and narrow enough to suit a wide variety of bathroom layouts. At 1200mm long and 700mm wide, it works particularly well in through-bathrooms, larger en-suites, and accessibility adaptations where a generous length is needed but floor width is limited.

Made from durable GRP with integral reinforcement, the Braddan supports up to 190.5kg (30 stone) and features a slip-resistant surface as standard. At just 40mm high, it can be surface mounted for a low step-in threshold, semi-recessed for a 20mm threshold, or fully recessed into the floor for complete level access — making it suitable for the full range of domestic and accessibility projects.

No under-tray foaming is required, keeping installation clean and straightforward. The non-handed design works for both left and right-hand layouts. Tiling upstands are included as standard to ensure a watertight finish between the tray and wall tiles. Optional 20mm and 40mm ramp kits are available for semi-recessed or surface-mounted installations.

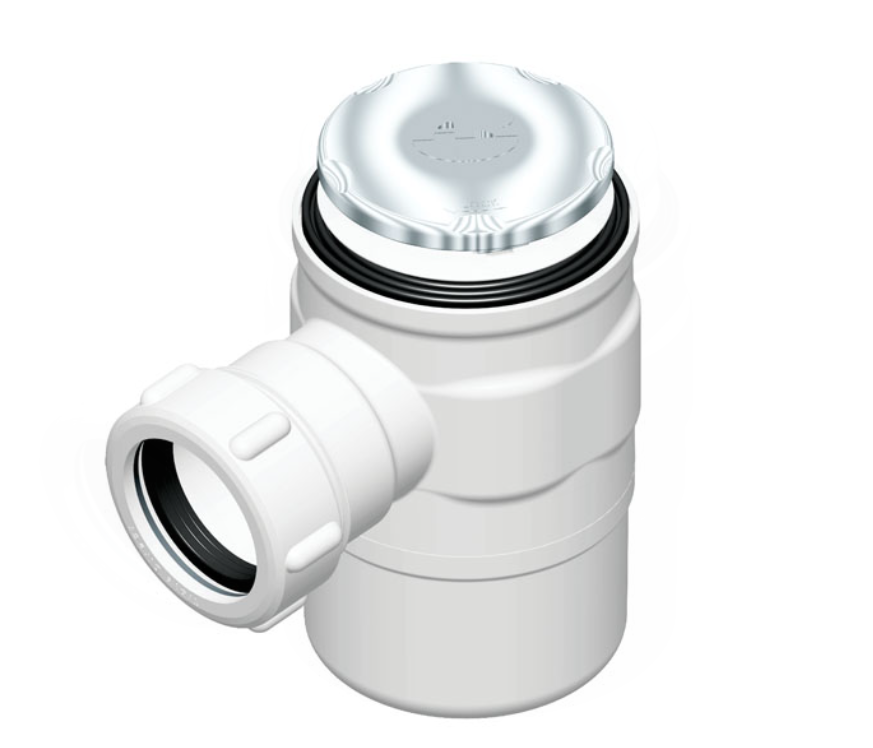

This pack includes a TDTW 50 White ABS Plastic Gravity Waste (Code 25126), which features a built-in filter, secure 50mm threaded fitting, and 124mm depth below tray.

Key Specifications:

• Size: 1200 × 700mm
• Material: GRP (Glass Reinforced Plastic)
• Height: 40mm
• Threshold: 0mm (recessed), 20mm (semi), or 40mm (surface mounted)
• Waste Position: Central
• Fall to Waste: 35mm
• Load Capacity: 190.5kg (30 stone)
• Floor Types: Timber, concrete, screeded
• Tiling Upstands: Included
• Warranty: Lifetime guarantee

What's Included:

• 1 × AKW Braddan 1200×700mm Shower Tray (Code 16006)
• 1 × TDTW 50 White ABS Plastic Gravity Waste (Code 25126)

Frequently Asked Questions

How does the 1200x700mm compare to the 1200x650mm Braddan? The 700mm depth gives you an extra 50mm of showering width over the 650mm version — enough to make a noticeable difference in comfort, particularly for larger users. If your bathroom space allows, the 1200x700mm is generally the more comfortable everyday choice at this length.

Can this tray be used for full level access? Yes — when fully recessed into the floor it creates a 0mm threshold, suitable for wheelchair users and DDA-compliant installations.

Is under-tray foaming required? No, the Braddan's design eliminates the need for under-tray foaming entirely.

Can I fit a different waste to this tray? Yes. The Braddan is compatible with AKW's full range of gravity and pumped waste options. An upward discharge pumped waste is also available for installations where the floor cannot be breached.

Is it compatible with AKW shower screens? The 1200x700mm Braddan is compatible with AKW Standard, Silverdale, Sliding, Level Best, and Larenco screen ranges.

What is the warranty? The AKW Braddan carries a lifetime guarantee (terms and conditions apply).
