AKW Braddan 800x800mm Level Access Shower Tray & Gravity Waste (16522W)

AKW Braddan 800x800mm Level Access Shower Tray with Gravity Waste (Code 16522W)

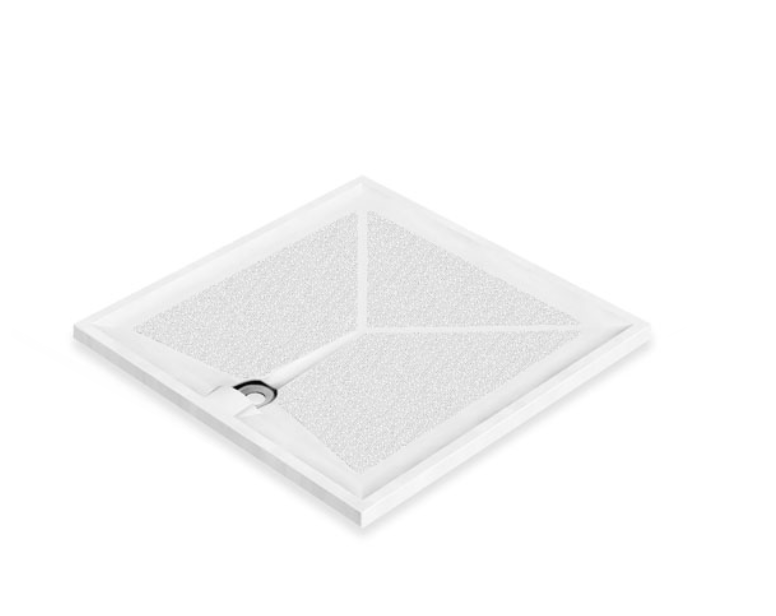

The AKW Braddan 800x800mm is a compact, square level access shower tray — ideal for smaller bathrooms, en-suites, and accessible wet room installations where space is limited but safety and quality cannot be compromised.

Made from durable GRP with integral reinforcement, the Braddan supports up to 190.5kg (30 stone) and features a slip-resistant surface as standard. At just 40mm high, it can be surface mounted for a low step-in threshold, semi-recessed for a 20mm threshold, or fully recessed into the floor for complete level access — making it one of the most versatile shower trays available.

No under-tray foaming is needed, keeping installation clean and quick. The non-handed design works for both left and right-hand layouts. Tiling upstands are included as standard to ensure a watertight finish between the tray and wall tiles. Optional 20mm and 40mm ramp kits are also available if needed for semi-recessed or surface-mounted installations.

This pack includes a TDTW 50 White ABS Plastic Gravity Waste (Code 25126), which features a built-in filter, secure 50mm threaded fitting, and 124mm depth below tray.

Key Specifications:

• Size: 800 × 800mm
• Material: GRP (Glass Reinforced Plastic)
• Height: 40mm
• Threshold: 0mm (recessed), 20mm (semi), or 40mm (surface mounted)
• Waste Position: Central
• Fall to Waste: 35mm
• Load Capacity: 190.5kg (30 stone)
• Floor Types: Timber, concrete, screeded
• Tiling Upstands: Included
• Warranty: Lifetime guarantee

What's Included:

• 1 × AKW Braddan 800×800mm Shower Tray (Code 16522)
• 1 × TDTW 50 White ABS Plastic Gravity Waste (Code 25126)

Frequently Asked Questions

Can this tray be used for full level access? Yes — when fully recessed into the floor it creates a 0mm threshold, suitable for wheelchair users and DDA-compliant installations.

Is under-tray foaming required? No, the Braddan's design removes the need for under-tray foaming entirely.

Can I fit a different waste to this tray? Yes. The Braddan is compatible with AKW's gravity and pumped waste options. An upward discharge pumped waste is also available for installations where the floor cannot be breached.

Is it compatible with AKW shower screens? Yes — the 800×800mm Braddan is compatible with AKW Standard, Silverdale, Level Best, Larenco, and Opulence screen ranges.

What is the warranty? The AKW Braddan carries a lifetime guarantee (terms and conditions apply).

Download AKW Braddan Specification Sheet
