Carron Integra 1700 x 750 x 540mm Double Ended Bath – White Gloss (02463 / 02464)

Carron Integra 1700 x 750 x 540mm Double Ended Bath – White Gloss (02463 / 02464)

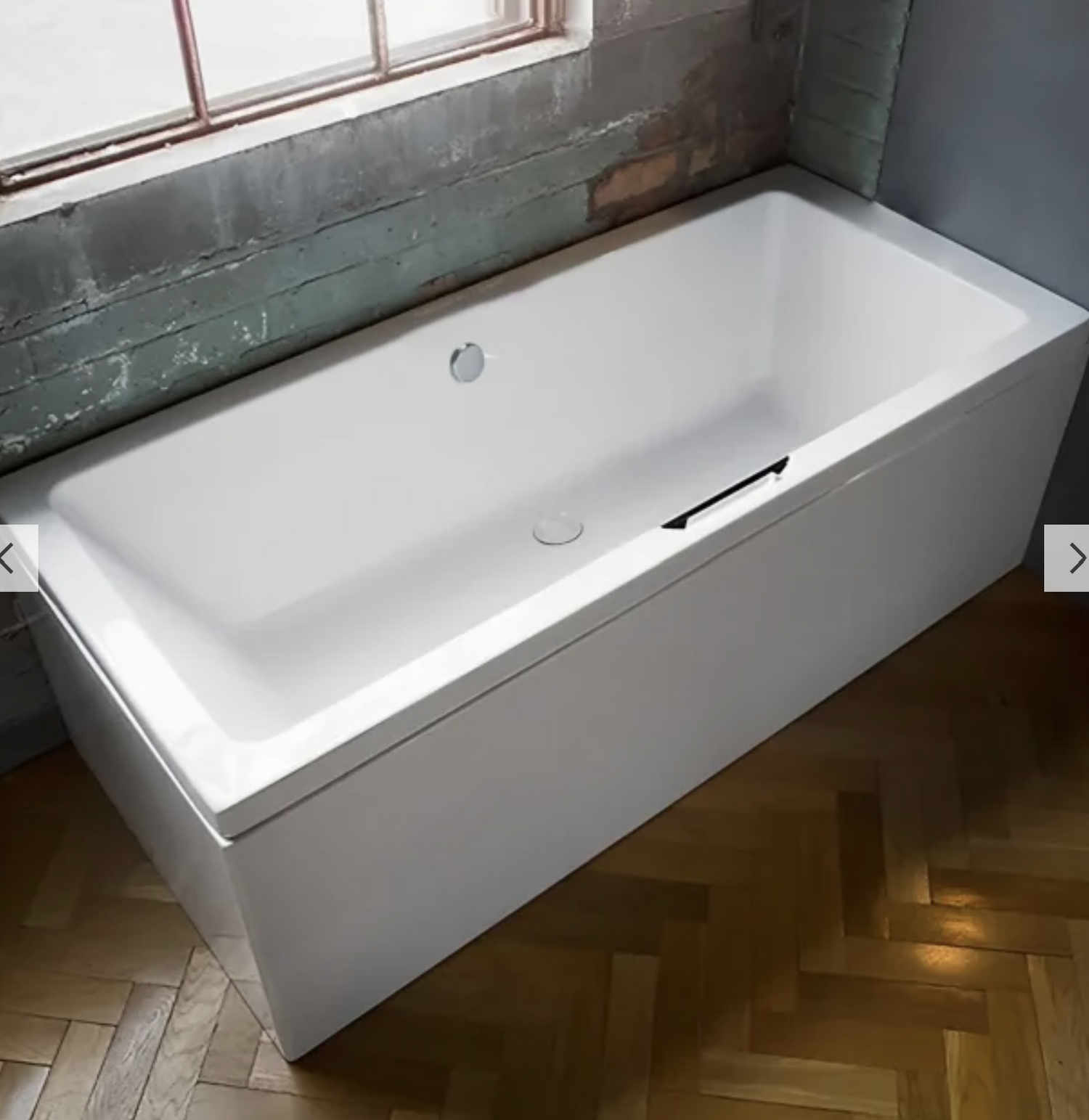

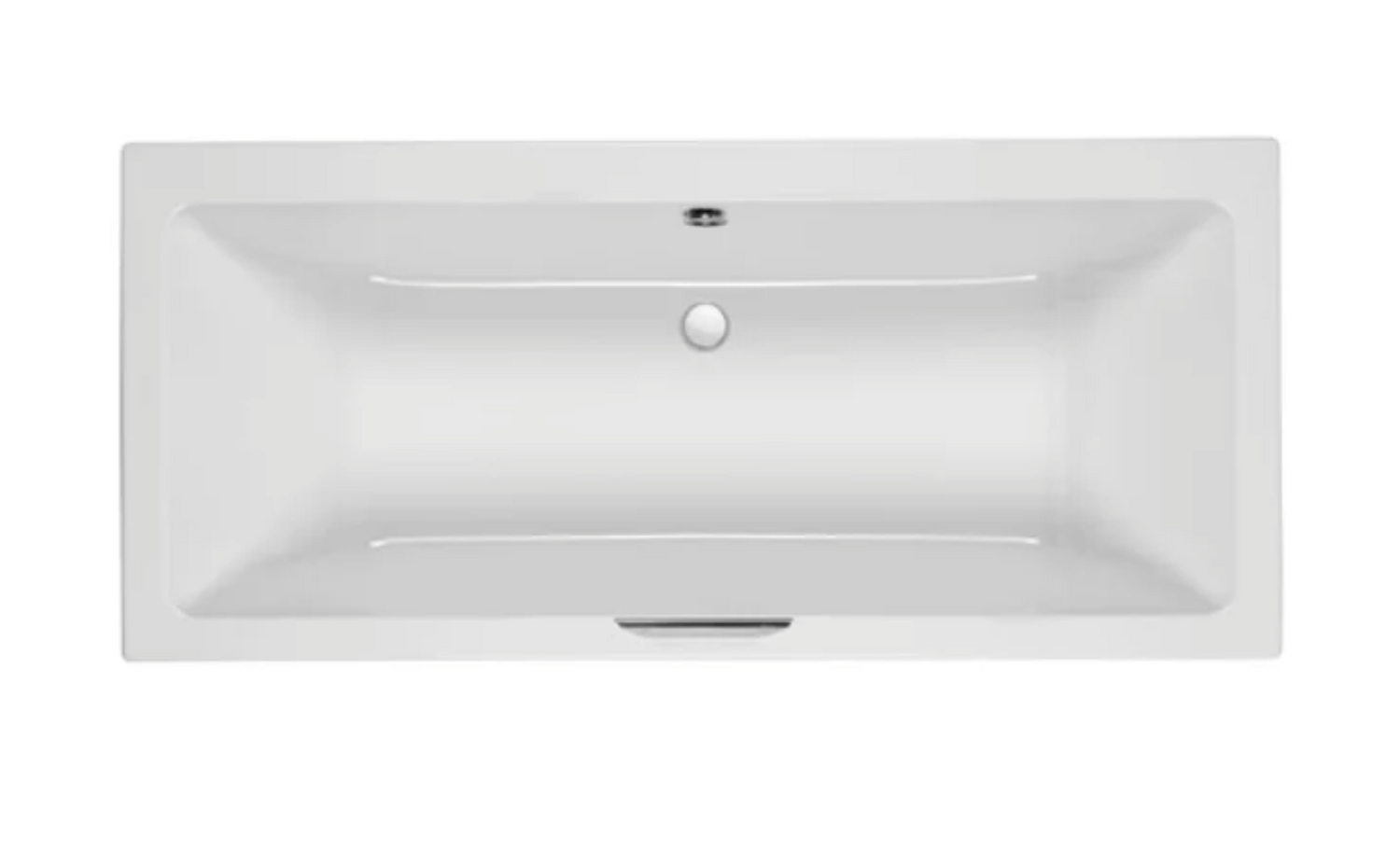

The Carron Integra is a double ended bath with clean, rectangular lines. Both ends are shaped for lying back and the waste sits in the middle, so you can bathe facing whichever way suits the room – or share it. A hand grip is set into the front edge to steady you getting in and out. It measures 1700 x 750mm and holds 190 litres.

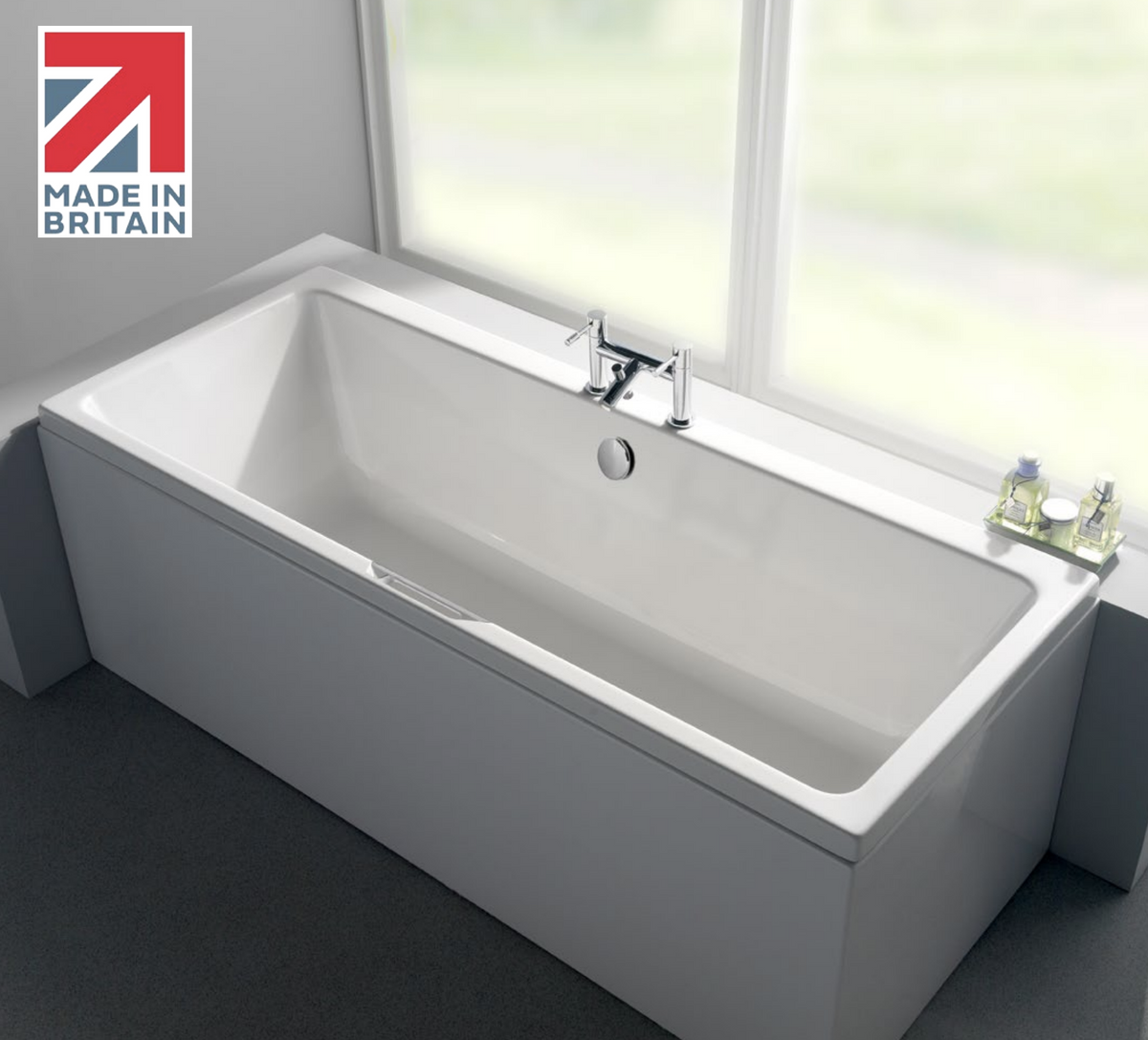

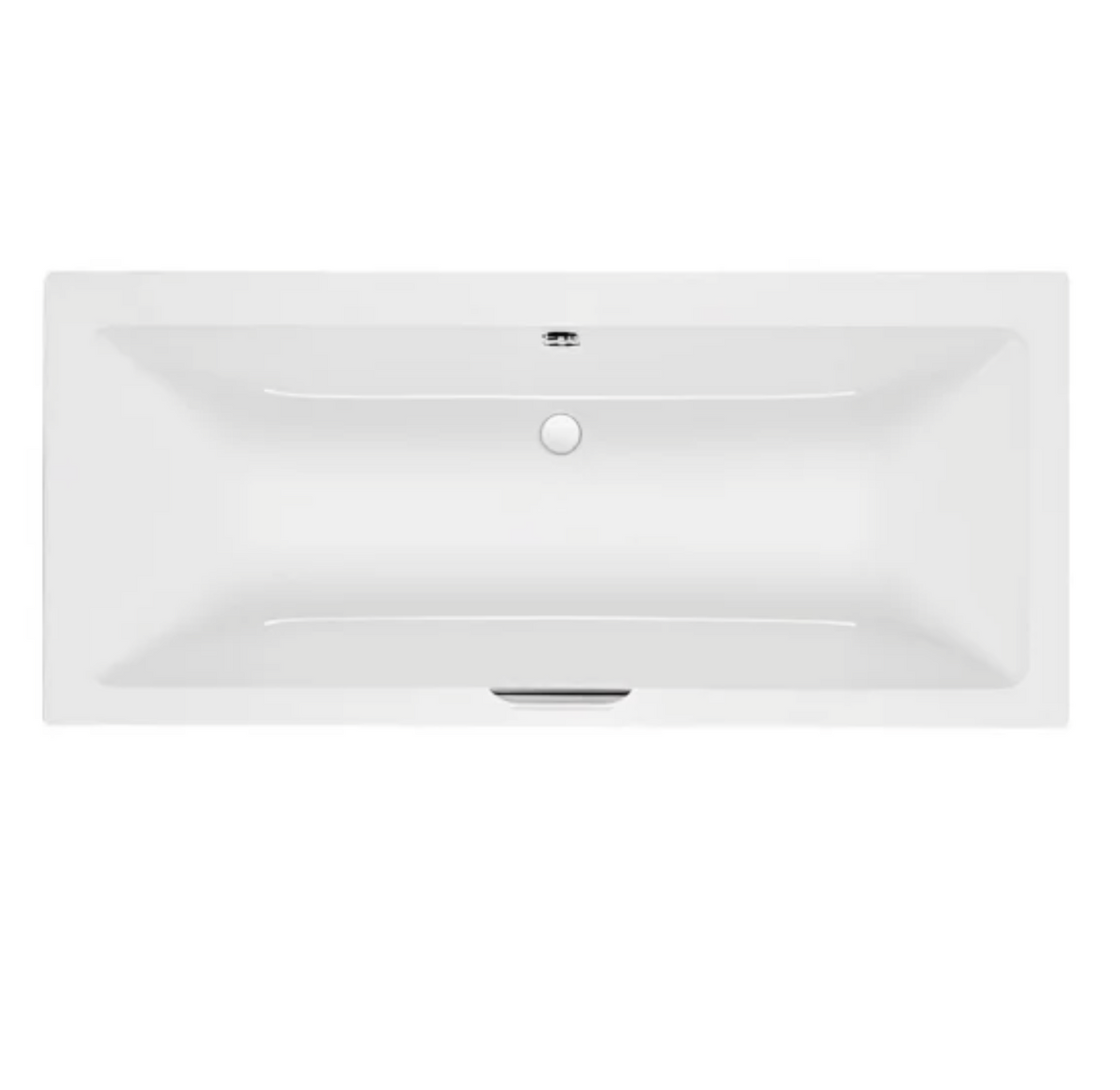

Choose between two finishes: Carron's standard 5mm acrylic, with a 30-year warranty, or Carronite, Carron's reinforced finish, with a 40-year warranty. Both are made in Britain by Carron, whose manufacturing history goes back to 1759.

Key features

• Double ended – central waste, with both ends shaped to lie back against
• 190 litre capacity, 430mm deep
• Hand grip in the front edge
• Two finishes – 5mm acrylic or Carronite
• Fully encapsulated baseboard and timber reinforcement under the rim for strength when bathing or showering
• Made in Britain, with a 30 or 40-year warranty depending on finish

5mm acrylic or Carronite?

Both are the same shape and size. Carronite is the one to choose if you want the extra rigidity – useful if the bath will double as a shower – and a bath that stays warm for longer.

Specification

Panels for the Integra

Panels are sold separately, in both finishes:

You only need the end panel if one end of the bath is open, as in a corner layout. A bath fitted into an alcove between two walls needs the front panel alone.

Before you order

• Measure the recess at the back, the middle and the front. Walls are rarely square, and the bath has to fit the narrowest measurement.

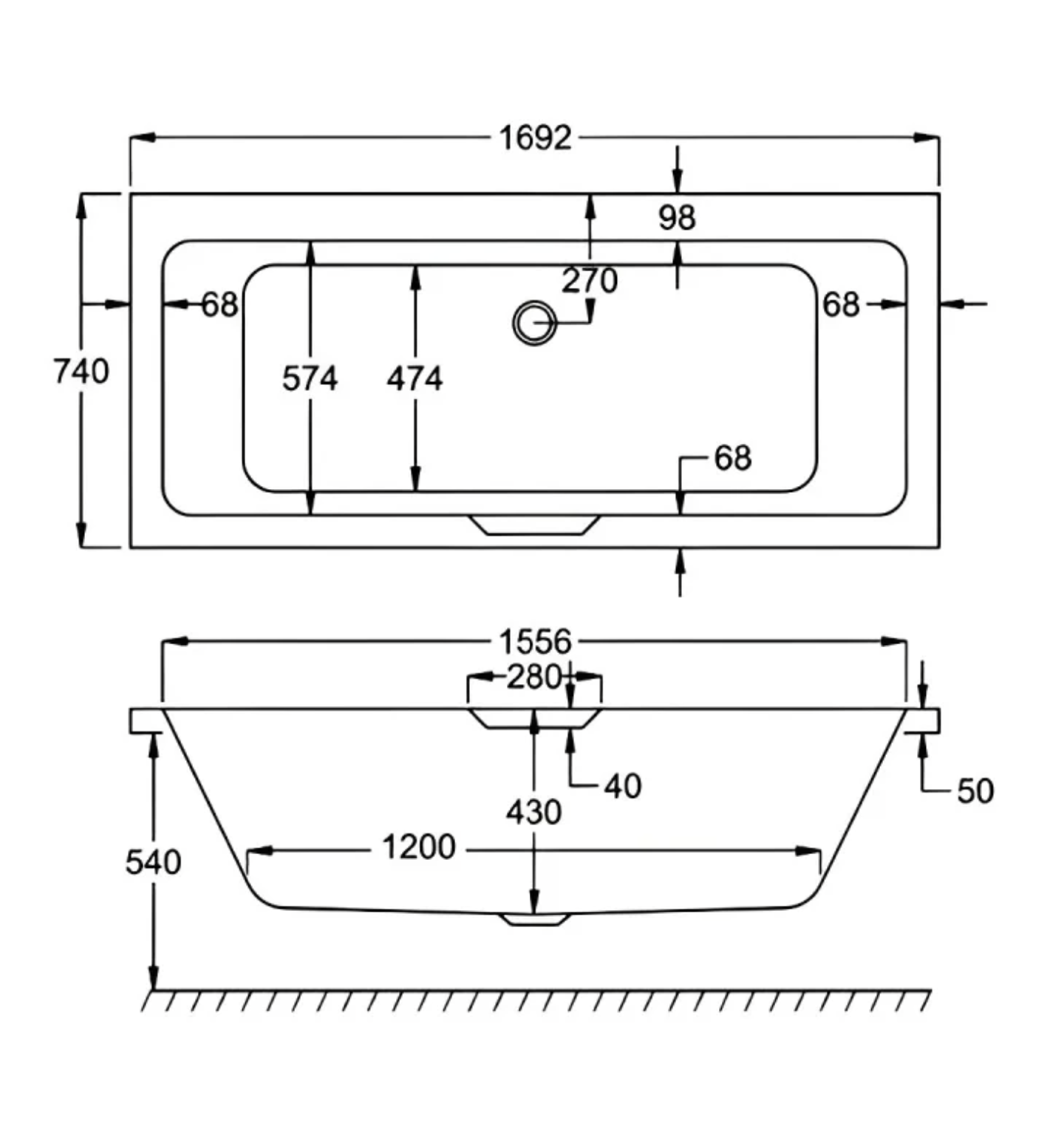

• Check the route in. At 1692 x 740mm the bath has to pass through doorways, round landings and up the stairs – measure any tight turn before delivery day.
• Taps, waste and panels are sold separately.
• Think about the floor. Full to capacity, the Integra holds 190kg of water before anyone gets in, so the floor underneath needs to be sound.

Fitting tips

Install the bath with Carron's installation kit, levelled so the rim sits at 540mm – the height the panels are made to. Fill the bath with water before running the silicone seal along the walls, so the joint cures with the bath at its heaviest and won't pull away the first time someone gets in.

Downloads

Carron Integra Double Ended technical data sheet
