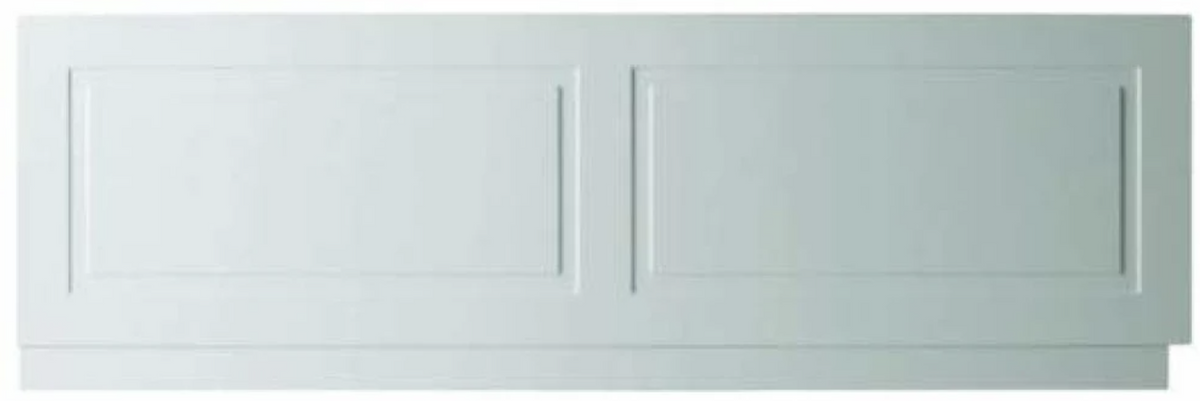

Kartell K-VIT Astley Bath Front Panel - 1700mm or 1800mm (FUR530AS)

Kartell K-VIT Astley Bath Front Panel – 1700mm or 1800mm (FUR530AS)

The front panel for a straight bath, with the same recessed shaker panel as the Astley furniture. Choose your size and colour above.

Why It Matters

A bath panel is the largest flat surface in most bathrooms after the walls and the floor, and a plain white acrylic one undoes the effect of everything else in the room. This one is made to match the Astley vanity, WC and side units — same panelled front, same finish — so the bath reads as part of the scheme rather than a leftover.

Measure Your Bath Length

This is the measurement that matters here. A 1700mm and an 1800mm bath look almost identical once fitted, and the panels are not interchangeable, so measure rather than assume.

• 1700mm panel is 1695mm wide · 1800mm panel is 1795mm wide

Both are fractionally under the nominal size so they sit within the bath frame rather than fouling on it, and both stand 480mm high with a 100mm recessed plinth at the base, which lets the panel sit back at floor level and cope with a floor that is not perfectly true.

Do You Also Need an End Panel?

Only if one end of your bath is open to the room. A bath in an alcove needs this front panel alone. If an end is exposed, add a matching end panel — sized 700mm, 750mm or 800mm by the width of the bath, which is a different measurement entirely.

Specifications

• Product Codes: FUR530AS / FUR531AS matt grey, FUR510AS / FUR511AS matt white
• Range: Astley
• Sizes: 1700mm (W 1695) or 1800mm (W 1795)
• Height: 480 mm with 100mm plinth
• Colours: Matt Grey (RAL 7015), Matt White
• Weight: 13.44 kg (1700mm) / 13.92 kg (1800mm)
• Material: MDF
• Guarantee: 5 years
• Made in: Britain

Data Sheets and Fitting Instructions

• 1700mm data sheet · 1700mm fitting instructions
• 1800mm data sheet · 1800mm fitting instructions

Worth reading the fitting instructions before you start — the panel needs trimming to height and fixing to a frame, and it is easier to plan that than discover it halfway through.
