Kartell K-VIT Astley Bath End Panel - 700mm, 750mm or 800mm (FUR532AS)

Kartell K-VIT Astley Bath End Panel – 700mm, 750mm or 800mm (FUR532AS)

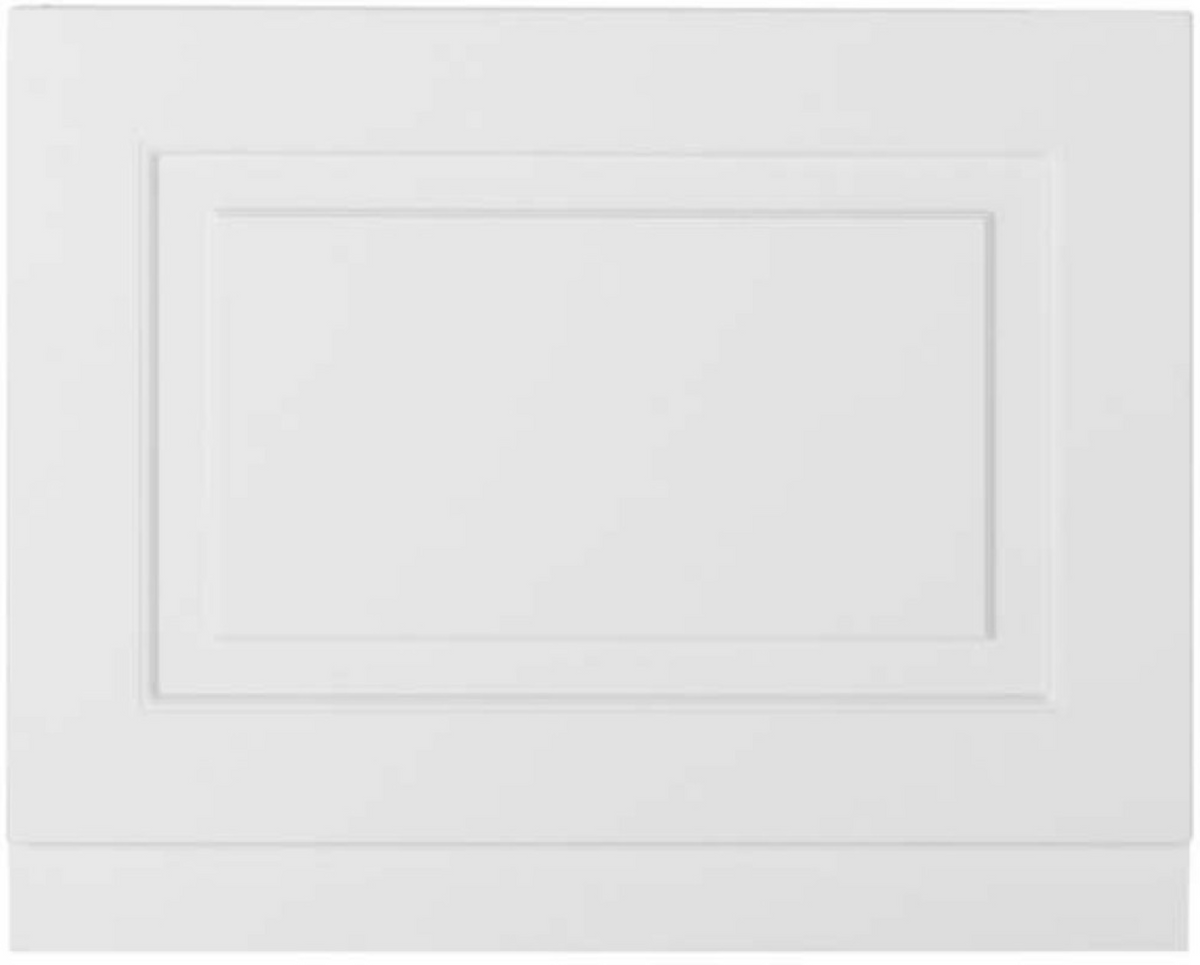

The end panel for a straight bath, with the same recessed shaker panel as the Astley front panels and furniture. Choose your size and colour above.

Do You Need One?

Only if one end of your bath is open to the room. A bath fitted between three walls needs a front panel alone; a bath with one end exposed needs both, or that end stays a bare acrylic shell.

Measure the Width, Not the Length

This is the mistake to avoid. An end panel is sized to the width of the bath — 700mm, 750mm or 800mm — which is a completely different measurement from the 1700mm or 1800mm length that determines the front panel. Having a 1700mm bath tells you nothing about which end panel you need.

• 700mm panel is 680mm wide · 750mm is 730mm · 800mm is 780mm

Each is fractionally under the nominal size so it fits within the bath frame, and all three stand 480mm high with a 100mm plinth, matching the front panels exactly so the two line up where they meet at the corner.

Specifications

• Product Codes: FUR532AS / FUR533AS / FUR534AS matt grey, FUR512AS / FUR513AS / FUR514AS matt white
• Range: Astley
• Sizes: 700mm (W 680), 750mm (W 730) or 800mm (W 780)
• Height: 480 mm with 100mm plinth
• Colours: Matt Grey (RAL 7015), Matt White
• Weight: 5.76 – 6.24 kg depending on size
• Material: MDF
• Guarantee: 5 years
• Made in: Britain

Data Sheets and Fitting Instructions

• 700mm data sheet · 700mm fitting instructions
• 750mm data sheet · 750mm fitting instructions
• 800mm data sheet · 800mm fitting instructions
