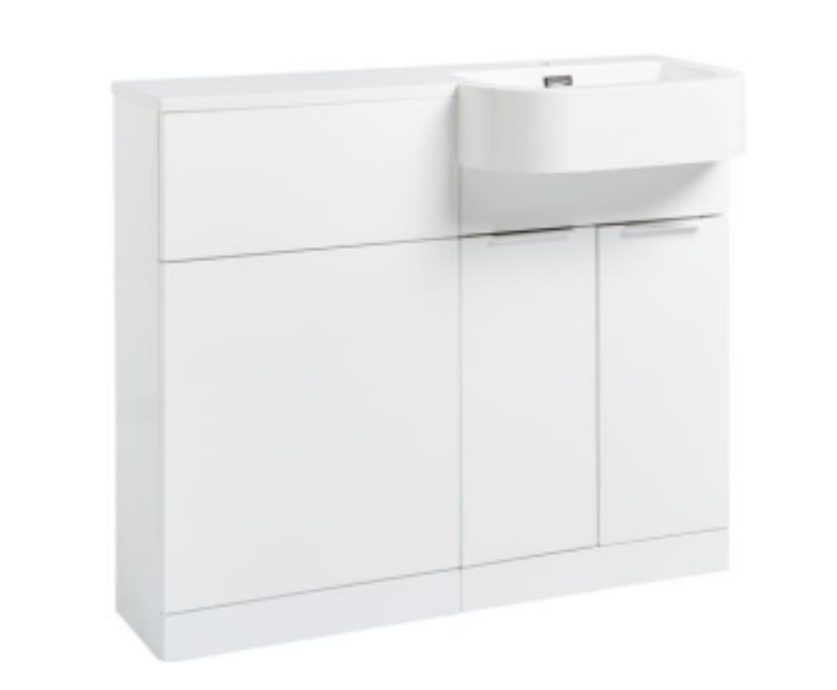

Kartell K-VIT Fusion 1010mm P-Shaped 2 Door Furniture Pack, Right Hand - White Gloss

Kartell K-VIT Fusion 1010mm P-Shaped 2 Door Furniture Pack, Right Hand – White Gloss

A complete bathroom in a single 1010mm run — vanity unit, WC unit, P-shaped basin and concealed cistern, all included. Designed for the bathroom where a separate basin and toilet simply will not fit.

Why a P-Shaped Pack

The basin is the clever part. Rather than a rectangle sitting on a box, the P-shaped ceramic curves out over the vanity and then tapers back across the WC unit, so you get a full sized bowl where you stand at it and a slim worktop where you do not. The whole run is only 400mm deep.

In a small bathroom or a cloakroom that is usually the difference between fitting a proper basin and settling for a corner one.

Choose Your Handles

Units are supplied without handles, so pick your finish from the dropdown above and it arrives complete. Four options: chrome, black, brushed brass or brushed nickel. Choosing "Without Handles" is fine too if you already have your own.

What's Included

• FU500DO-W — 500mm two door P basin unit, soft close, one internal shelf
• FUS1010RH — 1010mm right hand P-shaped ceramic basin
• FU500WC-W — 500mm WC unit, concealing the cistern and pipework
• ACC001N — dual flush concealed cistern, front and top access

Right Hand or Left Hand?

This is the right hand version: the basin sits on the right as you face the furniture, with the WC unit on the left. A left hand version is also available. Which you need depends on your soil pipe position and the room layout, so check against your plumbing before ordering — the basin is moulded one way and cannot be reversed.

Specifications

• Range: Fusion
• Overall width: 1010 mm
• Depth: 400 mm
• Colour: White Gloss (also available in Matt Dark Grey)
• Doors: Soft close
• Handles: Not supplied — choose your finish above
• Basin: P-shaped ceramic, 1010 × 400mm, single tap hole
• Cistern: Dual flush, front and top access, included
• Guarantee: 2 years

Please note: a back to wall WC pan, seat, flush plate, tap and waste are not included and are sold separately.

Overflow Cover

The basin comes with a chrome overflow cover as standard. Matching black, brushed brass and brushed nickel covers are available separately on this site if you are running another finish elsewhere in the room.

Technical Data Sheets

This pack is made up of three drawn components, each with its own dimension sheet:

• P basin unit (FU500DO-W) data sheet
• 1010mm right hand basin (FUS1010RH) data sheet
• WC unit (FU500WC-W) data sheet
