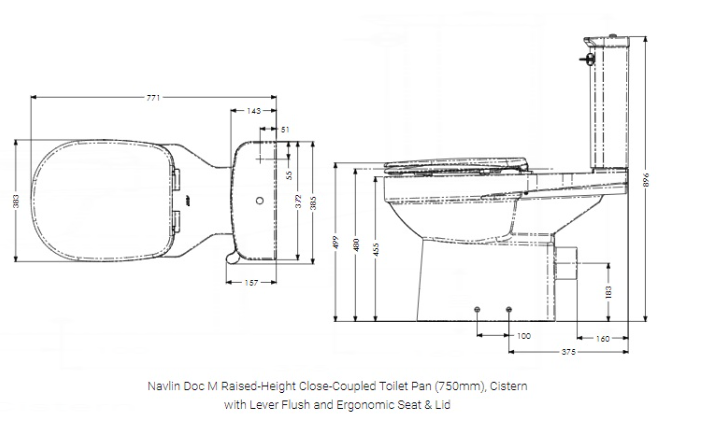

AKW Navlin Doc M Raised Height Close Coupled Toilet Pan 750mm Projection (23590)

The AKW Navlin Doc M Raised Height Close Coupled Toilet Pan in 750mm projection is designed specifically for accessible and inclusive bathroom installations, combining safety, comfort, and Doc M compliance in one robust ceramic pan. The extended 750mm projection provides additional space to facilitate safe and comfortable side transfers from a wheelchair, making it the ideal choice for Doc M compliant accessible toilet facilities.

With a raised seat height of 480mm (with seat fitted), the pan makes sitting down and standing up significantly easier for wheelchair users and those with limited mobility, promoting greater independence in the bathroom.

Built to support up to 400kg (60 stone), the Navlin Doc M pan is suitable for a wide range of users and is equally at home in domestic adaptations, care homes, hospitals, and commercial accessible toilet facilities. The rimless direct flush design reduces bacteria build-up and makes cleaning quicker and easier — an important consideration in any care or healthcare environment. Rounded edges and corners throughout minimise the risk of injury during use.

The overflow pipe is positioned 300mm above the pan rim, ensuring full compliance with current UK water regulations. Installation is straightforward thanks to the horizontal outlet waste connection, and a fixing kit is included as standard.

Want to complete your setup in one order? Simply select your preferred cistern and toilet seat from the options below.

What's included:

• 1 x ceramic toilet pan (750mm projection)
• 1 x fixing kit

Cistern Options (select at checkout):

• No cistern required

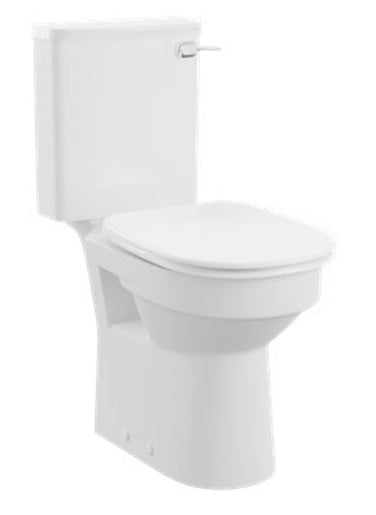

• Navlin Doc M Cistern with Lever Flush & Screw-Down Lid (SKU: 23594)

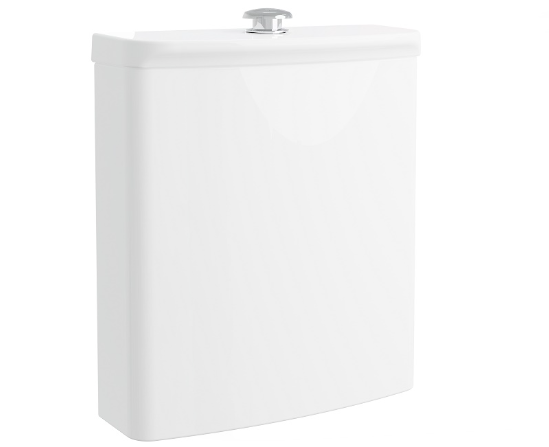

• Navlin Cistern with Raised Push Button Flush (SKU: 23574)

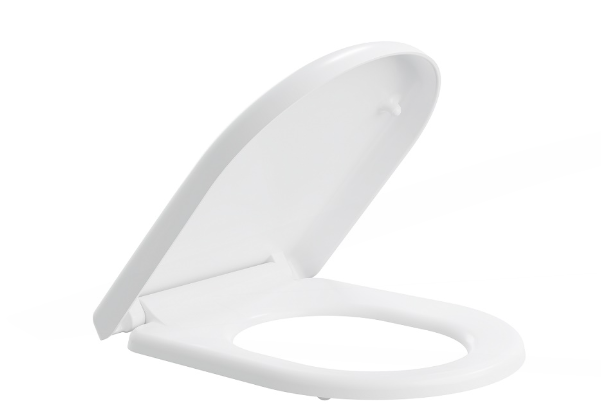

Toilet Seat Options (select at checkout):

• No seat required

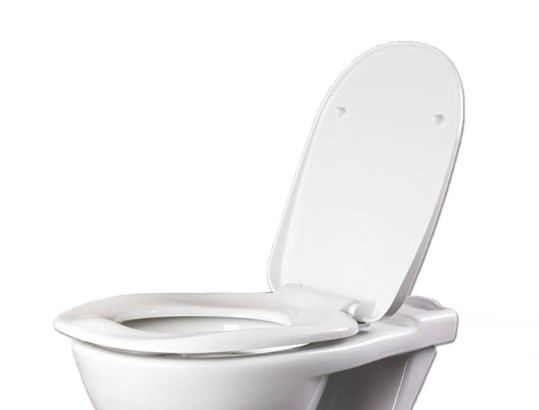

• Ergonomic Toilet Seat with Lid – White (SKU: 23122)

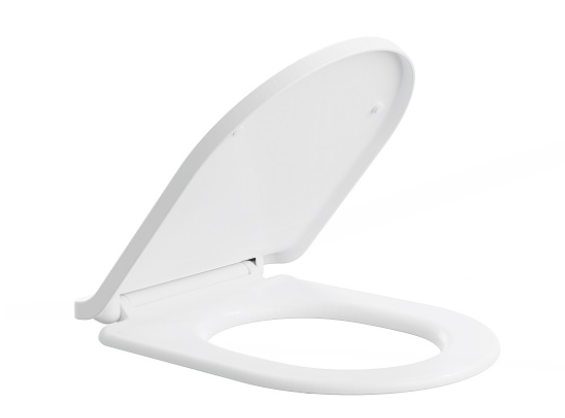

• Carbamide Soft-Close Toilet Seat with Lid (SKU: 23588)
• PP Soft-Close Toilet Seat with Lid (SKU: 23589)

Key Features:

• Doc M compliant raised height design
• 750mm projection — ideal for wheelchair side transfers
• Raised seat height of 480mm with seat fitted
• High weight capacity — supports up to 400kg (60 stone)
• Rimless direct flush design for improved hygiene and easier cleaning
• Rounded edges and corners for enhanced safety
• Horizontal outlet waste connection for straightforward installation
• Overflow pipe 300mm above pan rim — compliant with current water regulations
• Supplied in recyclable, sustainable packaging
• Ceramic construction
• Product code: 23590

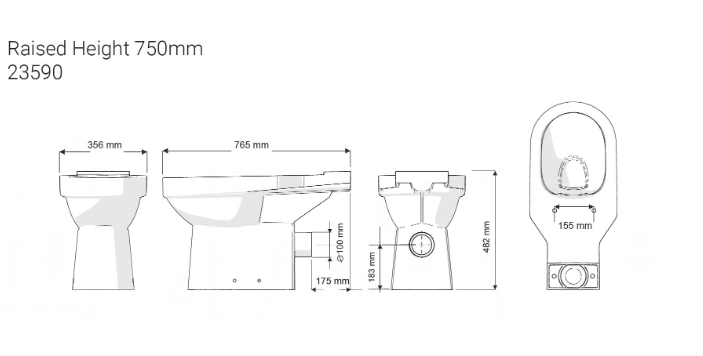

Specifications:

• Material: Ceramic
• Projection: 750mm
• Height: 480mm (with toilet seat fitted)
