Contour P12 Shower Waste Pump With Push Fit Fittings (05PP01)

The Contour P12 Shower Waste Pump is a premium solution for shower and wet room installations where gravity drainage simply isn't an option. Using an innovative peristaltic pump design, the P12 operates near-silently, requires zero maintenance, and comes backed by a generous 5-year warranty — making it one of the most reliable shower waste pumps available in the UK.

Unlike conventional shower pumps, the P12 features a variable speed transformer, allowing you to precisely match the pump speed to your shower's flow rate for consistently efficient drainage. Water passes through a sealed internal tube, dramatically reducing the risk of blockages and ensuring long-term, trouble-free performance.

Key Features

• Near-silent operation — peristaltic pump technology keeps noise to an absolute minimum
• Variable speed control — adjustable transformer matches pump output to shower flow rate
• Sealed tube design — minimises blockage risk and reduces the need for servicing
• Maintenance-free — no routine servicing required, ever
• 5-year manufacturer's warranty — complete peace of mind as standard
• Energy-efficient 24v DC motor — low running costs throughout its lifetime
• Quick-release wall bracket — included wall plate makes installation and removal fast and simple
• Not handed — can be installed in either orientation for maximum flexibility
• Retro-fit compatible — suitable for new builds and existing shower installations

Compatibility

The P12 is suitable for both electric showers and mixer showers. Please note that mixer shower installations require an additional flow switch (not included). However, the P12 can be directly linked to the following models without a flow switch:

• Redring Selectronic Premier WP
• Mira Advance ATL Flex Extra
• Triton Omnicare

What's in the Box

• Contour P12 Shower Waste Pump
• 1 × Flow switch
• 2m length of 22mm flexible pipe
• Fitting and user instructions

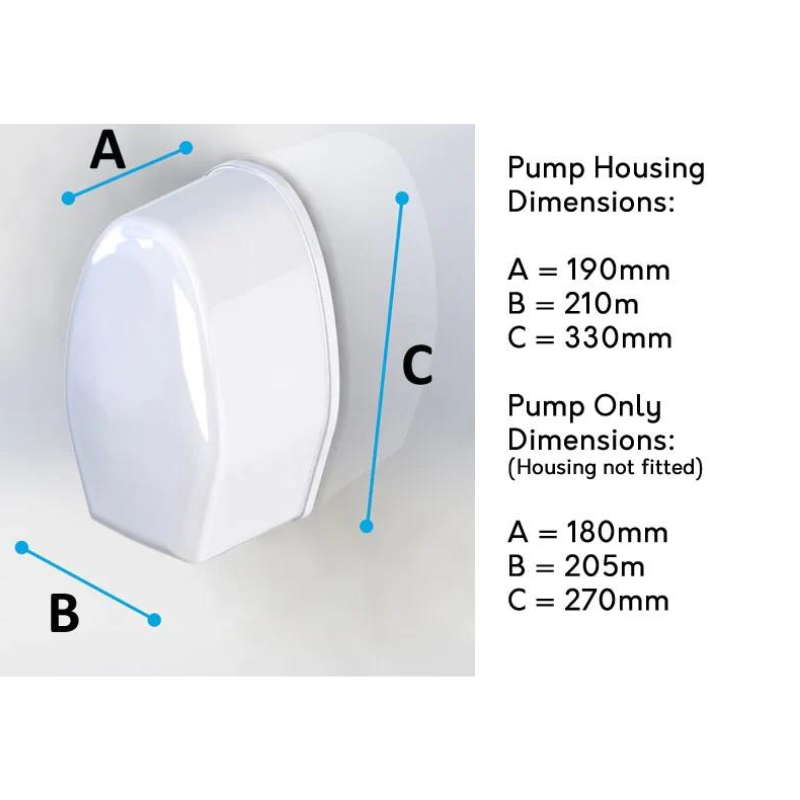

Technical Specifications

Installation Notes

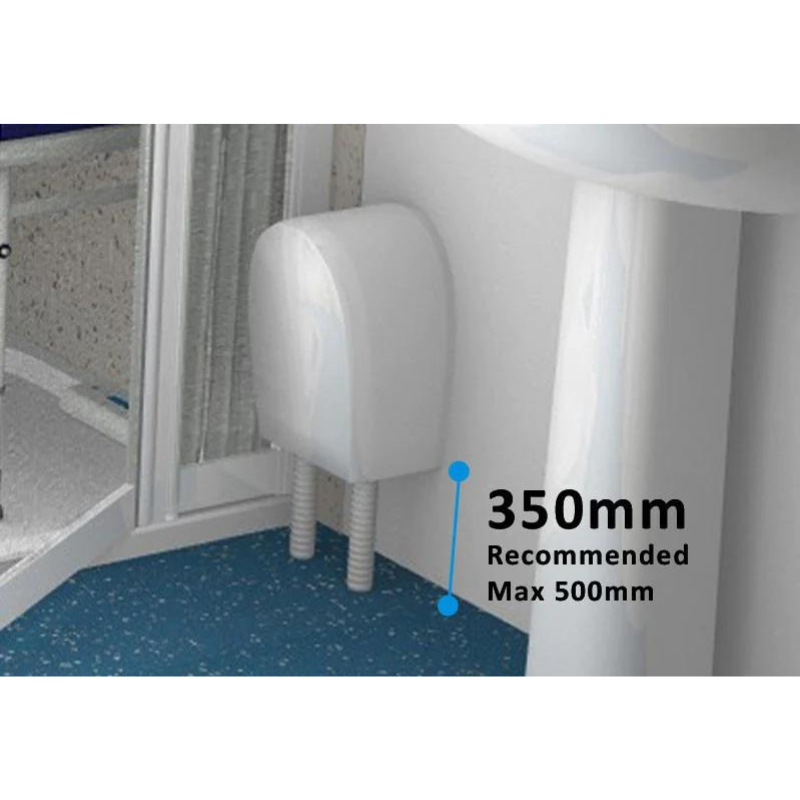

For optimal performance at the full 12 litres per minute, the pump should be installed no higher than 350mm from the top of the shower waste outlet to the underside of the wall plate. Installation up to a maximum of 500mm is possible, but may reduce overall pump performance.

Important: The electrical control box carries an IP65 rating, making it suitable for bathroom environments. However, neither the pump nor the control box should ever be installed directly within the shower enclosure or wet area.
