Name: Kartell K-VIT K-Rail 25mm Straight Towel Rail – Chrome (All Sizes)
Brand: Kartell
SKU: 25STR308C
Price: 62.0 GBP
Availability: InStock

Description

Kartell K-VIT K-Rail 25mm Straight Towel Rail – Chrome (All Sizes)

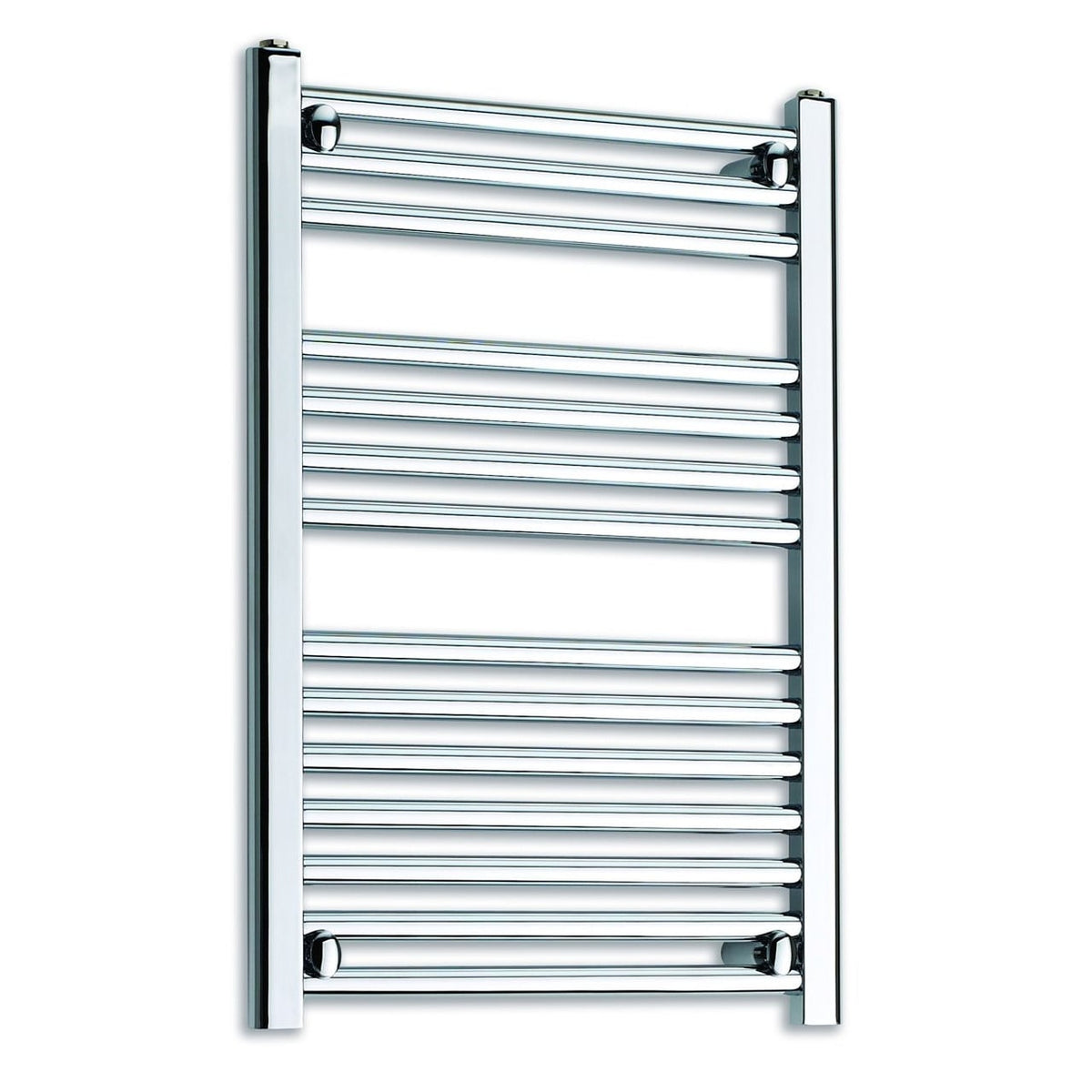

The K-Rail 25mm Straight is a sturdier version of Kartell's classic ladder towel rail: straight, round 25mm bars – a little chunkier than the standard 22mm K-Rail – between two slim D-shaped uprights, arranged in groups with open gaps where folded towels can hang. It is a simple, practical design with a lot of hanging space.

A bright chrome finish suits almost any bathroom and matches chrome taps, showers and accessories.

It comes in 18 sizes – 800mm, 1000mm, 1200mm or 1600mm high in 300mm, 400mm, 500mm or 600mm widths, plus 1800mm high in 500mm or 600mm widths. Choose your size from the first dropdown.

Matching valves

Valves are needed to connect any towel rail to the heating, and are not included as standard. To save buying them separately, the second dropdown lets you add a pair of chrome angled, corner or straight valves. Angled valves are for pipes coming out of the wall; straight valves are for pipes coming up through the floor. Choose “Towel Rail Only” if you already have valves.

Sizes and heat output

Size (H x W)	Code	Width	Height	Output (Δt60)	Approx. watts	Bars	Tapping centres	Weight	Barcode (EAN)
800 x 300mm	25STR308C	300mm	800mm	1106 BTU	324W	14	255mm	4.8kg	5055681421588
800 x 400mm	25STR408C	400mm	800mm	1272 BTU	373W	14	355mm	6.62kg	5055681421625
800 x 500mm	25STR508C	500mm	800mm	1506 BTU	441W	14	455mm	7.3kg	5055681421663
800 x 600mm	25STR608C	600mm	800mm	1746 BTU	512W	14	555mm	8.16kg	5055681421717
1000 x 300mm	25STR310C	300mm	1000mm	1319 BTU	387W	16	255mm	6.05kg	5055681421595
1000 x 400mm	25STR410C	400mm	1000mm	1516 BTU	444W	16	355mm	7.3kg	5055681421632
1000 x 500mm	25STR510C	500mm	1000mm	1781 BTU	522W	16	455mm	8.54kg	5055681421670
1000 x 600mm	25STR610C	600mm	1000mm	2060 BTU	604W	16	555mm	9.98kg	5055681421724
1200 x 300mm	25STR312C	300mm	1200mm	1605 BTU	470W	20	255mm	7.2kg	5055681421601
1200 x 400mm	25STR412C	400mm	1200mm	1845 BTU	541W	20	355mm	9.02kg	5055681421649
1200 x 500mm	25STR512C	500mm	1200mm	2175 BTU	637W	20	455mm	10.18kg	5055681421687
1200 x 600mm	25STR612C	600mm	1200mm	2524 BTU	740W	20	555mm	12.1kg	5055681421731
1600 x 300mm	25STR316C	300mm	1600mm	2122 BTU	622W	26	255mm	9.6kg	5055681421618
1600 x 400mm	25STR416C	400mm	1600mm	2439 BTU	715W	26	355mm	11.23kg	5055681421656
1600 x 500mm	25STR516C	500mm	1600mm	2873 BTU	842W	26	455mm	12.77kg	5055681421694
1600 x 600mm	25STR616C	600mm	1600mm	3332 BTU	977W	26	555mm	14.5kg	5055681421748
1800 x 500mm	25STR518C	500mm	1800mm	3302 BTU	968W	31	455mm	14.4kg	5055681421700
1800 x 600mm	25STR618C	600mm	1800mm	3830 BTU	1123W	31	555mm	16.51kg	5055681421755

Choosing a size

Taller rails give more hanging space and more heat; wider rails add a little more heat and room for bigger bath towels. The 800mm heights suit cloakrooms, en-suites and short walls, while the taller sizes suit family bathrooms. Outputs range from 1106 to 3830 BTU depending on size.

If the towel rail will be the only heat in the room, check its output against what the room needs – a BTU calculator will give you a figure from the room's size, windows and outside walls. Kartell quote the output at Δt60, a standard test temperature. Many modern boilers, and especially heat pumps, run cooler than that, so the heat you actually get may be lower than the figure shown.

Fitting

The K-Rail is supplied with everything needed to fix it to the wall (wall brackets, plugs and air vent), and is suitable for standard central heating systems with a maximum working pressure of 7 bar. Each rail is pressure tested to 10 bar.

The pipe connections are at the bottom of each upright. The distance between them (the “tapping centres”) is 45mm less than the width of the rail: 255mm on the 300mm wide sizes, 355mm on the 400mm wide sizes, 455mm on the 500mm wide sizes and 555mm on the 600mm wide sizes. If you are replacing an existing towel rail, measure between your pipes first – if the spacing does not match, the pipework will need adjusting. Make sure the wall can take the weight once the rail is full of water and towels: solid walls are straightforward, but stud and plasterboard walls need suitable heavy-duty fixings or a timber support behind the board.

Looking after the finish

Wipe over with a soft, damp cloth and dry to avoid water marks. Avoid abrasive pads, bleach and limescale removers, which can damage chrome plating.

Specification

Range: Kartell K-VIT K-Rail 25mm Straight
Colour: Chrome
Finish: Chrome plated
Material: Mild steel
Mounting: Wall mounted
Heights: 800mm, 1000mm, 1200mm, 1600mm, 1800mm
Widths: 300mm, 400mm, 500mm, 600mm (1800mm height in 500mm and 600mm only)
Bars: 25mm round – 14 on the 800mm height, 16 on the 1000mm height, 20 on the 1200mm height, 26 on the 1600mm height, 31 on the 1800mm height
Uprights: D-shaped, 40 x 30mm
Tapping centres: 255mm (300mm wide), 355mm (400mm wide), 455mm (500mm wide), 555mm (600mm wide)
Output: 1106 to 3830 BTU at Δt60, depending on size
Maximum working pressure: 7 bar (tested to 10 bar)
Fixings: Supplied
Valves: Optional matching chrome valves (see dropdown), or sold separately
Guarantee: 5 years
