Kartell K-VIT Standard 1700 x 540mm Front Bath Panel for Refine 1700 x 750 – White Gloss (SFP1700540)

Kartell K-VIT Standard 1700 x 540mm Front Bath Panel for Refine 1700 x 750 – White Gloss (SFP1700540)

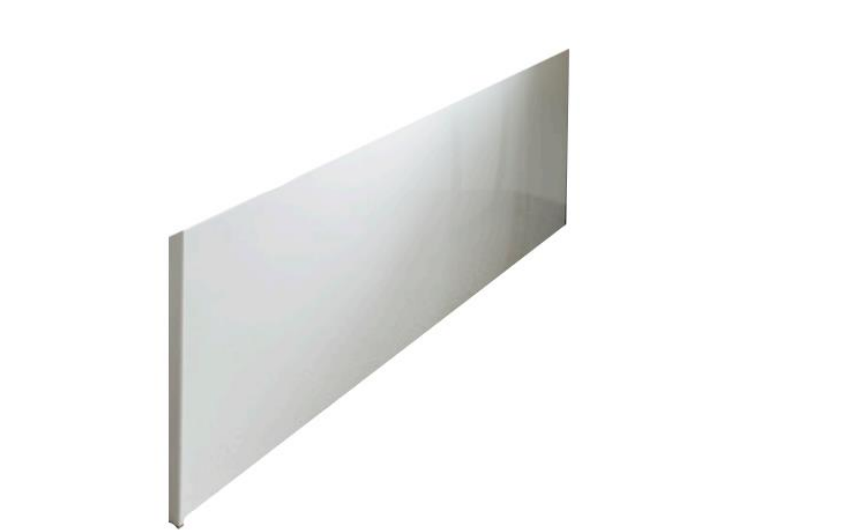

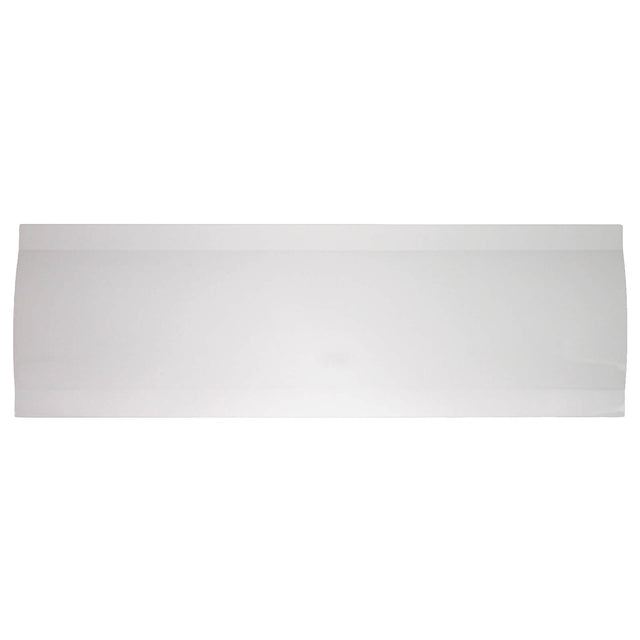

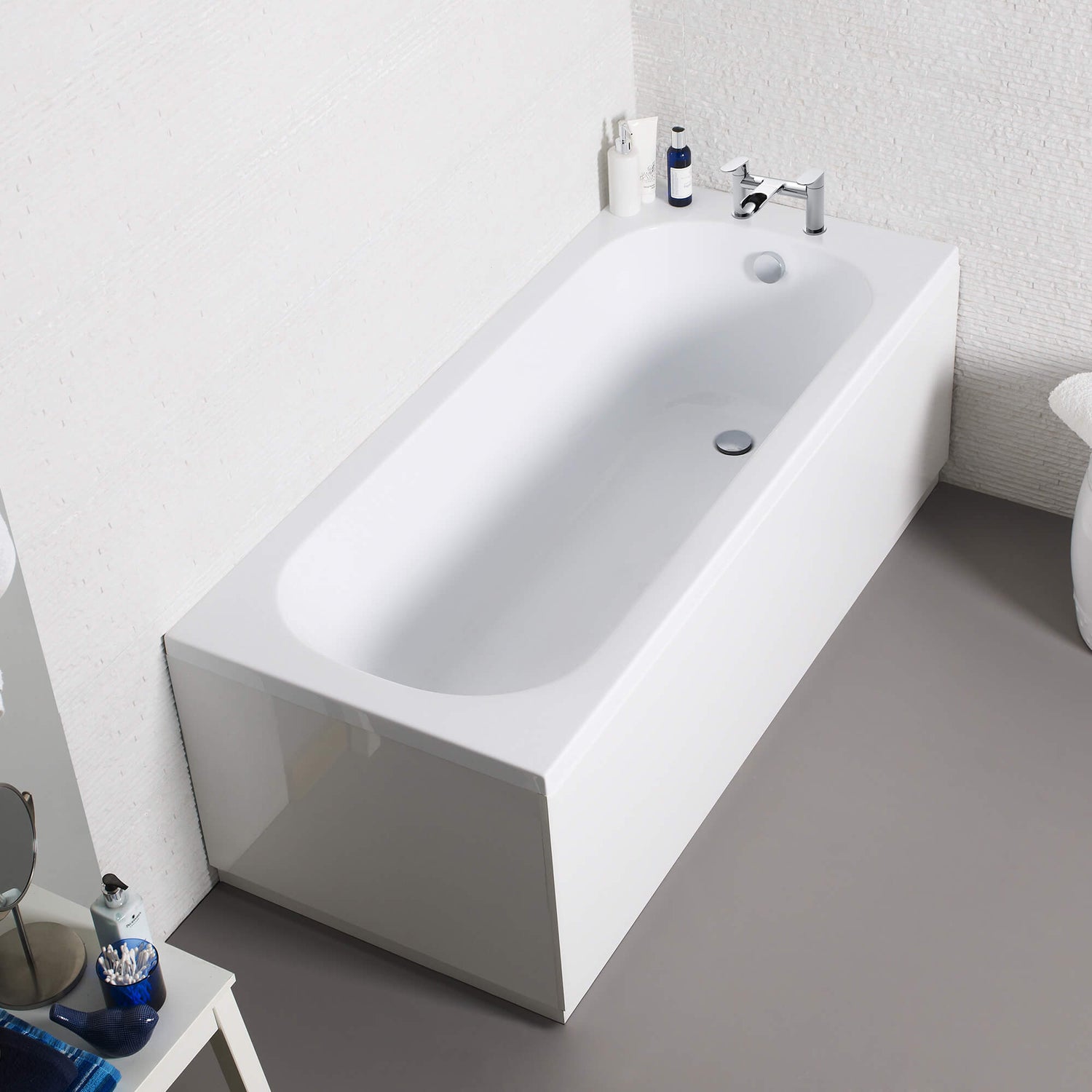

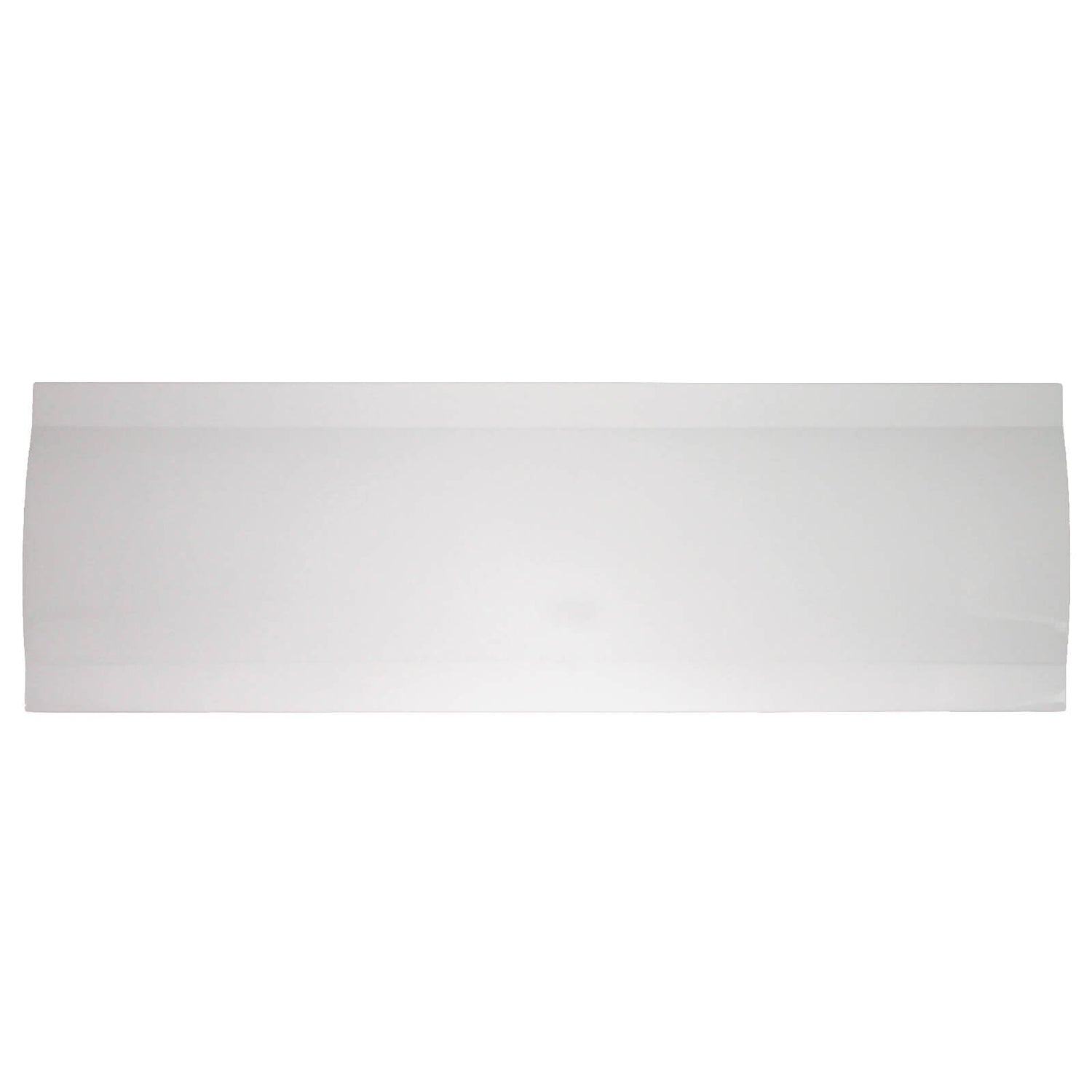

Kartell's standard 1700 x 540mm front bath panel in gloss white acrylic – the taller panel made for the Unity by K-VIT Refine 1700 x 750mm. That bath is 30mm deeper than the other Refine sizes and sits at 540mm rather than 515mm, so it needs this panel rather than the standard 515mm one.

Fits this bath

• Refine 1700 x 750mm (REF1775SE)

Got a 1700 x 700mm bath? You need the 1700 x 515mm panel (SFP1700515) instead – this one would stand 25mm too tall.

Key features

• Gloss white acrylic – wipes clean and matches the bath's finish
• 540mm high – made to the Refine 1700 x 750mm's installed height
• Light and easy to handle at 1.85kg
• 5-year guarantee

Specification

Do you need an end panel too?

Only if one end of the bath is open, as in a corner layout. In an alcove between two walls, the front panel is all you need. If you do need one, the matching end panel is the 750 x 540mm standard end panel (SEP750540).

Fitting tips

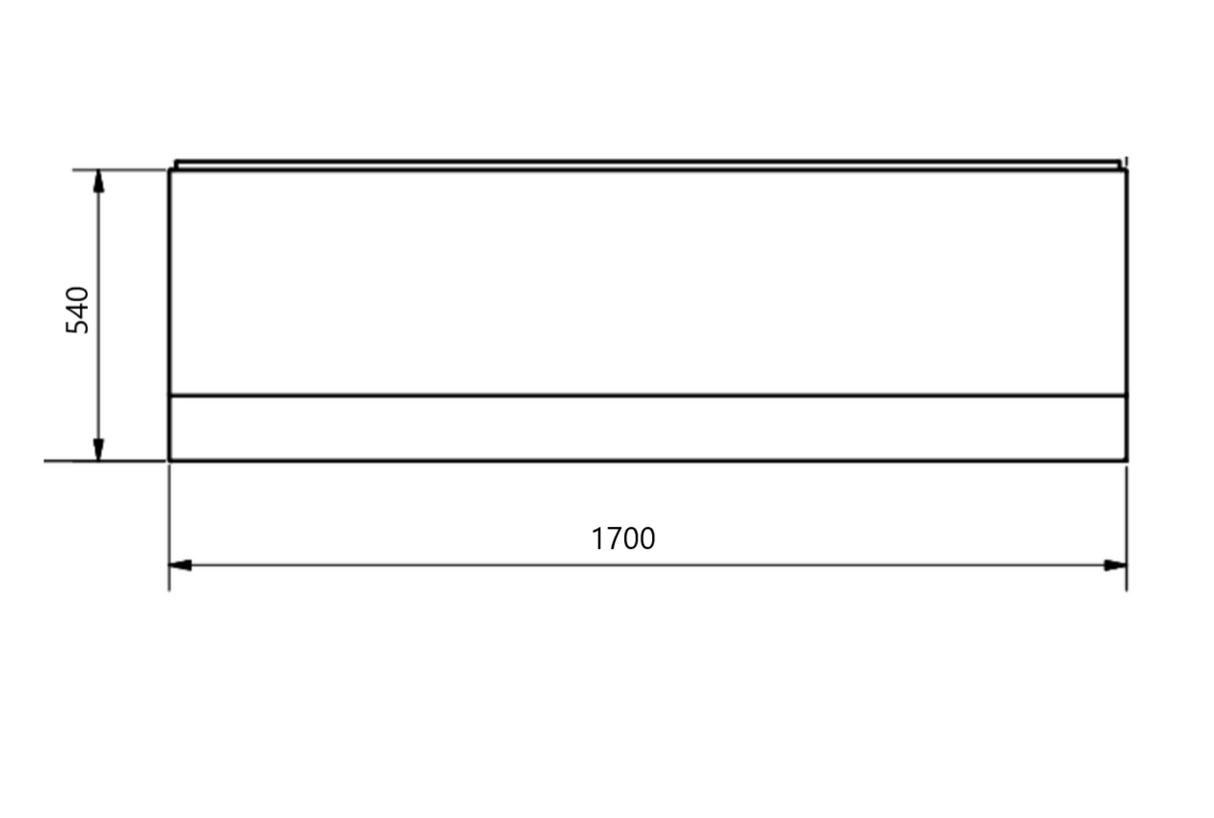

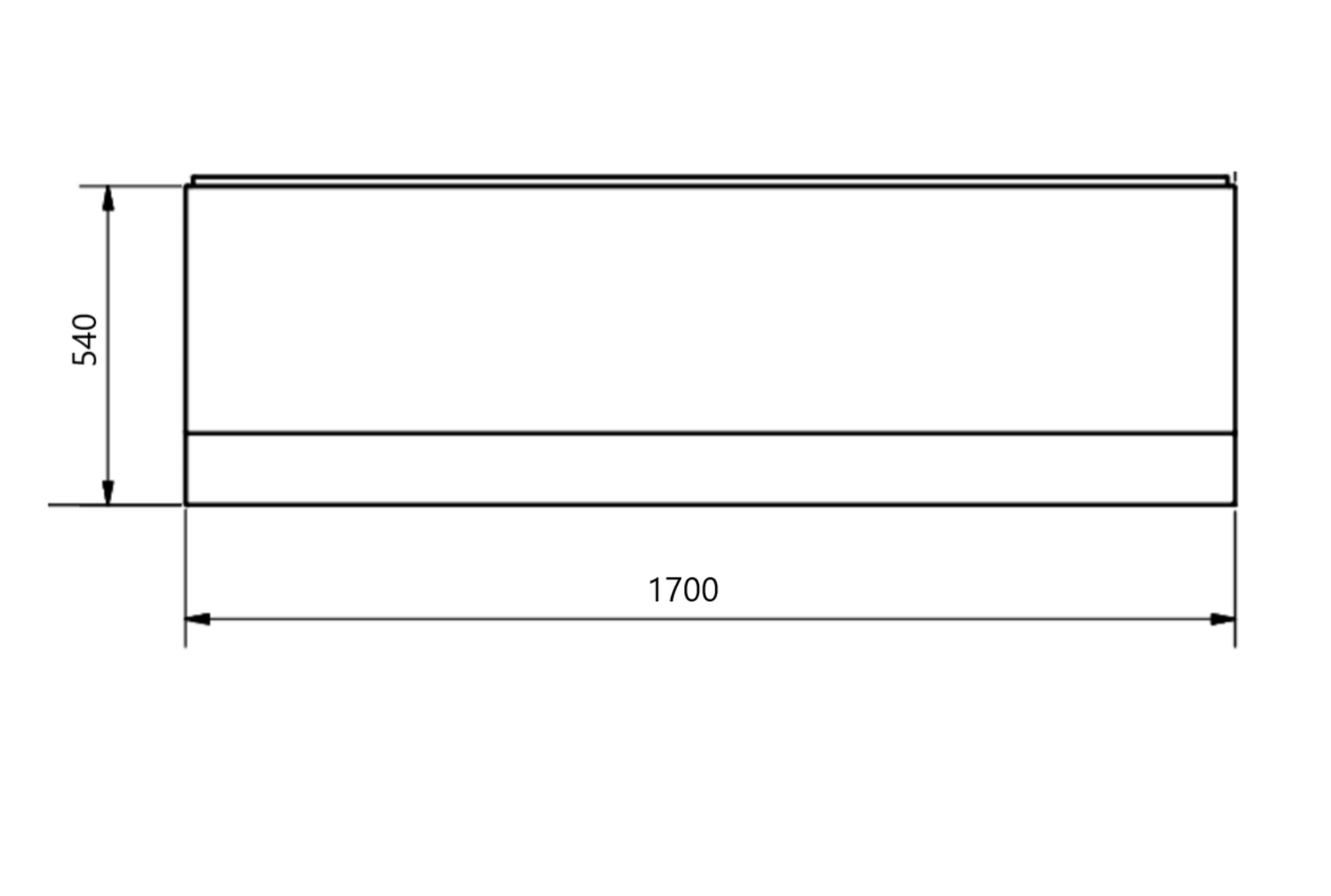

Level the bath at its 540mm installed height before offering up the panel. Fix it so it can be removed again – it's the only way back to the waste and trap if they ever need attention. The data sheet below shows the details.

Downloads

Standard 1700 x 540mm front panel technical data sheet
