AKW 1200 Series Curved Satin Stainless Steel Grab Rail – Choice of Length

AKW 1200 Series Curved Satin Stainless Steel Grab Rail – Choice of Length

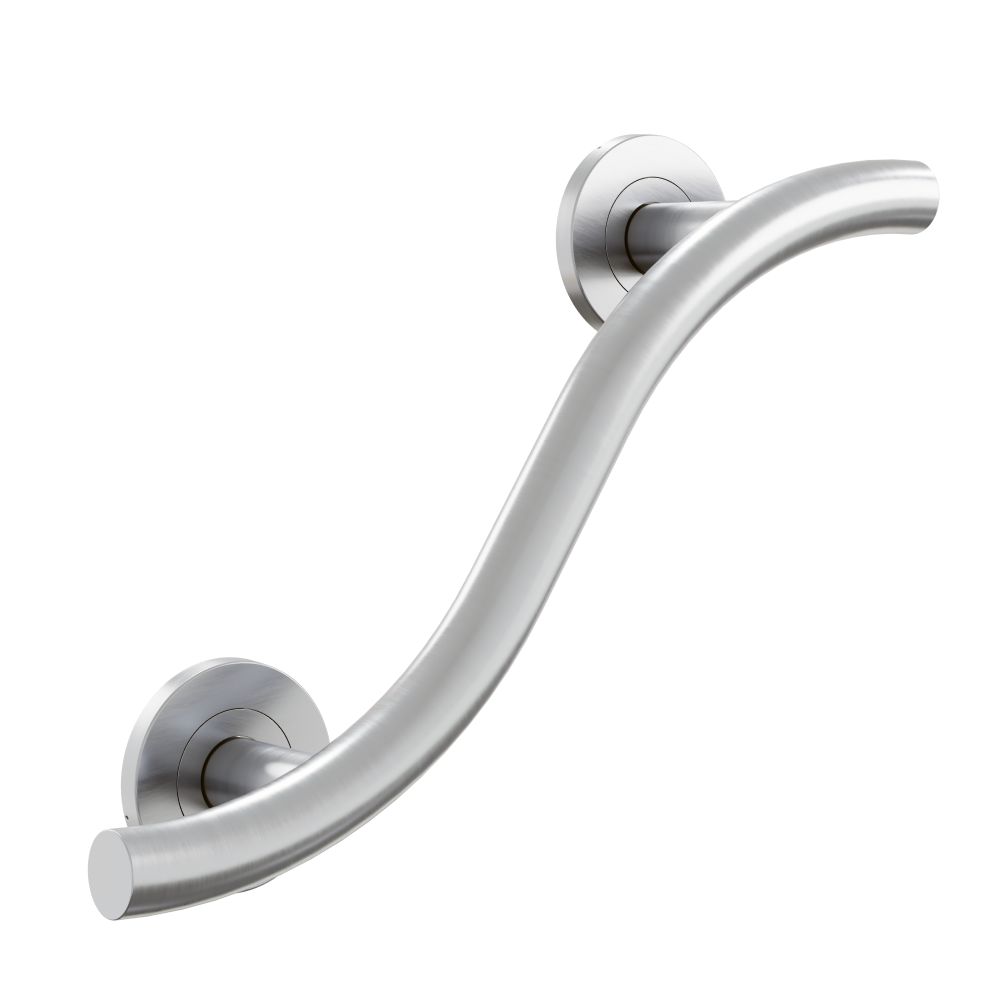

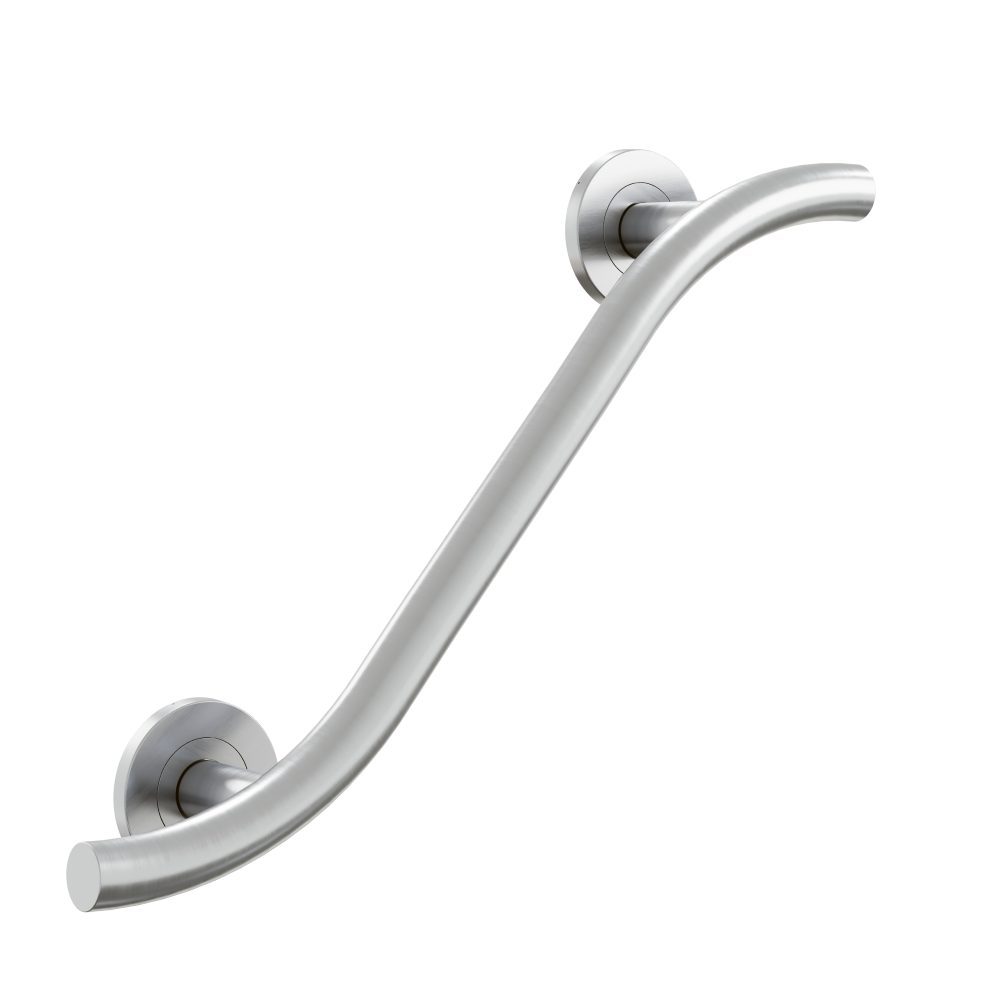

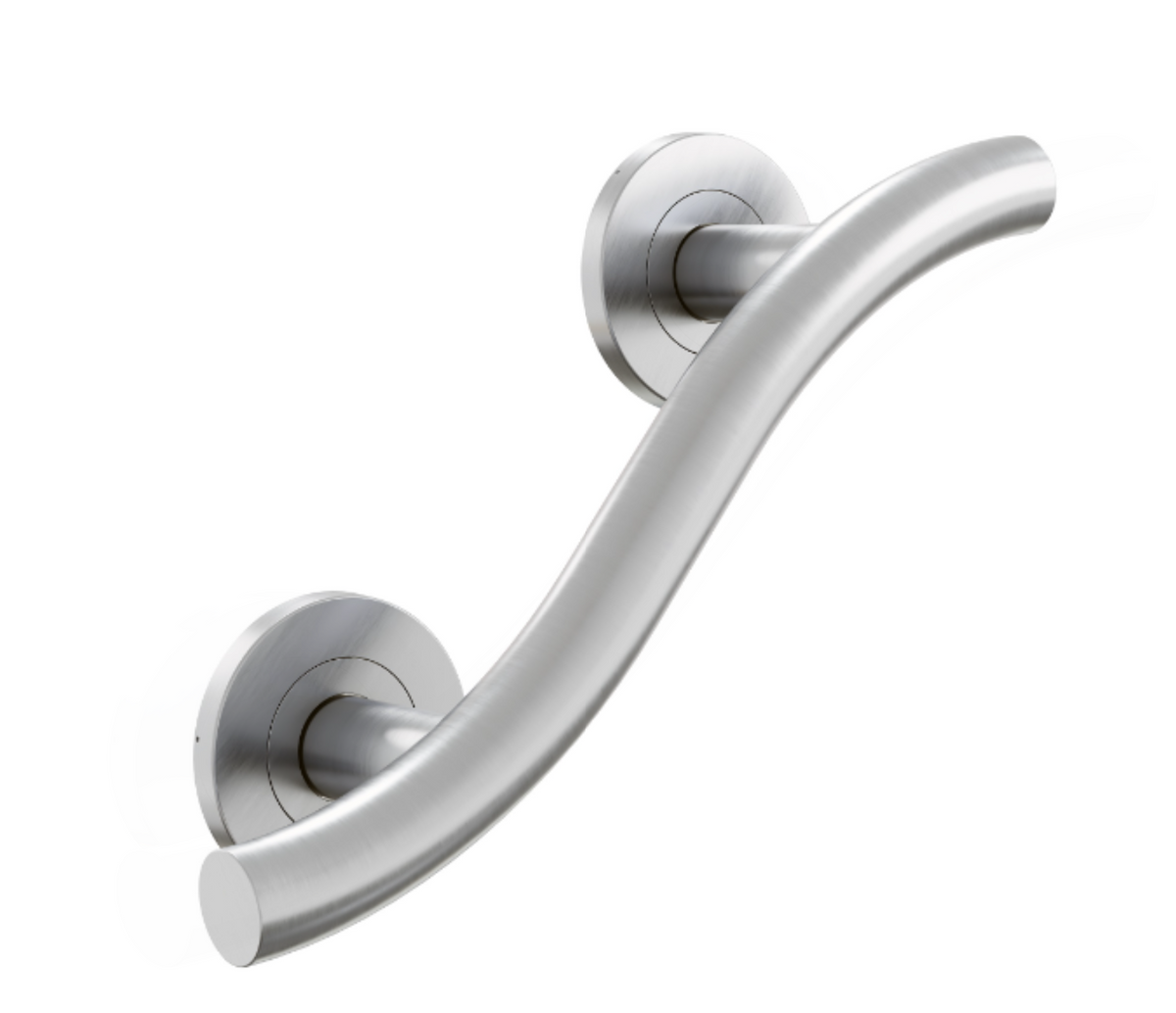

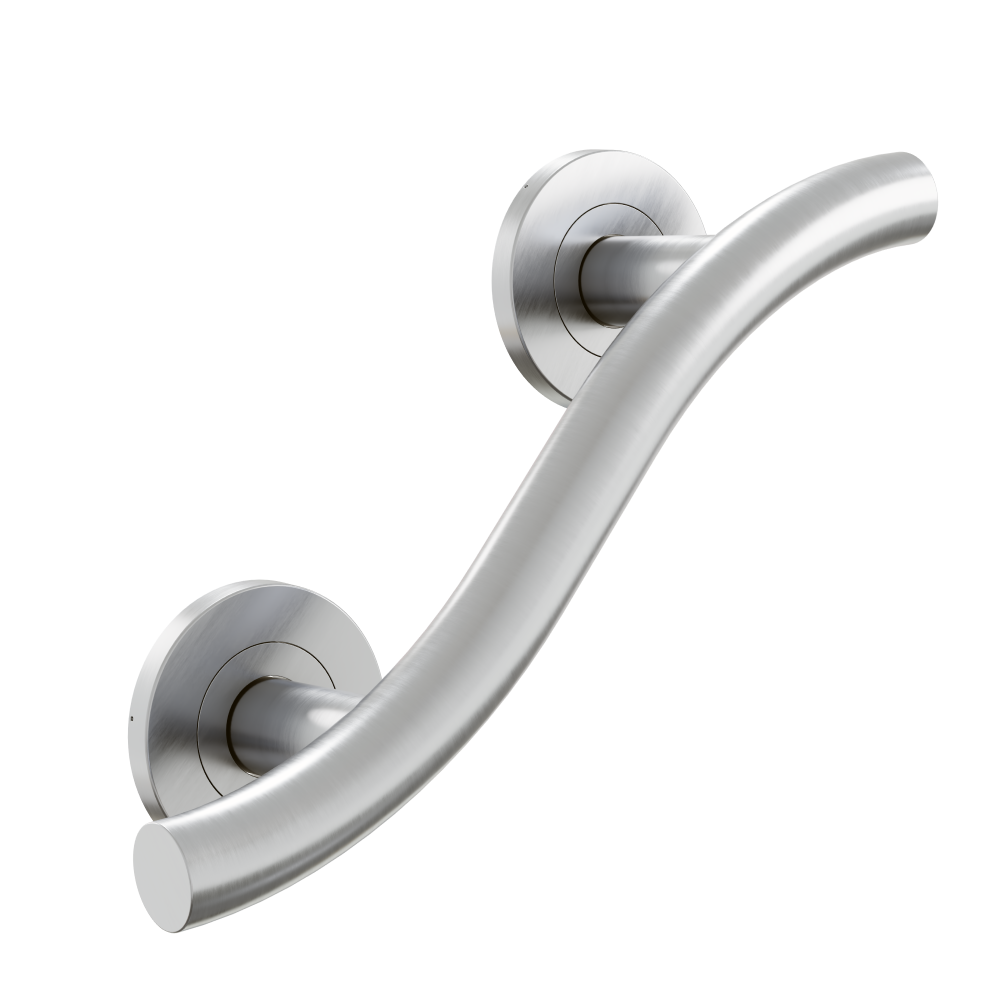

The AKW 1200 Series curved satin stainless steel grab rail is a modern, understated grab rail that looks at home in a contemporary bathroom. A gently curved 32mm tube in satin (brushed) 304 stainless steel gives a secure handhold for moving around the bathroom, stepping in and out of the shower, or sitting down on and standing up from the toilet. Concealed fixings and a minimalist profile mean it blends into the room until it is needed.

Choose from 200mm, 300mm or 400mm lengths. Each rail is tested to a maximum load of 150kg.

Key features & benefits

• Curved 32mm diameter tube – comfortable to grip
• 304 stainless steel for strength and durability
• Satin finish that is easy to keep clean
• Two wall brackets per rail with 9 fixing points per bracket (18 per rail)
• Removable bracket cover hides the fixings and protects them from water, dust and dirt
• 56mm wall clearance
• Maximum load 150kg
• 2 year AKW warranty

Choosing your length

The 200mm rail is a compact handhold for beside a basin or door. The 300mm rail suits most toilet and bath positions, and the 400mm rail gives a longer grip at a shower entrance. If you want a matching straight rail, see the AKW 1200 Series straight satin stainless steel and matt black grab rails.

Installation notes

A grab rail is only as strong as the wall it is fixed to. Always use fixings suited to the wall type (solid masonry, timber stud or plasterboard with noggins or a pattress board) and fit the rail with every fixing point used. Wall fixings are not normally supplied, because the right fixing depends on your wall. Check for hidden pipes and cables before drilling. Where a rail is being fitted for a specific person, an occupational therapist can advise on the best height and position.

Sizes & product codes

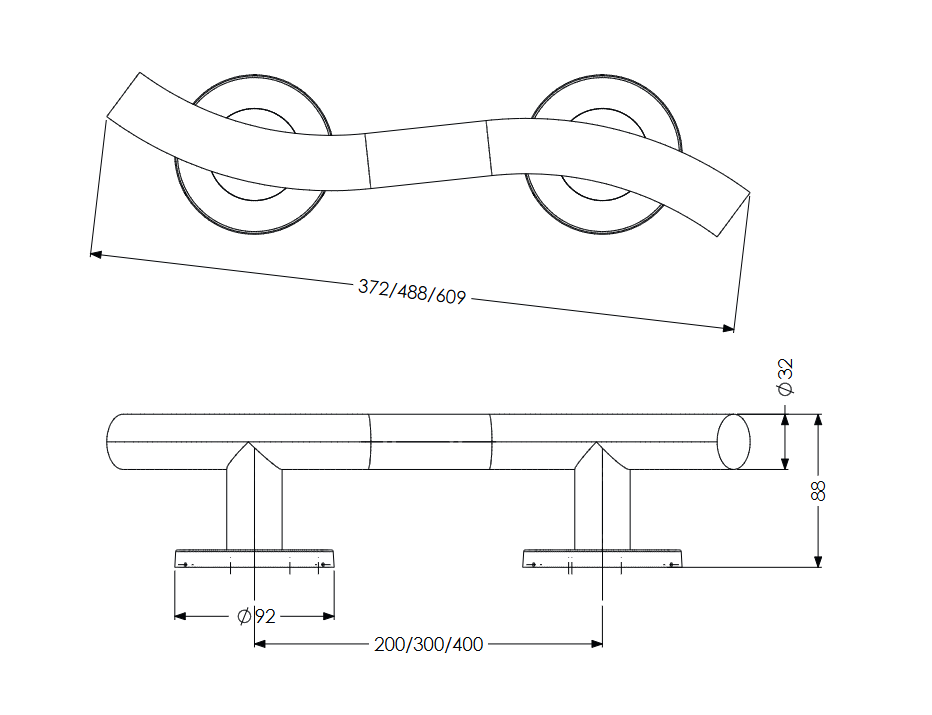

Technical specification

Frequently asked questions

Will this rail rust?

It is made from 304 stainless steel, which is designed for wet bathroom environments.

Are the fixings visible?

No – a removable cover conceals the bracket fixings.

Are wall plugs and screws included?

Wall fixings are not supplied; choose fixings suited to your wall.

How much weight will it take?

AKW state a maximum load of 150kg.

Need help choosing?

Not sure which length, colour or style you need? Call the Key West Bathrooms team on 0333 772 4162. We supply AKW mobility products to homeowners, installers, care providers, housing associations and local authority adaptation schemes, and we are happy to help you put together the right set of rails for a bathroom, toilet or shower room.

Downloads

AKW curved stainless steel grab rail specification sheet (PDF)
