AKW Access Panel 523 x 523mm for Shower Pumps & Plumbing (30200)

AKW Access Panel 523 x 523mm for Shower Pumps & Plumbing (30200)

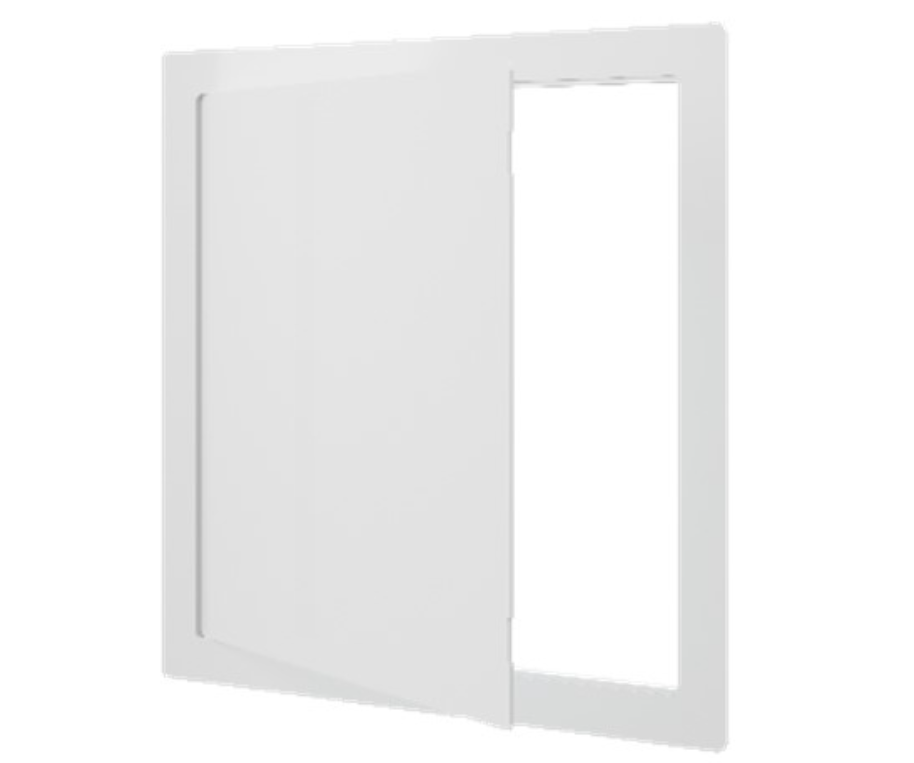

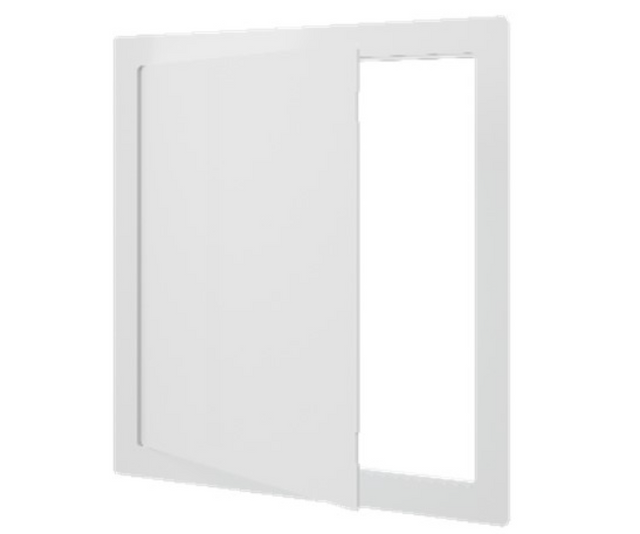

Shower waste pumps, valves and concealed plumbing all need to be reachable for servicing. The AKW 523 x 523mm access panel (30200) gives a large, neat opening in a wall, ceiling or boxing so you can get to the equipment without cutting into the finished room.

At 523 x 523mm it gives generous access to a shower waste pump such as the AKW DigiPump or Contour P12 (the P12 cover measures 210 x 330 x 190mm), and room to work on the valves and fittings around it.

A smaller 195 x 272mm panel (30202) is also available.

Key features & benefits

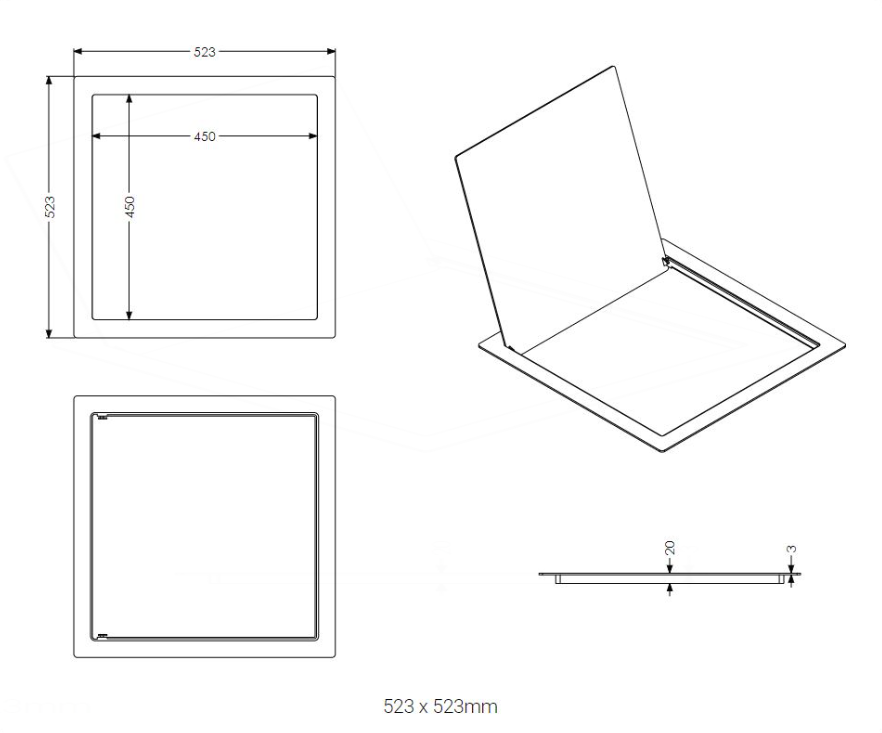

• Large 523 x 523mm access panel
• Service shower pumps, valves and concealed pipework
• Neat finish in walls, ceilings and boxing
• Avoids cutting into finished surfaces later

Where should I fit an access panel?

Fit the panel where you can reach the pump, its isolation valves and the electrical spur. Shower pumps need to stay accessible for servicing, so plan the panel position before boarding and tiling.

Check that the panel fits between studs or joists, and allow for the tile layout. Call us on 0333 772 4162 if you need help choosing a size.

Planning access at the build stage saves a great deal of disruption later. A shower waste pump is a mechanical device that will eventually need its valves serviced or a part replaced, and if it is sealed behind tiles that means breaking the finished wall. A correctly sized access panel lets an engineer reach the pump, isolation valves and fused spur quickly. Position it at a comfortable working height, keep the area behind it clear, and make sure the panel can be opened fully once the room is tiled and furnished.

Sizes & product codes

Technical specification

Frequently asked questions

Is it big enough for a shower pump?

It is AKW’s large access panel and is intended for reaching pumps and plumbing; check your installation layout.

Is there a smaller size?

Yes, 195 x 272mm (30202).

Can it go in a ceiling?

Access panels can be fitted in walls, ceilings or boxing where there is a suitable opening.

Not sure which part you need? Call our team on 0333 772 4162 and we will check it against your installation before you order.

Downloads

AKW Access Panels specification sheet (PDF)
