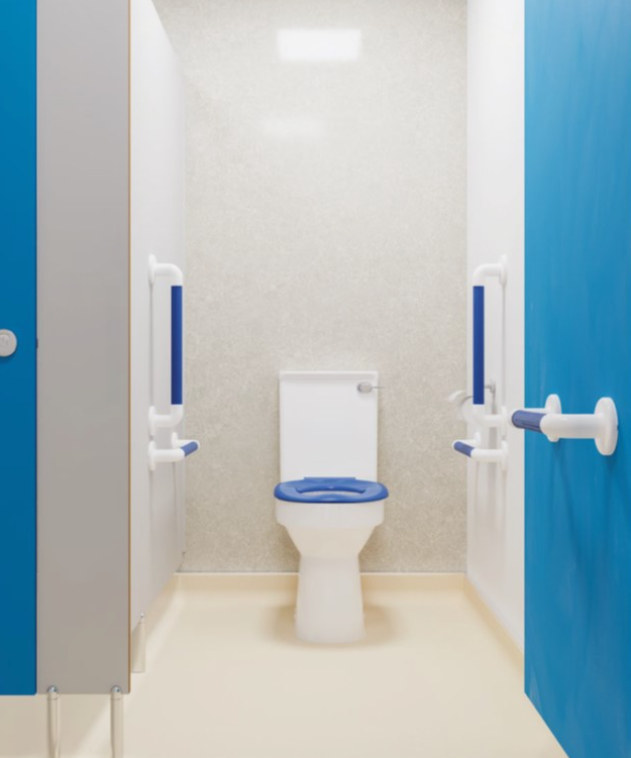

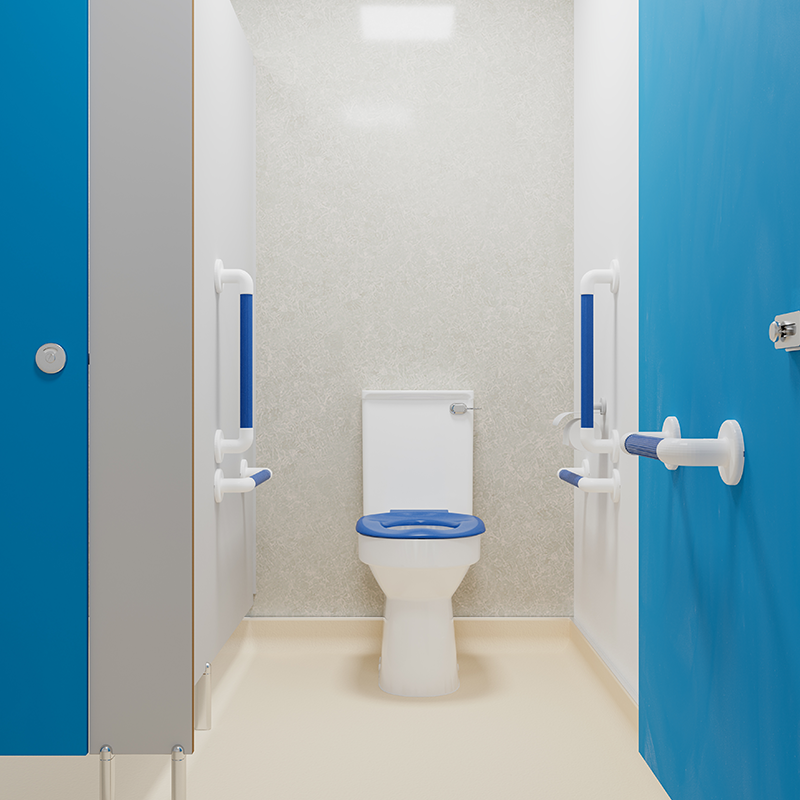

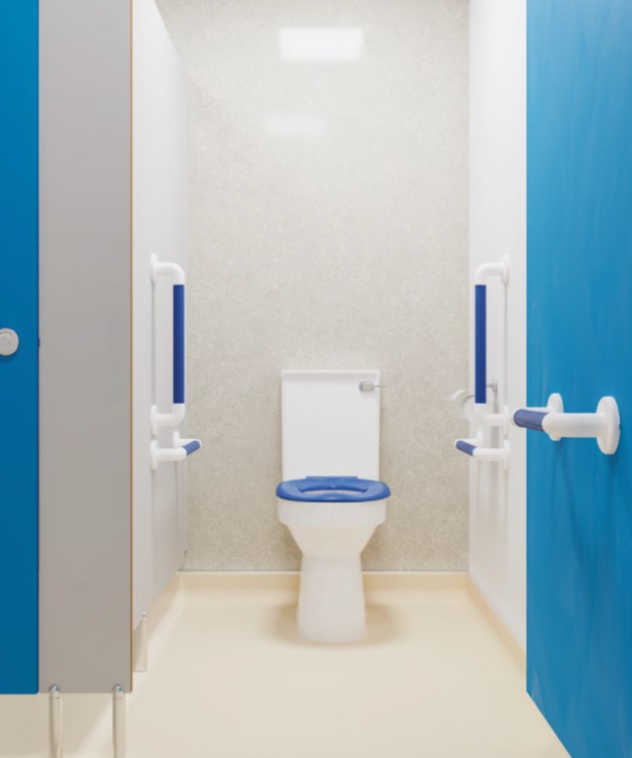

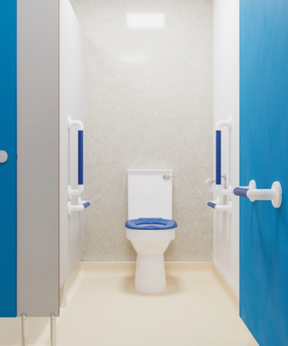

The AKW Ambulant Doc M Toilet Pack (AKW Doc M Pack 10) is for ambulant accessible cubicles – the wider cubicles in a bank of toilets intended for people who can walk but need support, such as older people, those using sticks or crutches, or anyone with limited strength or balance. It contains a raised-height rimless Navlin close coupled toilet with a 650mm projection, a lever flush, fluted grab rails and contrasting clothes hooks.

Key features & benefits

• Raised-height rimless toilet – 480mm high with seat fitted, making it easier to sit down and stand up.
• 650mm projection – a shorter pan that suits the narrower footprint of an ambulant cubicle.
• Lever flush cistern with screw-down lid and 3/6 litre dual flush, usable with a hand, closed fist or elbow.
• Ergonomic toilet seat (without lid) with seat lugs and soft-close hinges.
• Fluted uPVC grab rails – four 600mm and one 450mm rails that grip well even when wet, rated to 100kg (15.5 stone).
• Two blue clothes hooks for colour contrast.
• Lifetime guarantee on the sanitaryware, toilet seat and grab rails.

Choosing your pack

Who is a Doc M pack for? Approved Document M of the Building Regulations sets out what an accessible toilet in a public or commercial building needs: a raised-height pan, a lever flush on the transfer side, grab rails in set positions and contrasting fittings that are easy to see. Buying the parts as one AKW pack means everything is designed to work together and you are not left hunting for missing pieces on site. It suits offices, shops, schools, surgeries, hotels, care homes and community buildings.

Ambulant or wheelchair-accessible? An ambulant cubicle is not a replacement for a wheelchair-accessible toilet – it supplements one. If you need a room a wheelchair user can turn in, choose an AKW Standard or Fully Compliant Doc M pack instead. Rail colour: pick white or blue to contrast with your cubicle walls. Questions? Call 0333 772 4162.

Installation notes

• Fit the rails and clothes hooks in the positions shown on AKW's specification sheet – the hooks sit at 1050mm and 1400mm above the finished floor.
• Fit the flush lever on the side of the cistern furthest from the wall.
• Grab rails must be fixed to walls strong enough to take the load; use fixings suited to the wall construction.

Sizes & product codes

Technical specification

Frequently asked questions

Does the ambulant pack include a basin?

No – the pack covers the toilet, grab rails and clothes hooks only. If your cubicle needs a basin, add one separately.

Is there a fold-up rail?

No – this pack uses fixed straight rails. Fold-up support rails come with AKW's wheelchair-accessible Doc M packs.

Is this pack fully compliant with Approved Document M?

The toilet and rails are designed to meet Doc M guidance for ambulant cubicles when they are installed in the positions shown on AKW's specification sheet. Final compliance also depends on the cubicle size and door, so always follow the drawing and check with your building control officer.

Do I need to buy anything else?

You will need fixings suitable for your wall type and your normal plumbing connections. Grab rails must be fitted to walls that can take the load.

Downloads

• AKW Doc M Pack 10 – Ambulant specification sheet (PDF)
• AKW Doc M brochure (PDF)
