AKW Arka TMV3 Cool Touch Thermostatic Mixer Valve – Valve Only or 8 Litre Flow Limited

AKW Arka TMV3 Cool Touch Thermostatic Mixer Valve – Valve Only or 8 Litre Flow Limited

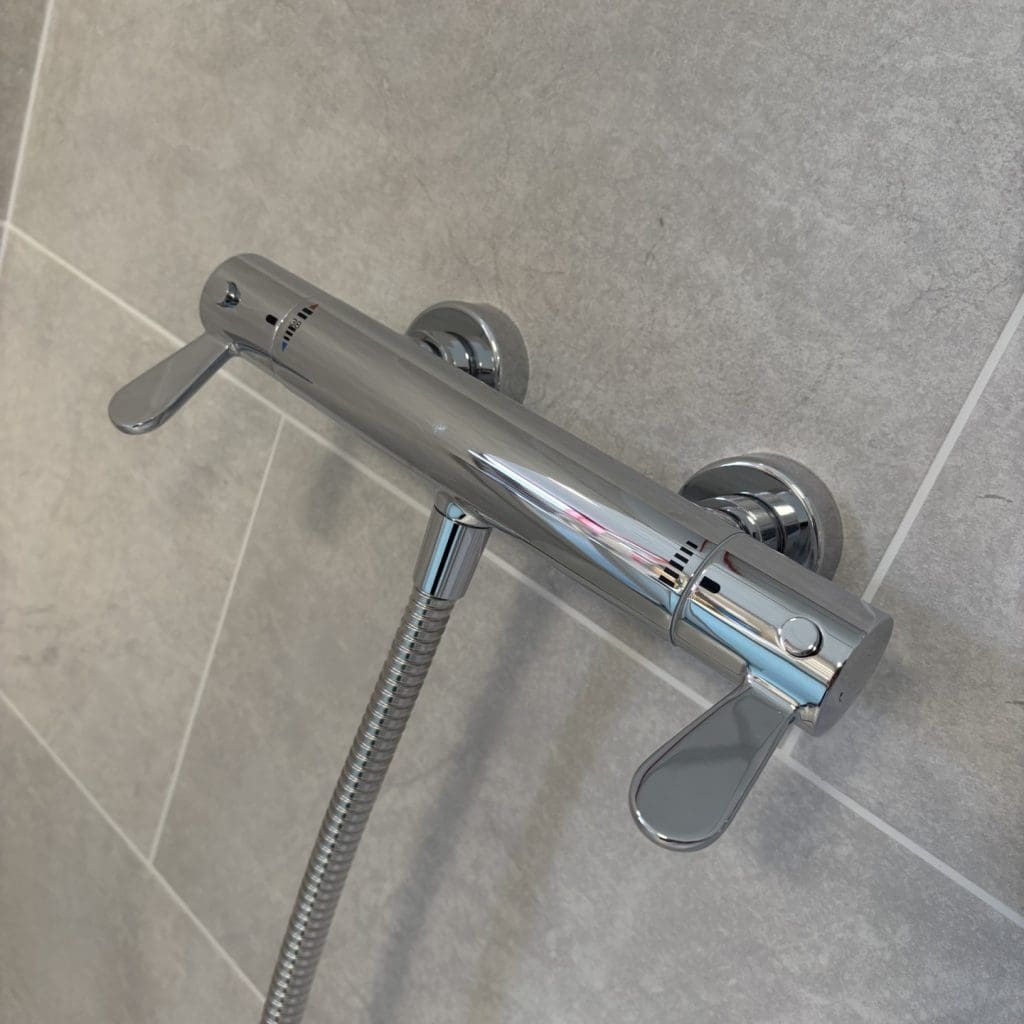

The AKW Arka TMV3 Cool Touch thermostatic mixer valve is built for care homes, hospitals, supported housing and accessible homes. It carries TMV3 approval for healthcare and commercial care environments, its body stays cool to the touch in use, and the thermostatic cartridge holds a safe, steady temperature.

This listing is the valve on its own – ideal when you already have a riser rail or want to choose your own AKW shower kit – with the option of a factory-fitted 8 litre per minute flow limiter. If you would like the valve supplied with a kit, see the Arka TMV3 with Standard Kit or the Arka TMV3 with Care Kit.

Key features & benefits

• TMV3 approved – suitable for commercial care environments, plus WRAS approval
• Cool-touch valve for adults and children with care needs
• Thermostatic anti-scald protection with a 38°C pre-set and a 41°C override button
• Two rounded paddle levers with clear temperature and flow icons
• Integral double check valves to prevent backflow
• Concealed fixings supplied; surface-mounted pipework fittings available separately (25423)
• Optional 8 litre per minute flow limiter for water saving
• Works with low pressures from just 0.2 bar; 5 year guarantee

Choosing the right Arka

Pick Valve Only (25421-3) for the maximum flow of 14 litres per minute at 3 bar, or 8 Litre Flow Limited (25421-3FL) to cut water use in busy care settings. Specifiers who need TMV2 for domestic projects can choose the Arka Cool Touch TMV2 instead. Check that your hot and cold supplies arrive at 150mm centres (±22mm) and are balanced to within 1 bar.

Installation notes

Back-entry supplies via ¾" to ½" BSP connectors, concealed or exposed. Temperature limits can be altered by the installer if required. As a TMV3 valve it should be commissioned and maintained in line with TMV3 guidance by a qualified installer.

Sizes & product codes

Technical specification

Frequently asked questions

Does this include a shower kit?

No – this is the valve only. AKW Standard, Care and Rain Head kits are available, or choose the Arka TMV3 sold with a kit.

What is the difference between TMV2 and TMV3?

TMV2 covers domestic installations; TMV3 is the healthcare/commercial scheme required in care homes and hospitals. This valve is TMV3 approved.

Will it work on a low pressure system?

It works from a minimum dynamic pressure of 0.2 bar, provided the hot and cold supplies are balanced to within 1 bar.

Downloads

• Arka TMV3 Cool Touch Mixer Valve specification sheet (PDF)

Not sure which option you need? Call our team on 0333 772 4162 and we will help you choose.
