AKW Bidet Wash & Dry Toilet Pack – Close-Coupled, Back-to-Wall, Wall-Hung or Rise & Fall
An AKW Bidet wash & dry toilet pack brings together everything needed for a complete shower toilet: a toilet pan designed to hide the bidet pipework, the flushing system, and an AKW bottom-entry bidet with a large-aperture Consilio seat and lid. After using the toilet, the user washes with warm water and dries with warm air at the press of a button – supporting independent use at home, in care homes and in healthcare settings.
Five packs are available so you can match the toilet to the room and the user: a raised-height close-coupled toilet with lever or push button flush, a Doc M raised-height back-to-wall toilet, a wall-hung toilet on a height-adjustable Geberit Duofix frame, or the Rise & Fall toilet that powers up and down to suit each user.
Key features & benefits

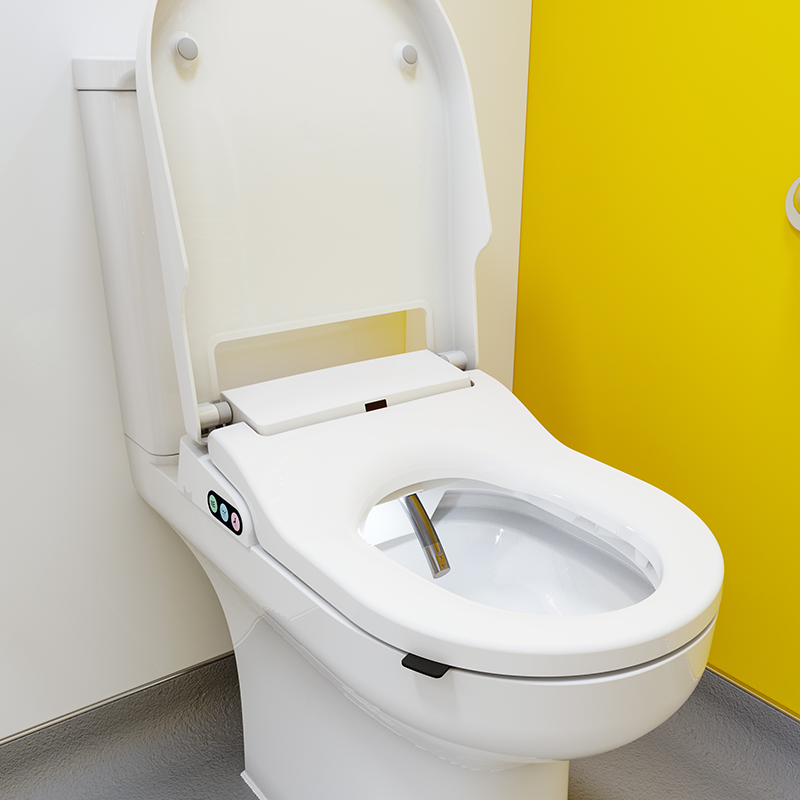

- Complete pack – pan, flushing system and AKW bottom-entry bidet with Consilio seat and lid
- Bidet pipework runs inside the pan for a tidy look and fewer trip hazards
- Rimless, direct-flush ceramic pans that are quicker to clean and more hygienic
- Warm water wash with adjustable spray, instant 1750W heater and 350W warm air dryer
- Hand-held remote control, night light and seat sensor
- Soft-close, quick-release seat and lid with lift assists and transfer lugs
- Pans rated to 400kg; bidet seat rated to 150kg
- Low-pressure mode, self-cleaning nozzle and quiet operation
- Ceramic guaranteed for life; 10 years on flush fittings; bidet 2 years (5 years on the Rise & Fall pack)
Which bidet pack is right for you?

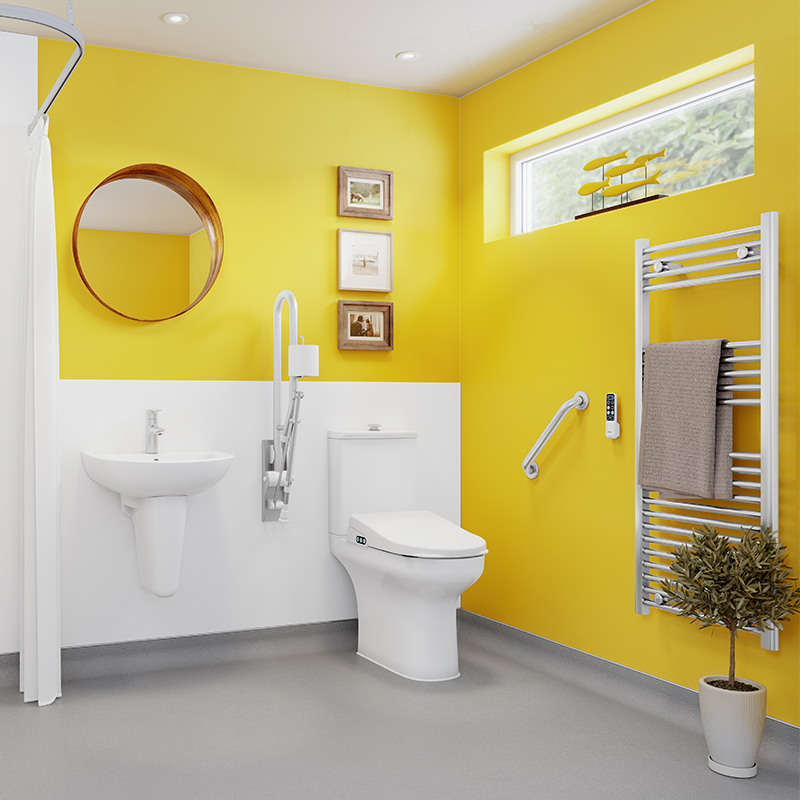

Close-Coupled (lever or push button flush) – a raised-height close-coupled pan and cistern. The extra height makes sitting down and standing up easier. The lever and the raised push button can be operated with a hand, fist or elbow. An AKW sensor flush can be fitted in place of the push button mechanism if required (ordered separately with the push button version).

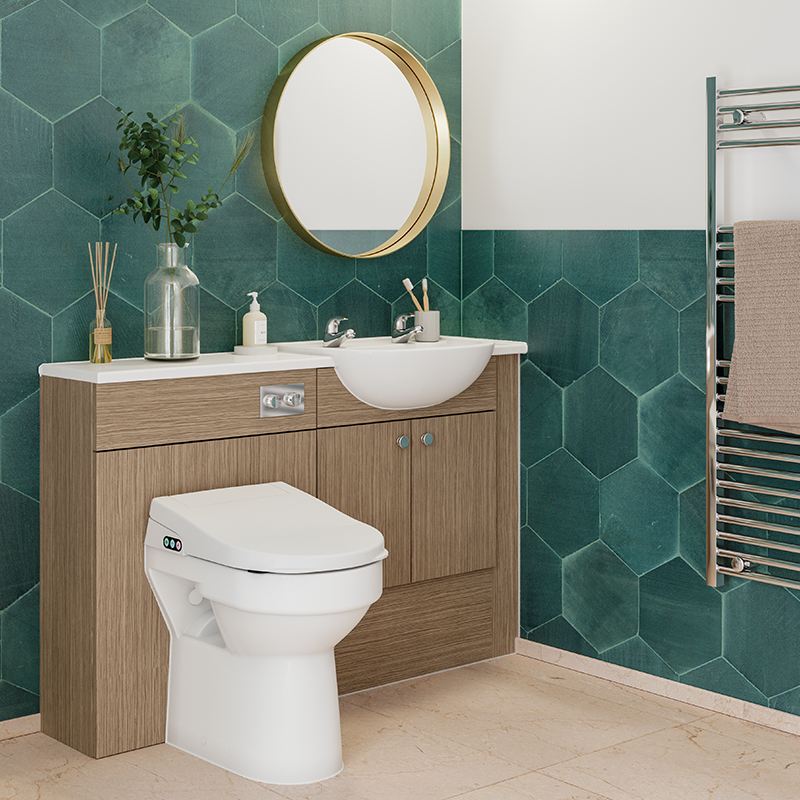

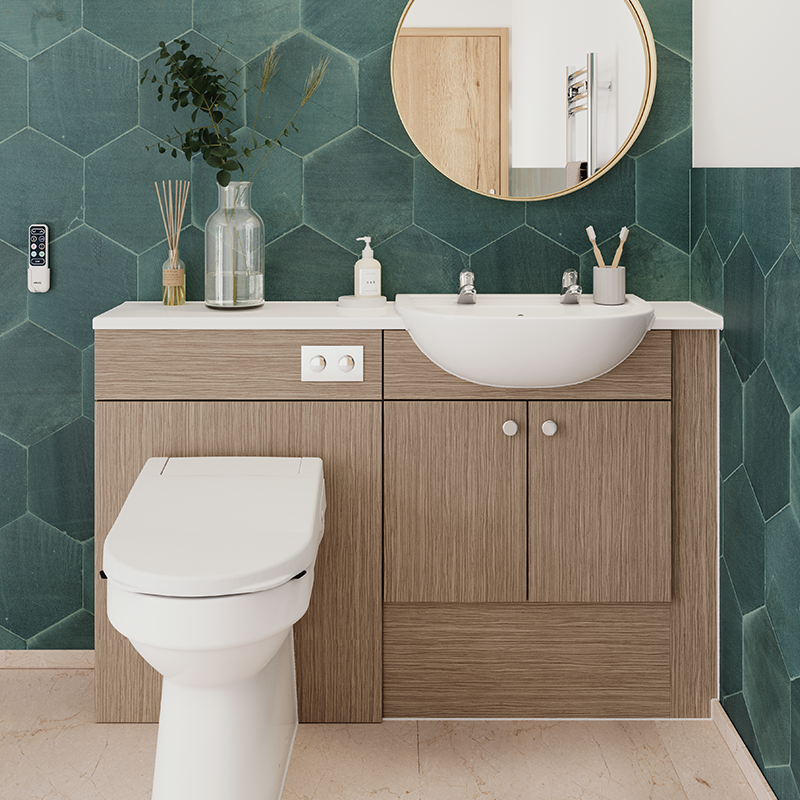

Back-to-Wall – a Navlin Doc M raised-height back-to-wall pan with the bottom-entry bidet. It is designed to be used with a concealed cistern, AKW bathroom furniture or a Navlin low-level cistern, which are not included and are ordered separately.

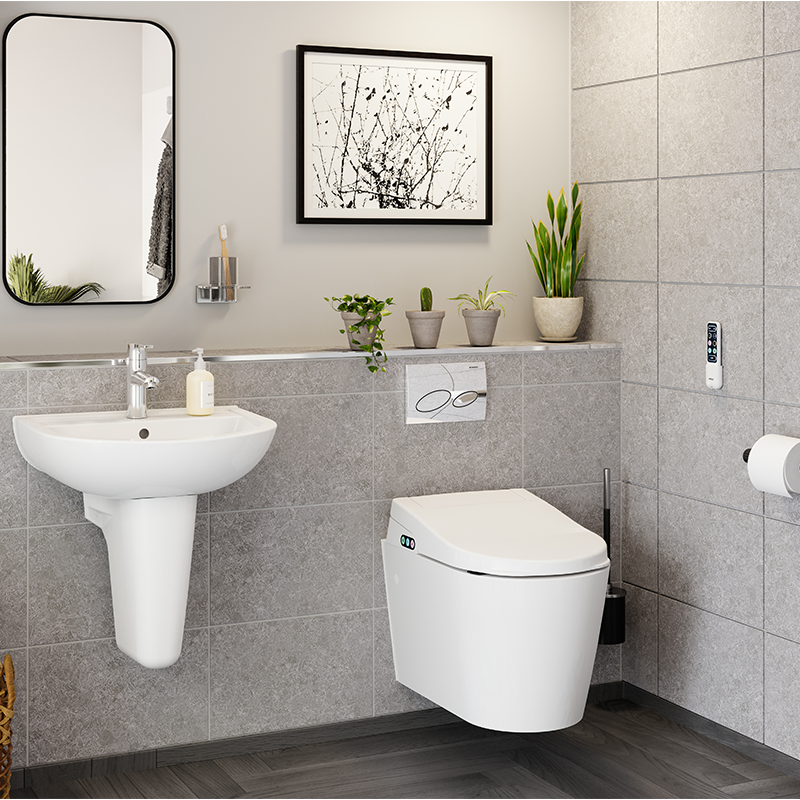

Wall-Hung with Geberit Frame – a minimalist wall-hung pan supplied with a Geberit Duofix frame and cistern and a chrome Geberit Kappa 20 flush plate. The frame height adjusts from 820mm to 1020mm, and the open floor beneath the pan is easy to clean.

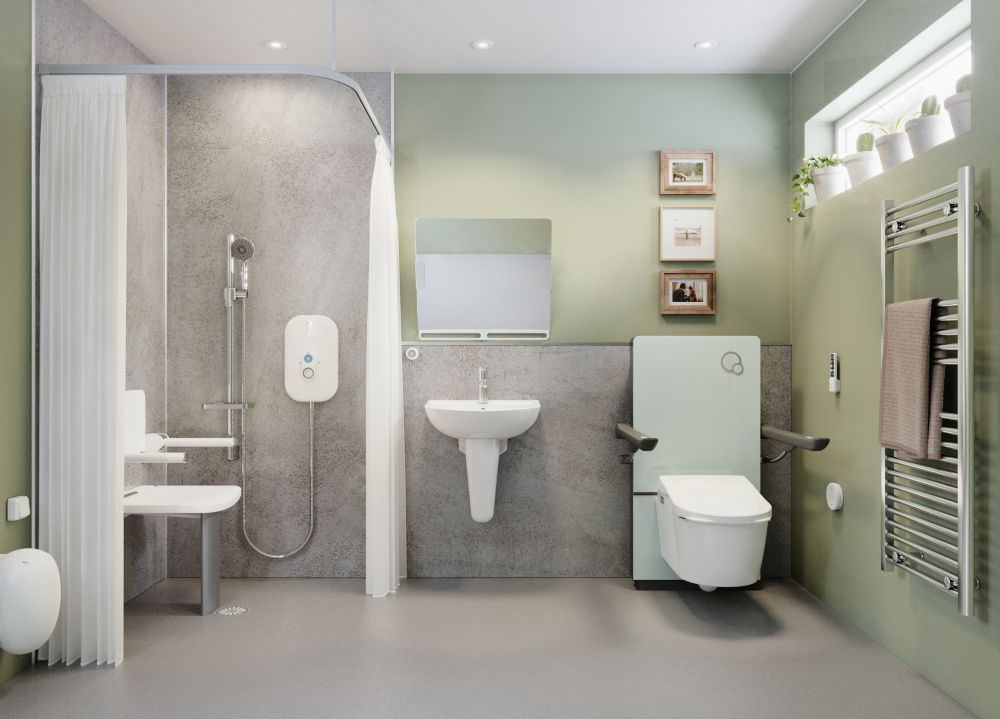

Rise & Fall – a wall-hung pan on a powered Rise & Fall cistern unit with white toughened safety glass front panels and grey fold-up arms. Up and down buttons on both arms adjust the pan height from 410mm to 610mm (floor to top of pan), making side transfers easier and letting one toilet suit everyone in the household. Load limits: pan and cistern 400kg, each arm 120kg.
Installation notes
Every pack needs a mains water supply and a fused electrical supply for the bidet; the Rise & Fall pack also needs power to the cistern unit. Installation should be carried out by a competent plumber and electrician. Fixing kits are supplied. Matching Navlin wash basins and grab rails are available separately.
Rise & Fall pack: the cistern unit must be fixed to a load-bearing wall, and AKW recommend a two-person installation. The unit measures 1099mm high x 543mm wide x 212mm deep and weighs 55.9kg. The lift motor is designed for short use – up to 2 minutes of operation followed by at least 18 minutes' rest.
Sizes & product codes
| Pack | AKW code | EAN |
|---|---|---|
| Close-Coupled – Lever Flush | 28410L | – |
| Close-Coupled – Push Button Flush | 28410P | – |
| Back-to-Wall | 28412 | – |
| Wall-Hung with Geberit Frame | 28413 | – |
| Rise & Fall Height Adjustable | 28414 | 5055295170216 |
Technical specification
| Range | AKW Bidet |
|---|---|
| Bidet | Bottom-entry AKW Bidet with Consilio seat and lid |
| Water heater | 1750W instantaneous |
| Dryer | 350W |
| Pan standard | BS EN 997 |
| Electrical standard | BS EN 60335-1 |
| Waste | Horizontal outlet |
| Flush | Dual flush – full 6 litres and reduced |
| Wall-hung frame height | 820–1020mm (Geberit Duofix) |
| Rise & Fall pan height | 410–610mm floor to top of pan (200mm lifting range) |
| Rise & Fall unit size | 1099 x 543 x 212mm (H x W x D), 55.9kg |
| Rise & Fall power | 220–240V, 200W, 2m power cord |
| Rise & Fall motor duty cycle | Max 2 minutes operation, min 18 minutes rest |
| Water protection | IPX4 (bidet and Rise & Fall unit) |
| Load limits | Pan 400kg; bidet seat 150kg; Rise & Fall arms 120kg each |
| Colour | White |
Frequently asked questions
Is the bidet seat included?
Yes – every pack includes the AKW bottom-entry bidet with a Consilio seat and lid. An Ergonomic seat is available separately.
Does the Back-to-Wall pack include a cistern?
No. It is designed for a concealed cistern, AKW furniture or a Navlin low-level cistern, ordered separately.
Is a wash basin included?
No – matching Navlin wash basins are sold separately.
Who is the Rise & Fall pack for?
It suits households and care settings where users of different heights need the toilet set at different heights. The arms fold up out of the way, leaving the side of the pan clear for side transfers.
Can I add a sensor switch?
Yes – the AKW Sensor Operated Switch lets users start each bidet function with a large button or a wave of the hand.
Need help choosing?
Not sure which option is right for you? Call the Key West Bathrooms team on 0333 772 4162. We supply homeowners, installers, care providers, housing associations and local authority adaptation schemes, and we are happy to talk you through the choices before you order.
