AKW DigiPump Shower Waste Pump Unit – Choice of M11, M17 or M20 Pump Only

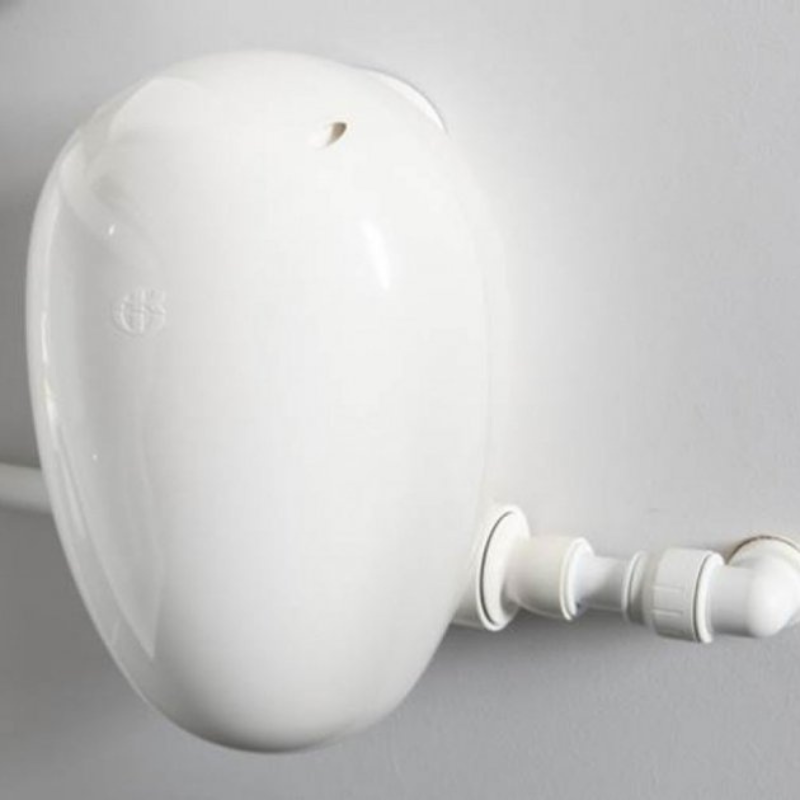

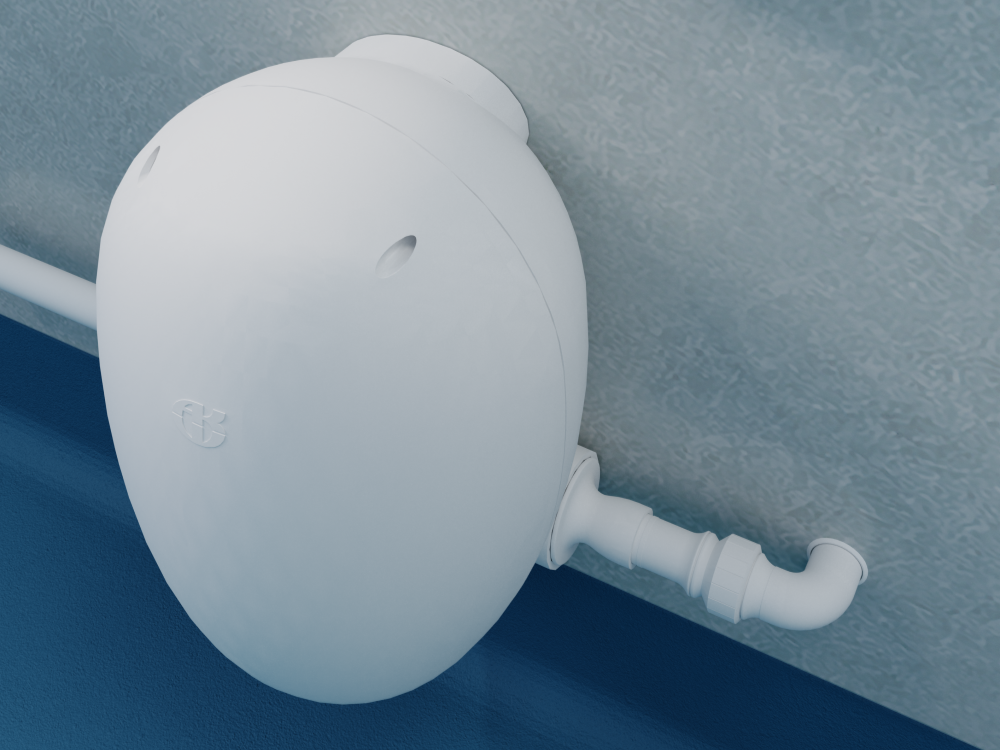

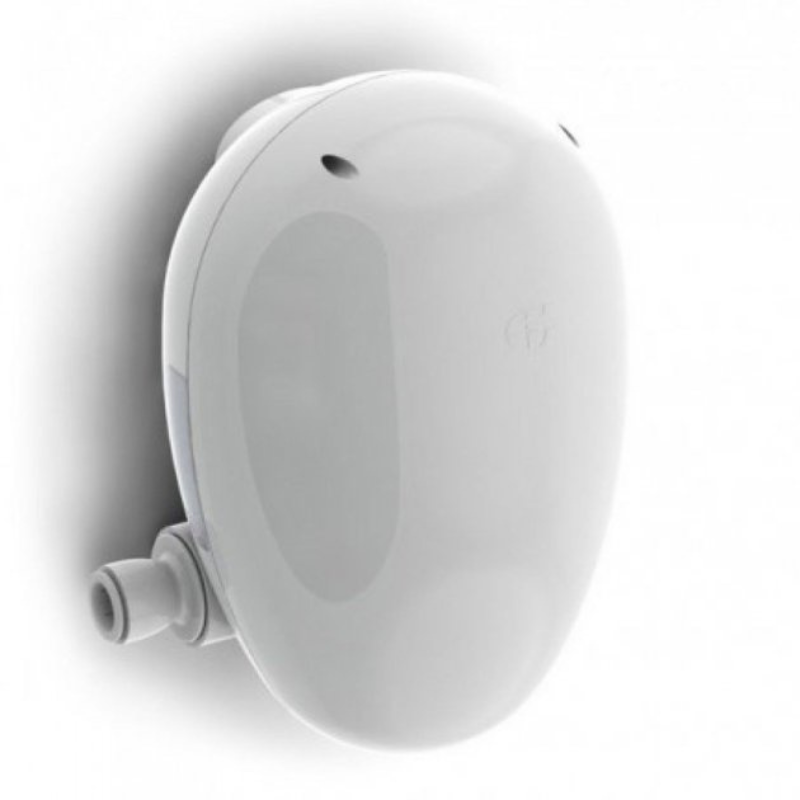

The AKW DigiPump is a shower waste pump for level-access showers and wet rooms where water cannot drain away by gravity. It starts automatically when the shower runs, is calibrated to its installation for quiet operation, and pumps the waste water up and away through a 22mm outlet. It works with AKW pumped wastes and trays, and with electric and mixer showers from AKW, Mira, Triton and other brands.
This listing is for the DigiPump pump units. Choose the M11 (up to 11 litres per minute, best for electric showers), the M17 (up to 17 l/min) or the M20 (up to 20 l/min) for mixer showers, or the M17 version for use with a mixer shower. If you need a complete kit, see the M11 kit (25471), M17 kit (25451) or M20 kit (25481).
DigiPump is IP45 rated for installation in zones 1 and 2 of the showering area, and the reversible pump head lets pipework enter from the left or right.
Key features & benefits
- Automatic start via internal or external flow sensor
- Calibrated to its installation for quiet running
- M11 up to 11 l/min; M17 up to 17 l/min; M20 up to 20 l/min
- IP45 – can be fitted in zones 1 and 2
- Reversible pump head with four valves and a flap valve
- 15mm inlet, 22mm outlet; two non-return valves
- Wireless link to AKW SmartCare Plus and Lever showers
- 7-year warranty; UKCA and CE marked
Which DigiPump do I need?
Match the pump to the shower flow rate. Electric showers rarely exceed 11 l/min, so the M11 is the usual choice. Mixer showers deliver more water, so choose the M17 or, for higher flow rates, the M20. Mixer showers and the AKW iSure need an external flow sensor – see the DigiPump flow sensor kit (25194).

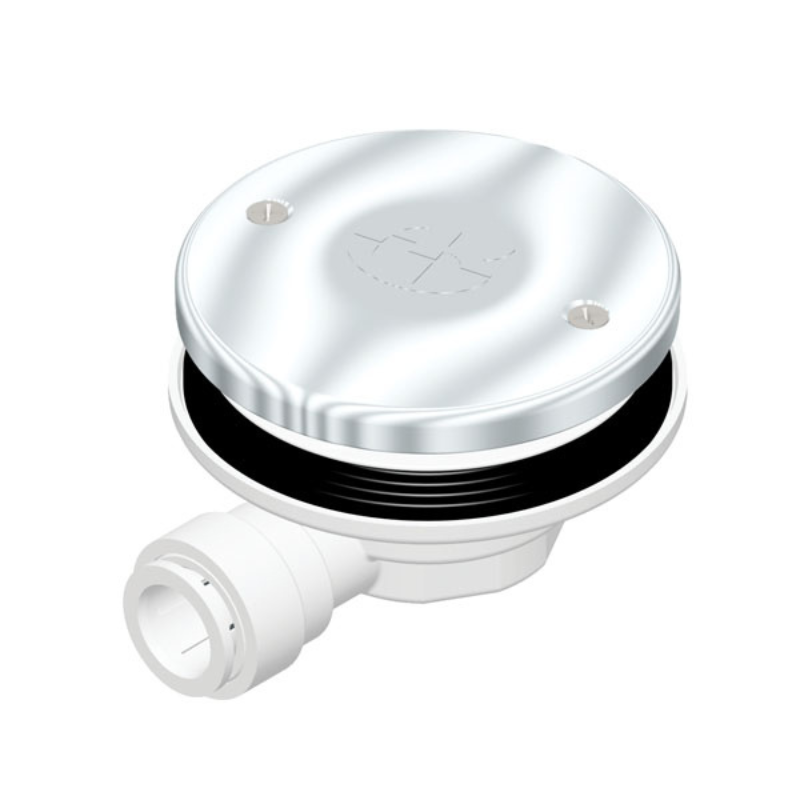

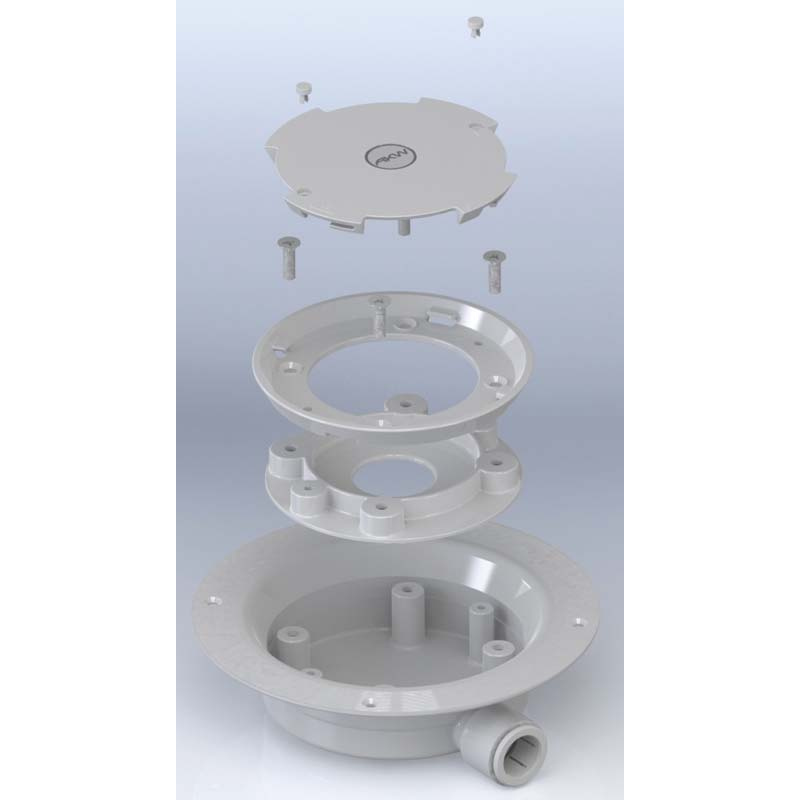

You will also need a pumped waste: see our tray pumped wastes and wet room pumped gulleys. Spares and fittings are in our DigiPump spares listing.
Installation notes
Install the pump in an accessible position with an access panel for servicing. The electrical connection must be made by a qualified electrician in line with BS 7671.
Sizes & product codes
| Pump | AKW code | EAN |
|---|---|---|
| M11 DigiPump – Pump Only, up to 11 l/min (25470) | 25470 | 5055295145016 |
| M17 DigiPump – Pump Only, up to 17 l/min (25450) | 25450 | 5055295139787 |
| M20 DigiPump – Pump Only, up to 20 l/min (25460) | 25460 | – |
| M17 DigiPump for Mixer Showers (25285) | 25285 | – |
Technical specification
| Models | M11 (11 l/min), M17 (17 l/min), M20 (20 l/min) |
| Inlet / outlet | 15mm / 22mm |
| Protection | IP45 – zones 1 and 2 |
| Valves | Reversible head, four valves and flap valve; two non-return valves |
| Activation | Automatic – internal or external flow sensor; wireless link to AKW SmartCare Plus and Lever |
| Warranty | 7 years |
| Approvals | UKCA, CE |
| Range | AKW DigiPump |
Frequently asked questions
Which model for an electric shower?
The M11 suits electric showers.
Which model for a mixer shower?
The M17 or M20, with an external flow sensor.
Is a waste included?
No – these are the pump units. Choose a pumped waste separately or buy a DigiPump kit.
Can I run the pump without the shower on?
Yes, with the optional auxiliary pump switch (25488).
Downloads
Not sure which part you need? Call our team on 0333 772 4162 and we will check it against your installation before you order.
