AKW Eagle Two Bath Replacement Level Access Shower Tray – Choice of Size, Floor Finish & Waste

AKW Eagle Two Bath Replacement Level Access Shower Tray – Choice of Size, Floor Finish & Waste

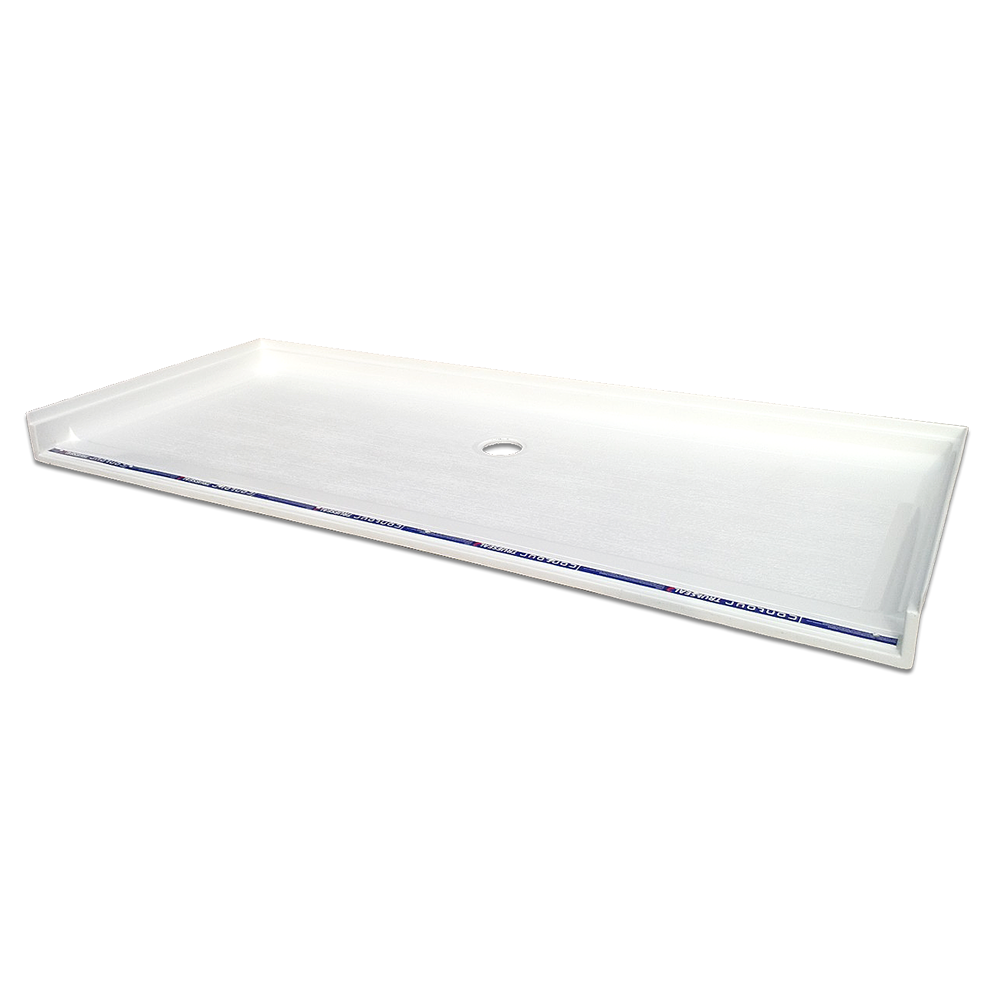

The AKW Eagle Two is a bath replacement, level access shower tray that is cut to length on site to fill the space left when a bath is taken out. It is the quick way to turn a bath alcove into a step-free shower for an accessible bathroom, including wheelchair users. Made from reinforced GRP with a slip-resistant surface, it supports up to 270kg (42 stone) and carries a lifetime guarantee.

Available 745mm or 845mm wide, supplied 1850mm long, with the TRUESEAL2 vinyl edge for welded safety flooring or without it for tiled floors.

Key features & benefits

• Cut to length from 1850mm to fit the space left by a bath.
• Central waste at each end – cutting from one end sets the tray's hand to suit your drainage.
• End plate supplied to hide the cut end when the tray sits between three walls.
• TRUESEAL2 edge – vinyl sheet flooring is hot-seam welded to the tray for a watertight join.
• Level access – only around 14mm of floor needs removing, with extra space at the trap.
• Three tiling lips for a watertight wall seal.
• Supports 270kg (42 stone); slip-resistant reinforced GRP.
• Takes a 90mm diameter waste. Tray, screen and equipment can be fitted in one visit, with flooring laid afterwards.

Choosing your Eagle Two tray

Which width? Measure the space the bath has left, from the back wall to where the front of the tray will sit, and choose the 745mm or 845mm wide tray to suit. If you are not sure which width you need, call us before ordering.

Vinyl or tiled floor? Choose the TRUESEAL2 version if the bathroom will have welded safety vinyl. Choose "No TRUESEAL2" if the floor will be tiled.

Tray only or with waste? Most versions are tray only so your installer can fit the 90mm gravity or pumped waste that suits the floor. Call us on 0333 772 4162 for help.

Installation notes

• Measure the bath space carefully before cutting – cut from the end that gives the waste position you need.
• Remove around 14mm of flooring where the tray sits, with extra depth at the trap.
• Replacement end plates are available separately.

Sizes & product codes

Technical specification

Frequently asked questions

Will it fit where my bath was? Yes – that is what it is designed for. It is cut down from 1850mm to suit the bath space.

Is it left or right handed? Neither until it is cut – the end you cut from decides which end the waste is at.

Is a waste included? Only on the "With Gravity Waste" option. Other options are tray only.

Can I tile the floor? Yes – choose the "Tiled Floor (No TRUESEAL2)" version.

Downloads

AKW Eagle Two Shower Tray specification sheet (PDF)
