AKW Fully Compliant Doc M Toilet Pack with Accessories – Close Coupled or Low Level

AKW Fully Compliant Doc M Toilet Pack with Accessories – Close Coupled or Low Level

The AKW Fully Compliant Doc M Toilet Pack is AKW's most complete accessible washroom kit. As well as the raised-height rimless toilet, finger rinse basin, TMV3 thermostatic tap and blue fluted grab rails, it includes the full Doc M accessory set – shelves, clothes hooks, an emergency alarm and pull cord, a lever soap dispenser, lockable paper towel and toilet tissue dispensers and an electric hand dryer – so one order covers the whole room.

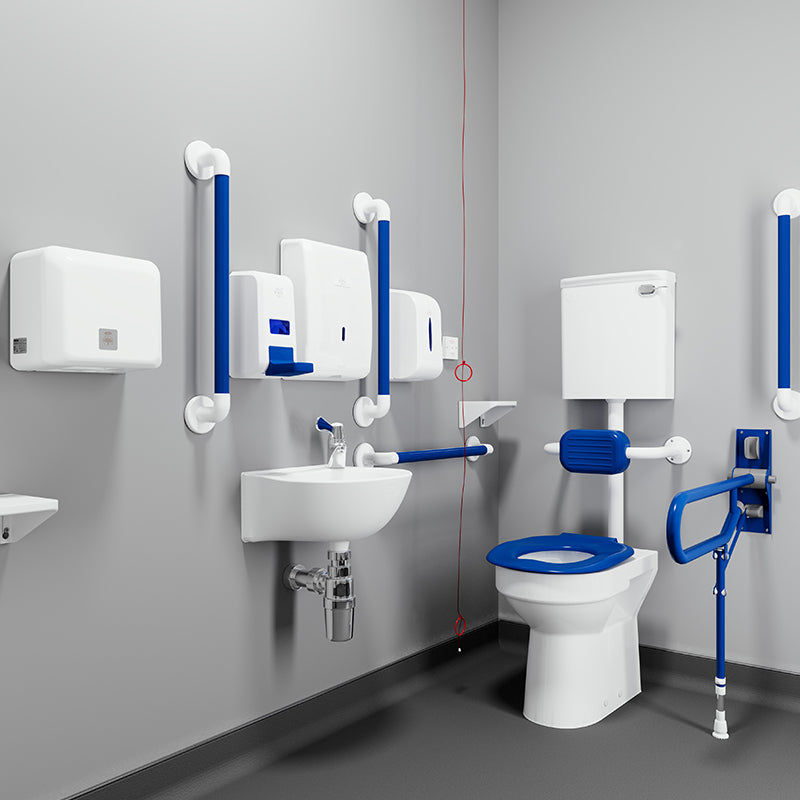

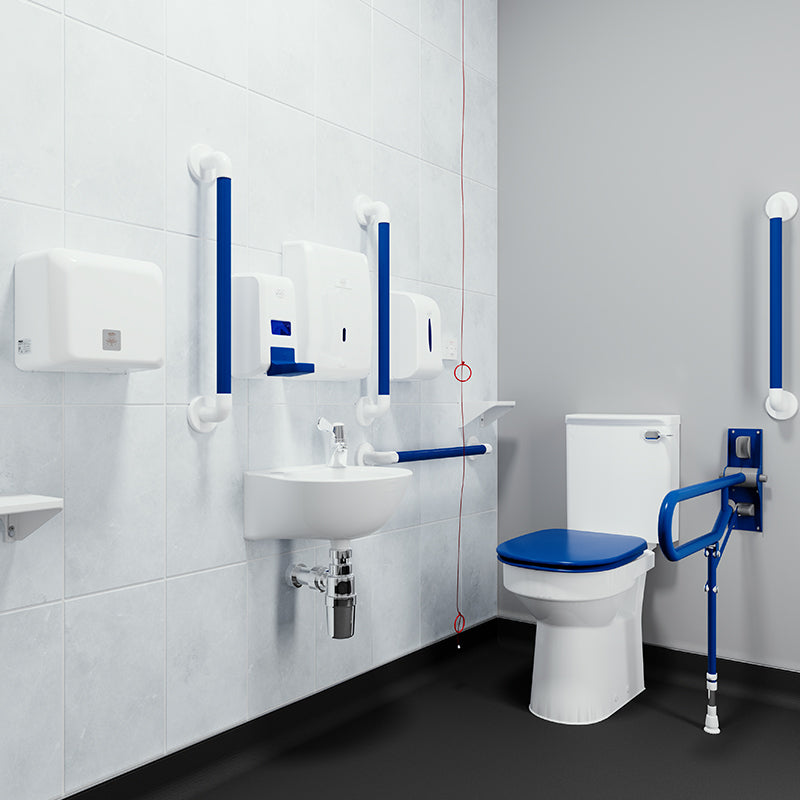

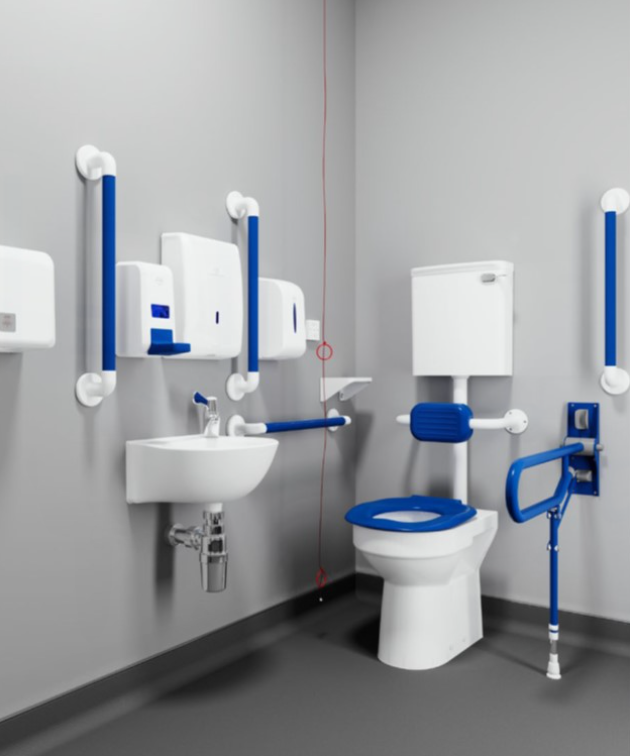

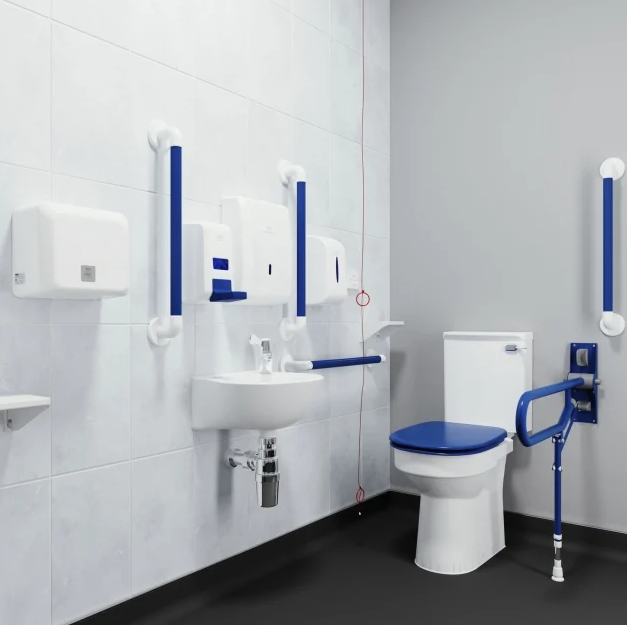

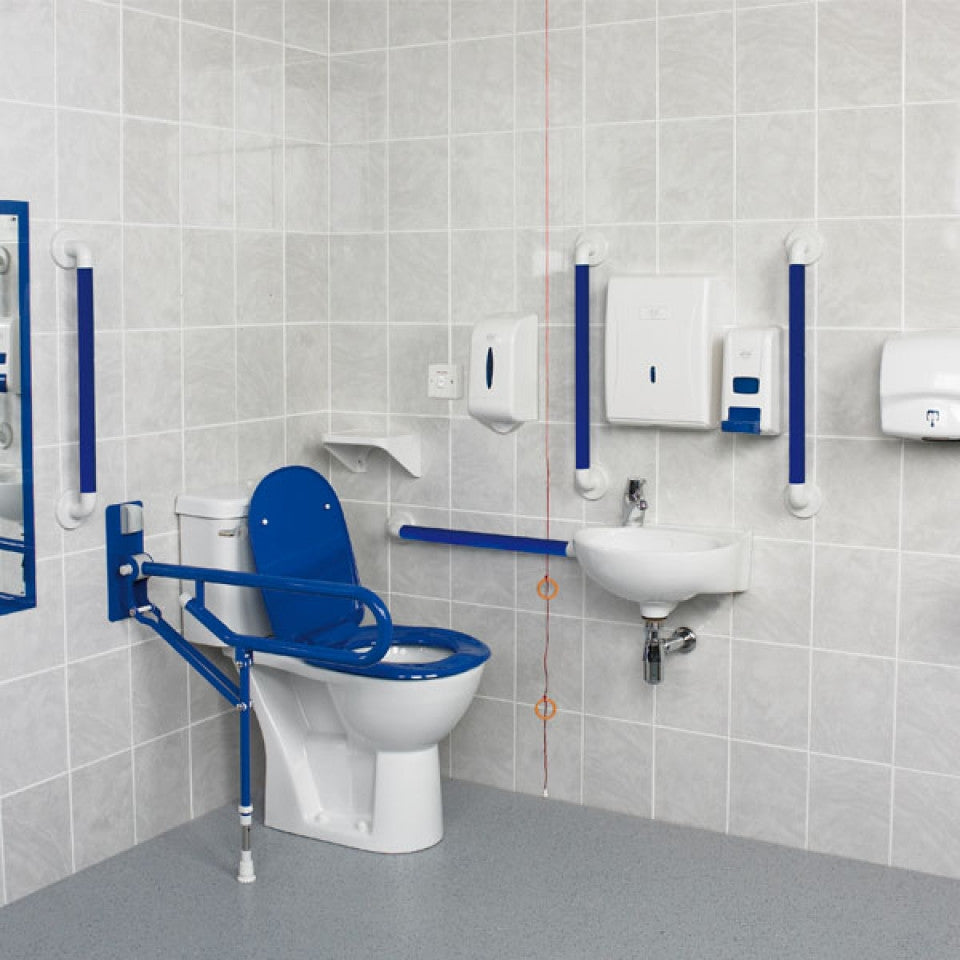

Choose a close coupled toilet (AKW Doc M Pack 1) or a low-level toilet with wall-mounted cistern, flush pipe and padded back rest (AKW Doc M Pack 2). Both come with contrasting blue rails and fittings.

Key features & benefits

• Everything for the room in one pack – sanitaryware, tap, grab rails and all the Doc M accessories.
• Raised-height rimless Navlin toilet – 480mm high with the seat fitted; the close coupled version has a 750mm projection for easier side transfer.
• Lever flush cistern with screw-down lid and 3/6 litre dual flush, operable by hand, closed fist or elbow.
• Blue ergonomic toilet seat with seat lugs and soft-close hinges (with lid on the close coupled pack, without lid on the low-level pack).
• 400mm finger rinse basin with two tap holes and a TMV3 approved thermostatic mixer tap with lever handle to help prevent scalding.
• Blue fluted uPVC grab rails (four 600mm and one 450mm, up to 100kg / 15.5 stone) plus a blue fold-up support rail (up to 200kg / 30 stone).
• Doc M accessory pack – small and large shelves with rounded corners, two blue clothes hooks, alarm and pull cord with two bangles, lever soap dispenser, lockable paper towel and toilet tissue dispensers, and a high-output electric hand dryer.
• Lifetime guarantee on the sanitaryware, toilet seat, brassware and grab rails.

Choosing your pack

Who is a Doc M pack for? Approved Document M of the Building Regulations sets out what an accessible toilet in a public or commercial building needs: a raised-height pan, a lever flush on the transfer side, grab rails in set positions, a hand rinse basin within reach of the toilet and contrasting fittings that are easy to see. Buying the parts as one AKW pack means everything is designed to work together and you are not left hunting for missing pieces on site. It suits offices, shops, schools, surgeries, hotels, care homes and community buildings.

Close coupled or low level? A close coupled toilet has the cistern sitting directly on the pan and needs the least wall work. A low-level toilet has a back-to-wall pan with the cistern on the wall above, joined by a flush pipe; this pack then includes the padded back rest Doc M requires. Not sure which suits your room? Call us on 0333 772 4162.

Installation notes

• Fit the rails, hooks, basin and any accessories at the heights shown on AKW's specification sheet – for example, the basin must not project more than 250mm from the wall, and clothes hooks sit at 1050mm and 1400mm above the finished floor.
• Fit the flush lever on the side of the cistern furthest from the wall (the transfer side).
• Grab rails must be fixed to walls strong enough to take the load; use fixings suited to the wall construction.

Sizes & product codes

Technical specification

Frequently asked questions

Is the hand dryer included?

Yes – both packs include AKW's high-output electric hand dryer along with the other Doc M accessories. It must be wired in by a qualified electrician.

Can I have white rails?

These fully compliant packs are supplied with blue contrasting rails and fittings. For white or other colours, see the AKW Standard Doc M packs and add accessories separately.

Is this pack fully compliant with Approved Document M?

The sanitaryware, rails and tap are designed to meet Doc M guidance when they are installed in the positions shown on AKW's specification sheet. Final compliance also depends on the room size, door and layout, so always follow the drawing and check with your building control officer.

Do I need to buy anything else?

You will need fixings suitable for your wall type, a waste and trap for the basin and your normal plumbing connections. Grab rails must be fitted to walls that can take the load.

Downloads

• AKW Doc M Pack 1 specification sheet (PDF)
• AKW Doc M Pack 2 specification sheet (PDF)
• AKW Doc M brochure (PDF)
