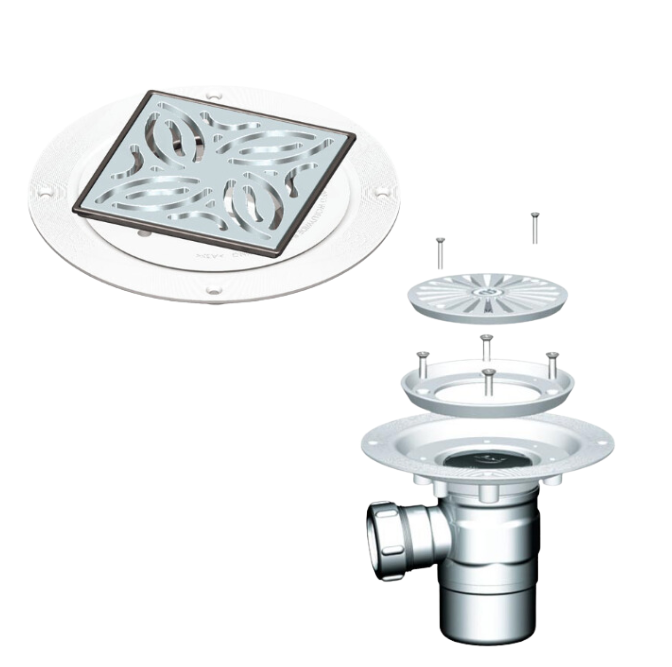

AKW Level Best Stainless Steel Wet Room Waste for Tiled Floors – Choice of TF75, TFWA or SFWA

AKW Level Best Stainless Steel Wet Room Waste for Tiled Floors – Choice of TF75, TFWA or SFWA

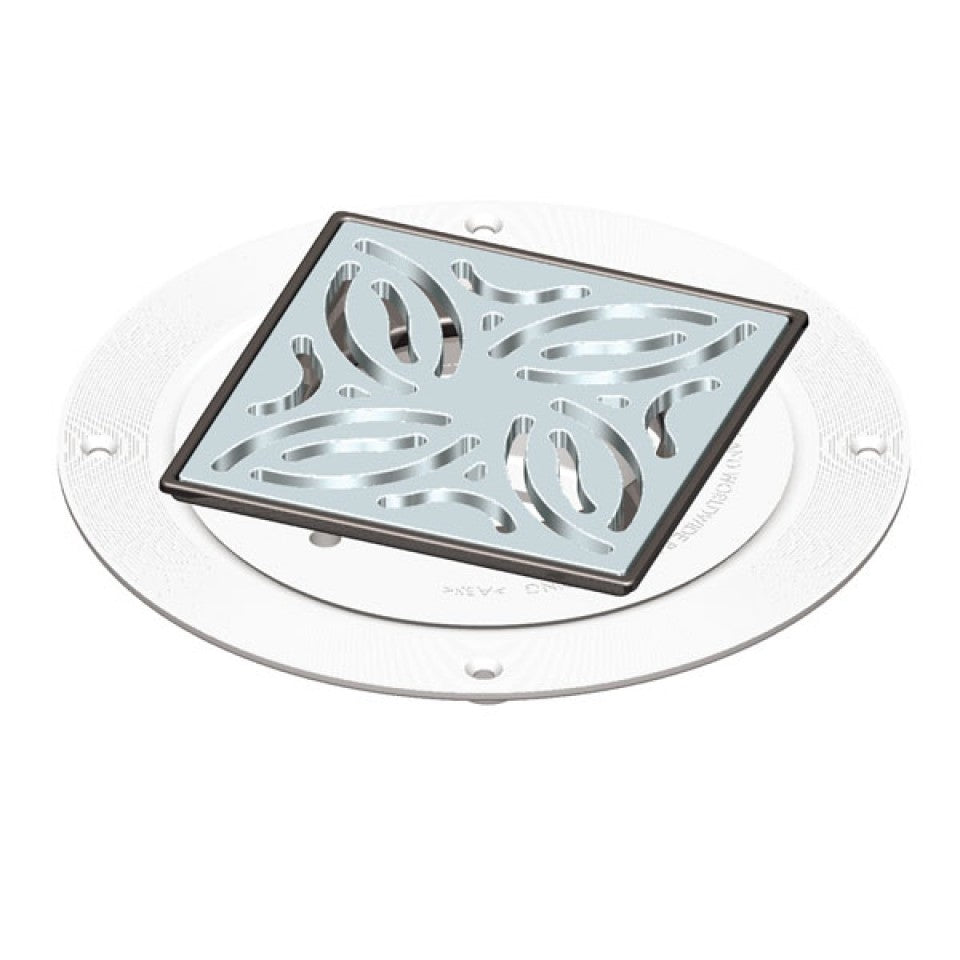

A tiled wet room deserves a waste that looks the part. AKW’s Level Best stainless steel wastes have a 120 x 120mm stainless steel plate that sits flush with the tiles, and they fit the AKW Tuff Form and Tuff Form8.

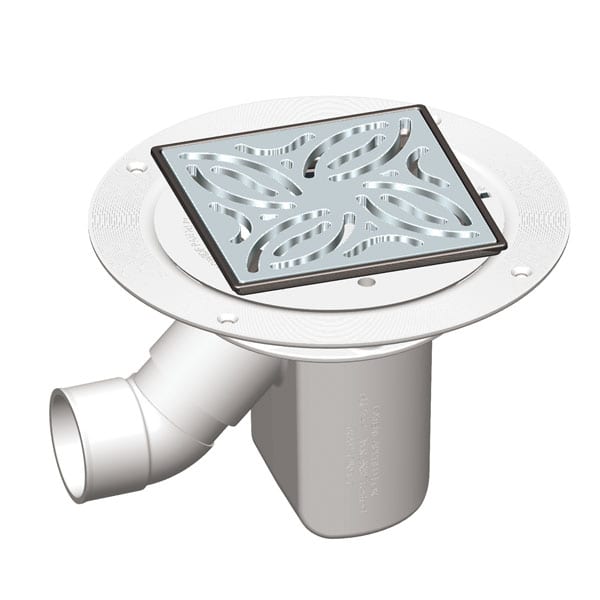

Choose the stainless steel TF75 for the deepest 75mm water seal (125mm depth below the mounting surface, adjustable elbow for the outlet), the stainless steel TFWA with a GW19 trapped waste (97mm below the former), or one of the waste adaptors without a trap – TFWA or SFWA – if you are supplying your own GW50 or GW19 waste.

The plate height adjusts to suit the tile thickness, and every version opens from above for cleaning and rodding. The GW50 versions are TFWA with GW50 (LB00102) and SFWA with GW50 (21318).

Key features & benefits

• Stainless steel 120 x 120mm plate for tiled wet room floors
• Plate height adjusts to suit tile thickness
• TF75 with 75mm water seal and adjustable elbow

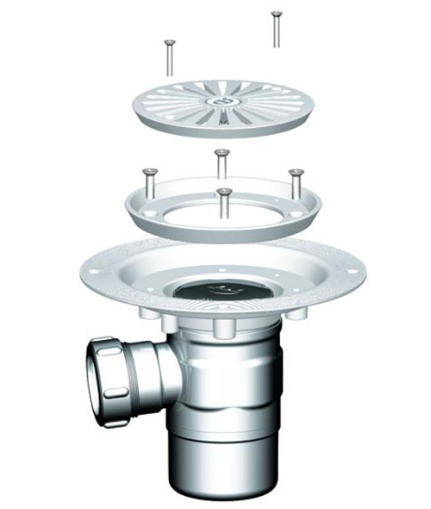

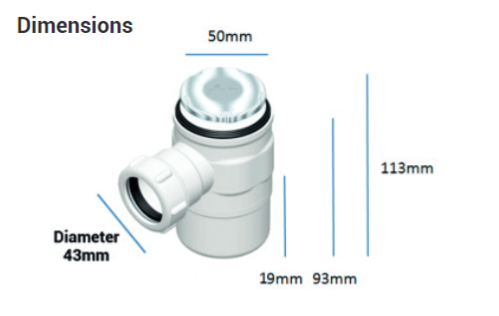

• TFWA with GW19 trapped waste – 97mm below the former
• Adaptor-only options (TFWA or SFWA) for your own GW50/GW19 waste
• Opens from above for cleaning and rodding

Choosing a stainless steel waste

Check the depth below the former. The TF75 needs the most (125mm) but gives a 75mm water seal. The TFWA with GW19 needs about 97mm. If depth is very tight, look at the low height DW90 / GW90-2 wastes with tiled adaptors instead. Still unsure? Our complete guide to AKW wet room wastes explains how to choose by floor finish and depth below the former, and our team can check your layout on 0333 772 4162.

Installation notes

Fit before tiling. Bed the plate at the finished tile height using the adjustment, connect the outlet with a continuous fall, and seal into the tanking with a Mapeband waste outlet gasket.

Sizes & product codes

Technical specification

Frequently asked questions

Can I use these with vinyl?

No – these are for tiled floors. For vinyl choose the TF75 or TFWA vinyl wastes.

What is the difference between TFWA and SFWA?

Both are AKW stainless steel waste adaptors for tiled floors that take a trapped waste. The SFWA is the dot-grate version that AKW pair with GW50 or GW19 wastes in their 21318 and 21319 sets.

Does the adaptor-only version include a trap?

No – add a GW50 or GW19 trapped waste.

Downloads

• TF75 waste specification sheet (PDF)

Not sure which part you need? Call our team on 0333 772 4162 and we will check it against your installation before you order.
