Shallow joists and solid floors are the classic headache in wet room design: there is simply not enough depth under the former for a conventional trap. AKW’s low height wastes solve that, with a 90mm waste body only 48mm–53mm deep, supplied here with a Tuff Form adaptor so they drop straight into a Tuff Form or Tuff Form8.

There are two waste types. The DW90 dry waste uses a non-return valve to stop drain odours, so it does not rely on a water seal, and offers about 27 litres per minute flow. The GW90-2 wet waste holds water in the trap in the conventional way. Each comes with a Tuff Form adaptor for a tiled floor (stainless steel) or a vinyl floor.

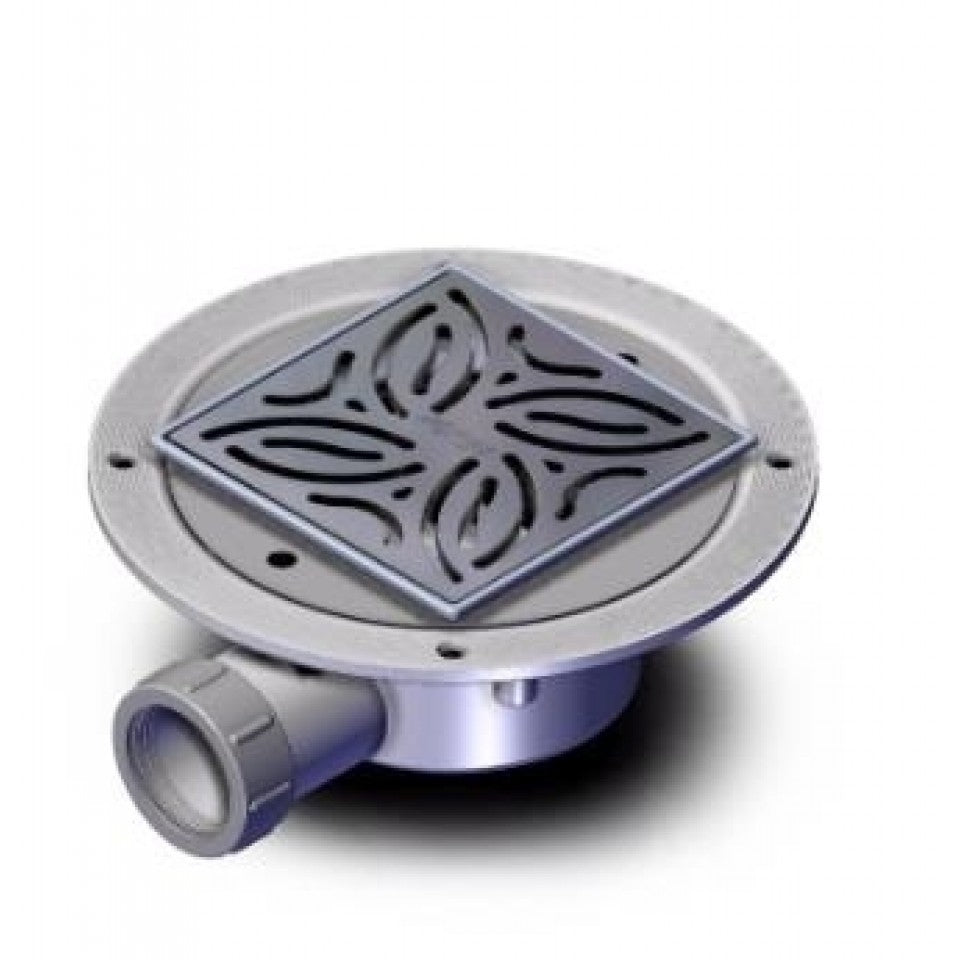

The tiled-floor DW90 version is already available here (25418-UK).

Key features & benefits

• Low height 90mm waste – ideal for shallow joists and solid floors

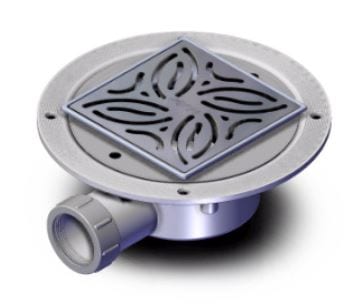

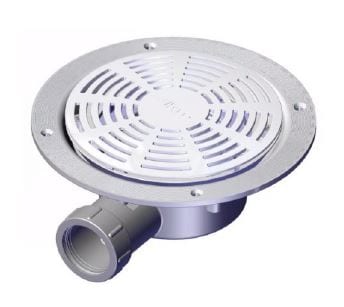

• Supplied with a Tuff Form tiled or vinyl floor adaptor
• DW90 dry waste with non-return valve against odours
• GW90-2 wet waste with conventional water trap

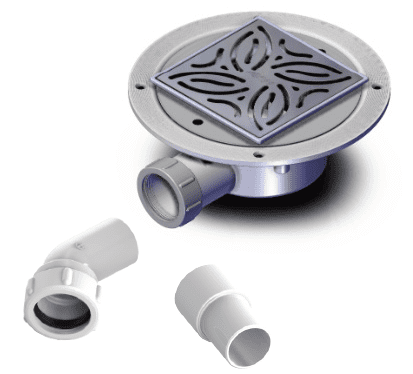

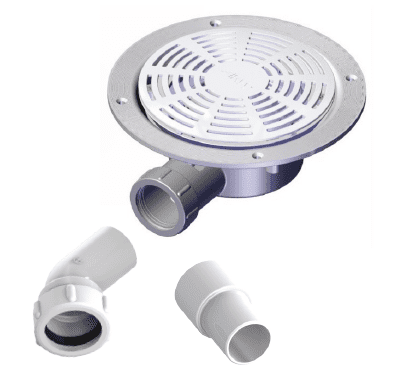

• Push-fit and solvent-weld pipe adaptors included (DW90)
• Top access for cleaning

DW90 or GW90-2, tiled or vinyl?

Floor finish first: choose a tiled floor adaptor if you are tiling and a vinyl floor adaptor if you are laying safety vinyl. Then the waste: the DW90 dry waste is a good choice where the shower may not be used for long periods, since it does not depend on a water seal that can evaporate. The GW90-2 wet waste uses a traditional water trap. Still unsure? Our complete guide to AKW wet room wastes explains how to choose by floor finish and depth below the former, and our team can check your layout on 0333 772 4162.

Installation notes

Fit the waste and adaptor into the former before finishing the floor, connect with a continuous fall to the drain, then tile up to the adaptor or clamp the vinyl into it.

Sizes & product codes

Technical specification

Frequently asked questions

What is the difference between dry and wet wastes?

A dry waste (DW90) uses a non-return valve to block smells; a wet waste (GW90-2) holds water in a trap.

What does -UK mean in the code?

These are the versions AKW list on their UK website. Please call us if you need a different version.

Will it fit Tuff Form8?

Yes, the low height wastes are offered with both Tuff Form and Tuff Form8.

Downloads

• DW90 specification sheet (PDF)
• DW90 with Tuff Form tiled floor adaptor (PDF)
• DW90 with Tuff Form vinyl floor adaptor (PDF)

Not sure which part you need? Call our team on 0333 772 4162 and we will check it against your installation before you order.
