AKW Marlbrook H-Section Profile for Wall Panels – Aluminium or PVC
AKW Marlbrook H-Section Profile for Wall Panels – Aluminium or PVC - Aluminium – 2440mm is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Usually Delivered 1-2 Working Days
AKW Marlbrook H-Section Profile for Wall Panels – Aluminium or PVC
Description
Description
AKW Marlbrook H-Section Profile for Wall Panels – Aluminium or PVC

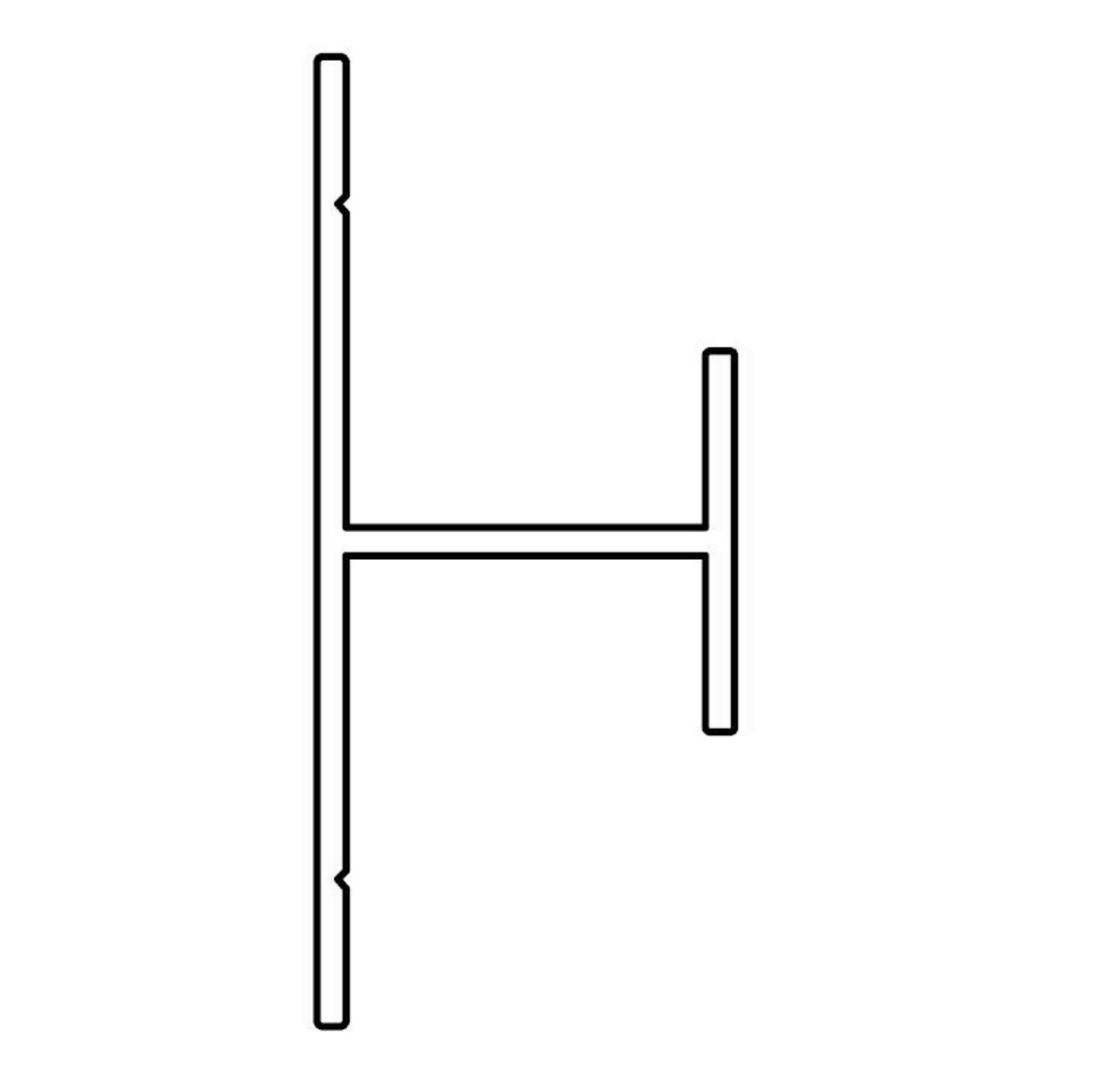

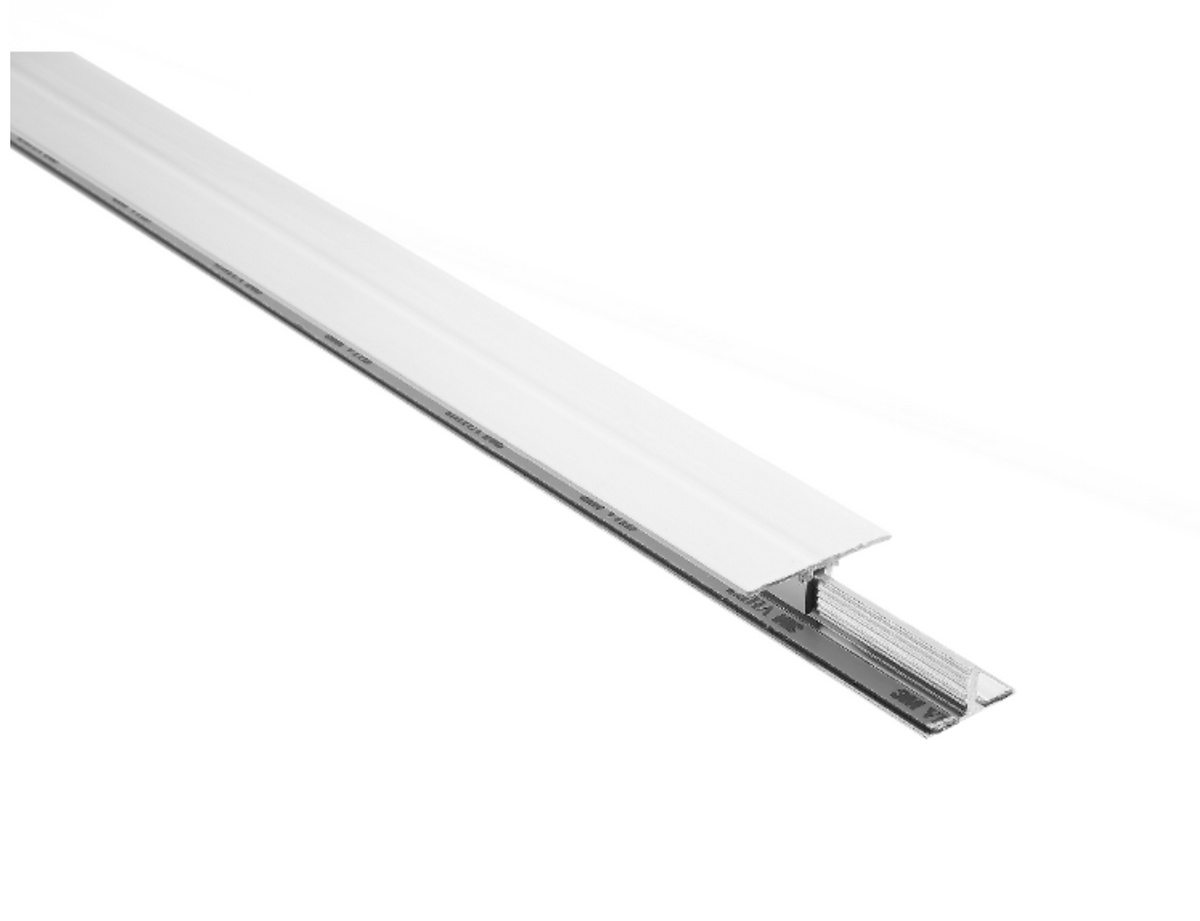

The AKW Marlbrook H-section profile is part of the trim system for Marlbrook square-edged bathroom wall panels. It joins two panels side by side on a flat wall, holding both edges in a neat sealed channel.
Marlbrook profiles seal and protect the panel edges and give a clean, professional finish. They are available in aluminium or white PVC, so you can choose a crisp metal line or a trim that blends into white walls.
Key features & benefits
- Designed for Marlbrook 12mm square-edged wall panels.
- Aluminium or white PVC to suit the look of the room.
- Seals exposed panel edges against water.
- Cut to length on site.
- Bed in silicone for a watertight finish.
Planning your Marlbrook trims
A Marlbrook installation uses H-sections to join panels, internal and external corners, radiused or square end caps for exposed edges, and a bottom profile where the panels meet a shower tray, bath, tiles or vinyl safety flooring. Count each vertical joint, corner and exposed edge on your layout and order one profile per run.
Most installers use one material throughout – all aluminium or all white PVC – so the trims match. See the panels at AKW Marlbrook wall panels, or call us on 0333 772 4162 for a parts list.
Why wall panels for adaptations? Wall panels are much quicker to fit than tiles – often a single day for a shower area – with far less dust and mess, which matters when someone is living in the home. There is no grout to discolour or harbour mould, and the large surfaces are easy for carers and cleaners to wipe down.
Installation notes
- Dry-fit and cut the profile to length before applying silicone.
- Run silicone into the channel and press the panel edge home.
- Wipe away excess silicone straight away.
Sizes & product codes
| Material | AKW code | EAN |
|---|---|---|
| Aluminium – 2440mm | 27685 | 5055295159020 |
| White PVC – 2440mm | 27686 | 5055295159037 |

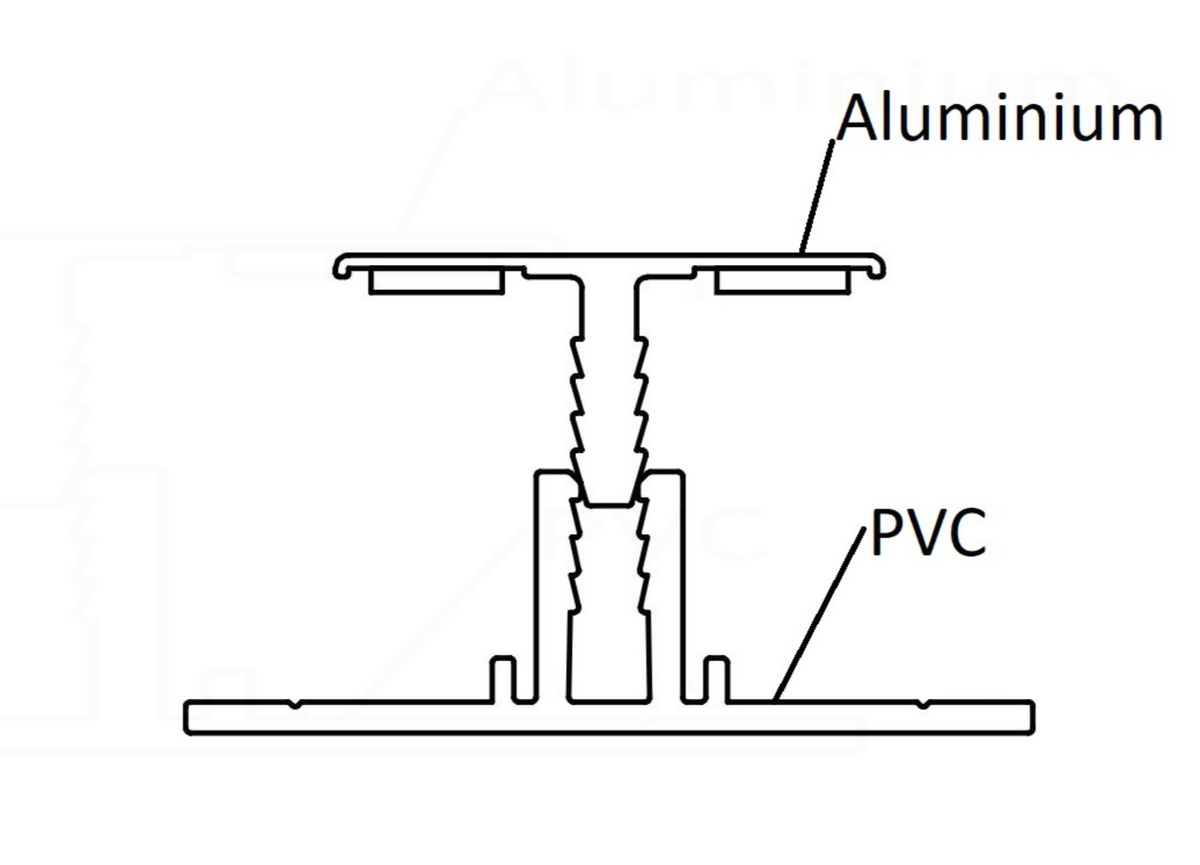

| Two-Piece Assembly – Aluminium & PVC 2440mm | 27687 | 5055295159044 |
Technical specification
| Brand | AKW |
| Range | Marlbrook |
| Profile | H-Section |
| Suits | Marlbrook 12mm square-edged wall panels |
| Options | Aluminium – 2440mm (27685); White PVC – 2440mm (27686); Two-Piece Assembly – Aluminium & PVC 2440mm (27687) |
Frequently asked questions
Aluminium or PVC – which should I choose?
Both seal the panel edge. Aluminium gives a metallic line; the PVC versions are white and blend into light-coloured walls.
Will it fit other 12mm panels?
It is designed for AKW Marlbrook panels. We can only confirm compatibility with Marlbrook.
How long is it?
The length is shown in the product options and the code table above. Profiles can be cut down on site.
Downloads
Need help choosing? Call our team on 0333 772 4162 and we will check your measurements and parts list before you order.
