AKW Marlbrook Square Edge Bathroom Wall Panels 12mm – Choice of Size & Colour

AKW Marlbrook Square Edge Bathroom Wall Panels 12mm – Choice of Size & Colour

AKW Marlbrook wall panels are a hard-wearing, grout-free alternative to tiles, designed for bathroom adaptations where durability really matters. Each 12mm square-edged panel has a structural WPS plywood core with a high-pressure laminate (HPL) finish on both faces, giving a water- and scratch-resistant surface that is quick to wipe clean.

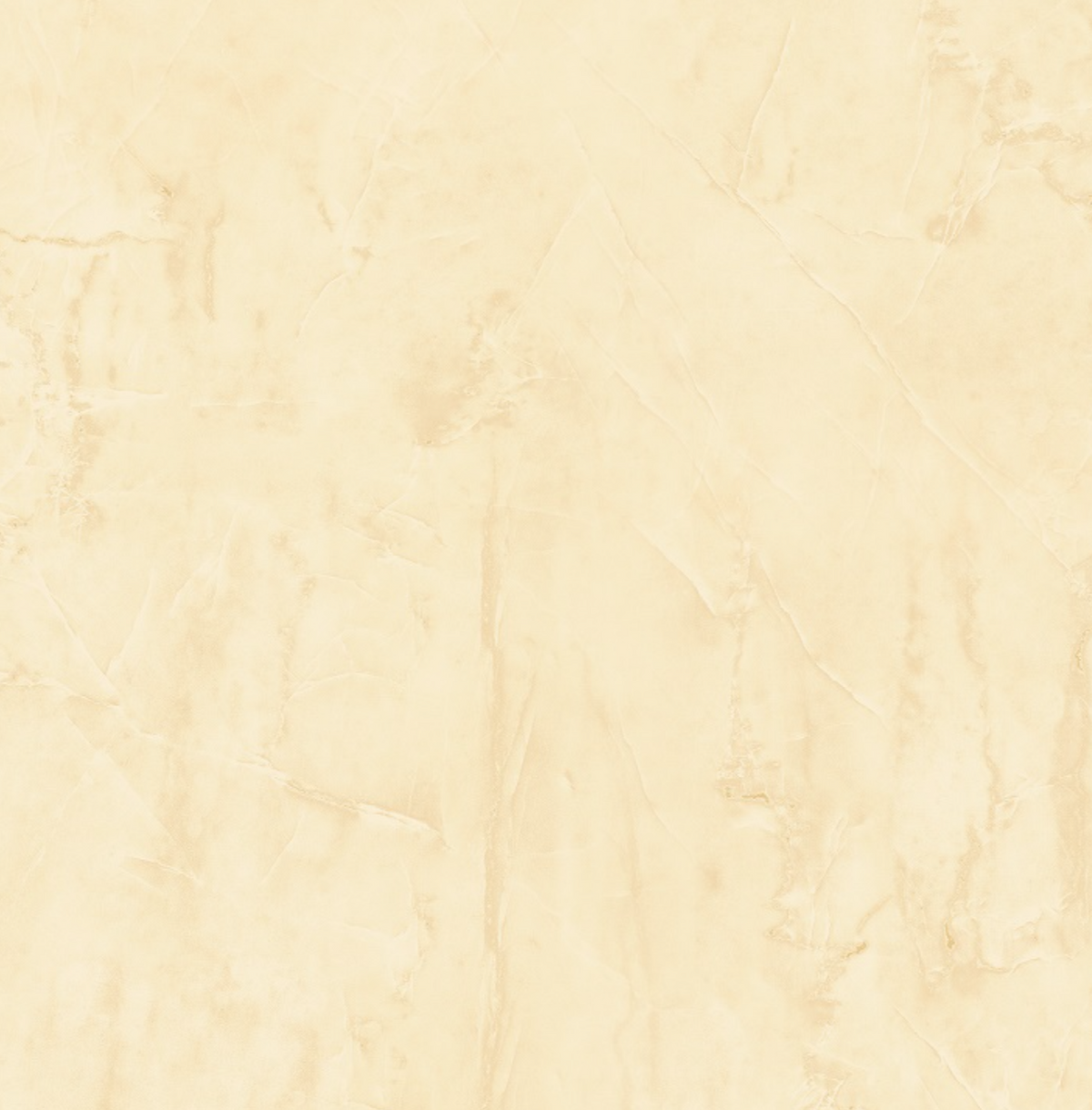

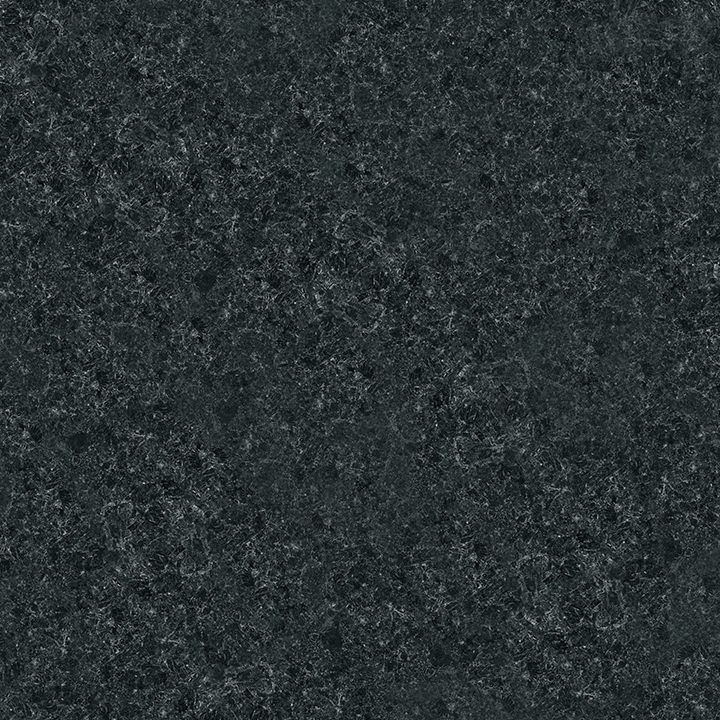

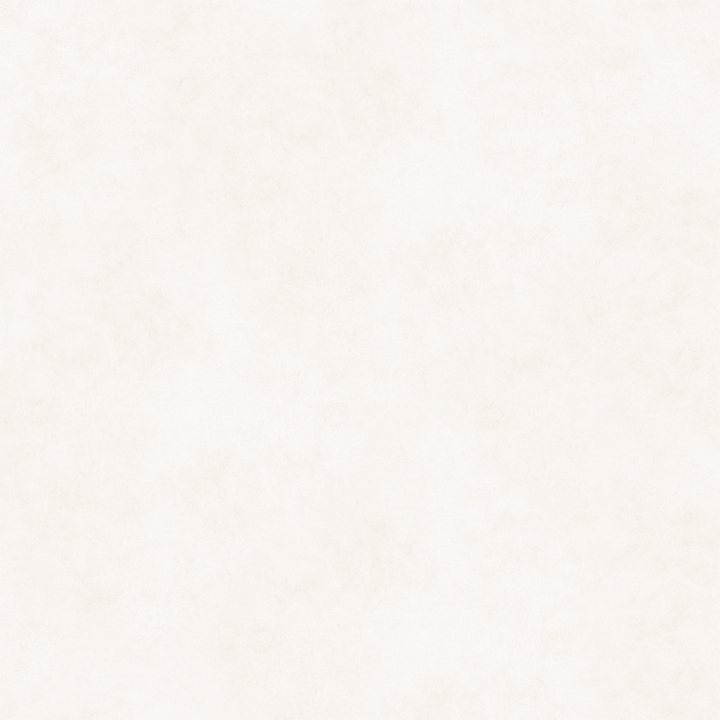

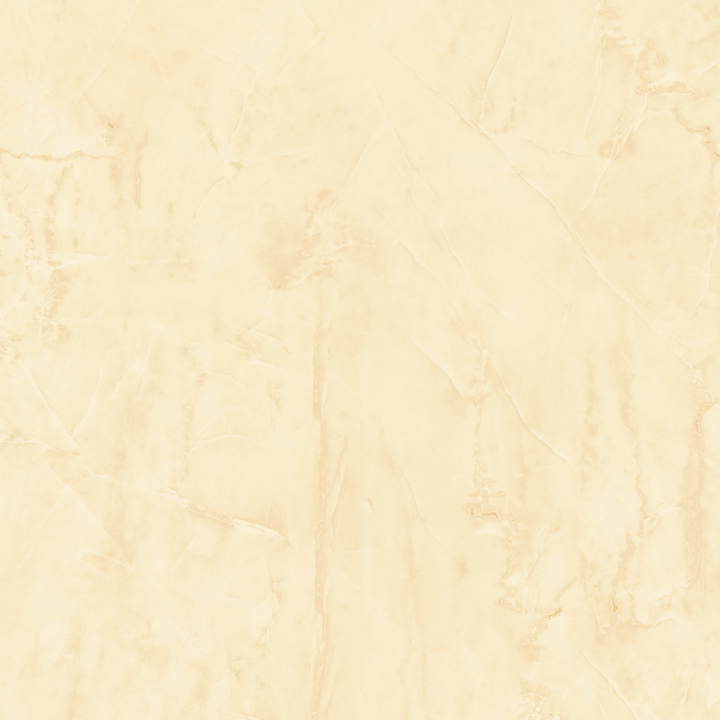

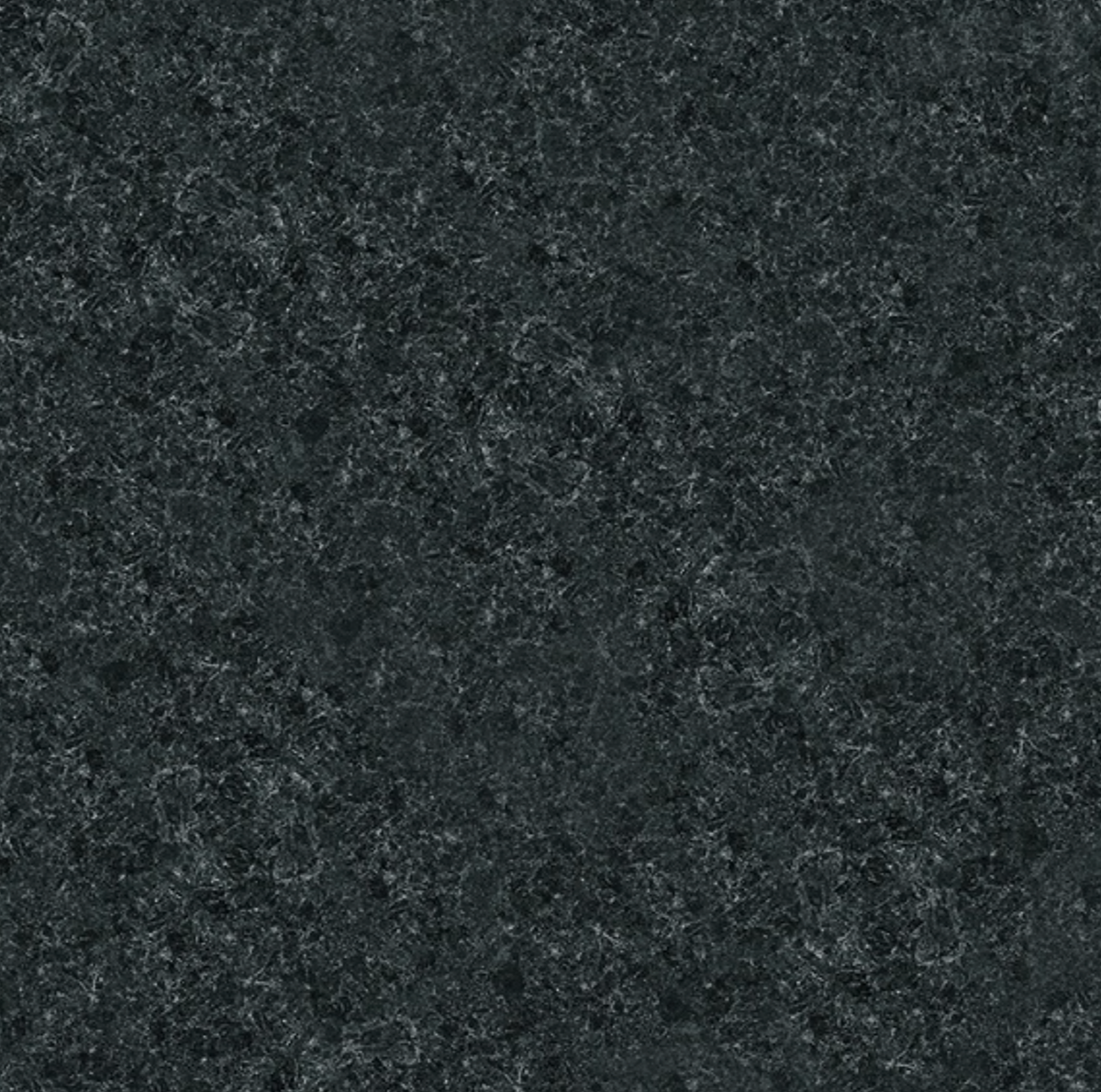

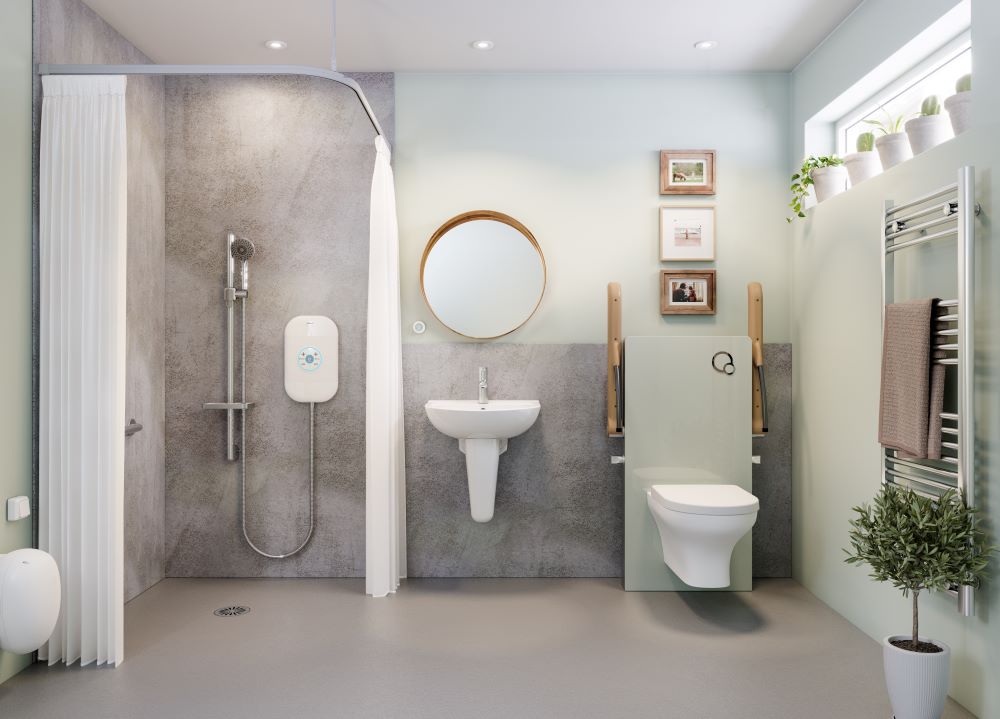

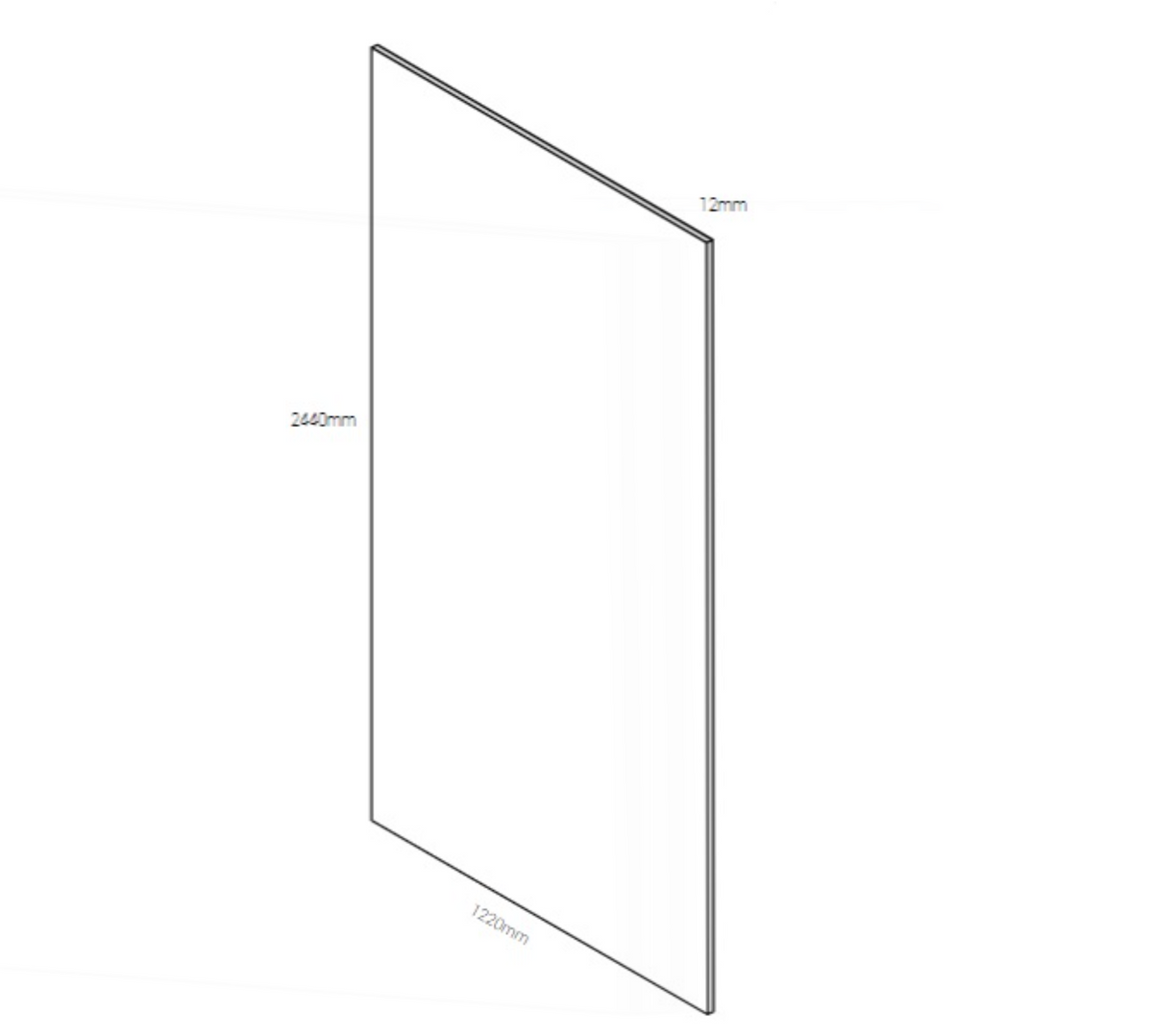

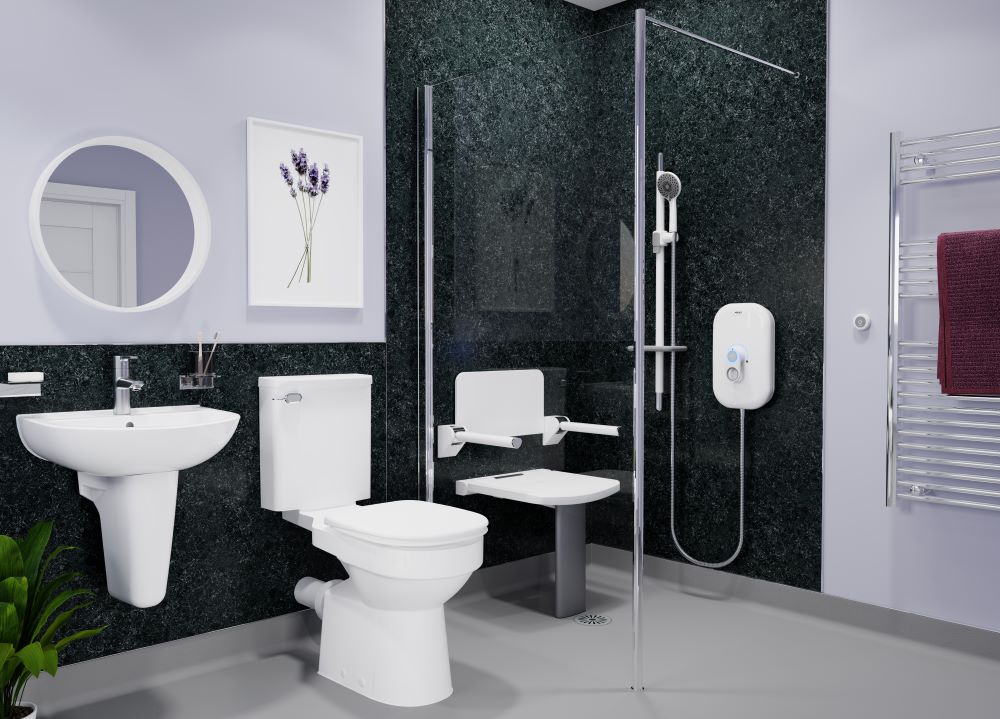

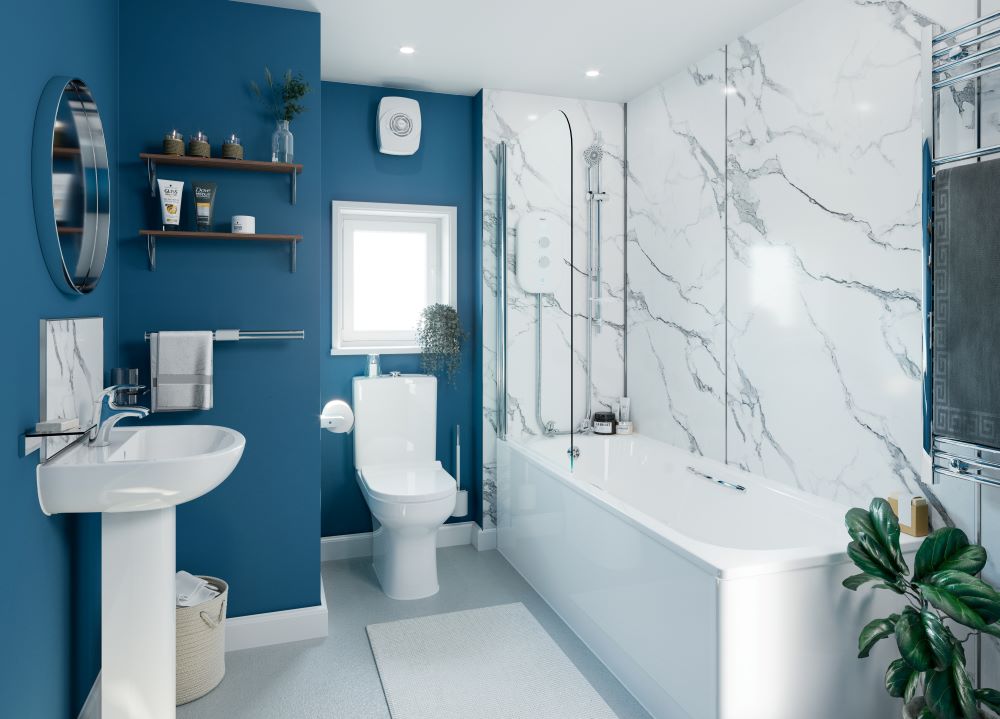

Panels are 2440mm long and come in four widths – 300mm, 600mm, 900mm and 1220mm – plus a handy 900mm + 300mm kit. Six finishes are available: Black Marble, Matt Grey, Quartz, Savannah, White Gloss and White Marble. Marlbrook carries AKW's 35-year warranty.

Key features & benefits

• Double-sided finish – either face can be the show face, so a scuff picked up during fitting need not spoil the job.

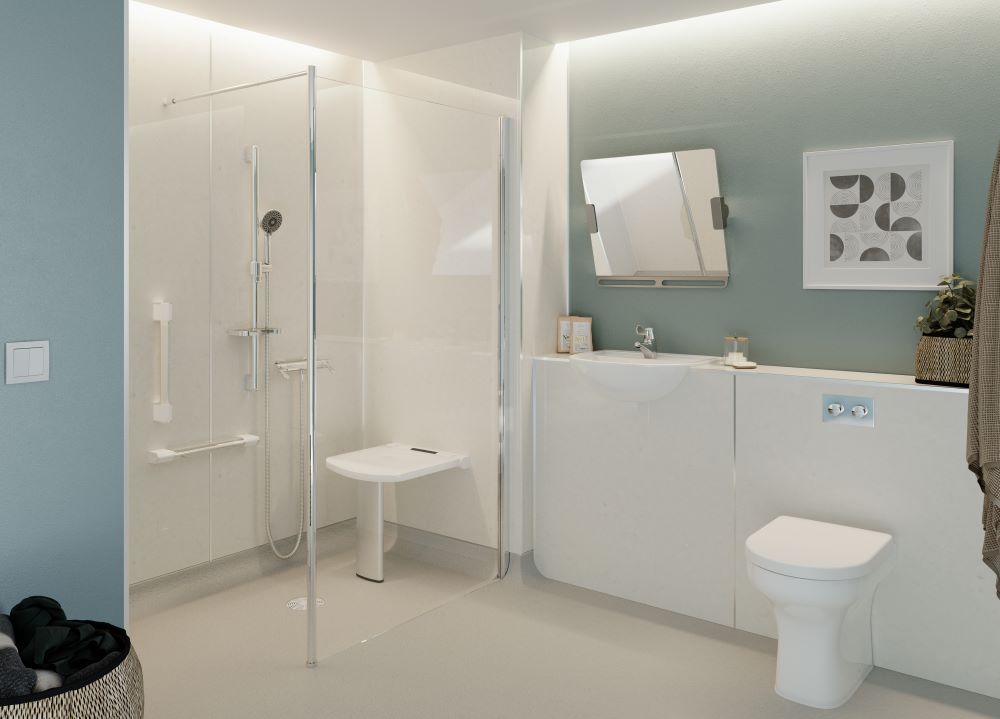

• Structural plywood core lets you fix shower seats and grab rails securely.
• Narrow widths are easier to carry upstairs and through doorways, and each panel is packed separately.

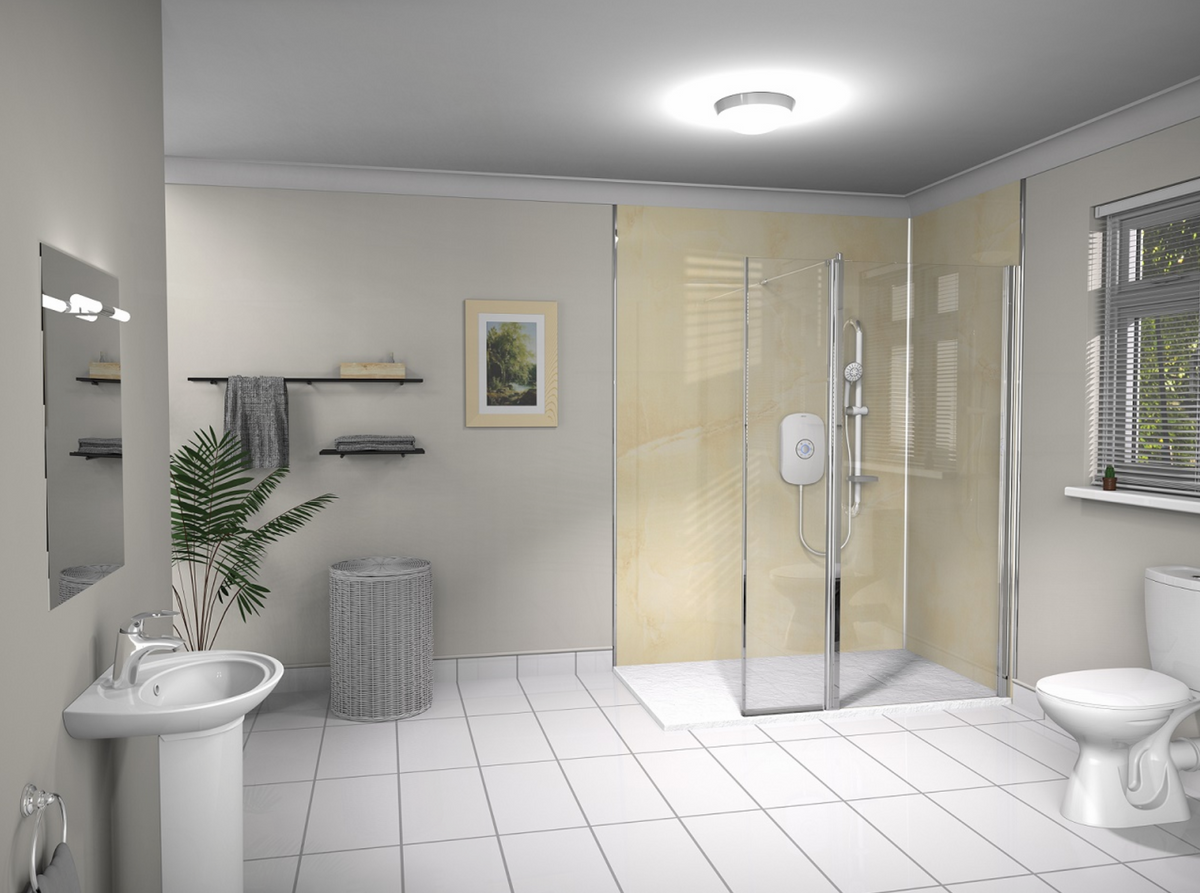

• Fits over existing tiles – AKW's example: a 1800 x 900mm shower area needs just three panels plus profiles.
• No grout – low maintenance and easy to keep hygienic.
• Box in pipework neatly with the narrower panels.
• Installs with ordinary toolbox tools – no specialist equipment needed.
• 35-year warranty (AKW terms apply).

Choosing sizes and planning your walls

Measure the width of each wall to be panelled and combine widths to cover it with as few joints as possible. For example, a 1200mm wall can take one 1220mm panel trimmed to size, or a 900mm and a 300mm panel – which is exactly what the 900mm + 300mm kit gives you. The 300mm and 600mm widths are ideal for returns, window reveals and boxing-in.

Panels are joined and finished with Marlbrook profiles: H-sections between panels, internal and external corners, radiused or square end caps for exposed edges, and bottom profiles to meet a shower tray, bath, tiles or vinyl safety flooring. Profiles come in aluminium or white PVC and are sold separately.

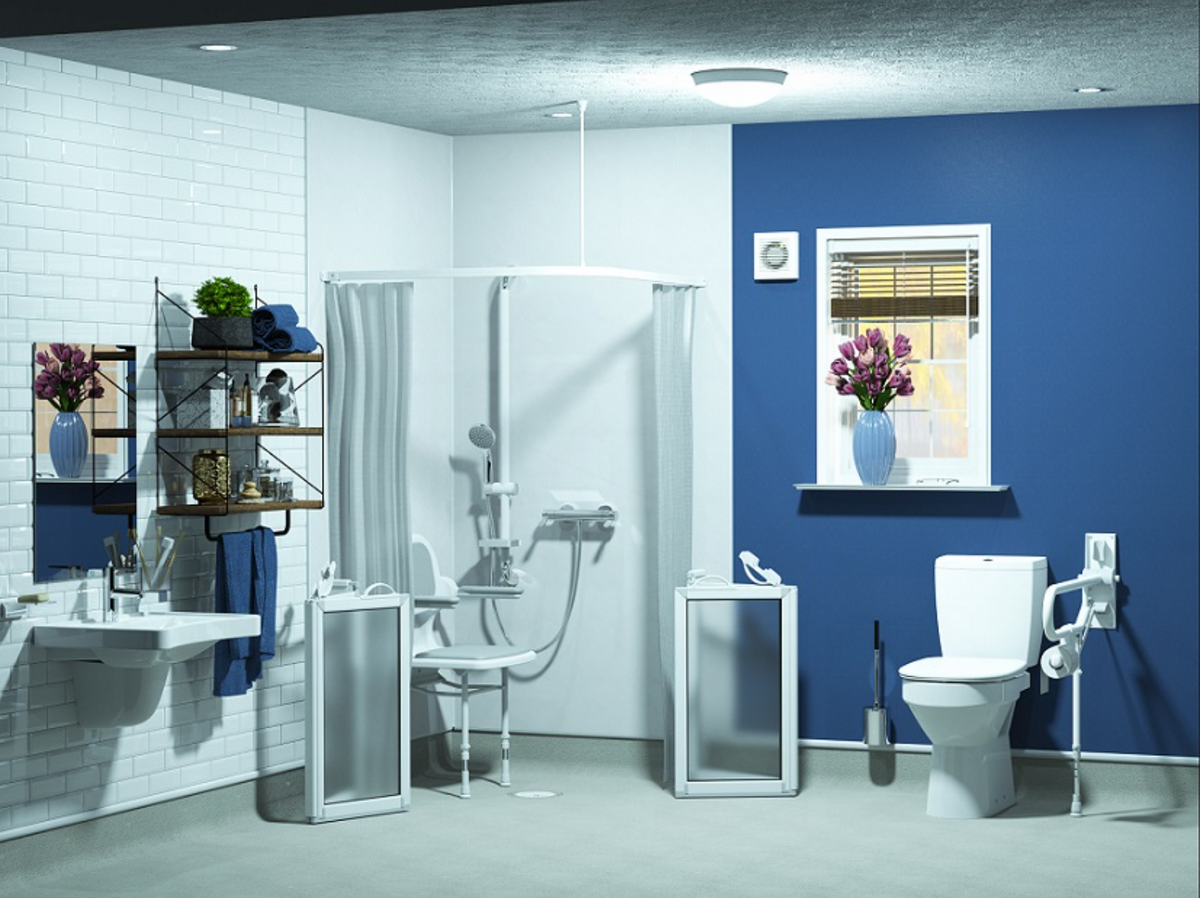

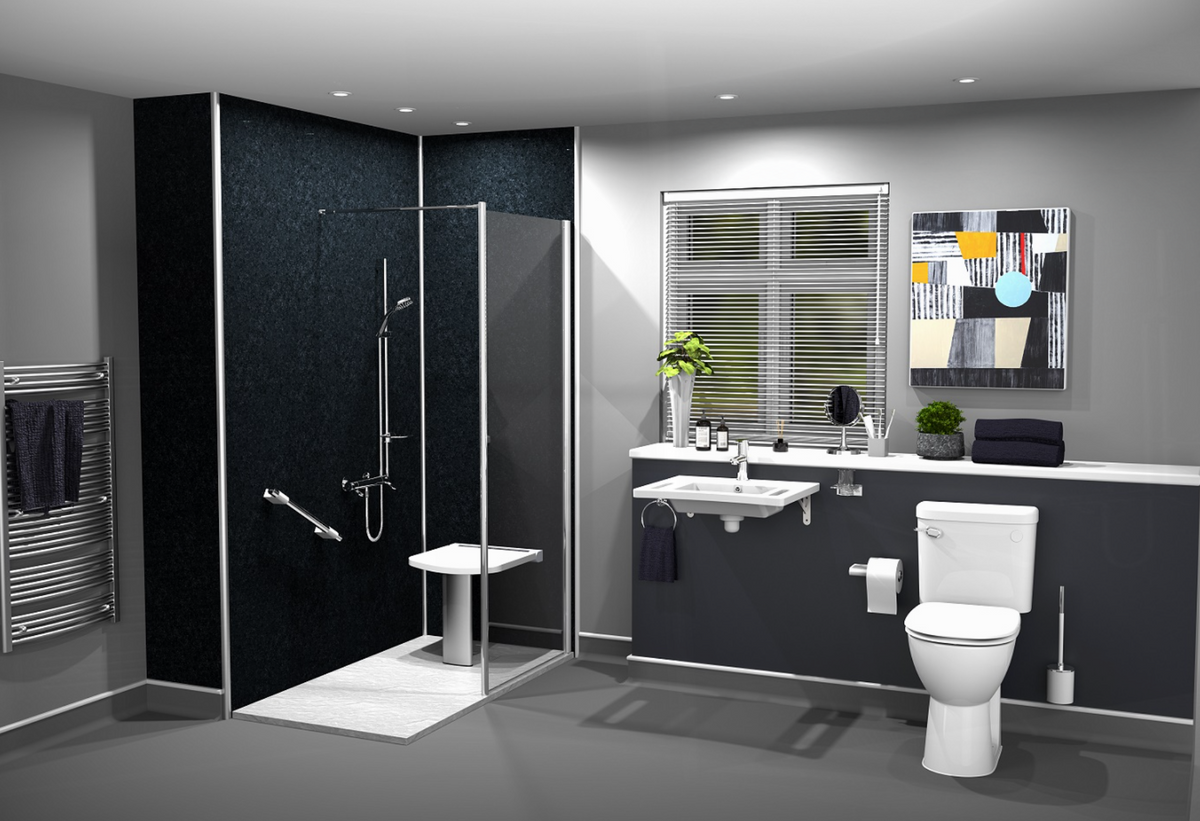

For a high-contrast accessible bathroom, choose a panel colour that contrasts clearly with the floor and with grab rails – Matt Grey or Black Marble with white sanitaryware works well. Need help with a parts list? Call 0333 772 4162 with your wall sizes.

Installation notes

• Fit to sound, flat walls or directly over existing tiles; use battens if the wall is uneven.
• Bond with a suitable wall panel adhesive and seal all joints and profiles with silicone.
• Cover every exposed edge with a Marlbrook profile.
• Use the bottom-to-tray, bottom-to-tile or bottom-to-vinyl profile to finish the base of the wall.

Sizes & product codes

Technical specification

Frequently asked questions

What is in the 900mm + 300mm kit?

One 900mm panel and one 300mm panel in the same colour, each packed separately – a convenient way to cover a 1200mm wall.

Can I fix grab rails to Marlbrook panels?

Yes. The structural plywood core allows shower seats and grab rails to be fixed securely.

Do I need to remove my old tiles?

Usually not. Marlbrook panels can be fitted directly over sound existing tiles.

Are profiles included?

No. Profiles and adhesive are sold separately so you only buy what your layout needs.

Downloads

• Marlbrook wall panels specification sheet (PDF)
• AKW wall panel installation guide (PDF)
• AKW wall panels brochure (PDF)
• AKW wall panels – a stylish, durable, accessible bathroom solution (PDF eBook)

Need help choosing? Call our team on 0333 772 4162 and we will check your measurements and parts list before you order.
