AKW Navlin Back to Wall or Low Level Toilet – Pan Only, With Low Level Cistern or Seat

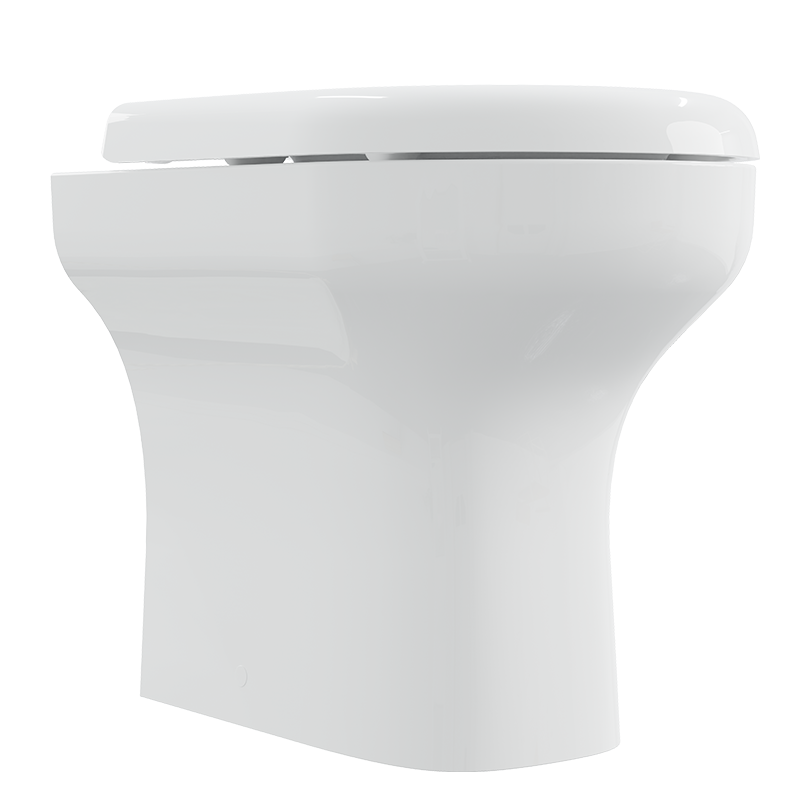

The AKW Navlin back to wall toilet is a sleek, rimless standard height toilet pan with a hidden waste. Fit it in front of a concealed cistern for a minimalist finish, or add one of the matching Navlin low level cisterns with flush pipe to make a classic low level toilet.
Buy the pan only, the pan with a seat, the pan with a low level cistern, or the complete low level toilet – pan, cistern, flush pipe and seat. The price updates as you choose.
What's included with each option
| What you choose | What's in the box | AKW codes (shown as the SKU) |
|---|---|---|
| Pan Only (No Cistern) + No Seat | The toilet pan with its floor fixing kit | 23572 |
| Pan Only + a Toilet Seat | The pan, fixing kit and the seat you pick (carbamide or PP soft close) | 23572 & seat code |
| Cistern + No Seat | The pan, fixing kit and the cistern you pick, supplied complete with its flush mechanism | 23572 & 23549 or 23559 (each supplied with its flush pipe) |
| Cistern + Toilet Seat (complete toilet) | Everything for a working toilet – pan, cistern with flush and seat | 23572 & 23549 or 23559 (each supplied with its flush pipe) & seat code |
Key features & benefits
- Rimless pan – fewer places for bacteria to build up and easier to clean.
- Back to wall design – the waste is hidden for a tidy, easy-clean finish.
- Two ways to fit – with a concealed cistern (for example in AKW fitted furniture) or as a low level toilet with a Navlin cistern and flush pipe.
- Rated to 400kg (60st) and tested to BS EN 997.
- Rounded edges and corners for added safety.
- 3/6 litre dual flush low level cisterns – push button or easy-grip lever.
- Soft close seats in carbamide or PP.
- Fixing kit included with the pan.
How to choose
Cistern: choose Pan Only where there is a concealed cistern in boxing or furniture. For a low level toilet, choose the push button cistern (23549) or the lever cistern (23559) – the lever is easier for people with weak grip. Both come with a flush pipe.
Seat: carbamide (23588) is the tougher choice; PP (23589) is the lower-cost option. Choose “No Seat” if one is already in place.
For a raised height (480mm) Doc M version, see the Navlin Doc M raised height back to wall toilet. Need help? Call 0333 772 4162.
Sizes & product codes
| Component | AKW code | EAN |
|---|---|---|
| Navlin standard height back to wall pan | 23572 | 5055295166257 |
| Navlin low level cistern, push button flush, with flush pipe | 23549 | – |
| Navlin low level cistern, lever flush, with flush pipe | 23559 | – |
| Carbamide Soft Close Seat with Lid | 23588 | 5055295166271 |
| PP Soft Close Seat with Lid | 23589 | 5055295166738 |
Technical specification
| Specification | Detail |
|---|---|
| Range | AKW Navlin |
| Pan | Standard height back to wall, rimless, vitreous china, white |
| Pan load rating | 400kg (60st), BS EN 997 |
| Low level cisterns | 3/6 litre dual flush, push button (23549) or lever (23559), flush pipe included |
| Water inlet | Bottom inlet, top-fill valve with all-round air gap |
| Overflow | 300mm above pan rim |
| Outlet | Horizontal |
| Floor fixings | Two-point side entry with white caps |
| Seats | Carbamide or PP, soft-close hinges, rated to 150kg (23.5st) |
Frequently asked questions
What did AKW's Navlin low level suite codes include?
AKW's Navlin standard height low level suites (28326 push button, 28337 lever, 28407 lever with PP seat) combined this pan with a low level cistern, flush pipe and soft close seat. Choose the matching cistern and seat here to get the same complete toilet.
Is the flush pipe included?
Yes – both low level cisterns come with their flush pipe.
Can I use a concealed cistern instead?
Yes – choose Pan Only. The pan suits standard concealed cisterns and AKW fitted toilet units.
