AKW Navlin Close Coupled Toilet – Standard or Comfort Height, Pan Only, With Cistern or Seat
AKW Navlin Close Coupled Toilet – Standard or Comfort Height, Pan Only, With Cistern or Seat - Standard Height (23571) / Pan only / No seat is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Usually Delivered 1-2 Working Days
AKW Navlin Close Coupled Toilet – Standard or Comfort Height, Pan O...
AKW Navlin Close Coupled Toilet – Standard or Comfort Height, Pan Only, With Cistern or Seat - Standard Height (23571) / Pan only / No seat is backordered and will ship as soon as it is back in stock.
Description
Description
AKW Navlin Close Coupled Toilet – Standard or Comfort Height, Pan Only, With Cistern or Seat
The AKW Navlin close coupled toilet is a modern, rimless toilet with a slim cistern and soft rounded lines. It is strong enough for care homes, housing and hotels, yet stylish enough for a family bathroom. The Navlin and Navlin Doc M ranges are designed to work together.
Choose a standard height or comfort (raised) height pan, then decide what else you need: the pan only, the pan with a cistern, the pan with a seat, or the complete toilet – pan, cistern and seat together. The price updates as you choose.
What's included with each option
| What you choose | What's in the box | AKW codes (shown as the SKU) |
|---|---|---|
| Pan Only (No Cistern) + No Seat | The toilet pan with its floor fixing kit | 23571 (standard) or 23570 (comfort height) |
| Pan Only + a Toilet Seat | The pan, fixing kit and the seat you pick (carbamide or PP soft close) | 23571 (standard) or 23570 (comfort height) & seat code |
| Cistern + No Seat | The pan, fixing kit and the cistern you pick, supplied complete with its flush mechanism | 23571 (standard) or 23570 (comfort height) & 23574 or 23594 |
| Cistern + Toilet Seat (complete toilet) | Everything for a working toilet – pan, cistern with flush and seat | 23571 (standard) or 23570 (comfort height) & 23574 or 23594 & seat code |
Key features & benefits
- Rimless pan – no hidden rim for germs, so cleaning is quicker and more effective.
- Standard or comfort height – the comfort height pan sits higher, making it easier to sit down and stand up.
- Strong – rated to 400kg (60st) and tested to BS EN 997.
- Rounded edges and corners for added safety.
- 3/6 litre dual flush with a raised push button or lever – easy to use with a hand, closed fist or elbow. The lever can be fitted left or right handed.
- Sensor flush ready – the push button cistern can take the optional AKW Sensor Flush (28404).
- Soft close seats in tough carbamide or cost-effective PP, rated to 150kg (23.5st).
- Two-point side-entry floor fixings with white caps – fixing kit included.
How to choose
Pan height: the standard height pan (23571) is about 410mm high to the rim – right for most family bathrooms. The comfort height pan (23570) is about 452mm to the rim, a comfortable height for taller users and accessible bathrooms. For a Doc M accessible toilet, see the Navlin Doc M raised height close coupled toilet.

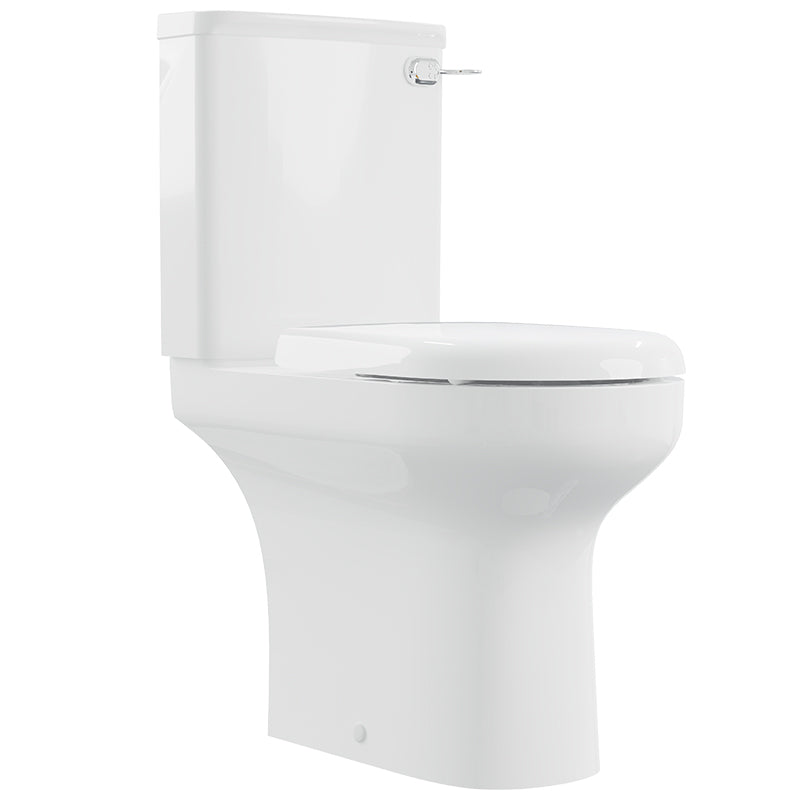

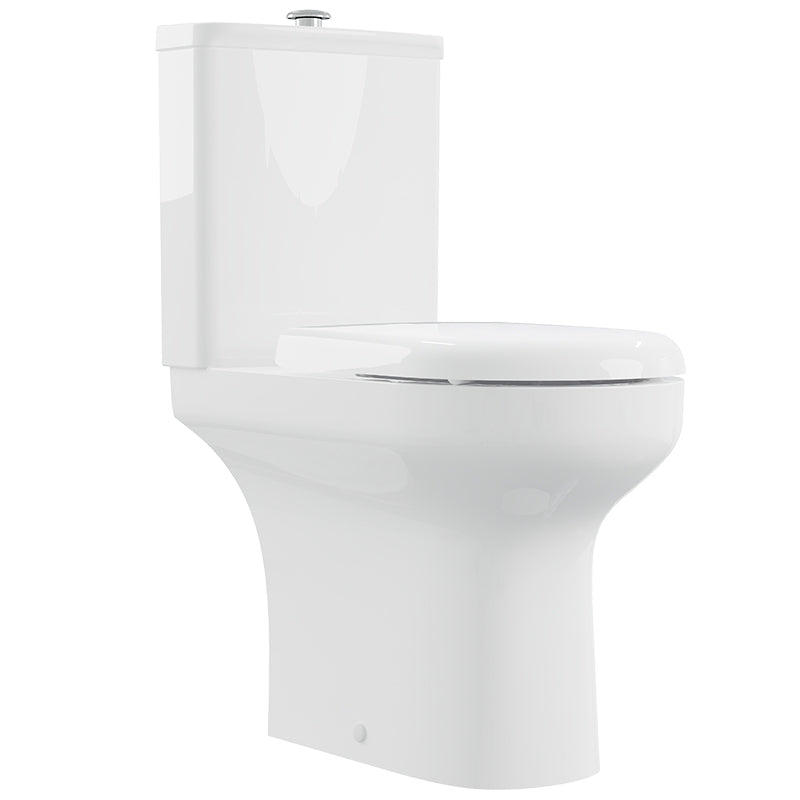

Cistern: the raised push button (23574) gives a clean modern look and can be upgraded to a sensor flush. The lever cistern (23594) has a screw-down lid and an easy-grip lever – a good choice for public or care settings.
Seat: carbamide (23588) is the harder-wearing plastic; PP (23589) is the budget-friendly choice. Both have soft-close hinges. Choose “No Seat” if you are keeping your own.
Questions? Call us on 0333 772 4162.
Sizes & product codes
| Component | AKW code | EAN |
|---|---|---|
| Navlin standard height close coupled pan, 650mm projection | 23571 | 5055295166240 |
| Navlin comfort (raised) height close coupled pan, 650mm projection | 23570 | 5055295166233 |
| Navlin cistern, raised push button flush | 23574 | 5055295166349 |
| Navlin cistern, lever flush, screw-down lid | 23594 | 5055295166356 |
| Carbamide Soft Close Seat with Lid | 23588 | 5055295166271 |
| PP Soft Close Seat with Lid | 23589 | 5055295166738 |
Technical specification
| Specification | Detail |
|---|---|
| Range | AKW Navlin |
| Pan | Close coupled, rimless, vitreous china, white |
| Pan height (to rim) | Approx. 410mm (23571) or 452mm (23570) |
| Projection | 650mm |
| Pan load rating | 400kg (60st), BS EN 997 |
| Cistern | Close coupled, 3/6 litre dual flush, raised push button (23574) or lever (23594) |
| Water inlet | Bottom inlet, top-fill valve with all-round air gap |
| Overflow | 300mm above pan rim |
| Outlet | Horizontal |
| Seats | Carbamide or PP, soft-close hinges, rated to 150kg (23.5st) |
Frequently asked questions
Is the cistern included?
Only if you choose one in the Cistern option. Pick “Pan Only” if you just need a replacement pan.
What did the old Navlin toilet suite codes include?
AKW's Navlin close coupled suites (28327 standard height, 28325 comfort height) combined the pan with the push button cistern and a soft close seat – choose the matching pan, the push button cistern (23574) and a seat here to get the same complete toilet.
Can I add a sensor flush?
Yes – choose the push button cistern (23574) and add the AKW Sensor Flush (28404).
Can I buy a cistern or seat on its own later?
Yes, the Navlin cisterns and AKW soft close seats are also sold separately.
