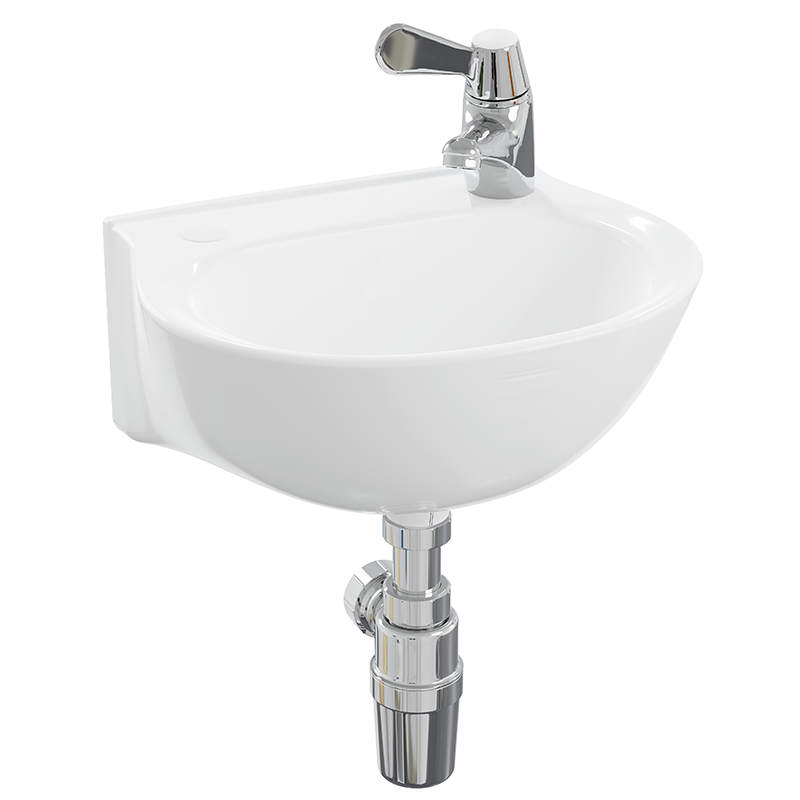

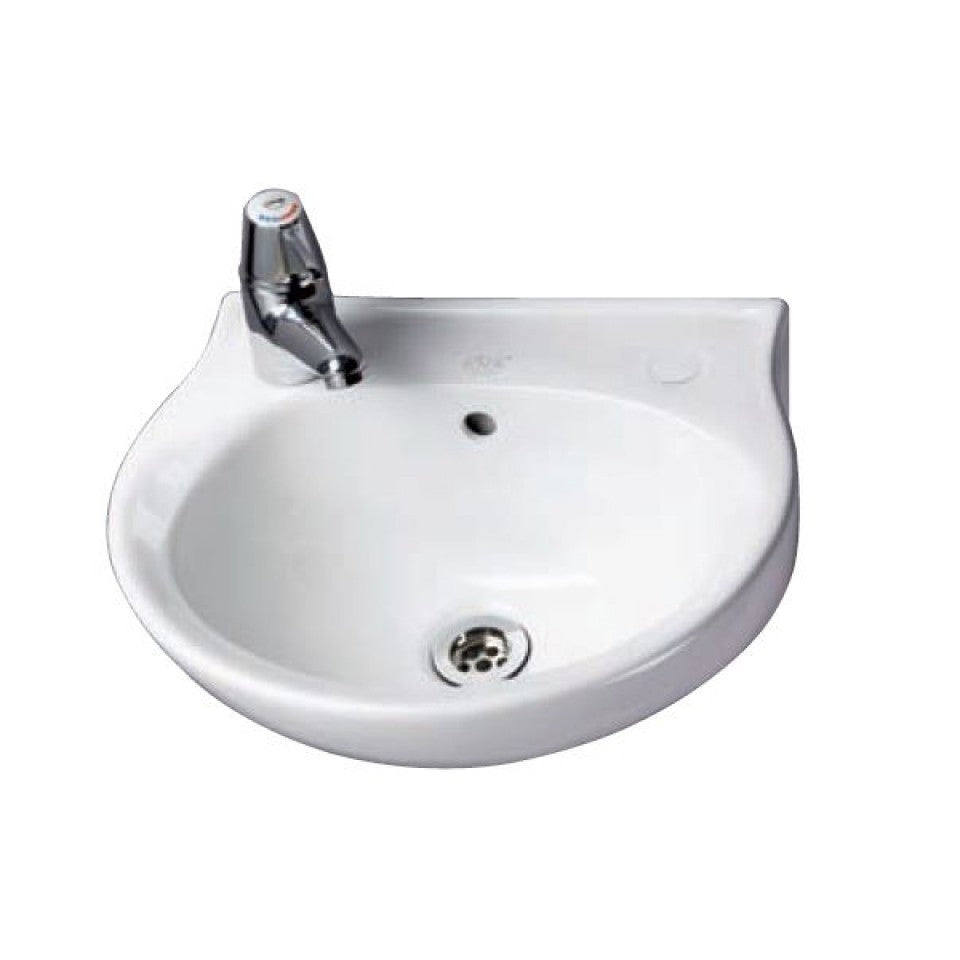

AKW Navlin Doc M Finger Rinse Wash Basin 400mm – 2 Tap Hole (23117)
AKW Navlin Doc M Finger Rinse Wash Basin 400mm – 2 Tap Hole (23117) - 400mm, 2 Tap Holes is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Usually Delivered 1-2 Working Days
AKW Navlin Doc M Finger Rinse Wash Basin 400mm – 2 Tap Hole (23117)
Description
Description
AKW Navlin Doc M Finger Rinse Wash Basin 400mm – 2 Tap Hole (23117)
The AKW Navlin Doc M Finger Rinse Wash Basin is the compact 400mm hand rinse basin AKW supplies in its Doc M washroom packs. It is small enough to be fitted within reach of the toilet, so a person can wash their hands before moving back to their wheelchair, exactly as Approved Document M recommends for accessible toilets. It also makes a neat cloakroom basin wherever space is tight.
Key features & benefits
- Compact 400mm width and 340mm projection – small enough to sit within reach of the toilet in an accessible washroom or a small cloakroom.
- Two tap holes so it can be fitted left or right handed; a blanking plug is supplied for the hole you do not use.
- Free-flowing waste – supplied without a plug to reduce the risk of flooding. A plug and chain or clicker waste can be bought separately.
- Waste and chrome-plated bottle trap included, along with fixings.
- Extra under-basin bracket for added support.
- Matches the AKW Navlin and Navlin Doc M sanitaryware ranges.
Choosing and fitting
In a Doc M accessible toilet, fit the basin so that the tap is on the side nearest the toilet and the rim sits at the height shown on AKW's layout drawing. Pair it with a lever-operated tap – a TMV3 thermostatic mixer is the safest choice in care settings. Questions? Call 0333 772 4162.
Sizes & product codes
| Size | AKW code | EAN |
|---|---|---|
| 400mm, 2 tap holes | 23117 | 5055295132481 |
Technical specification
| Specification | Detail |
|---|---|
| Range | AKW Navlin Doc M |
| Width | 400mm |
| Projection | 340mm |
| Height | 195mm |
| Tap holes | 2 (blanking plug supplied) |
| Wall to tap hole | 65mm |
| Wall to waste outlet | 165mm |
| Waste outlet | 32mm |
| Weight | 10.5kg |
| Supplied with | Waste, chrome bottle trap, under-basin bracket, fixings |
| Material | Vitreous china, white |
Frequently asked questions
Does it come with a plug?
No – it has a free-flowing waste to reduce flooding risk. A plug and chain or clicker waste is available separately.
Can I fit a single mixer tap?
Yes. Use one tap hole for a monobloc mixer and fit the supplied blanking plug in the other.
Is it suitable for a Doc M toilet?
Yes – it is the finger rinse basin used in AKW's Doc M packs.
Downloads
