AKW Navlin Doc M Raised Height Back to Wall Toilet – Pan Only, With Low Level Cistern or Seat

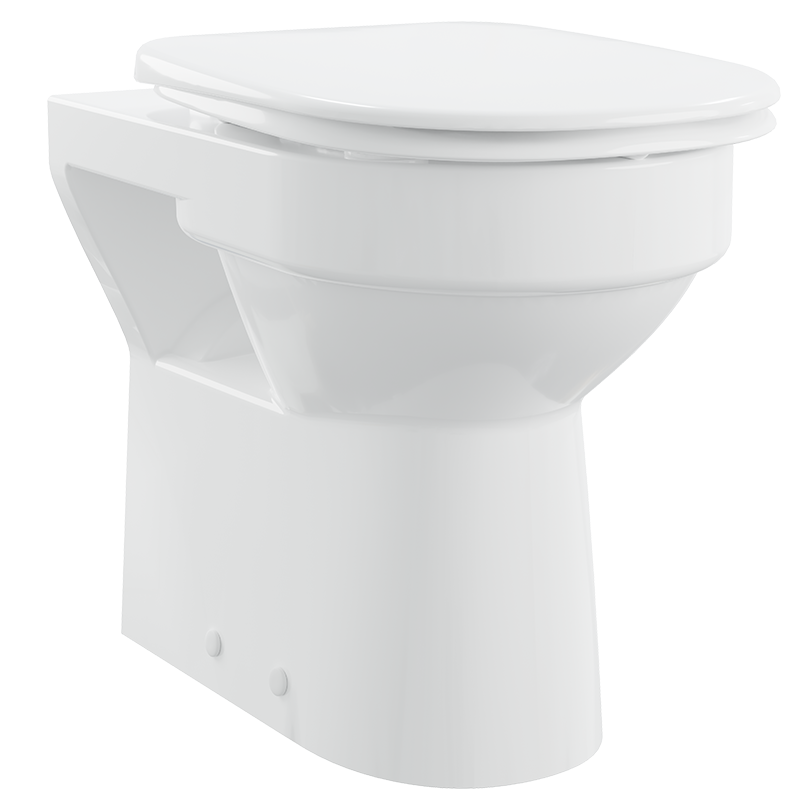

The AKW Navlin Doc M raised height back to wall toilet is a rimless, 480mm high toilet pan for accessible bathrooms and Doc M washrooms. Fit it against a concealed cistern in boxing or furniture, or turn it into a low level toilet by adding one of the matching Navlin low level cisterns with flush pipe.
Buy the pan only, add a low level cistern, add a seat, or order the complete low level toilet in one go. The price updates as you choose.
What's included with each option
| What you choose | What's in the box | AKW codes (shown as the SKU) |
|---|---|---|
| Pan Only (No Cistern) + No Seat | The toilet pan with its floor fixing kit | 23593 |
| Pan Only + a Toilet Seat | The pan, fixing kit and the seat you pick (ergonomic, carbamide or PP) | 23593 & seat code |
| Cistern + No Seat | The pan, fixing kit and the cistern you pick, supplied complete with its flush mechanism | 23593 & 23559 or 23549 (each supplied with its flush pipe) |
| Cistern + Toilet Seat (complete toilet) | Everything for a working toilet – pan, cistern with flush and seat | 23593 & 23559 or 23549 (each supplied with its flush pipe) & seat code |
Key features & benefits
- 480mm raised height with seat fitted – easier to sit and stand, in line with Doc M guidance.
- Back to wall pan – hides the waste pipe for a neat, easy-clean finish.
- Rimless – fewer places for germs to build up and quicker to clean.
- Rated to 400kg (60st) and tested to BS EN 997.
- Low level cisterns with flush pipe – 3/6 litre dual flush with a spatula lever (23559) or push button (23549).
- Ergonomic seats with seat lugs and high-contrast colours.
- Four-point side-entry floor fixings with white caps – fixing kit included.
How to choose

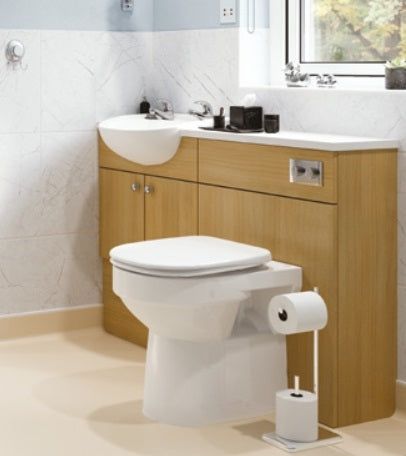

Cistern: choose Pan Only if the toilet will sit in front of a concealed cistern (for example inside AKW fitted furniture). For a traditional low level toilet, choose the lever flush cistern (23559) – the Doc M choice, easy to press with a fist or elbow – or the push button cistern (23549). Both come with a flush pipe.
Seat: the ergonomic seats are best for care and Doc M use – choose one without a lid if a backrest will be fitted. The carbamide and PP soft close seats suit general use. Choose “No Seat” if you already have one.
Need help? Call us on 0333 772 4162.
Sizes & product codes
| Component | AKW code | EAN |
|---|---|---|
| Doc M raised height back to wall pan | 23593 | 5055295166226 |
| Doc M low level cistern, lever flush, with flush pipe | 23559 | – |
| Low level cistern, push button flush, with flush pipe | 23549 | – |
| White Ergonomic Seat with Lid | 23122 | 5055295131781 |
| White Ergonomic Seat, No Lid | 23123 | 5055295131798 |
| Blue Ergonomic Seat with Lid | 23124 | 5055295131804 |
| Blue Ergonomic Seat, No Lid | 23125 | 5055295131811 |
| Dark Blue Ergonomic Seat with Lid | 23124DB | 5055295158733 |
| Dark Blue Ergonomic Seat, No Lid | 23125DB | 5055295158757 |
| Mid Grey Ergonomic Seat with Lid | 23124MG | 5055295158740 |
| Mid Grey Ergonomic Seat, No Lid | 23125MG | 5055295158764 |
| Carbamide Soft Close Seat with Lid | 23588 | 5055295166271 |
| PP Soft Close Seat with Lid | 23589 | 5055295166738 |

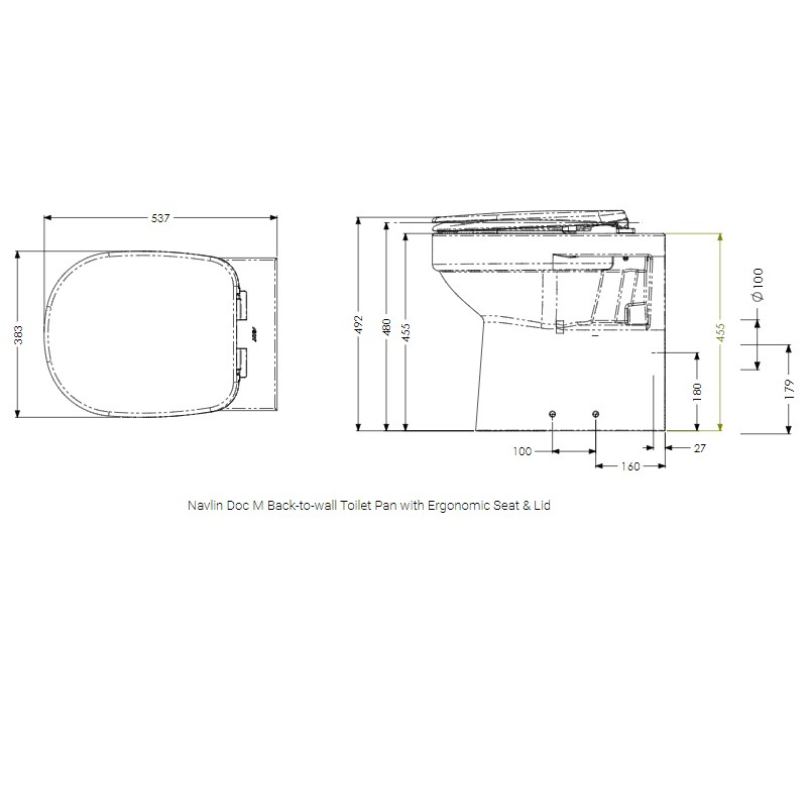

Technical specification
| Specification | Detail |
|---|---|
| Range | AKW Navlin Doc M |
| Pan | Raised height back to wall, rimless, vitreous china, white |
| Height | 480mm with seat fitted |
| Pan load rating | 400kg (60st), BS EN 997 |
| Low level cisterns | 3/6 litre dual flush, lever (23559) or push button (23549), flush pipe included |
| Water inlet | Bottom inlet, top-fill valve with all-round air gap |
| Overflow | 300mm above pan rim |
| Outlet | Horizontal |
| Ergonomic seats | Soft-close hinges, seat lugs, rated to 300kg (47st) |
| Carbamide / PP seats | Soft-close hinges, rated to 150kg (23.5st) |
Frequently asked questions
Does the pan come with a cistern?
No – choose a low level cistern in the Cistern option, or Pan Only if you are using a concealed cistern.
Is the flush pipe included?
Yes, both Navlin low level cisterns are supplied with their flush pipe.
Is it suitable for a Doc M washroom?
Yes – the 480mm seat height is designed for Doc M. Grab rails, a backrest and a basin are also needed; see our AKW Doc M packs.
Can I buy the cistern or seat later?
Yes, the Navlin cisterns and AKW seats are also sold on their own.
