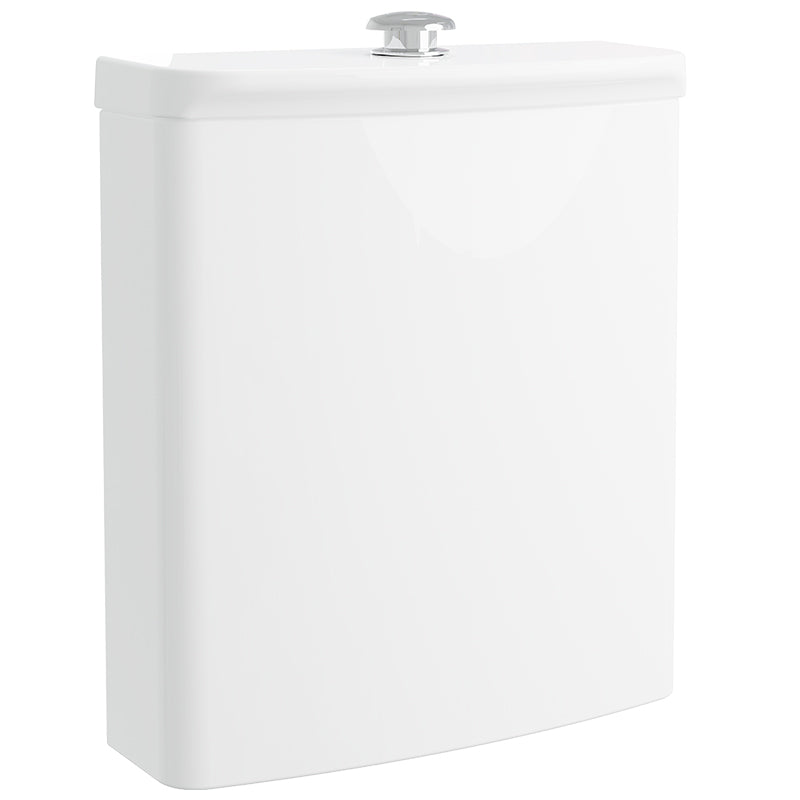

AKW Navlin Toilet Cistern – Close Coupled or Low Level, Lever or Push Button Flush
The AKW Navlin Toilet Cistern is the water-saving cistern made for AKW's Navlin and Navlin Doc M toilets. Choose a close coupled cistern that sits directly on a Navlin close coupled pan, or a low-level cistern that mounts on the wall above a back to wall pan and comes with its flush pipe. Each is available with a raised push button or a Doc M lever flush.
Key features & benefits
- 3/6 litre dual flush to save water.
- Easy to operate – the raised push button and the lever can both be used with a hand, closed fist or elbow.
- Doc M lever version has a screw-down lid that deters tampering in public washrooms.
- Bottom inlet with a top-fill inlet valve and an all-round air gap, and an overflow set 300mm above the pan rim, in line with UK Water Regulations.
- Sensor flush ready – the close coupled push button cistern can take the optional AKW Sensor Flush (28404) for contact-free flushing.
- Complete with flush mechanism; low-level versions include the flush pipe.
Choosing the right cistern

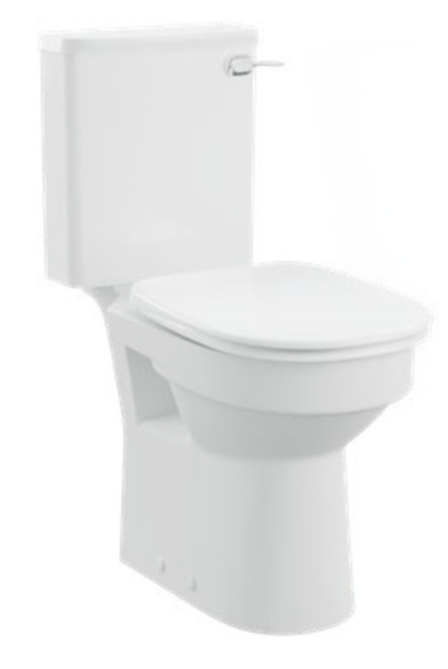

Close coupled cisterns fit the Navlin close coupled pans (standard, raised and Doc M). Low level cisterns are for the Navlin and Navlin Doc M back to wall pans. For a Doc M accessible toilet, choose the lever flush and fit it on the transfer side, away from the wall; a low-level cistern also calls for a padded back rest. Not sure? Call 0333 772 4162.
Sizes & product codes
| Cistern type | Flush | AKW code | EAN |
|---|---|---|---|
| Close Coupled | Raised Push Button | 23574 | 5055295166349 |
| Close Coupled | Doc M Lever with Screw-Down Lid | 23594 | 5055295166356 |
| Low Level with Flush Pipe | Raised Push Button | 23549 | – |
| Low Level with Flush Pipe | Doc M Lever with Screw-Down Lid | 23559 | – |
Technical specification
| Specification | Detail |
|---|---|
| Range | AKW Navlin / Navlin Doc M |
| Flush volume | 3/6 litre dual flush |
| Inlet | Bottom inlet, top-fill valve with air gap |
| Overflow | 300mm above pan rim |
| Material | Vitreous china, white |
Frequently asked questions
Will this fit a non-Navlin toilet?
These cisterns are designed for AKW Navlin pans. We cannot guarantee the fit or flush performance with other makes.
Is the flush pipe included?
Yes, with both low-level cisterns.
Can I fit the lever on either side?
The Navlin lever flush can be installed left or right handed, so it can sit on the transfer side.
