AKW Navlin Wall Hung Toilet – Pan Only, With Seat or Geberit Frame
Description
Description
AKW Navlin Wall Hung Toilet – Pan Only, With Seat or Geberit Frame

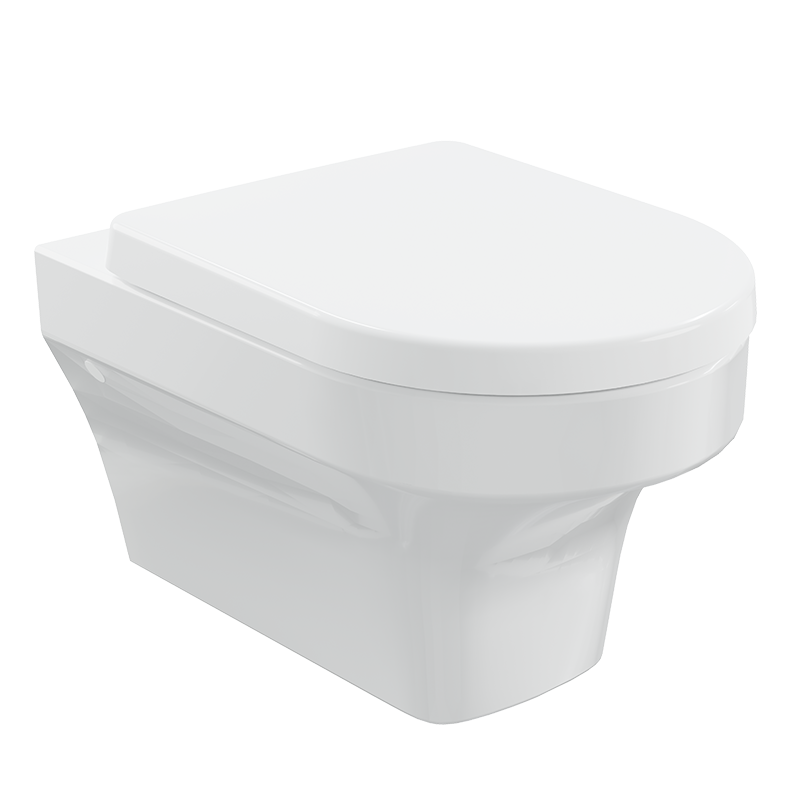

The AKW Navlin wall hung toilet is a rimless, ultra-minimal toilet pan that floats off the floor, so the bathroom looks bigger and the floor underneath is easy to clean. It is strong – rated to 400kg (60st) – making it suitable for care homes and busy family bathrooms as well as stylish new builds.
Buy the pan only, add the matching soft close seat, and if you need one, add a Geberit Duofix wall hung frame with concealed cistern and flush plate for a complete installation. The price updates as you choose.
What's included with each option
| What you choose | What's in the box | AKW codes (shown as the SKU) |
|---|---|---|
| Pan Only + No Frame | Wall hung pan with fixing kit | 23573 |
| Seat + No Frame | Pan, fixing kit and the carbamide soft close seat made for this pan | 23573 & 23645 |
| Pan + Geberit frame | Pan, fixing kit, Geberit Duofix frame with concealed cistern and your choice of white or chrome flush plate | 23573 & 23520 & 23521WH / 23521CH |
| Seat + Geberit frame (complete toilet) | Everything above plus the soft close seat | 23573 & 23645 & 23520 & 23521WH / 23521CH |
Key features & benefits
- Rimless, direct flushing pan – cuts down on germ build-up and is quick to clean.
- Wall hung – pipework and cistern are hidden in the wall for a clean, spacious look.
- Rated to 400kg (60st) and tested to BS EN 997.
- Rounded edges and corners for added safety.
- Soft close carbamide seat (23645) made for the Navlin wall hung pan, rated to 150kg (23.5st).
- Fits standard wall hung frames – or choose the Geberit Duofix frame with Alpha concealed cistern here.
- Horizontal outlet and fixing kit included.
How to choose
If you already have a wall hung frame and concealed cistern in place, choose No Frame. For a new installation, choose a Geberit Duofix frame with a white or chrome flush plate – the frame carries the weight of the toilet and holds the concealed cistern. Add the seat unless you already have one. Need help? Call 0333 772 4162.
Sizes & product codes
| Component | AKW code | EAN |
|---|---|---|
| Navlin wall hung toilet pan | 23573 | 5055295166264 |
| Carbamide soft close seat for Navlin wall hung pan | 23645 | – |

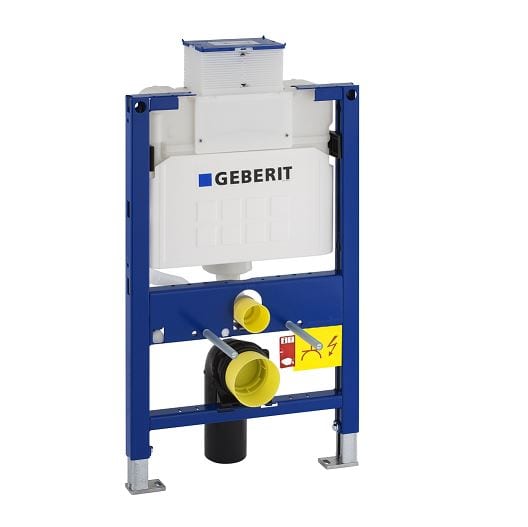

| Geberit Duofix wall hung frame with Alpha concealed cistern | 23520 | 4064746044748 |
| Geberit Alpha01 flush plate, white | 23521WH | 4025416349709 |
| Geberit Alpha01 flush plate, chrome | 23521CH | 4025416349730 |
Technical specification
| Specification | Detail |
|---|---|
| Range | AKW Navlin |
| Pan | Wall hung, rimless, vitreous china, white |
| Pan load rating | 400kg (60st), BS EN 997 |
| Outlet | Horizontal |
| Seat | Carbamide, soft-close hinges, rated to 150kg (23.5st) |
| Frame option | Geberit Duofix wall hung frame with Alpha concealed cistern |
| Flush plate option | Geberit Alpha01, white or chrome |
Frequently asked questions
Is a frame or cistern included with the pan?
No – a wall hung pan needs a frame and concealed cistern. Choose a Geberit frame option here, or No Frame if you already have one.
Will other seats fit?
Use the 23645 soft close seat, which is made for this pan.
Can I buy the frame on its own?
Yes – the Geberit Duofix frame and flush plates are also sold separately.
