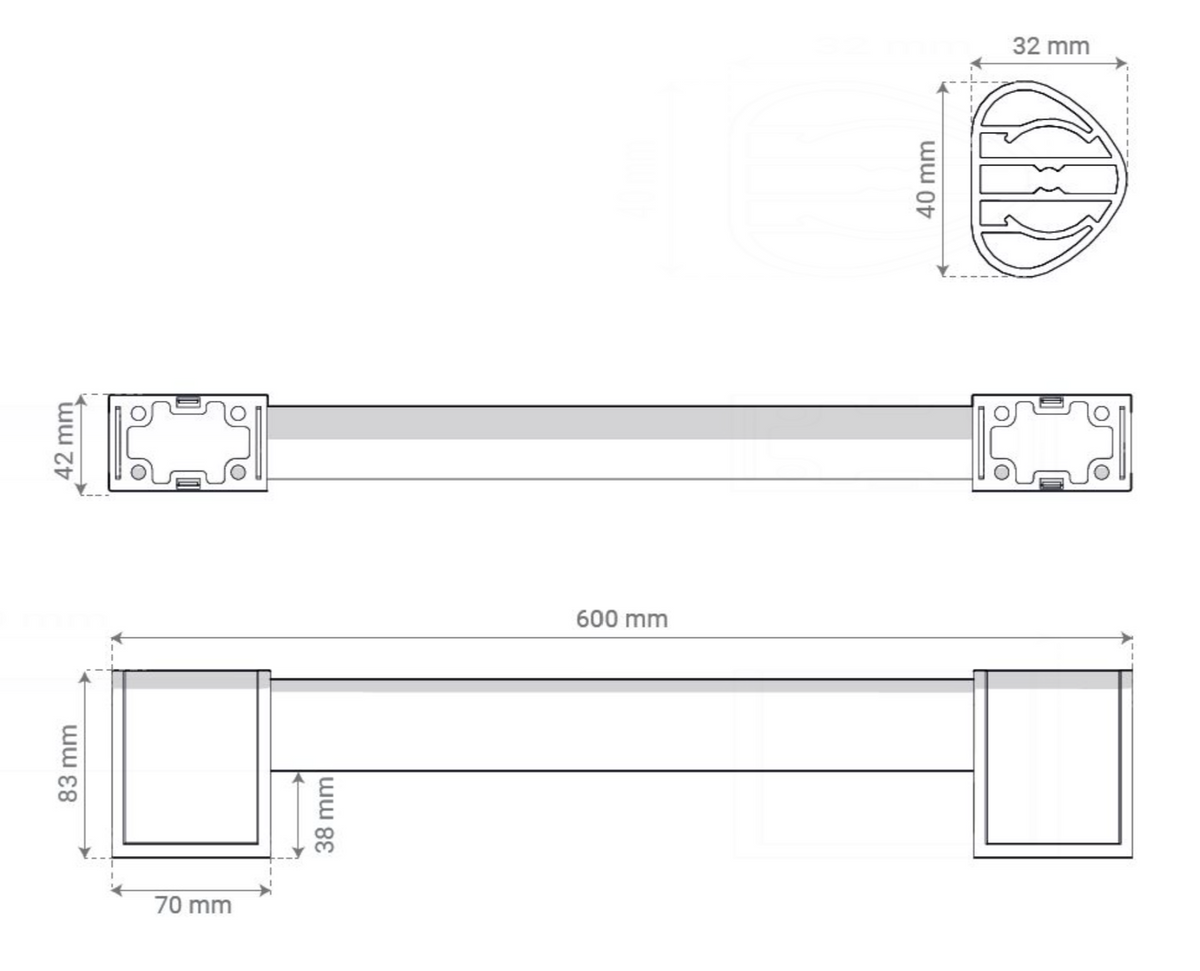

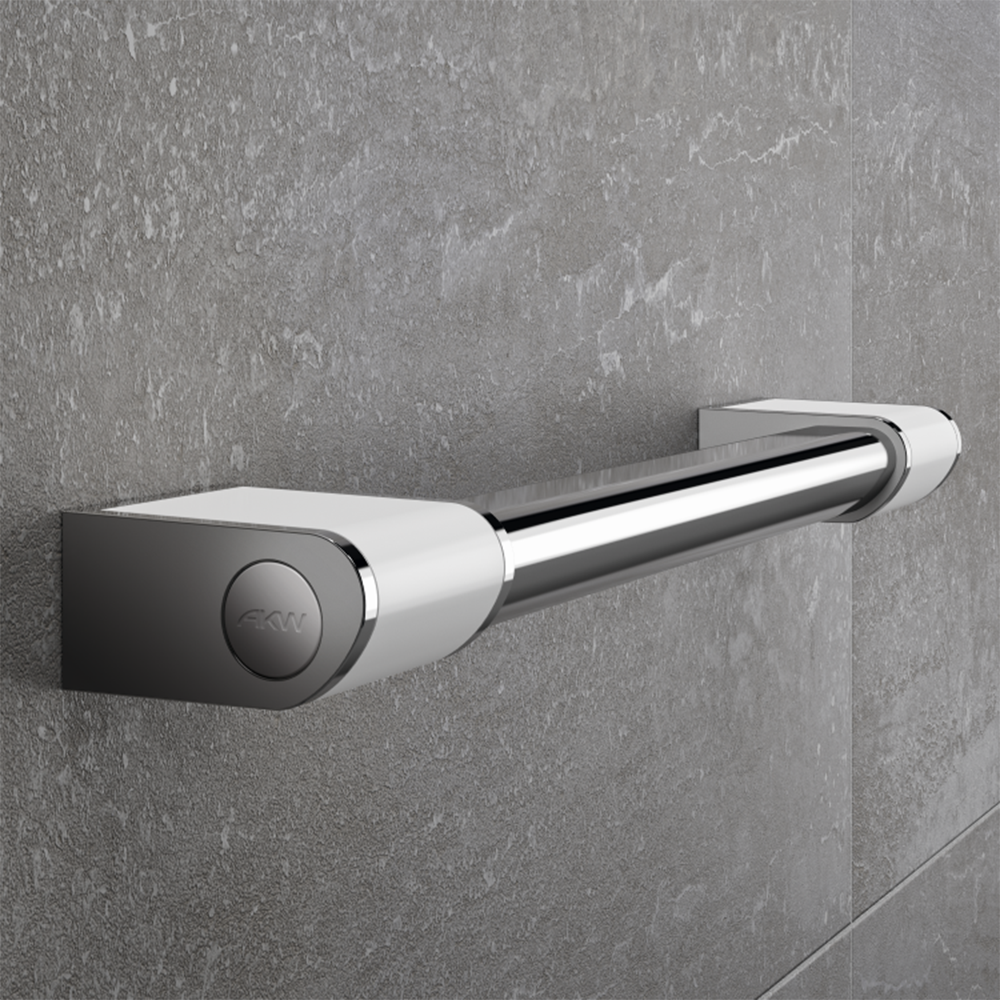

The AKW Onyx 2 grab rail proves a grab rail does not have to look clinical. Its triangular profile gives a firmer, more secure grip than a round tube, and the minimalist, industrial-inspired design matches AKW's Onyx shower seats, trays and accessories. The rail is aluminium alloy in polished chrome with matt white bracket covers as standard, or all black.

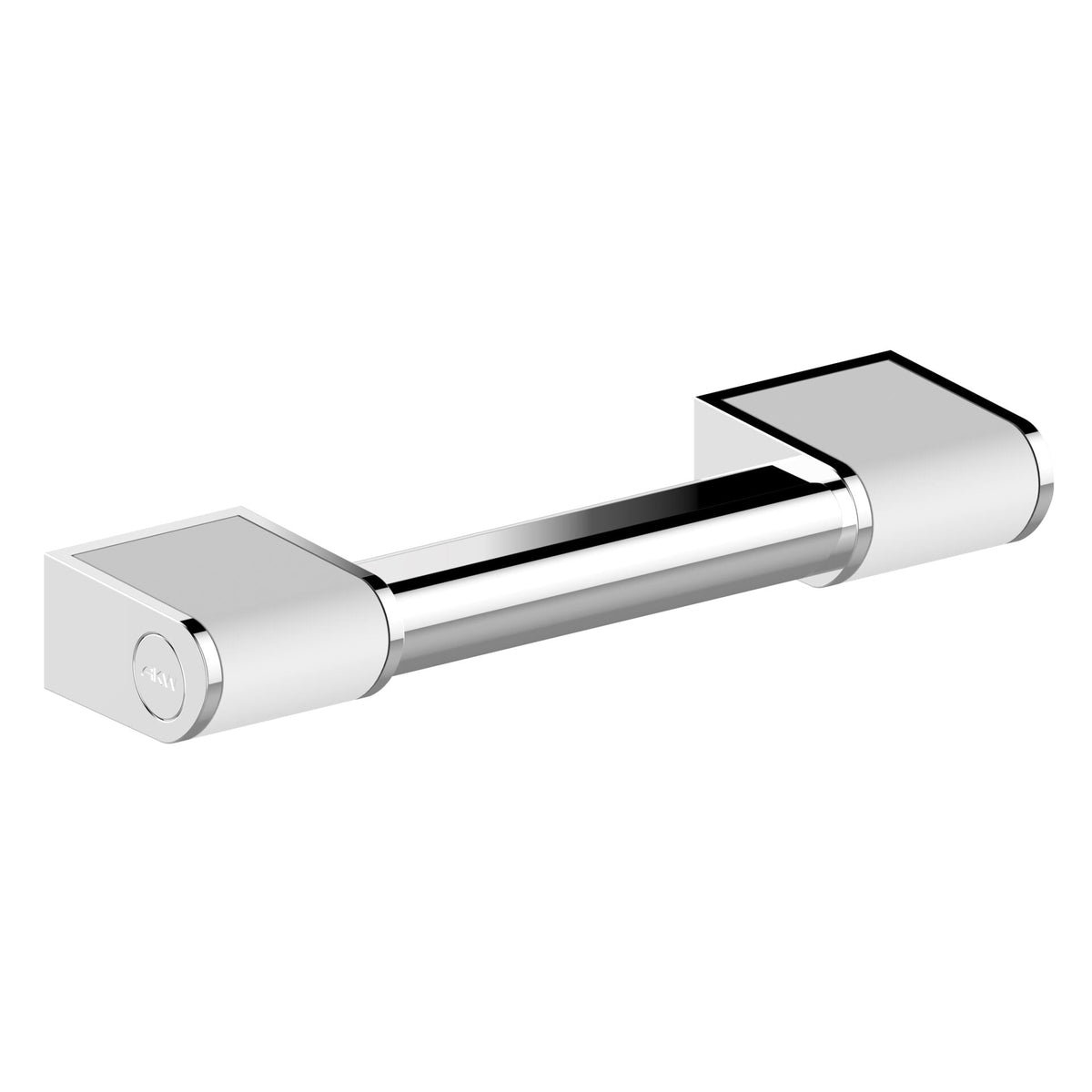

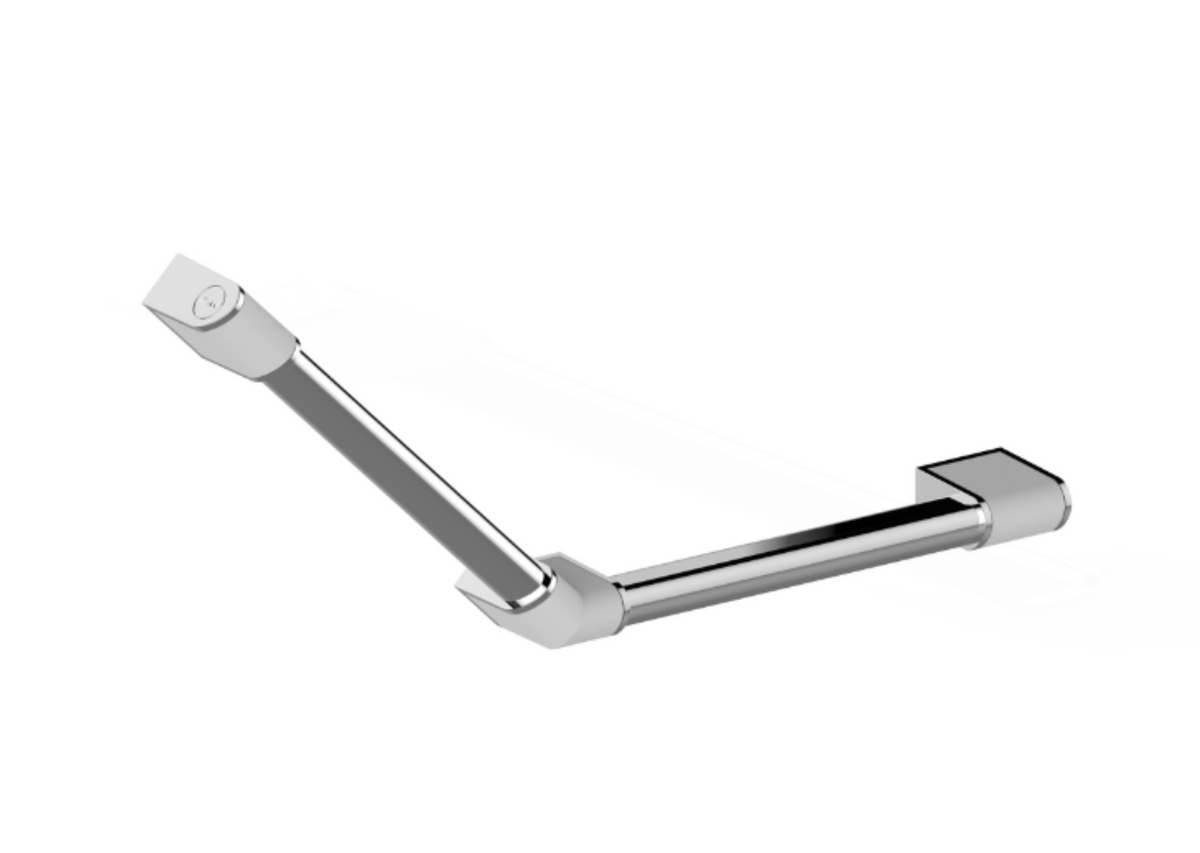

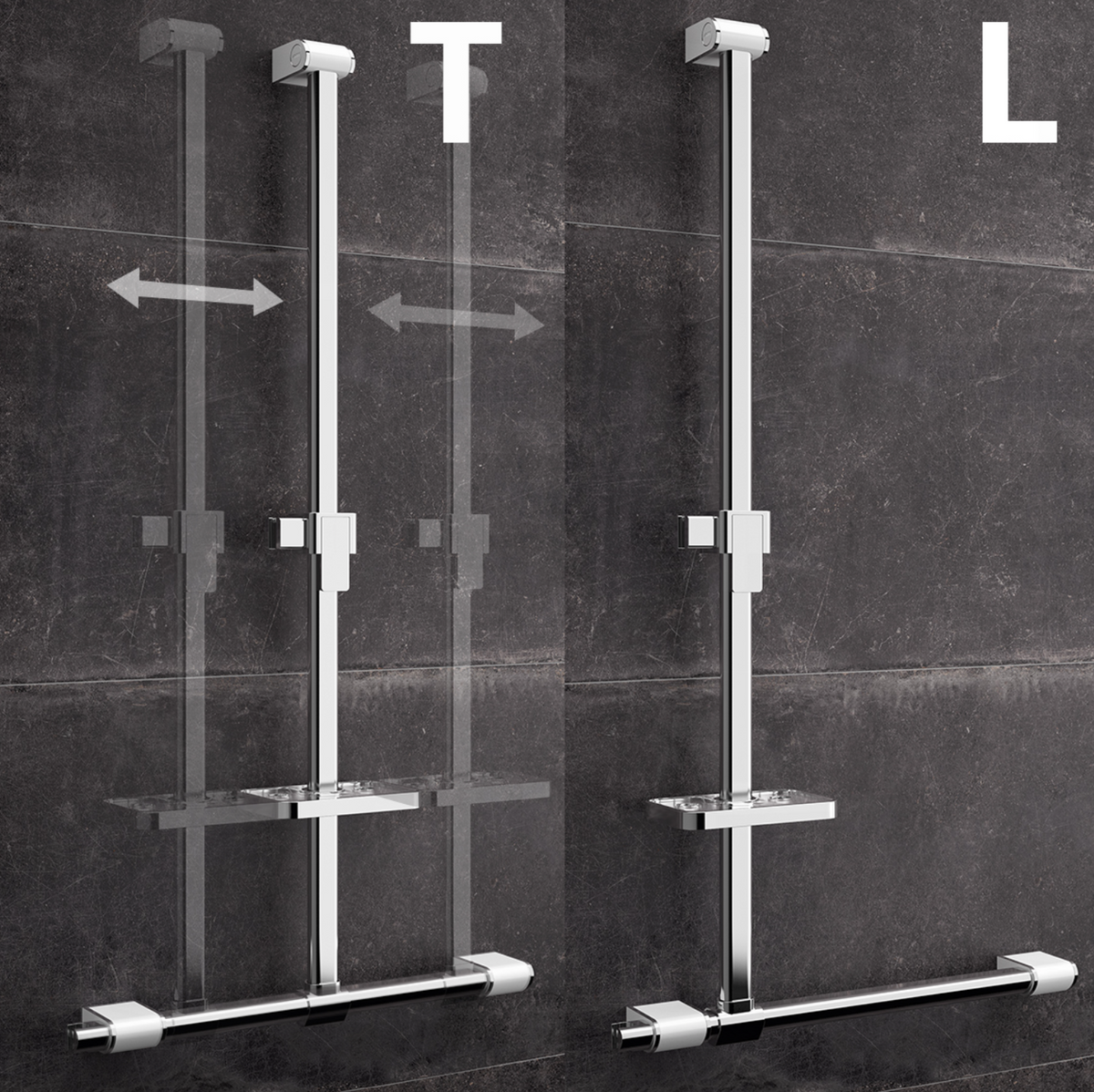

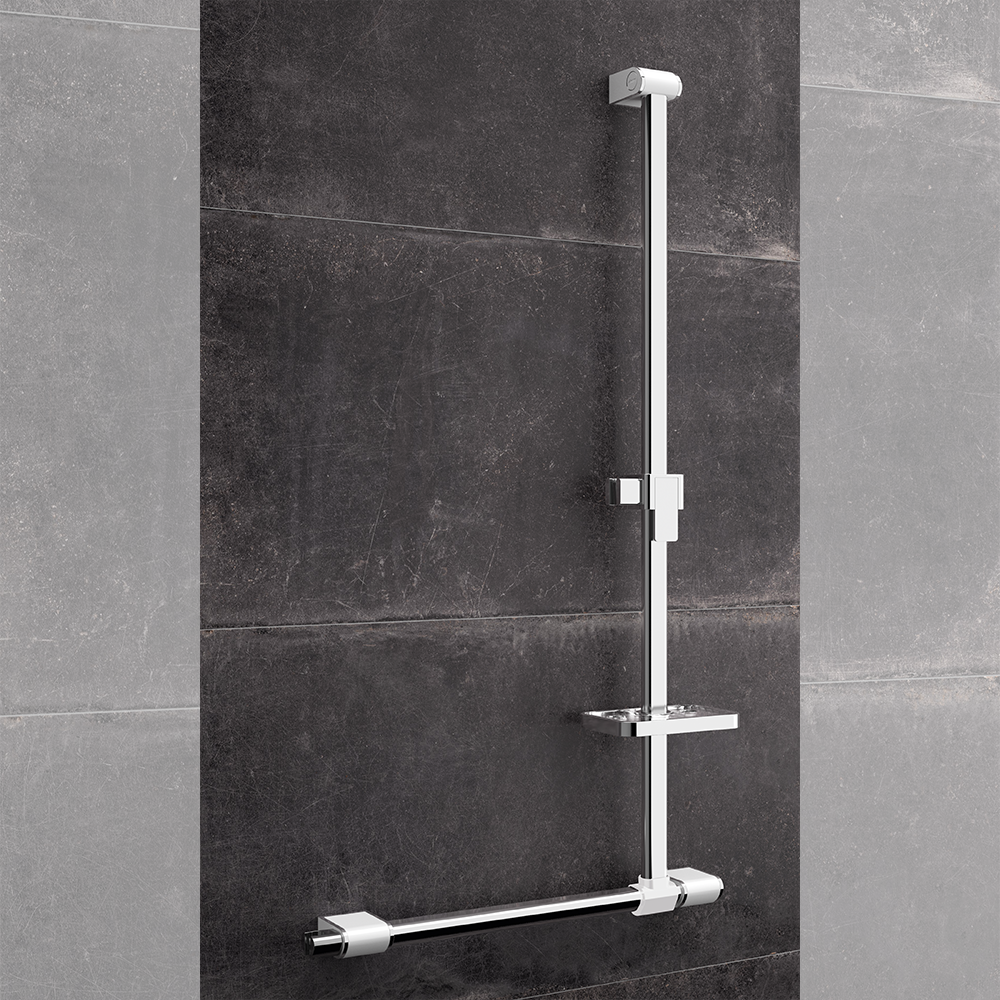

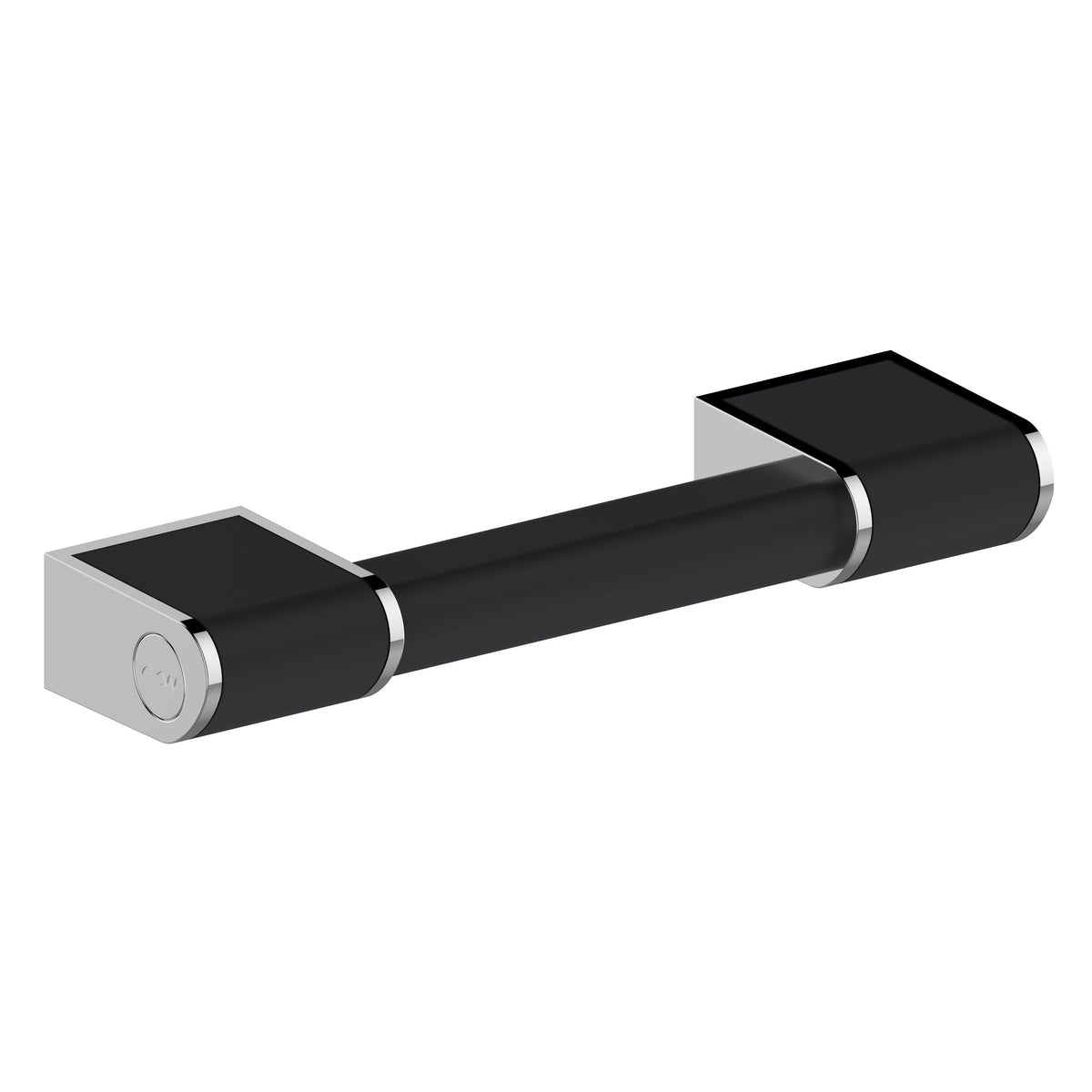

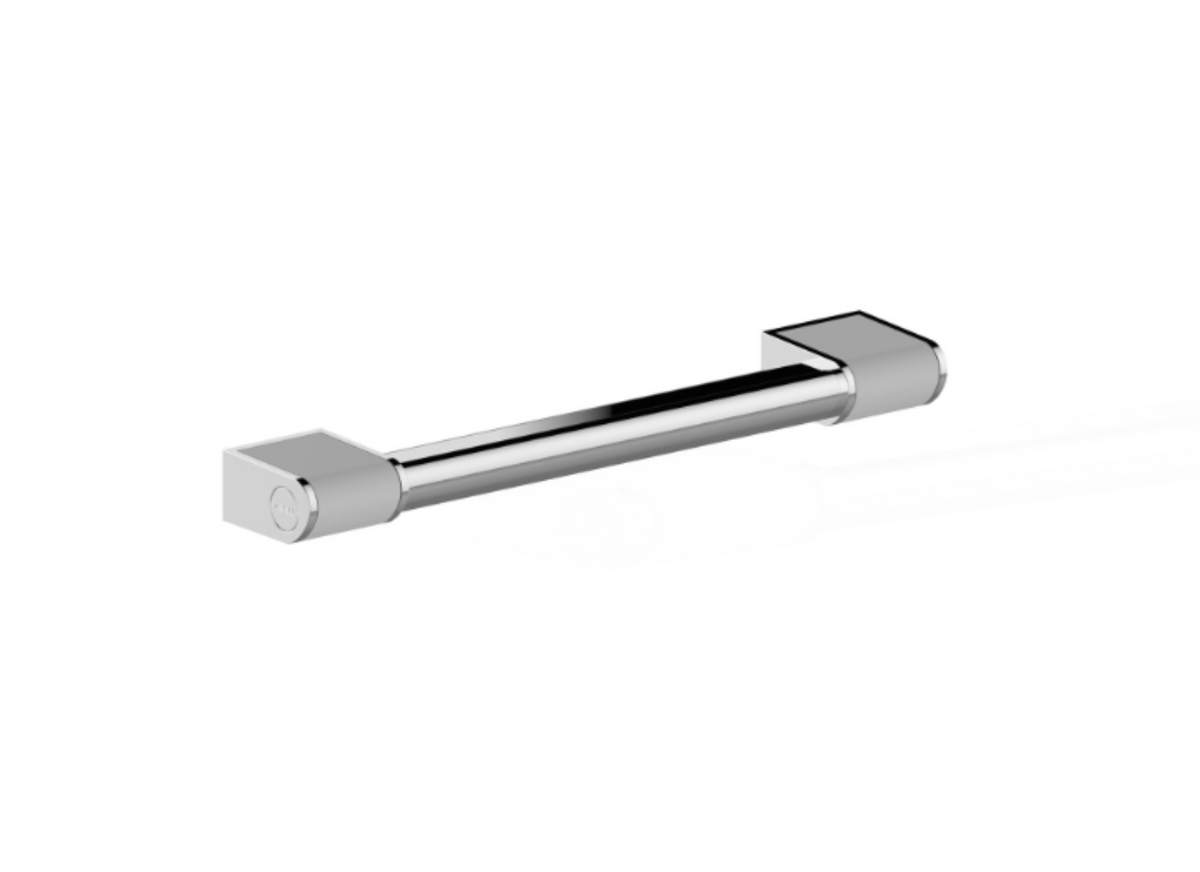

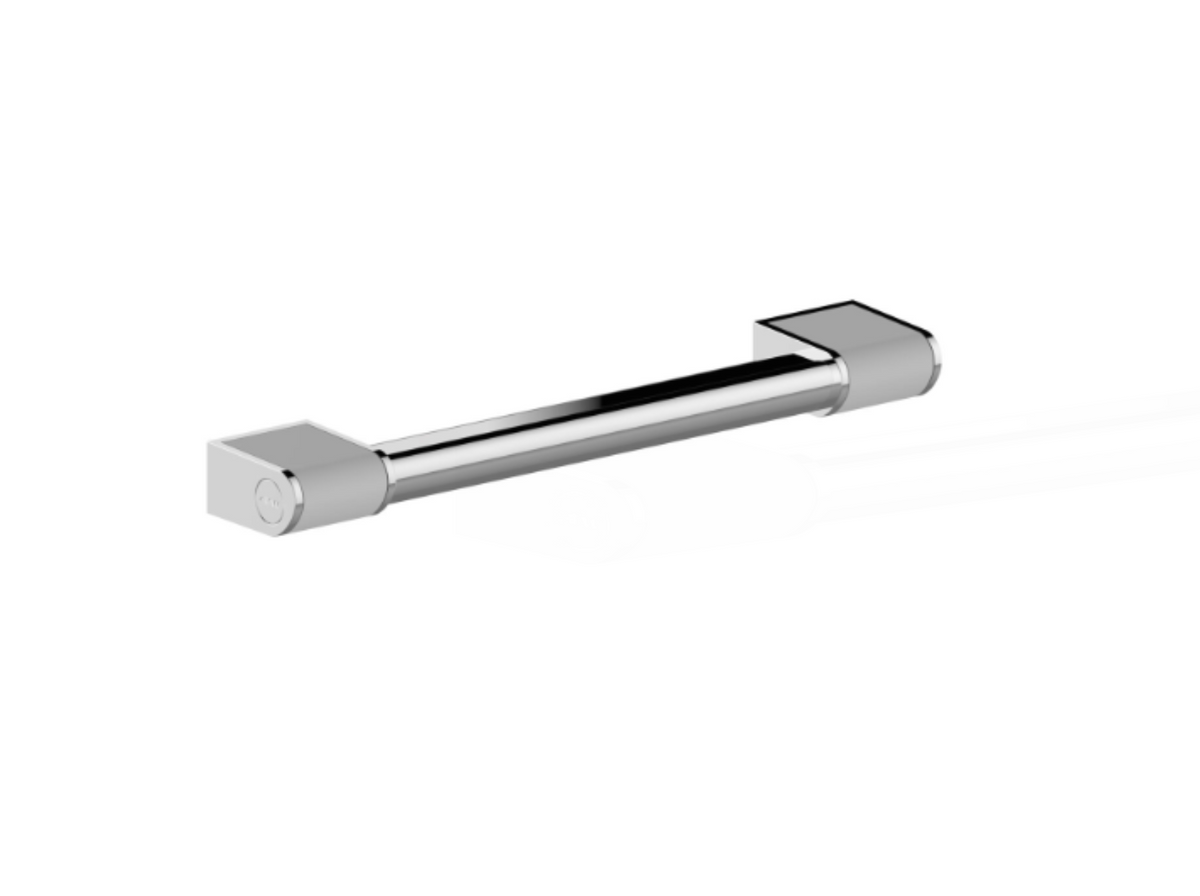

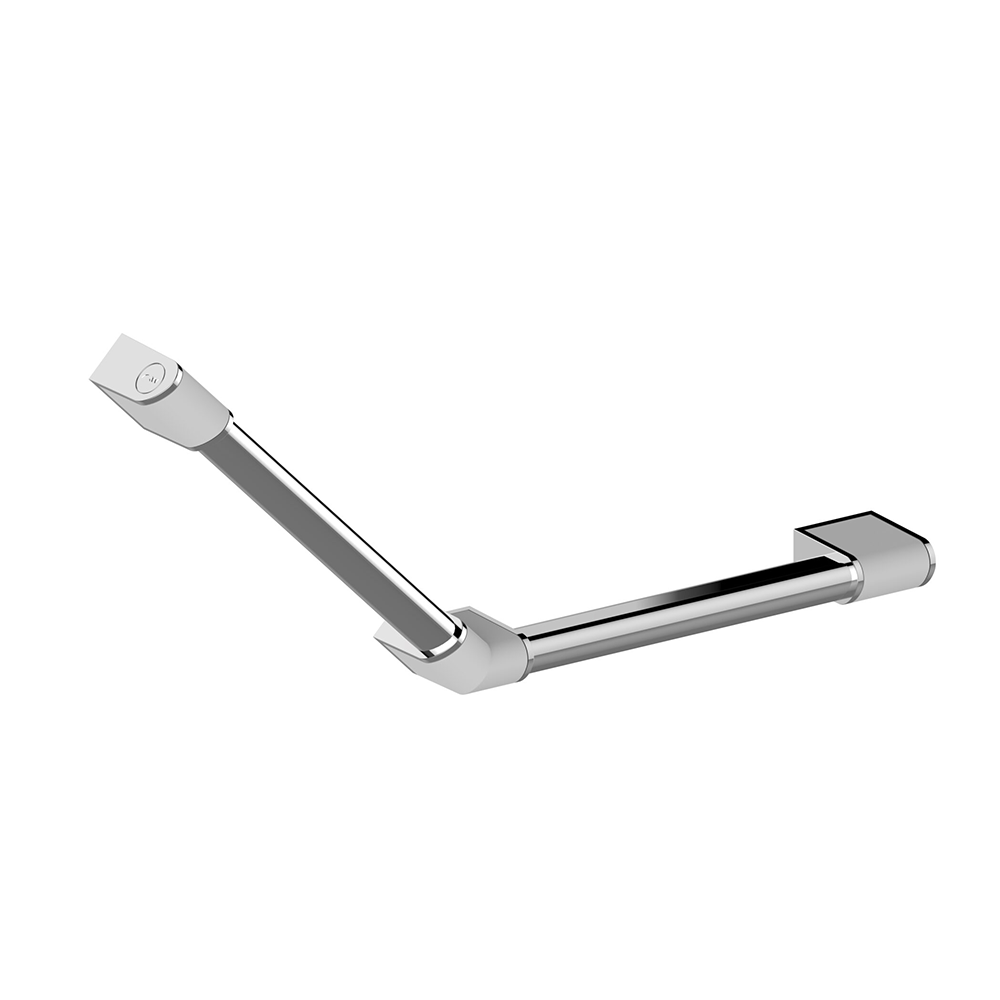

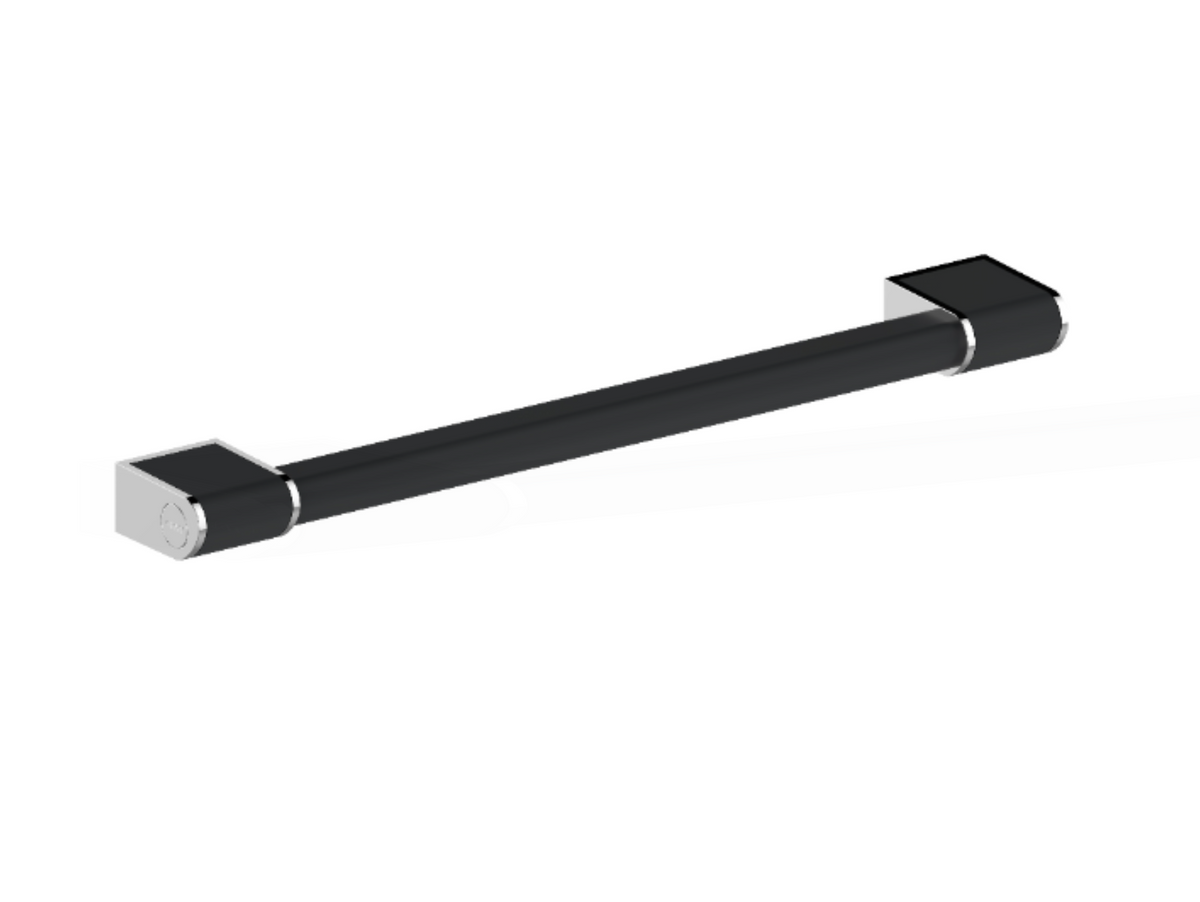

Choose a 300, 450 or 600mm straight rail, the 135° angled rail (two 400mm sections with a centre bracket), or the T & L shaped rail – a 1200mm vertical shower riser rail with a 600mm horizontal grab rail that can be fitted in a T or L configuration to suit the user. Removable bracket covers hide the fixings for a clean look and easy cleaning, and can be swapped for nine other colours.

Key features & benefits

• Ergonomic triangular rail profile for improved grip and stability

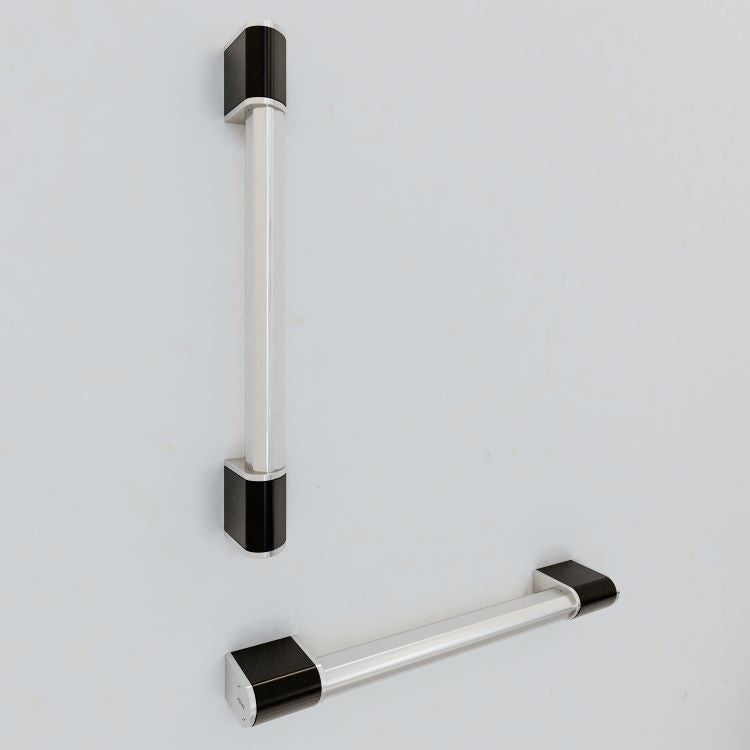

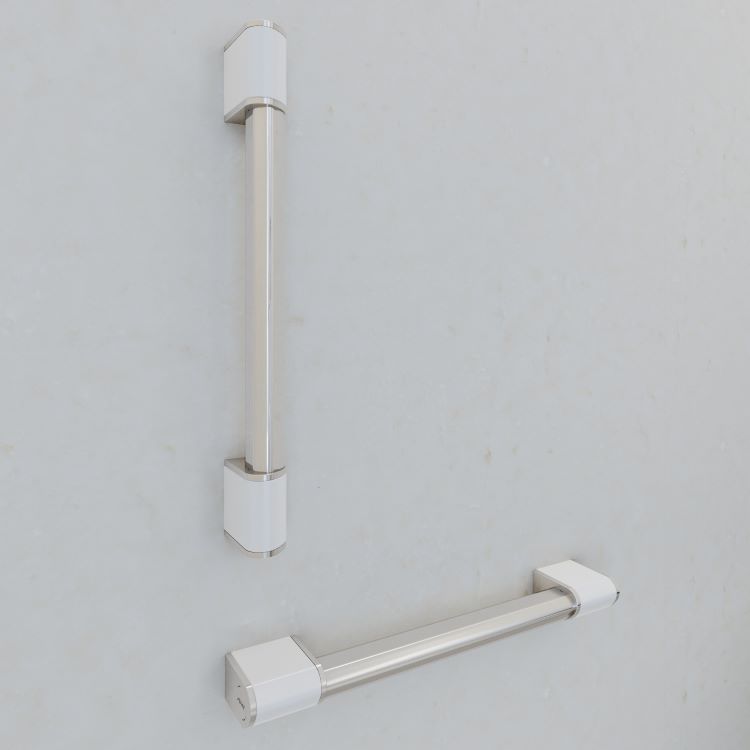

• Aluminium alloy rail: polished chrome with white covers, or black
• Straight rails and 135° angled rail support up to 150kg (23.5st)
• T & L rail: 1200mm riser rail (100kg) with 600mm grab rail (150kg)
• Wall brackets with four fixing points each; fixings hidden behind removable covers
• Covers protect internal parts from water, dust and dirt and make cleaning easier
• Interchangeable bracket covers available in ten colours (sold separately)
• Optional handset holder, slider and shelf available

Choosing the right rail

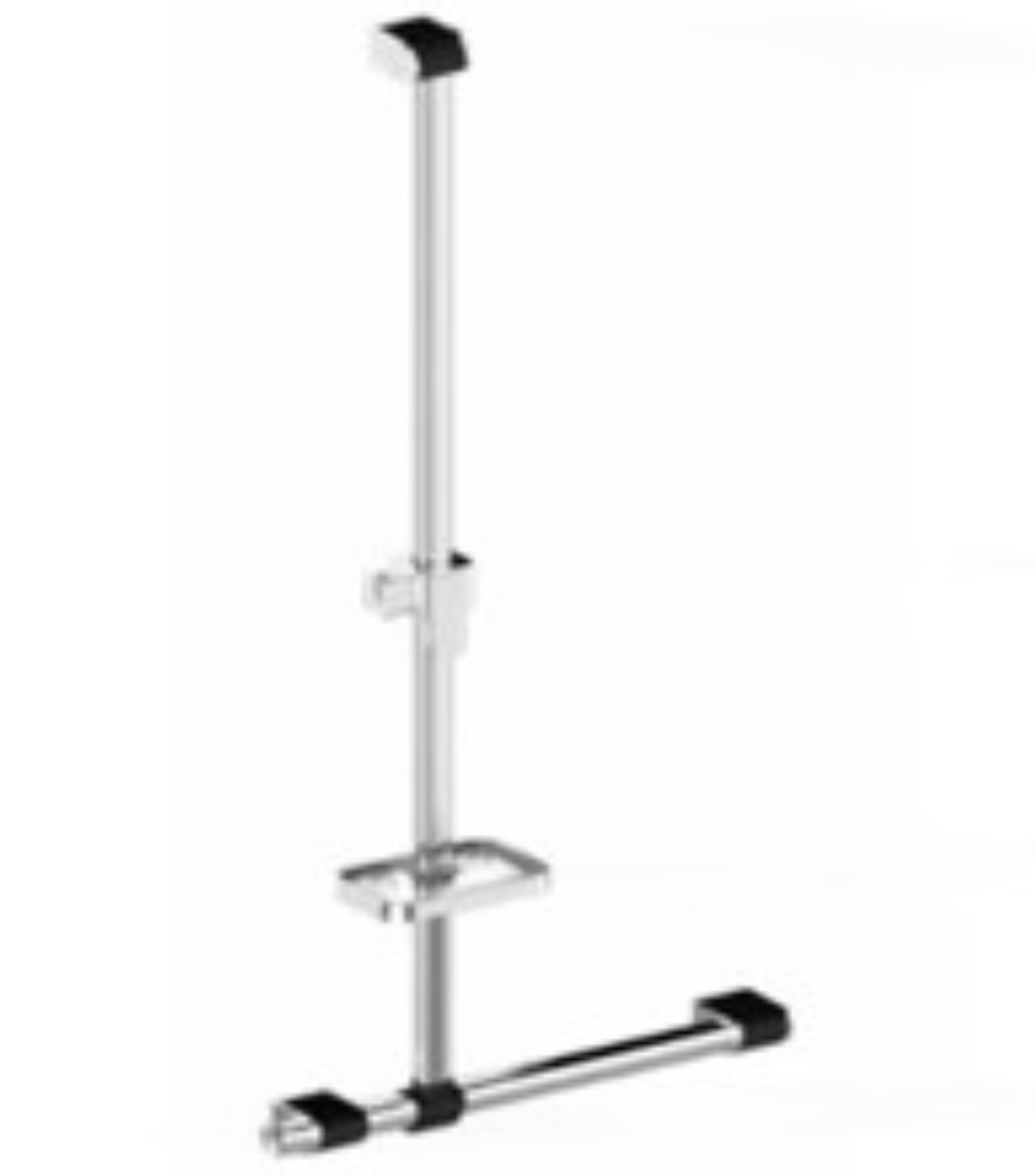

Straight rails are the everyday choice beside a toilet, basin or bath, or inside the shower. 300mm suits tight spots, 450mm is a good all-round length and 600mm gives a longer handhold. The 135° angled rail supports the natural movement of pushing up from a seated position. The T & L shaped rail combines a shower riser rail and grab rail in one; the lever-operated slider holds the shower handset at any height. The riser does not include a shower valve, handset or hose.

Personalise the rail with Onyx 2 interchangeable bracket covers, and add the handset holder or shelf from the Onyx 2 grab rail accessories page.

Installation notes

Fix to a solid wall, or a stud wall reinforced with a pattress board, using fixings suited to the wall and the load, with every fixing point used. Check for hidden pipes and cables before drilling. An occupational therapist can advise on the best height and position for the user.

Sizes & product codes

Technical specification

Frequently asked questions

Why a triangular rail?

The triangular profile gives the hand more to hold on to, for a firmer grip than a round rail.

Can I change the bracket cover colour?

Yes – the covers are removable and can be swapped for any of the Onyx 2 interchangeable covers.

Does the T & L rail include a shower?

No – it is a riser rail and grab rail. The shower valve, handset and hose are not included.

Are fixings included?

Choose fixings to suit your wall type and the load; ask us if you need advice.

Downloads

• Onyx 2 straight grab rail specification sheet (PDF)
• Onyx 2 135° angled grab rail specification sheet (PDF)
• Onyx 2 T & L shaped grab rail specification sheet (PDF)

Need help choosing?

Not sure which option is right? Call the Key West Bathrooms team on 0333 772 4162. We supply AKW accessible bathroom products to homeowners, installers, care providers, housing associations and local authority adaptation schemes, and we are happy to talk through your bathroom and the person who will be using it.
