AKW Onyx Exclusif Low Level Shower Tray – Choice of Size, Colour & Waste

AKW Onyx Exclusif Low Level Shower Tray – Choice of Size, Colour & Waste

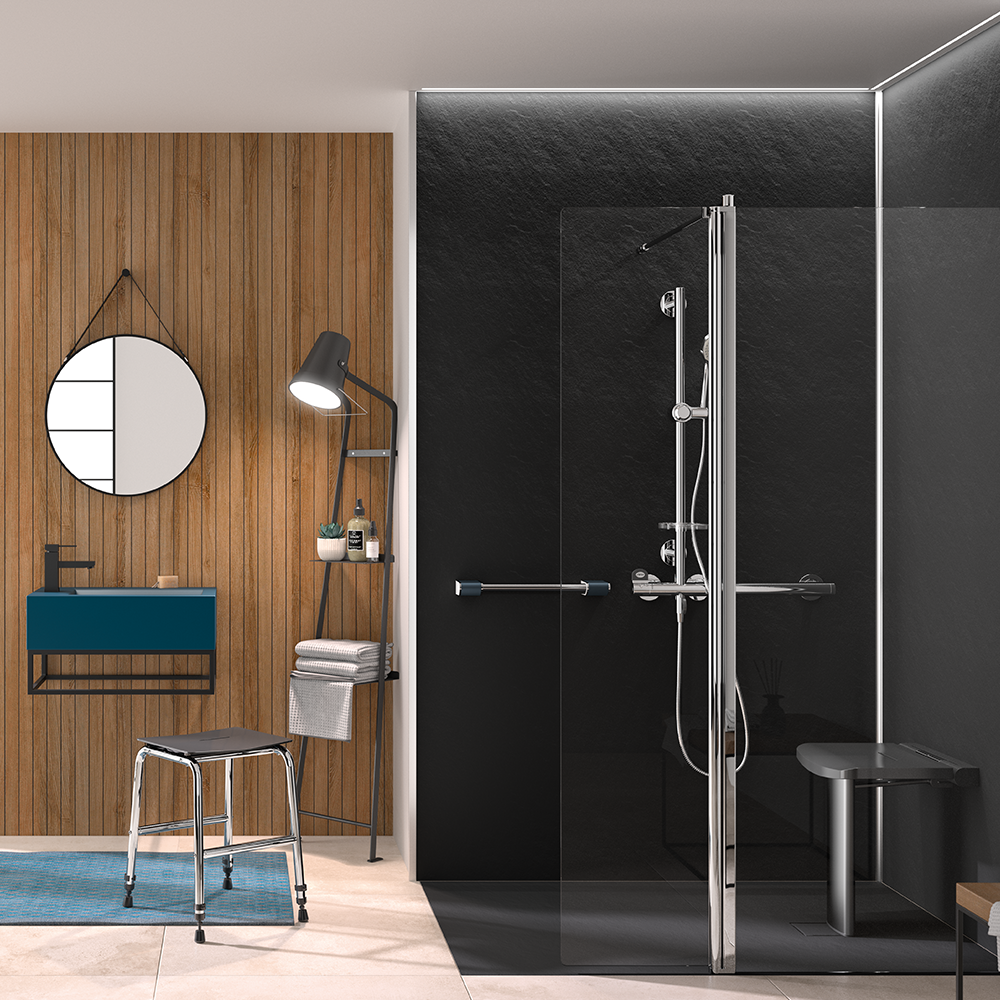

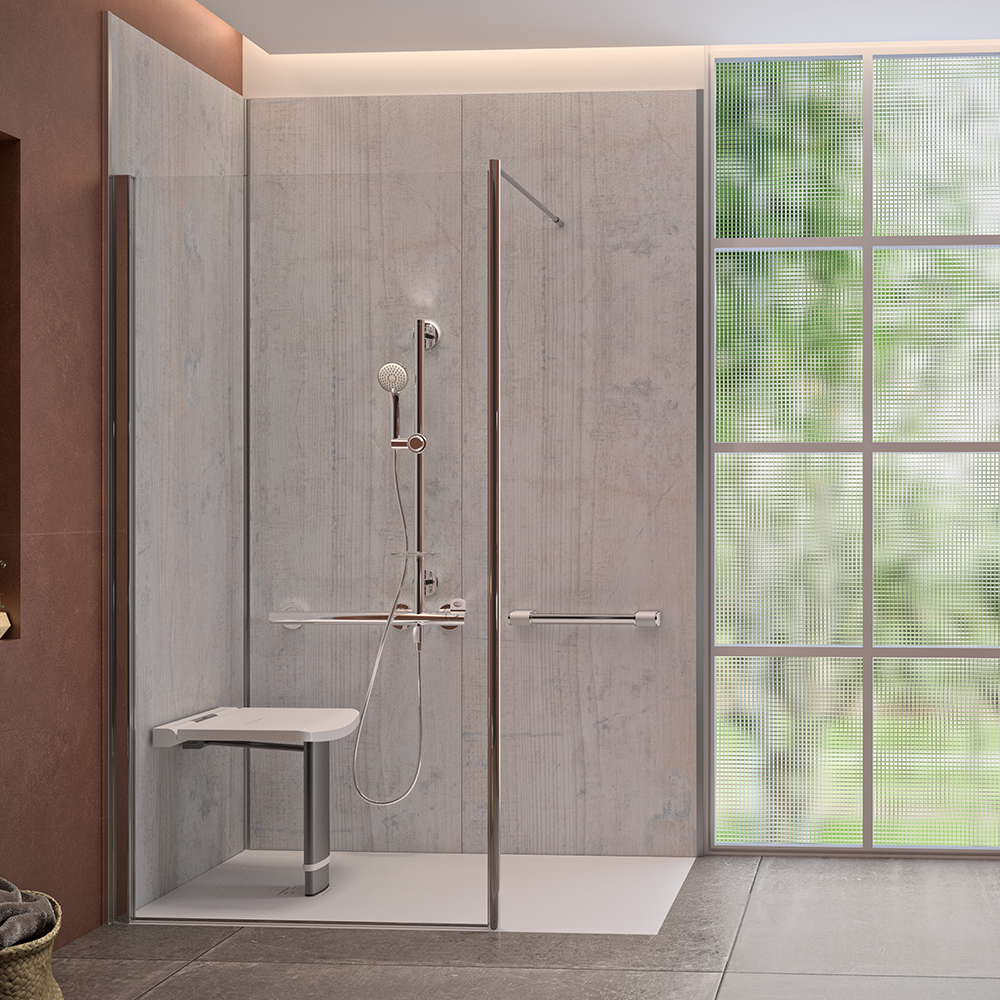

The AKW Onyx Exclusif shower tray is a stylish, slimline shower tray designed for accessible bathrooms – for wheelchair users and carers – without the clinical look. At just 26mm deep it can sit on the floor for a low-level step-in shower, or be recessed into the floor for true level-access showering. The textured surface gives a reliably high level of slip resistance, and the tray supports up to 31.5 stone (200kg).

Made from SMC (sheet moulding compound) with a rigid, webbed underside, the Onyx Exclusif is strong, shock and impact resistant, yet lightweight for quick installation. Choose from 21 sizes from 800 x 800mm up to the 2000 x 1000mm XL tray, in white or (in most sizes) black, and add the matching AKW waste – gravity, dry or pumped – in the same order.

Key features & benefits

• Ultra-shallow 26mm tray – fit on the floor for low-level access or recess for level access
• Textured, slip-resistant surface
• SMC construction with a webbed underside for strength and impact resistance
• Lightweight for fast, easy installation
• Supports users up to 31.5st (200kg)
• White or black, in square and rectangular sizes up to 2000 x 1000mm
• Compatible with AKW Larenco, Level Best, Standard, Silverdale and Contour Opulence shower screens
• Matching corner and alcove ramps available for wheelchair access

Choosing your tray and waste

Size. Measure the finished floor area of the shower, wall to wall, and allow for any screen or curtain position. Square trays (800 x 800 and 900 x 900mm) suit corner showers; rectangular trays from 1000 x 700mm upwards give wheelchair users and carers room to move. The XL 2000 x 1000mm tray is available in white.

Colour. White suits most bathrooms; black makes a strong design statement and gives good colour contrast against light floors and walls.

Waste. The GW90 gravity waste suits trays where there is enough fall for the water to drain by gravity. The DW90 dry waste is the alternative AKW waste for the tray. The PW90 22mm pumped waste is for installations where the water must be pumped away using a shower waste pump. If you are unsure which you need, call us on 0333 772 4162.

For a tray installed on the floor, add an Onyx Exclusif ramp to give a gentle slope for wheelchairs and shower chairs.

Installation notes

Install on a flat, level, fully supported base. For level-access installations the floor must be recessed to the tray depth with the waste and pipework planned in advance – a sunken floor or a suitable floor former is needed. Follow AKW's fitting instructions and seal the tray to the walls with a suitable silicone sealant.

Sizes & product codes

Wastes: GW90 gravity waste (25694), DW90 dry waste (25696), PW90 22mm pumped waste (25695).

Technical specification

Frequently asked questions

Can the Onyx Exclusif tray be fitted flush with the floor?

Yes – at 26mm deep it can be recessed into the floor for level-access showering, or sit on the floor with an optional ramp.

Is the tray slip resistant?

Yes – the textured surface is designed to give a reliably high level of slip resistance.

Is a waste included?

Choose "Tray Only" if you already have a waste, or add the GW90, DW90 or PW90 AKW waste in the Waste option.

Which sizes come in black?

Black is available in 13 sizes; the 700mm-wide trays, the 1500mm trays and the 2000 x 1000mm XL tray are white only.

What weight will it take?

Up to 31.5 stone (200kg).

Downloads

• Onyx Exclusif shower tray specification sheet (PDF)

Need help choosing?

Not sure which option is right? Call the Key West Bathrooms team on 0333 772 4162. We supply AKW accessible bathroom products to homeowners, installers, care providers, housing associations and local authority adaptation schemes, and we are happy to talk through your bathroom and the person who will be using it.
