AKW Onyx Fold Up Shower Seat – Standard, Adjustable Leg or Compact

AKW Onyx Fold Up Shower Seat – Standard, Adjustable Leg or Compact

The AKW Onyx fold up shower seat is the most contemporary seat in AKW's range – an accessible shower seat that looks at home in a stylish modern bathroom. A shaped, ergonomic seat with a matt finish and chrome accents sits on a durable aluminium leg, rated to support users up to 31.5 stone (200kg). A soft-close mechanism lets the seat fold up gently, and when folded it projects just 78mm from the wall.

Choose cool white or bold black, then pick the seat that fits your space: the standard fold up seat, the seat with an adjustable leg (set between 421mm and 600mm during installation), or the compact seat for smaller bathrooms. Each is available with a back rest and two folding arms, and the back and arms kit can also be bought on its own to add to an existing Onyx seat.

Key features & benefits

• Contemporary, industrial-inspired design with matt seat and chrome accents
• Ergonomic shaped seat with a drainage slot so it dries after use
• Soft-close fold up seat – only 78mm projection when folded
• Aluminium leg; safe working load of 31.5st (200kg)
• Optional back rest keeps the cold of tiles or wall panels off the user's back
• Optional folding arms help with sitting, standing and stability – each arm supports up to 12.5st (80kg)
• Back rest and arms fit independently, so each can be positioned for the user
• Lifetime warranty; UKCA and CE marked

How to choose

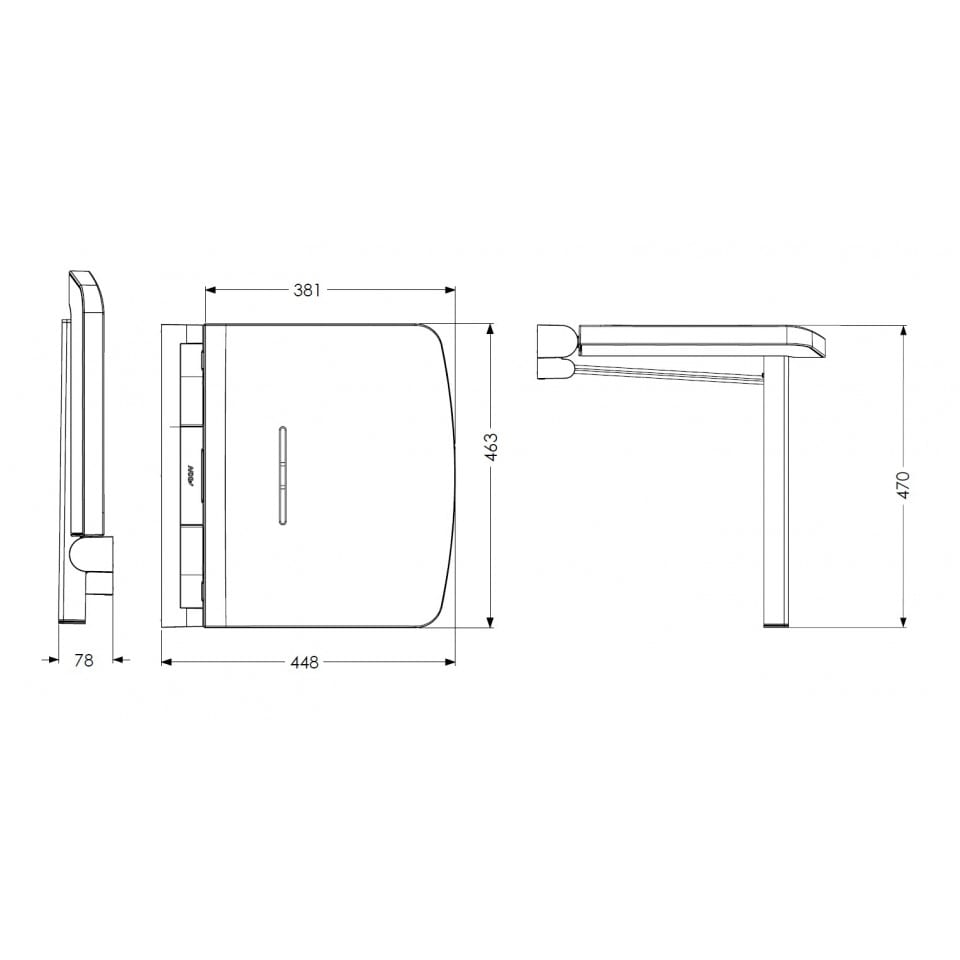

Fold Up Seat – standard seat height 470mm. Seat with Adjustable Leg – the leg is set during installation anywhere from 421mm to 600mm, ideal when the user needs a higher or lower seat than standard. Compact Seat – a smaller 383 x 370mm seat at 480mm high for bathrooms where space is limited. Add Back & Arms for users who need support to sit upright or something to push up from. If you already have an Onyx seat, the Back & Arms Kit Only adds them later (white RAL 9003 or black RAL 7021).

The Onyx seat matches the rest of the Onyx range, including the Onyx Exclusif shower tray and Onyx 2 grab rails.

Installation notes

A wall-mounted shower seat is only as safe as the wall it is fixed to. Fit it to a solid masonry wall, or to a stud wall that has been properly reinforced with a pattress board or noggins, using fixings suited to the wall and the load. Wall fixings are not normally supplied, because the correct fixing depends on your wall. Check for hidden pipes and cables before drilling, and follow AKW's fitting instructions. Where the seat is being fitted for a specific person, an occupational therapist can advise on the best seat height and position.

Sizes & product codes

Technical specification

Frequently asked questions

Can I add a back and arms later?

Yes – the Onyx Back & Arms Kit fits independently of the seat, so it can be added at any time.

What is the weight limit?

The seat is rated to 31.5 stone (200kg); each arm supports up to 12.5 stone (80kg) with suitable fixings.

How far does it stick out when folded?

Only 78mm, keeping the shower clear for other users.

Which seat for a small bathroom?

The Onyx Compact seat is designed for bathrooms where space is limited.

Downloads

• Onyx shower seat specification sheet (PDF)
• Onyx seat back and arms specification sheet (PDF)

Need help choosing?

Not sure which option is right? Call the Key West Bathrooms team on 0333 772 4162. We supply AKW accessible bathroom products to homeowners, installers, care providers, housing associations and local authority adaptation schemes, and we are happy to talk through your bathroom and the person who will be using it.
