AKW Option D Half Height Carer Shower Screen Set for Shower Trays – Choice of Size, Height & Handing

AKW Option D Half Height Carer Shower Screen Set for Shower Trays – Choice of Size, Height & Handing

The AKW Option D half height carer shower screen set is designed for rectangular AKW shower trays from 1200 x 700mm to 1300 x 700mm. The low screens hold back the spray while a carer stands outside the showering area and helps – perfect for assisted showering at home or in a care setting.

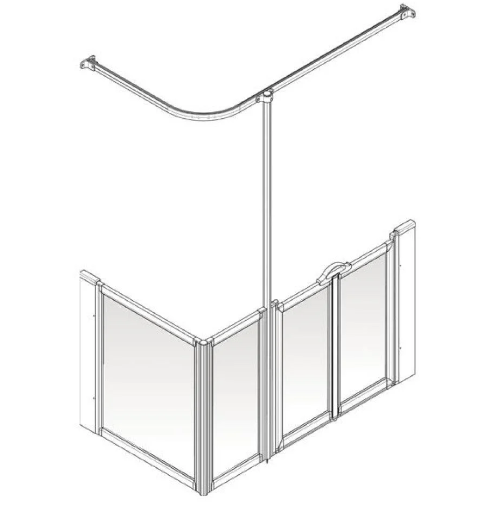

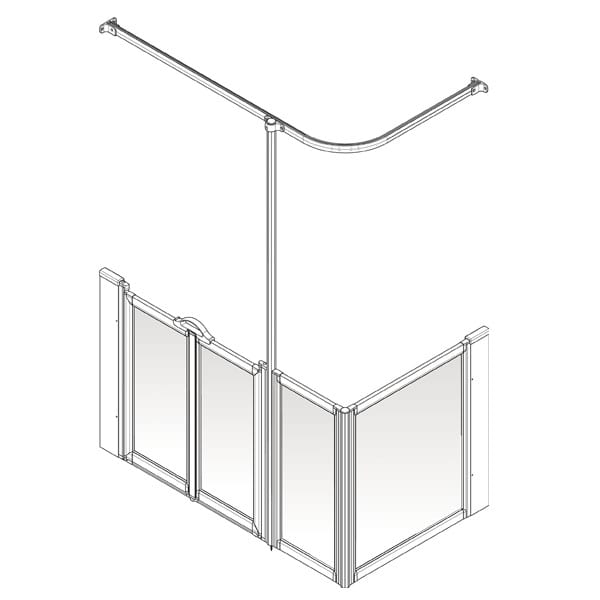

Option D is a handed screen set with doors on locking two-way hinges that open inwards and outwards, frosted shatterproof PET panels, D handles and an L-shaped curtain rail with white curtains. Choose the size to match your tray, the screen height and left or right handing. (The 1300 x 700mm size is available in 750mm height only.)

Key features & benefits

• Half height screens let a carer stand outside the shower and reach in to help, while staying dry
• Frosted PET panels – shatterproof glazing for extra safety
• Stronger magnetic strip for better water retention when the doors are closed
• Robust frames and stronger fittings for a longer life and better resistance to wear and tear
• L-shaped curtain rail and white curtains supplied as standard for privacy above the screens
• Smooth modern latches and D handles – handles included
• 180° hinges so the doors open both inwards and outwards
• Unique locking rising butt two-way hinges, with hinges and caps in hardwearing Nylon 6
• High quality water seals to reduce water escaping from the showering area
• Choice of 750mm or 900mm screen height
• Designed to fit AKW shower trays – a wide range of tray sizes and layouts

How to choose the right screen set

Size: the size is the width x depth of the showering area the screens enclose – available in 1200 x 700mm, 1200 x 760mm, 1250 x 750mm and 1300 x 700mm. Match it to the size of your AKW shower tray, and measure the space wall to wall before ordering.

Height: 750mm screens give a carer the easiest reach over the top and suit most assisted showering. 900mm screens hold back more spray and give a little more privacy, while still letting a carer help.

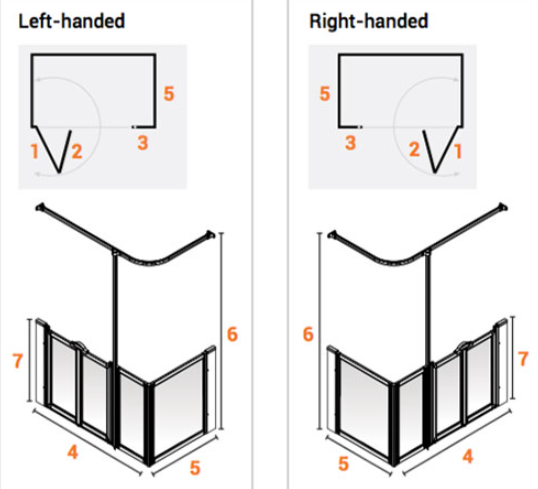

Handing: stand outside the shower looking in. If the open entry side of the enclosure is on your left, choose Left Hand; if it is on your right, choose Right Hand. If you are unsure, send us a sketch or call us and we will confirm the handing for you.

These screens are ideal for care homes, hospitals, supported living and family homes where someone needs help to shower – the user can shower seated or standing while the carer stays outside the spray.

Important fitting notes

• The 1200 x 760mm size is achieved with an extra wide compensator.
• The 1250 x 750mm, 1350 x 750mm, 1470 x 750mm and 1050 x 1050mm sizes are only suitable for AKW Multi Spec / Pipe Duct trays.
• AKW advise that power showers should not be used with AKW trays and screens, and that only AKW screens are used on AKW trays so the water seals are not compromised.
• The bottom door seals are water barriers, not watertight seals. If you also use the shower curtain, make sure it is long enough to protect the seals.

Installation

The screen set is supplied as a complete kit with handles, curtain rail and curtains, ready for a competent fitter to install. The frames fix to the walls, and drop rods (600mm long where supplied) secure the doors. Fit onto a level, correctly installed AKW shower tray of the matching size.

Sizes & product codes

Technical specification

Frequently asked questions

Why choose half height screens rather than a full enclosure?

Half height screens let a carer stand outside the shower, reach over and help the person showering without getting soaked – while still keeping most of the water inside the showering area.

Is a shower curtain included?

Yes. An L-shaped curtain rail and white curtains are supplied as standard so the user's privacy is protected above the screens.

Can I use a power shower with these screens?

AKW advise that power showers should not be used with their trays and screens. An electric care shower or thermostatic mixer shower is the usual choice – call us on 0333 772 4162 for advice.

Will the screens fit a tray from another manufacturer?

AKW recommend fitting their screens to AKW shower trays only, as other trays may compromise the water seals. Some sizes are only for AKW Multi Spec / Pipe Duct trays – see the fitting notes above.

Which handing do I need?

Stand outside the shower looking in and note which side the entry is on. If you are still unsure, call us on 0333 772 4162 and we will help.

Need help choosing? Call our team on 0333 772 4162.
