AKW Option NW Half Height Carer Shower Screen Set for Wet Floors – Choice of Width & Height, Non Handed

AKW Option NW Half Height Carer Shower Screen Set for Wet Floors – Choice of Width & Height, Non Handed

The AKW Option NW half height carer shower screen set is designed for level access wet floor showers and wet rooms. The low screens contain the spray around the person showering while a carer stands outside, reaches over and helps – so the carer stays dry and the user stays safe and supported.

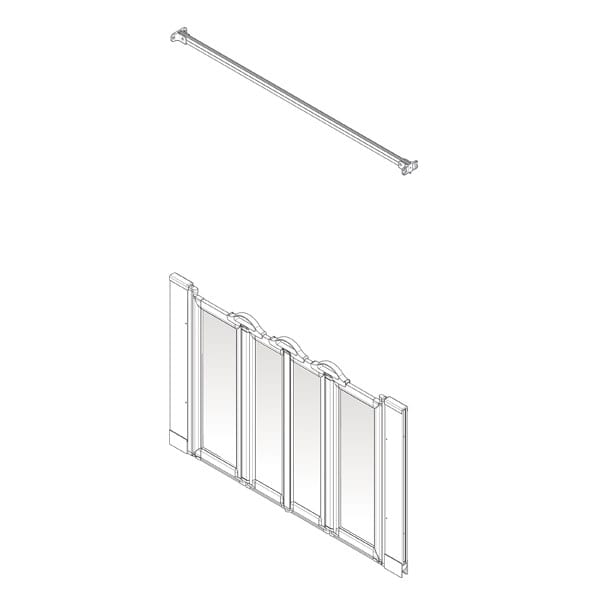

Option NW is a non-handed in-line screen set with frosted shatterproof PET panels, doors on locking two-way hinges and a straight curtain rail with white curtains as standard. Choose the width of your showering area (1150mm to 1800mm) and the screen height – 900mm high versions are available at 1300, 1400, 1500, 1600 and 1800mm.

Key features & benefits

• Half height screens let a carer stand outside the shower and reach in to help, while staying dry
• Frosted PET panels – shatterproof glazing for extra safety
• Stronger magnetic strip for better water retention when the doors are closed
• Robust frames and stronger fittings for a longer life and better resistance to wear and tear
• Straight curtain rail and white curtains supplied as standard for privacy above the screens
• Smooth modern latches and D handles
• 180° hinges so the doors open both inwards and outwards; bi-fold doors use 360° hinges
• Unique locking rising butt two-way hinges, with hinges and caps in hardwearing Nylon 6
• High quality water seals to reduce water escaping from the showering area
• Choice of 750mm or 900mm screen height
• Designed for level access wet floor showers

How to choose the right screen set

Width: the width is the length of the opening the screens run across, wall to wall – available in 1150mm, 1200mm, 1250mm, 1300mm, 1350mm, 1400mm, 1450mm, 1500mm, 1550mm, 1600mm, 1650mm, 1700mm, 1750mm and 1800mm. Measure the opening at floor level and at screen height and choose the width that matches your wet floor showering area.

Height: 750mm screens give a carer the easiest reach over the top and suit most assisted showering. 900mm screens hold back more spray and give a little more privacy, while still letting a carer help.

Handing: this set is non-handed, so it can be fitted either way round.

These screens are ideal for care homes, hospitals, supported living and family homes where someone needs help to shower – the user can shower seated or standing while the carer stays outside the spray.

Important fitting notes

• AKW advise that power showers should not be used with AKW trays and screens, and that only AKW screens are used with AKW trays so the water seals are not compromised.
• The bottom door seals are water barriers, not watertight seals. If you also use a shower curtain, make sure it is long enough to protect the seals.
• Install on a correctly waterproofed (tanked) wet floor laid to falls towards the waste.

Installation

The screen set is supplied as a kit ready for a competent fitter to install. The frames fix to the walls and the doors hang on two-way rising butt hinges; drop rods are 600mm long where supplied. Fit onto a level, fully tanked wet floor former or level access floor.

Sizes & product codes

Technical specification

Frequently asked questions

Why choose half height screens rather than a full enclosure?

Half height screens let a carer stand outside the shower, reach over and help the person showering without getting soaked – while still keeping most of the water inside the showering area.

Is a shower curtain included?

Yes. Straight curtain rail and white curtains are supplied as standard, so the user's privacy is protected above the screens.

Can I use a power shower with these screens?

AKW advise that power showers should not be used with their trays and screens. An electric care shower or thermostatic mixer shower is the usual choice – call us on 0333 772 4162 for advice.

Do I need a wet room former?

The screens need a level, fully waterproofed wet floor laid to falls towards the waste. AKW wet room formers and wastes are sold separately – call us on 0333 772 4162 and we will help you put the right kit together.

Do the doors open both ways?

Yes. The 180° hinges let the doors open inwards and outwards.

Need help choosing? Call our team on 0333 772 4162.
