AKW Origins Transeal Profile for 11mm Wall Panels – With or Without End Caps

AKW Origins Transeal Profile for 11mm Wall Panels – With or Without End Caps

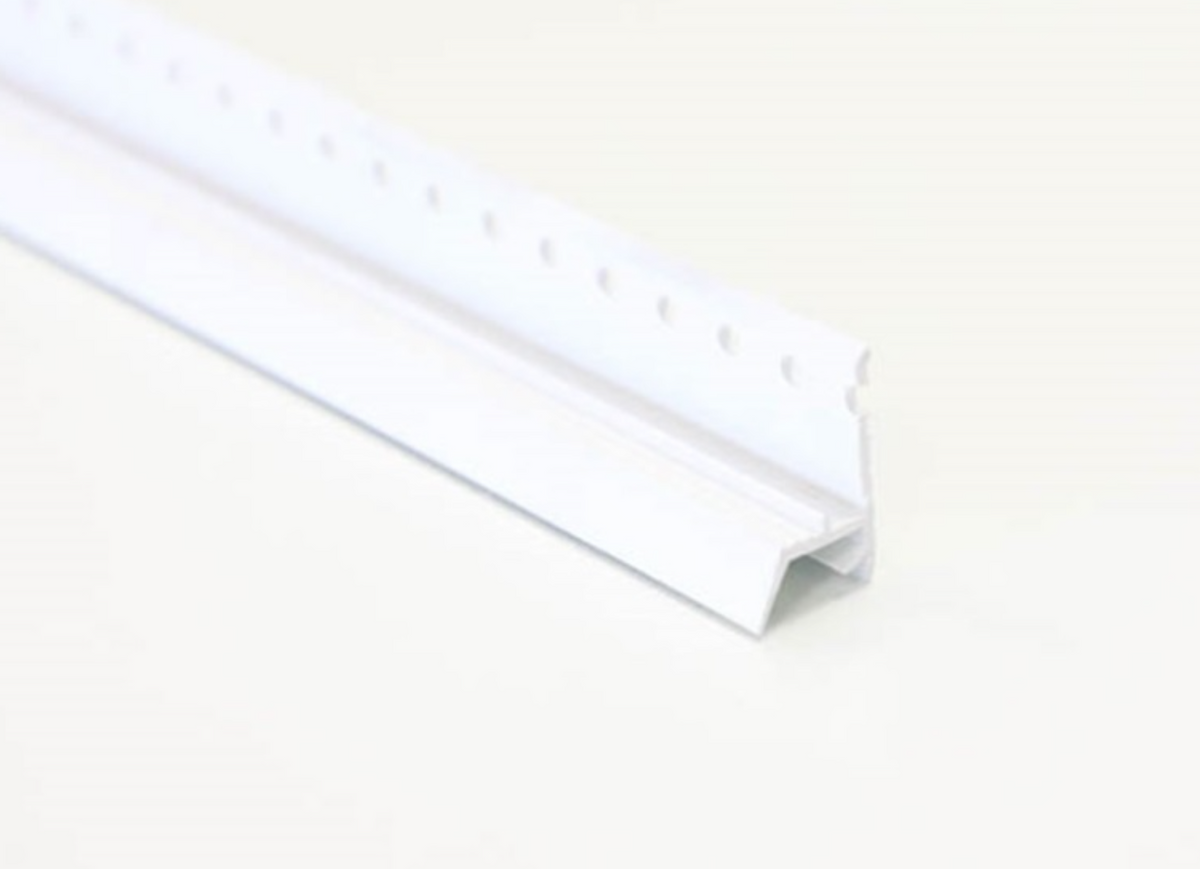

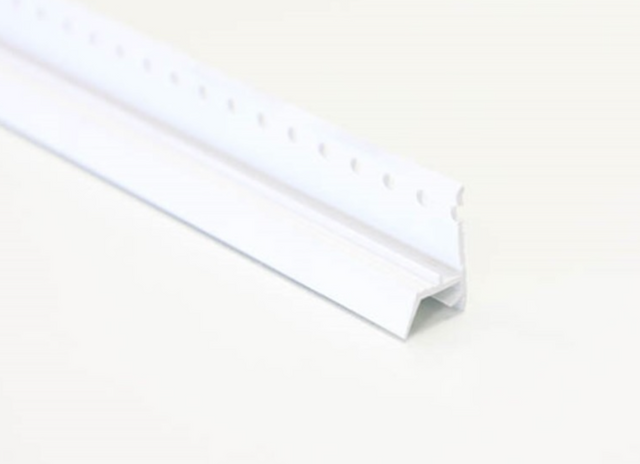

The AKW Origins Transeal profile is part of the matching trim system for 11mm Origins bathroom wall panels. Transeal is AKW's sealing profile for the Origins system and is available on its own, with its end caps, or as end caps only.

Origins profiles cover every exposed panel edge so the core is sealed against water, and they give the finished wall a crisp, professional line. Order the Transeal alongside the rest of your Origins corners, joins and end caps so everything arrives together.

Key features & benefits

• Made for 11mm Origins panels – both 1200mm square edge and 600mm / 900mm tongue & groove.
• Seals and protects exposed panel edges, which AKW requires for the warranty.
• Available as the profile alone, the profile with end caps, or replacement end caps only.
• Cut to length on site with a fine-toothed saw.
• Bed in silicone for a watertight joint.

Which profile do I need?

Origins installations use four main profiles: an internal corner where two walls meet in an inside corner, an external corner for outside corners such as boxing or a shower return, an H-section to join two panels side by side, and an end cap to finish an exposed panel edge, for example at the end of a shower wall. Transeal is an additional sealing profile in the Origins system.

To work out quantities, count every vertical corner, join and exposed edge on your layout – one profile length per run. See the full panel range at AKW Origins wall panels, and call us on 0333 772 4162 if you are not sure whether your layout needs Transeal.

Why wall panels for adaptations? Wall panels are much quicker to fit than tiles – often a single day for a shower area – with far less dust and mess, which matters when someone is living in the home. There is no grout to discolour or harbour mould, and the large surfaces are easy for carers and cleaners to wipe down.

Installation notes

• Cut the profile to length and dry-fit it before applying adhesive or silicone.
• Run silicone into the profile channel, then slide or press the panel edge home.
• Wipe away surplus silicone straight away with a damp cloth.

Sizes & product codes

Technical specification

Frequently asked questions

Will this fit other makes of 11mm wall panel?

It is designed for AKW Origins 11mm panels. Other 11mm panels may fit, but we can only confirm compatibility with Origins.

How long is the profile?

AKW supplies Origins profiles in lengths to suit the 2400mm panels. If you need an exact length, call us on 0333 772 4162 before ordering.

Do I need the end caps?

End caps neatly close the ends of the Transeal profile. If you are buying the profile for the first time, the "with End Caps" option includes them.

Downloads

• Origins wall panels specification sheet (PDF)
• AKW wall panel installation guide (PDF)

Need help choosing? Call our team on 0333 772 4162 and we will check your measurements and parts list before you order.
