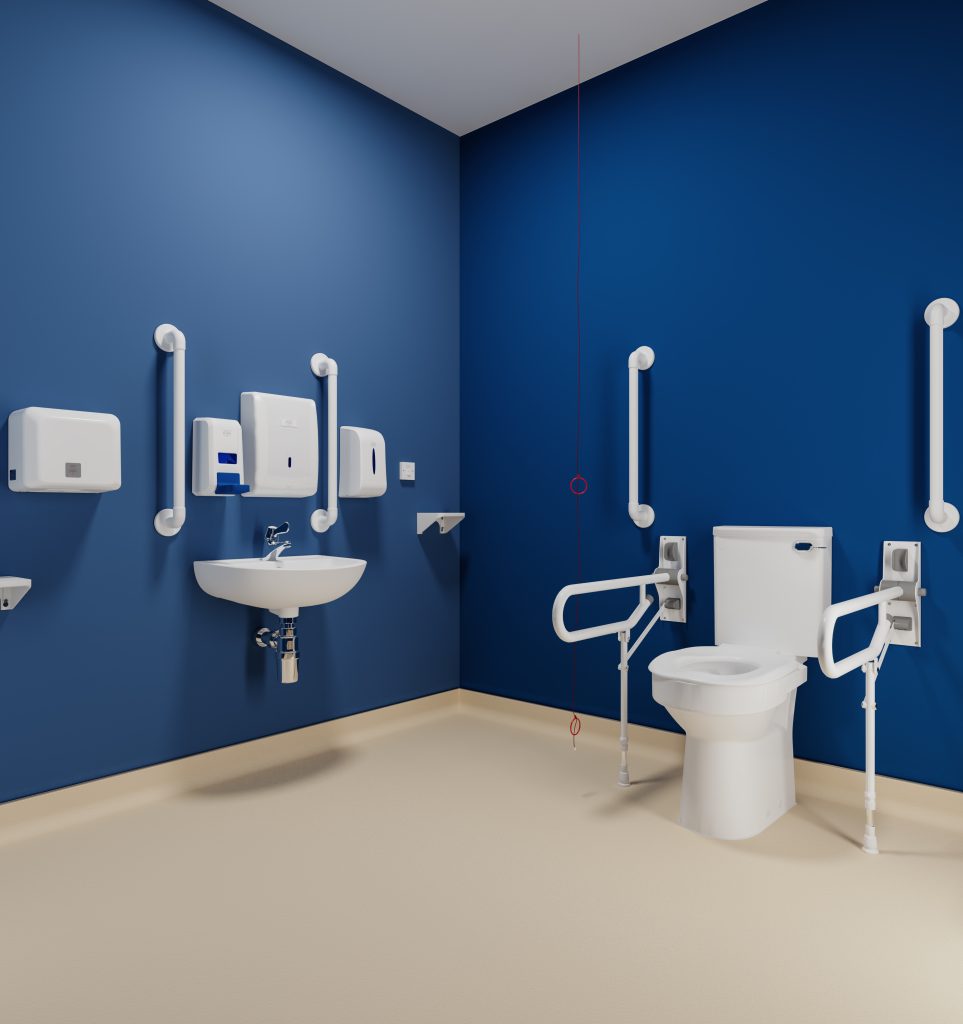

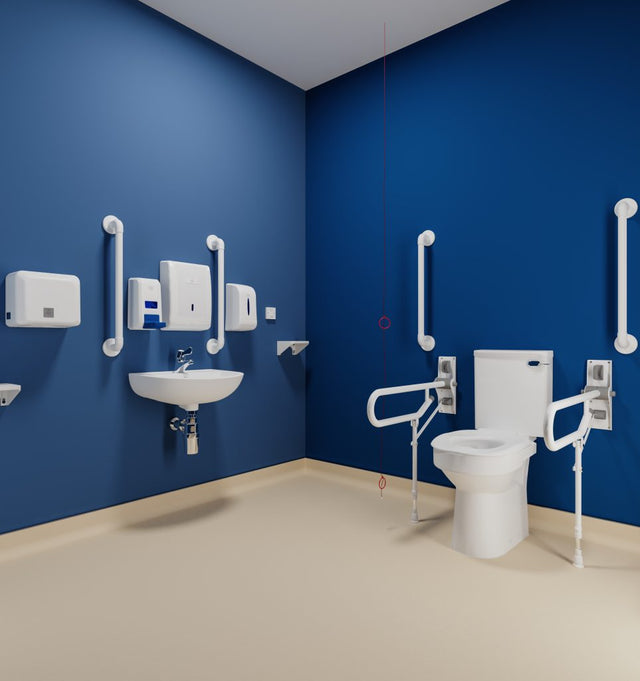

The AKW Peninsular Doc M Toilet Pack (AKW Doc M Pack 9) is designed for a peninsular layout, where the toilet stands away from the side walls so it can be approached and transferred onto from either side. That is why it comes with two fold-up support rails, one for each side of the toilet. The pack also includes a 550mm Navlin wash basin with a TMV3 thermostatic tap and the full Doc M accessory set.

Key features & benefits

• Two fold-up support rails (up to 200kg / 30 stone each) with adjustable legs and optional toilet roll holder – support on both sides of the toilet.
• Raised-height rimless Navlin close coupled toilet – 480mm high with seat fitted and a 750mm projection.
• Lever flush cistern with screw-down lid and 3/6 litre dual flush.
• Ergonomic toilet seat (without lid) with seat lugs and soft-close hinges.
• Navlin 550mm one tap hole wash basin with a flat tap deck that is easy to clean, plus a TMV3 thermostatic mixer tap with lever handle.
• Fluted uPVC grab rails – four 600mm and one 450mm, up to 100kg (15.5 stone), in white or blue.
• Doc M accessory pack – small and large shelves, two blue clothes hooks, alarm and pull cord, lever soap dispenser, lockable paper towel and toilet tissue dispensers, and an electric hand dryer.
• Lifetime guarantee on the sanitaryware, toilet seat, brassware and grab rails.

Choosing your pack

Who is a Doc M pack for? Approved Document M of the Building Regulations sets out what an accessible toilet in a public or commercial building needs: a raised-height pan, a lever flush on the transfer side, grab rails in set positions, a hand rinse basin within reach of the toilet and contrasting fittings that are easy to see. Buying the parts as one AKW pack means everything is designed to work together and you are not left hunting for missing pieces on site. It suits offices, shops, schools, surgeries, hotels, care homes and community buildings.

Is a peninsular layout right for you? Choose it where a larger accessible room, changing area or care setting needs assisted transfer from both sides, or where users may favour either side. For a toilet in a corner, an AKW Standard Close Coupled Doc M pack is usually the better fit. Rail colour: choose the colour that contrasts most with your walls. Call 0333 772 4162 for help with a layout.

Installation notes

• Fit the rails, hooks, basin and any accessories at the heights shown on AKW's specification sheet – for example, the basin must not project more than 250mm from the wall, and clothes hooks sit at 1050mm and 1400mm above the finished floor.
• Fit the flush lever on the side of the cistern furthest from the wall (the transfer side).
• Grab rails must be fixed to walls strong enough to take the load; use fixings suited to the wall construction.

Sizes & product codes

Technical specification

Frequently asked questions

What does peninsular mean?

The toilet projects into the room with clear space on both sides, so it can be used from the left or the right, often with a carer helping.

Which basin comes with this pack?

Unlike the standard packs, which use a 400mm finger rinse basin, the peninsular pack comes with AKW's full-size Navlin 550mm one tap hole basin, which has a flat tap deck that is easy to keep clean.

Is this pack fully compliant with Approved Document M?

The sanitaryware, rails and tap are designed to meet Doc M guidance when they are installed in the positions shown on AKW's specification sheet. Final compliance also depends on the room size, door and layout, so always follow the drawing and check with your building control officer.

Do I need to buy anything else?

You will need fixings suitable for your wall type, a waste and trap for the basin and your normal plumbing connections. Grab rails must be fitted to walls that can take the load.
