AKW Pumped Shower Gulley Waste – Choice of Screedmaster 15mm, Screedmaster 22mm or SilentFlow+ 15mm

AKW Pumped Shower Gulley Waste – Choice of Screedmaster 15mm, Screedmaster 22mm or SilentFlow+ 15mm

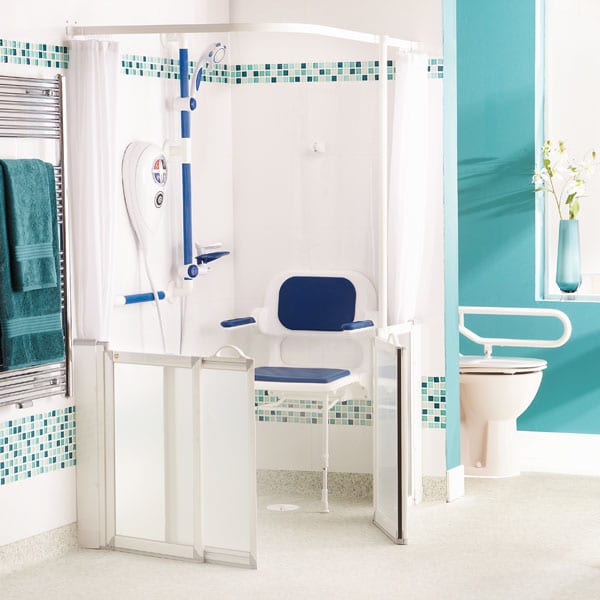

Pumped wet room wastes let you put a level-access shower anywhere, even where there is no fall to a drain. This listing offers three AKW options for vinyl-floored wet rooms, each designed to connect to an AKW shower waste pump.

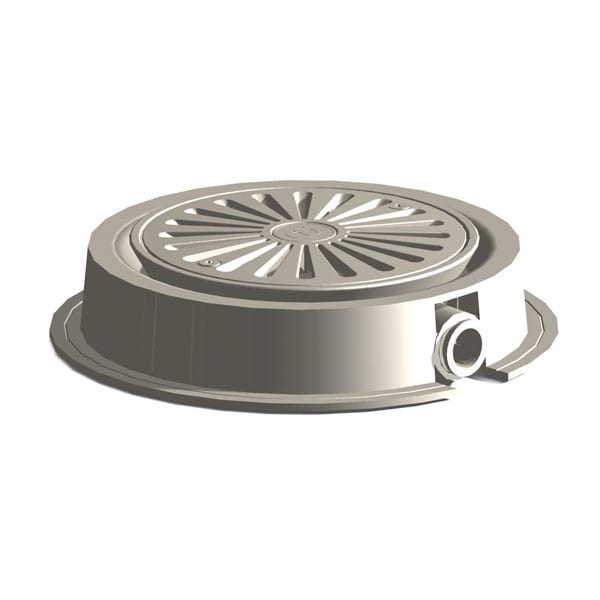

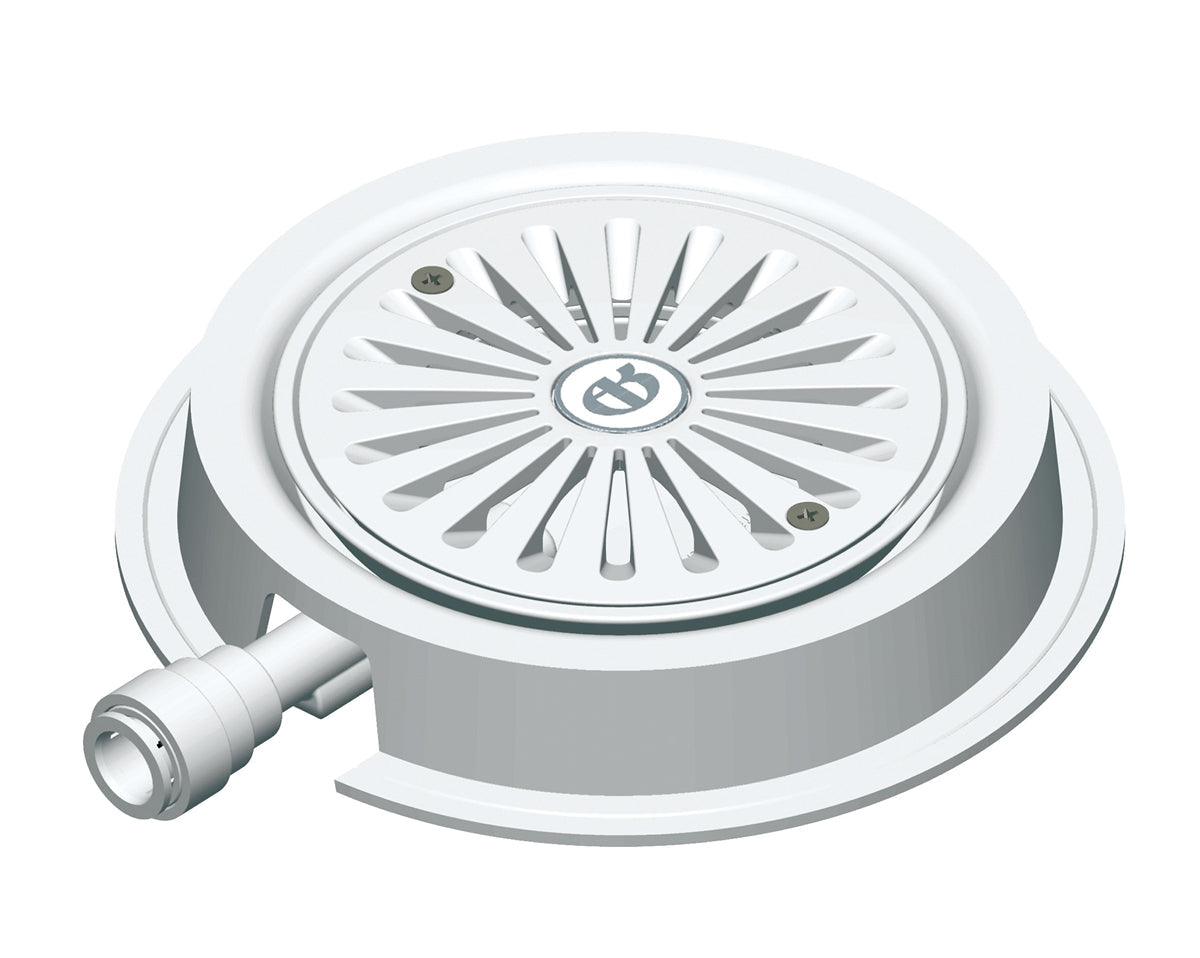

The Screedmaster is a pumped gulley for traditional screeded floors – it lets you fit a pumped waste into the screed without excavating the whole floor. It is only 32mm deep, made from white ABS with a clamping ring for vinyl, and has a locking grate strong enough for wheelchairs and shower chair legs. Choose a 15mm or 22mm John Guest Speedfit outlet.

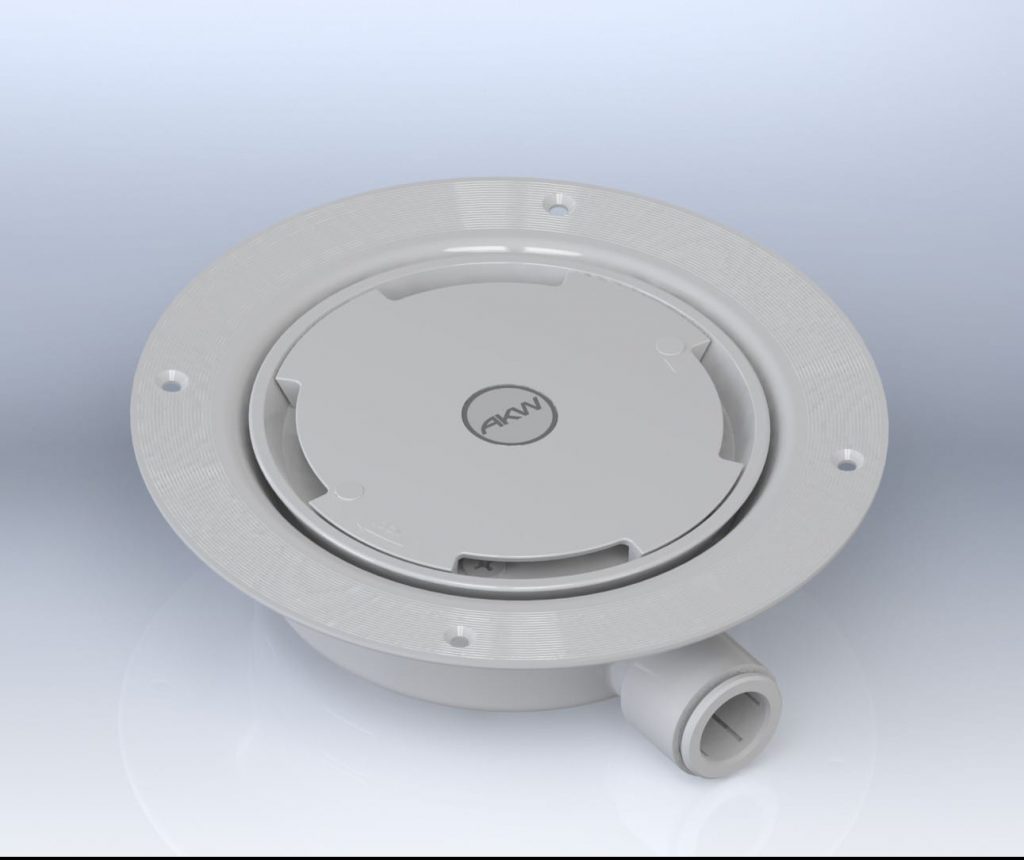

The SilentFlow+ is AKW’s quiet pumped waste, designed to reduce gulping noise, with flow guides for smooth flow and a bayonet cover. This version (25417) comes with a 15mm adaptor to suit pumps with a 15mm inlet. It fits any Tuff Form former with vinyl flooring. The 22mm SilentFlow+ is available here (25414).

Key features & benefits

• Pumped wastes for vinyl-floored wet rooms
• Screedmaster – for screeded floors, 32mm deep
• Locking grate withstands wheelchair and chair-leg loads
• SilentFlow+ – quieter flow, reduced gulping
• 15mm or 22mm John Guest Speedfit outlets
• Compatible with all AKW waste pumps

Screedmaster or SilentFlow+?

Use the Screedmaster on a traditional sand and cement screed floor. Use the SilentFlow+ with a Tuff Form wet floor former, especially in homes or care settings where pump noise matters. Then match the outlet to your pump: DigiPump has a 15mm inlet, P12 a 22mm inlet. Still unsure? Our complete guide to AKW wet room wastes explains how to choose by floor finish and depth below the former, and our team can check your layout on 0333 772 4162.

Sizes & product codes

Technical specification

Frequently asked questions

Do these work with any pump?

They are designed for AKW DigiPump and Contour P12 pumps.

Is the Screedmaster strong enough for a wheelchair?

Yes, AKW state the grate will withstand wheelchair and chair-leg loads.

Can I use these with tiles?

These are vinyl-floor wastes. For tiled floors see the stainless steel pumped gulley (LB00104).

Not sure which part you need? Call our team on 0333 772 4162 and we will check it against your installation before you order.

Downloads

AKW Silentflow+ Pumped Waste specification sheet (PDF)
