AKW Rise & Fall Height Adjustable Toilet Unit – Cistern Unit, Wall-Hung Pan or Both

AKW Rise & Fall Height Adjustable Toilet Unit – Cistern Unit, Wall-Hung Pan or Both

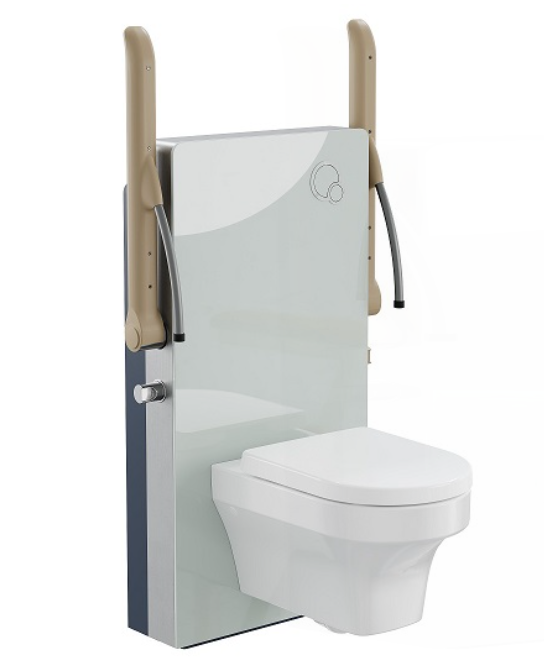

The AKW Rise & Fall height adjustable toilet unit lets the toilet pan move up and down at the touch of a button. The powered cistern unit carries a wall-hung pan and raises or lowers it between 410mm and 610mm (floor to top of seat), so the toilet can be set at the right height for every user – a lower height for children or shorter adults, a higher height for people who find it hard to sit down and stand up, and the height of a wheelchair seat for easier side transfers.

The wall-hung pan in this range is made for the AKW bottom-entry bidet, with openings at the rear that hide the bidet pipework. Order the cistern unit and pan together, or either part on its own. For a complete wash & dry toilet with the bidet seat included, choose the Rise & Fall option of the AKW Bidet wash & dry toilet pack.

Key features & benefits

• Powered height adjustment from 410mm to 610mm, floor to top of seat
• Up and down buttons on both fold-up arms – easy to reach from either side
• Weight-loading fold-up arms with friction hinges, so they do not drop suddenly
• Concealed cistern with dual push button flush – full 6 litres and reduced flush
• Toughened glass front panels with grey arms for a clean, modern look
• Rimless, direct-flush wall-hung pan – easy to clean with nowhere for germs to hide
• Pan openings conceal the AKW bottom-entry bidet pipework and reduce trip hazards
• Load limits: cistern unit and pan 400kg; each arm 120kg

Which option do I need?

Cistern Unit & Wall-Hung Pan – the complete rise and fall toilet, ready for an AKW bottom-entry bidet seat (ordered separately). Cistern Unit Only – choose this if you already have the matching pan. Wall-Hung Pan Only – a replacement or additional pan for the Rise & Fall cistern unit.

The Rise & Fall unit is ideal for family homes where several people with different needs share one toilet, for wheelchair users who transfer sideways, and for care homes, hospitals and supported living.

Installation notes

The unit needs a mains water supply, a waste connection and an electrical supply, and must be installed by competent trades in line with current regulations. Check that the wall can take the loads involved – your installer can advise. We can supply matching Navlin wash basins and AKW grab rails to complete the room.

Sizes & product codes

Technical specification

Frequently asked questions

Is the bidet seat included?

No – the bidet seat is ordered separately, or choose the Rise & Fall option of the AKW Bidet wash & dry toilet pack, which includes it.

How high and low does it go?

From 410mm to 610mm, measured from the floor to the top of the seat.

Can it be operated from either side?

Yes – both arms have up and down buttons.

Does it need electricity?

Yes – the lifting mechanism needs a suitable electrical supply installed by a qualified electrician.

Need help choosing?

Not sure which option is right for you? Call the Key West Bathrooms team on 0333 772 4162. We supply homeowners, installers, care providers, housing associations and local authority adaptation schemes, and we are happy to talk you through the choices before you order.

Downloads

• AKW Rise & Fall specification sheet (PDF)
