AKW SmartCare Plus Thermostatic Electric Care Shower – Choice of kW & Kit Colour

AKW SmartCare Plus Thermostatic Electric Care Shower – Choice of kW & Kit Colour

The AKW SmartCare Plus electric care shower is a push-button thermostatic electric shower designed for accessible bathrooms and care settings, and for the families, carers and occupational therapists who specify them. Closely grouped buttons with raised, contrasting symbols, beeps and LED lights confirm every change, and the shower remembers the last user’s settings so it is ready to go next time.

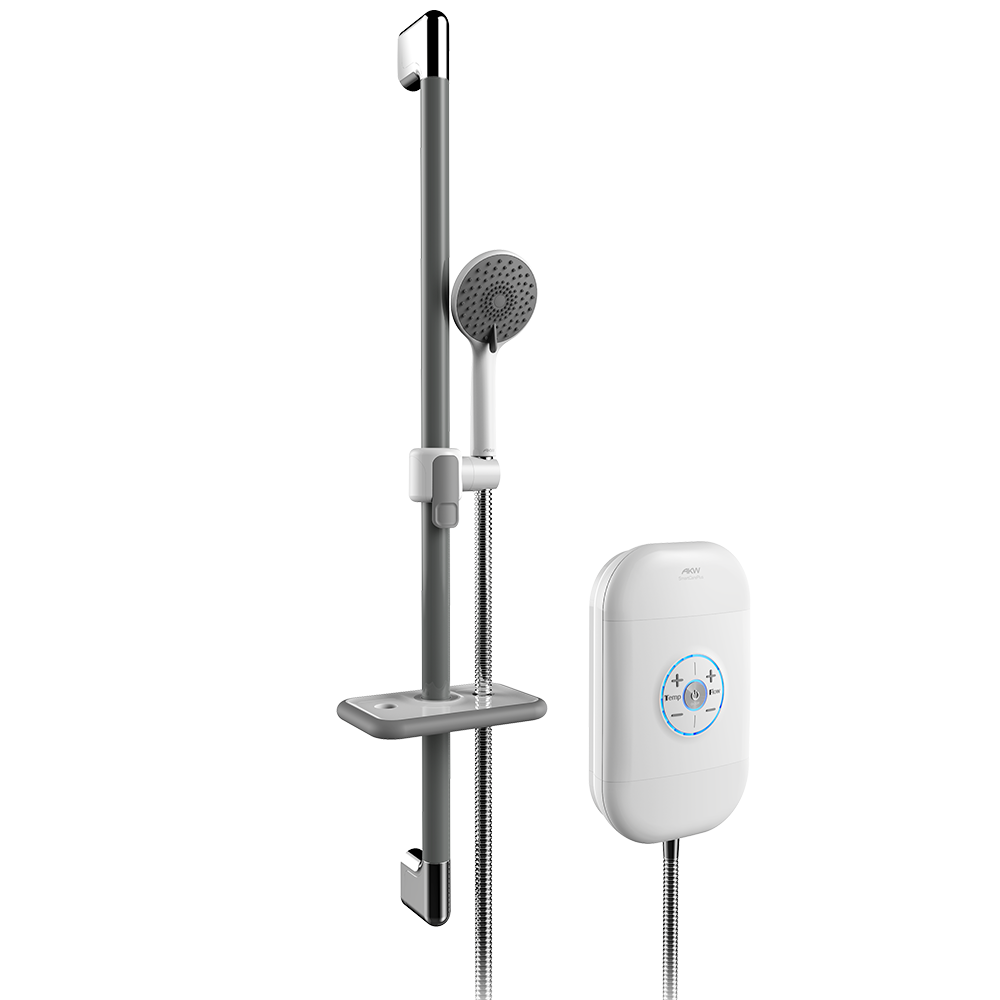

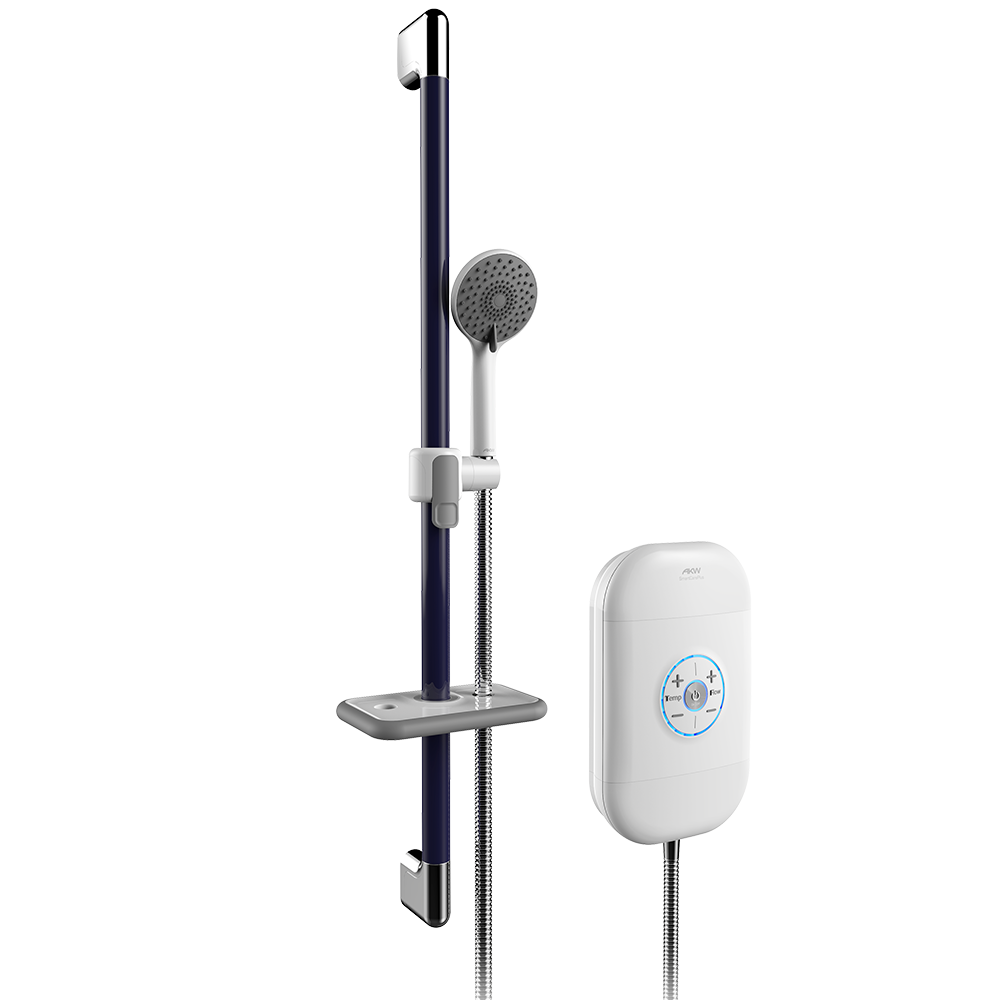

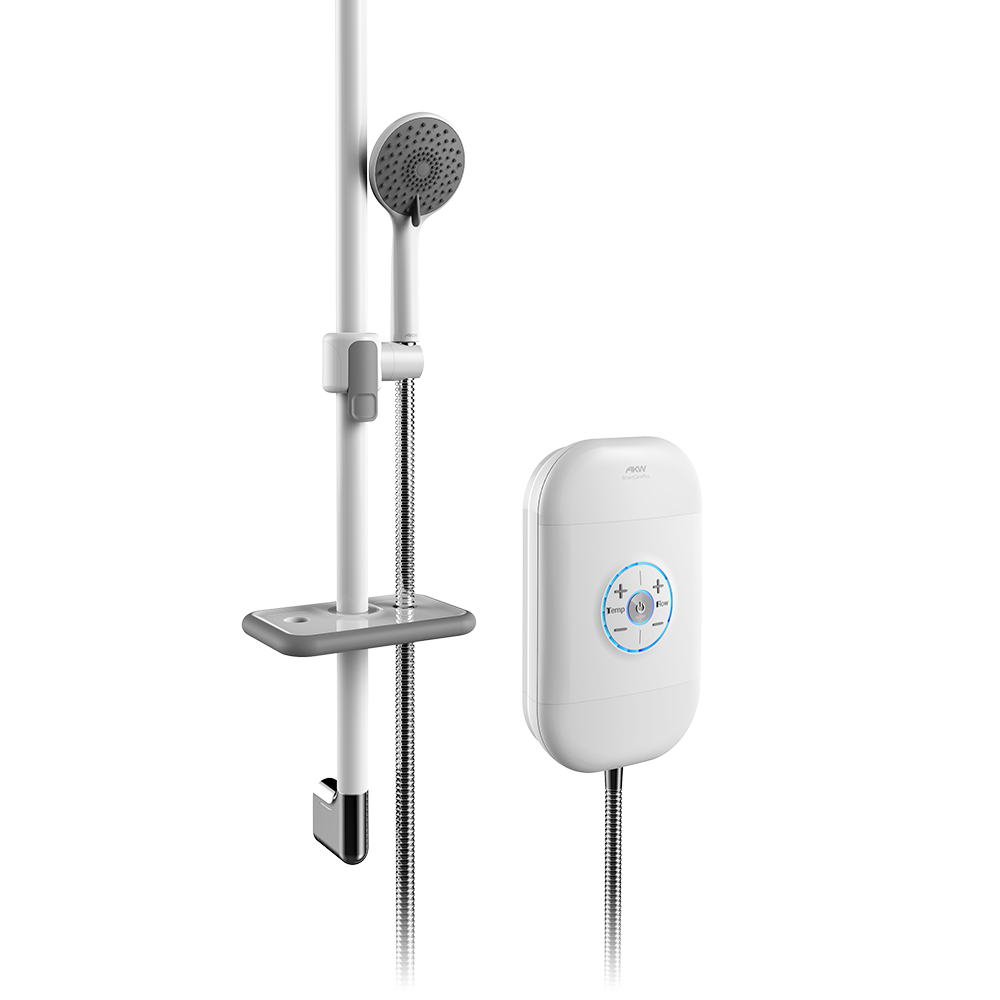

Choose 8.5kW, 9.5kW or 10.5kW and a white Care Kit with a white, dark blue or mid grey riser rail. Every SmartCare Plus is BEAB Care certified, RNIB tried and tested and DSDC accredited.

Key features & benefits

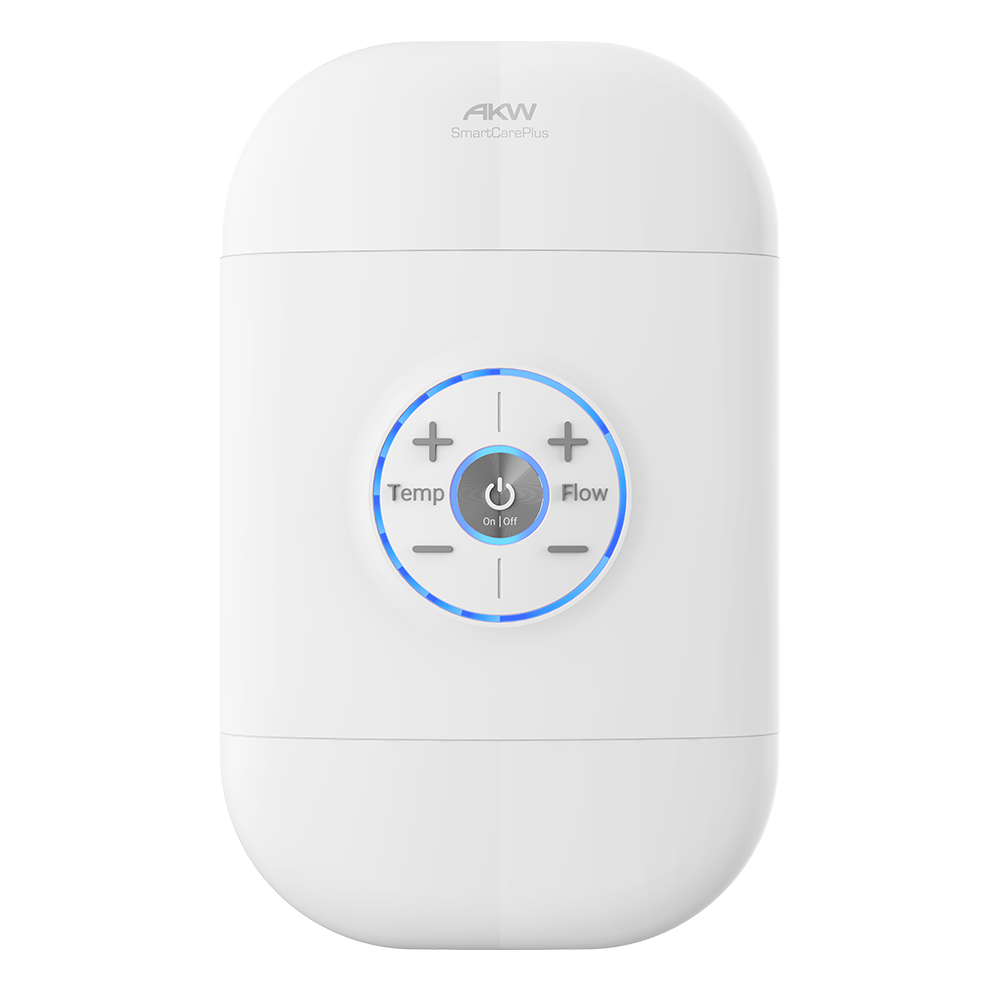

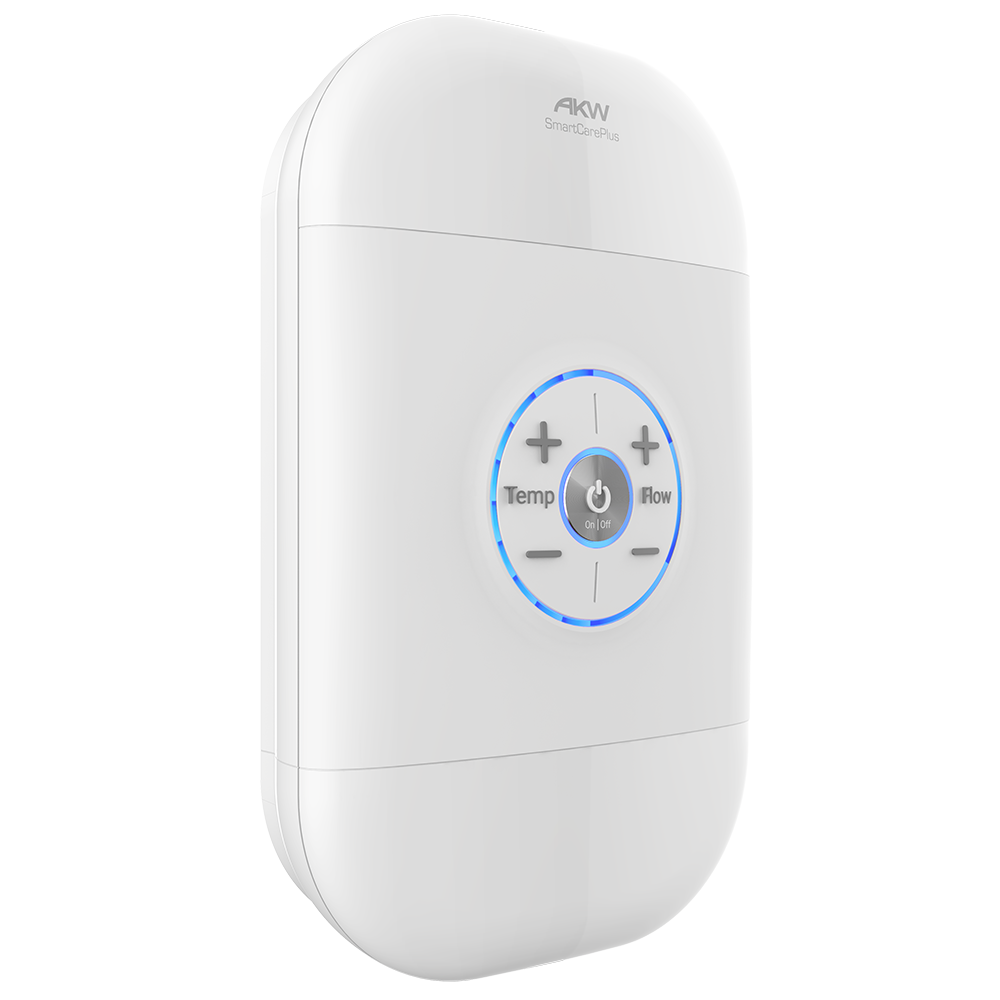

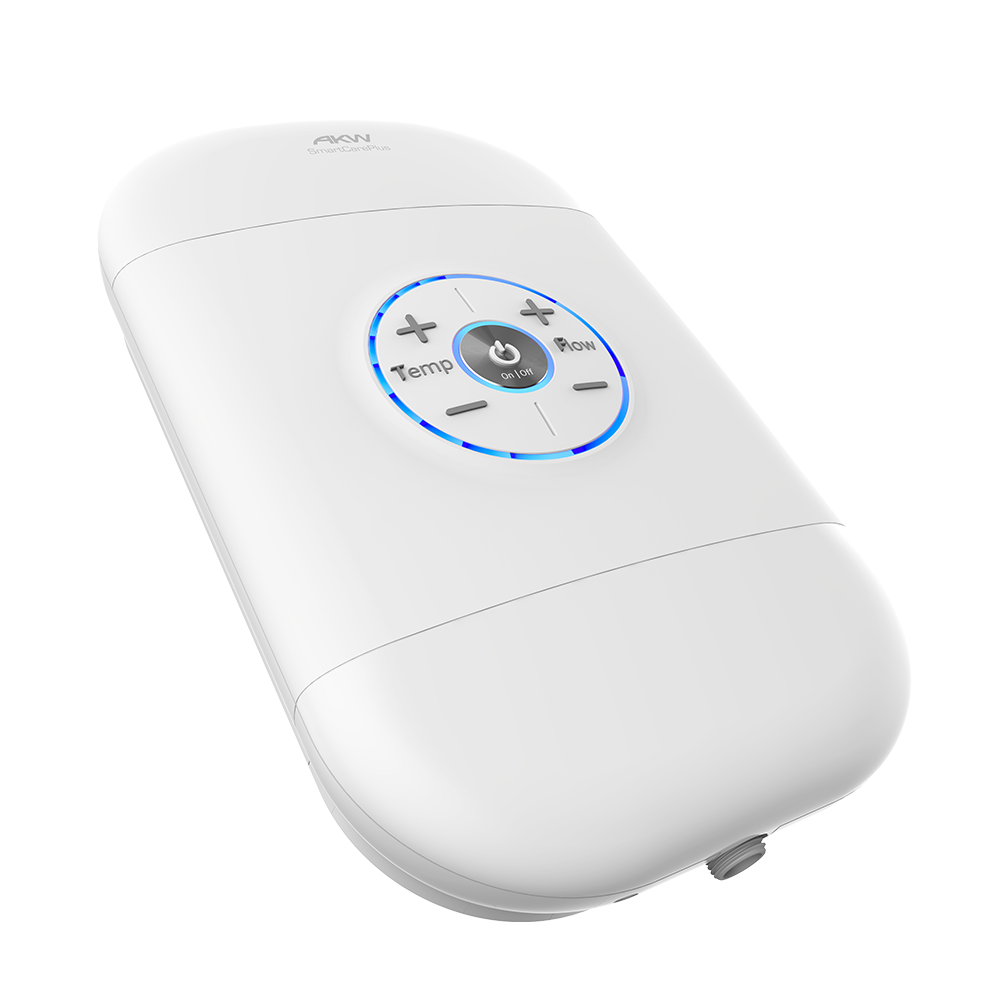

• Tactile push-button controls grouped closely together, with raised high-contrast symbols.
• Audible beeps and LED indicators confirm temperature and flow changes.
• Memory function – recalls the last user’s settings.
• RNIB mode – starts the shower with pre-set settings at the touch of a button.
• Matt, anti-glare control panel and rounded edges.
• Thermostatically stabilised with thermal cut-out and phased shutdown.
• Automatic shut-off after 5, 10, 20 or 30 minutes to prevent flooding and waste.
• Eco setting limits flow to 6 litres per minute by default.
• Care Kit – 2m anti-kink hose, 1m riser rail load-bearing to 150kg, shelf with non-handed hose retainers, lever-operated sliding handset holder, extra wall holder and 3-mode shower head.
• 5-year warranty when registered with AKW within 30 days of installation.

Choosing your kit colour and power

The dark blue and mid grey rails give strong colour contrast against light walls, making the rail and handset easy to locate. The all-white kit suits bathrooms where contrast is less important.

The kW rating must suit your cable and fuse: AKW specify 35/40A for 8.5kW, 40/45A for 9.5kW and 45/50A for 10.5kW, plus a 30mA RCD and 50A double-pole isolator. Higher ratings give a better flow in colder months. If you are unsure, ask your electrician or call us on 0333 772 4162.

Optional extras

• SmartCare Plus Wireless Remote Control (30318) – start, stop and adjust temperature and flow from up to 10m away.
• SmartCare Remote On/Off Button (30316) – a simple wall-mounted start/stop button for carers.
• AKW Halo Wall Plate – covers marks left by an old shower.
• Spare rails, sliders and fittings: riser rail kit spare parts; replacement handset: AKW Easy Clean Handset.

Installation notes

• Retro-fit footprint fits over most makers’ fixing holes, so re-tiling is rarely needed; stainless-steel fitting plate supplied.
• 6 cable and 8 water entry points with a dual power block for left- or right-hand wiring.
• Hardwired or wireless link to an AKW DigiPump waste pump or the AKW P12 pump for level-access showers.
• Mains cold water supply only; installation by a competent person to BS 7671.

Sizes & product codes

Technical specification

Frequently asked questions

What is RNIB mode?

It lets the shower start with pre-set temperature and flow at a single press, so the user does not need to adjust the controls each time.

Can the riser rail take a person’s weight?

Yes – the Care Kit rail is load-bearing to 150kg when fixed to a suitable wall.

Can I control it remotely?

Yes. Add the SmartCare Plus Wireless Remote Control (30318) or the SmartCare Remote On/Off Button (30316).

Do you sell the SmartCare Plus with a waste pump?

Yes – see our SmartCare Plus packs with the wireless M11 DigiPump.

Need advice?

Call 0333 772 4162 – we are happy to help.

Downloads

• SmartCare Plus specification sheet (PDF)
• SmartCare Plus installation instructions (PDF)
• Energy Label 8.5kW (PDF)
• Energy Label 9.5kW (PDF)
• Energy Label 10.5kW (PDF)
• AKW Electric Showers Brochure (PDF)
• AKW Electric Showers Product Fiche (PDF)
