AKW Standard Close Coupled Doc M Pack Fluted Blue (28312FBU)

AKW Standard Close Coupled Doc M Pack Fluted Blue (28312FBU)

The AKW Standard Close Coupled Doc M Pack Fluted Blue (Part No: 28312FBU) is a comprehensive, fully compliant accessibility toilet and washroom solution designed to meet UK Doc M building regulations for inclusive, disabled, and ambulant facilities. This pack provides everything required for a safe, ergonomic, and dignified close-coupled toilet setup in public, commercial, or adapted domestic environments, with a striking fluted blue finish for enhanced visual contrast and user orientation.

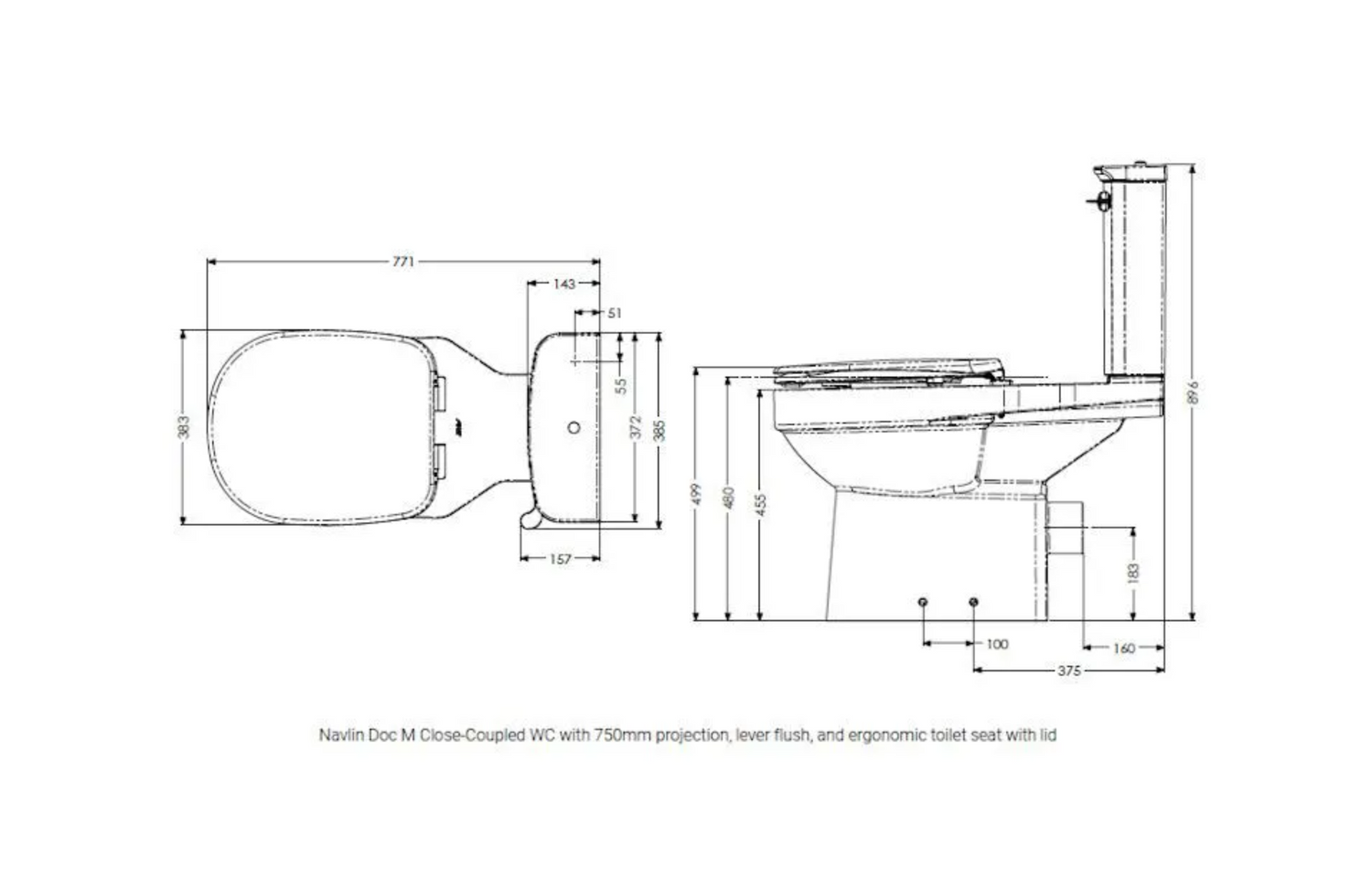

Centred around a raised-height close-coupled toilet pan (750mm projection) with a rimless design for easier cleaning, the pack includes a water-efficient cistern featuring a lever flush (full 6 litres / reduced 4 litres) and a secure screw-down lid for added safety in public or shared spaces. The ergonomically shaped blue toilet seat with soft-closing lid offers superior comfort and ease of use for individuals with varied mobility levels.

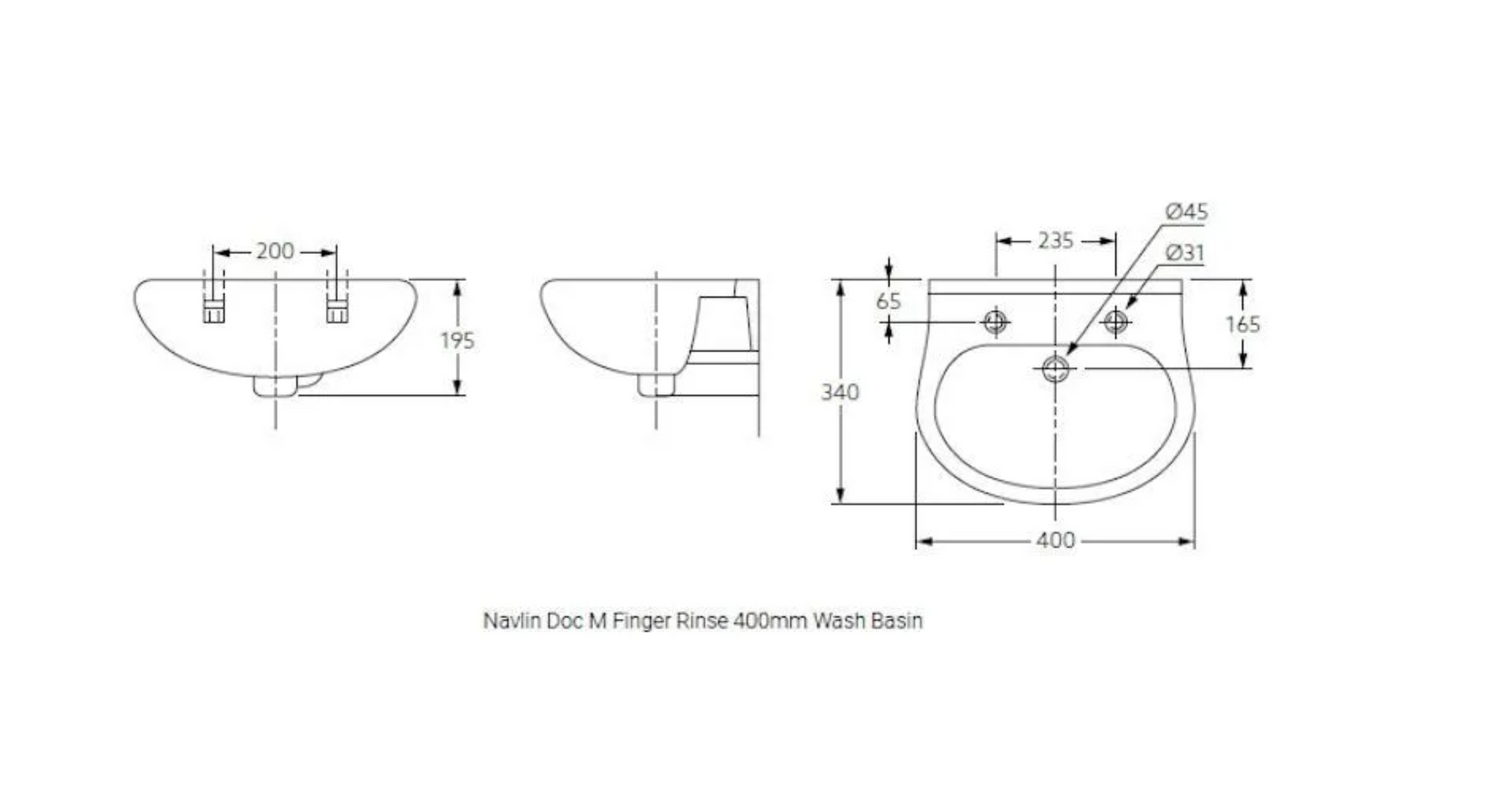

Complementing the WC is a compact 400mm wide, 2-tap-hole finger rinse wash basin paired with a monobloc spray mixer tap in polished chrome (TMV3 approved for scald prevention), a chrome-plated brass waste (no plug), and a 1¼" 32mm bottle trap for efficient drainage.

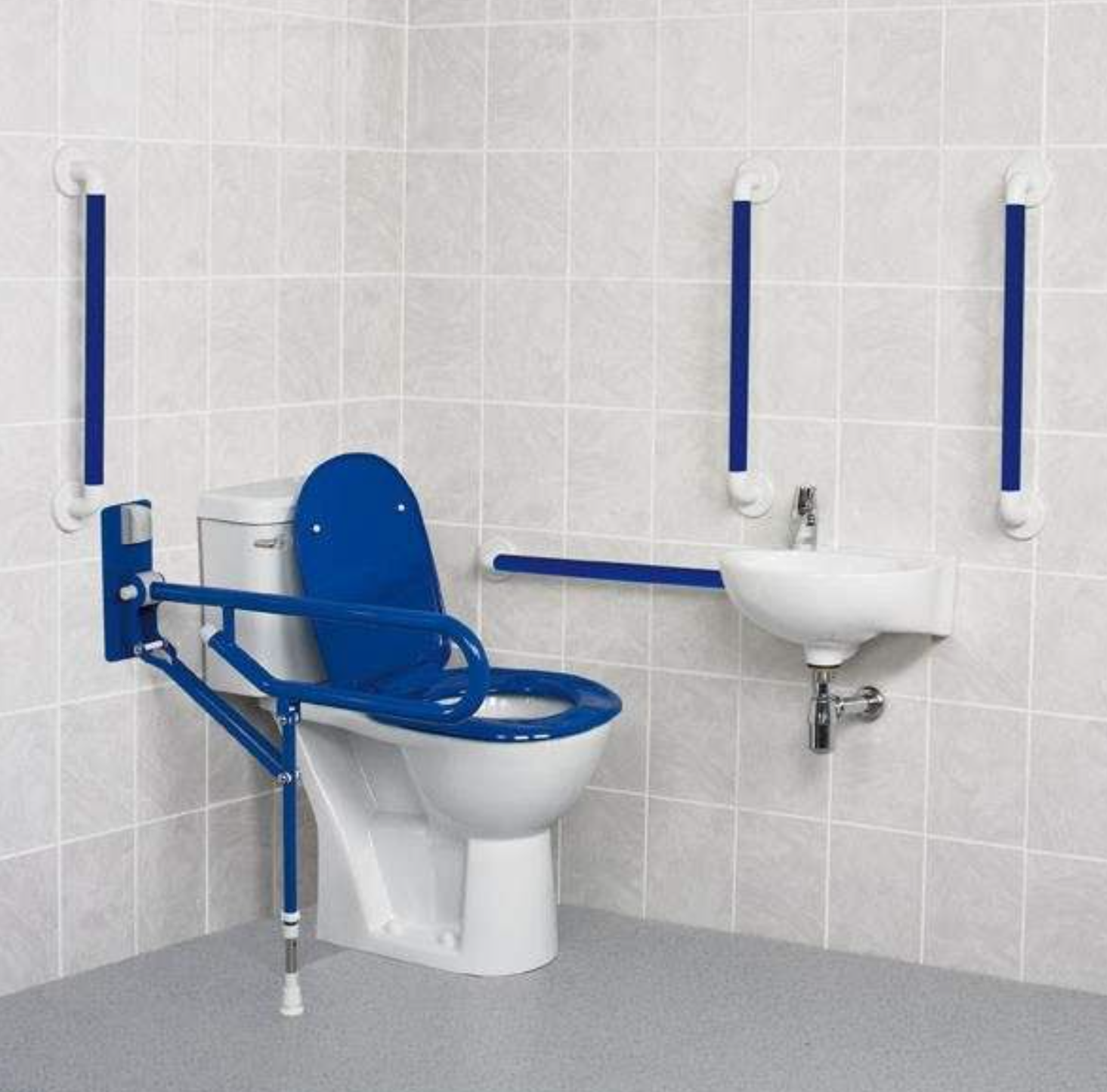

The pack includes a full suite of fluted blue grab rails (32mm diameter, high-contrast and easy-grip) to support safe transfers and stability:

• 1 x hinged fold-up double hairpin rail with adjustable leg
• 1 x 450mm straight grab rail
• 4 x 600mm straight grab rails

This configuration supports side transfer, corner positioning, and versatile installation to suit ambulant or wheelchair users, promoting independence and compliance.

Key features include:

• Ergonomically designed soft-closing toilet seat and lid in blue for maximum comfort and quiet operation.
• Screw-down cistern lid for enhanced security and tamper resistance in public facilities.
• Dual-flush system (6L full / 4L reduced) for water efficiency and environmental responsibility.
• TMV3-approved thermostatic mixer tap to deliver safe, temperature-controlled water and prevent scalding.
• High-contrast fluted blue rails and seat to aid visibility for users with low vision or cognitive needs.
• Wide range of variants available to accommodate diverse user requirements.

What's included:

• 1 x Blue Ergonomic Toilet Seat with lid
• 1 x Hinged fold-up double hairpin rail (adjustable leg, 32mm, blue)
• 1 x 450x32mm large plastic fluted blue grab rail
• 4 x 600x32mm large plastic fluted blue grab rails
• 1 x Basin 1¼" 32mm Bottle Trap (chrome)
• 1 x Monobloc Spray Mixer Tap (polished chrome finish)
• 1 x Chrome Plated Brass Waste (no plug)
• 1 x 2 Tap Hole Finger Rinse Wash Basin (400mm wide)
• 1 x Navlin Doc-M cistern and lever flush (with screw-down lid)
• 1 x Navlin Doc M Raised-Height Close-Coupled Toilet Pan (750mm projection)
• 1 x Doc M Pack Pallet Box (1200 x 800mm for transport/storage)

Product Specification: Standard Close Coupled Doc M Pack Fluted Blue

From AKW, a leading UK specialist in accessible bathroom solutions, this pack delivers robust, hygienic, and thoughtfully designed components to ensure compliance, safety, and user dignity in care homes, public toilets, hotels, offices, or home adaptations. Professional installation is recommended to achieve full Doc M compliance and optimal performance.
