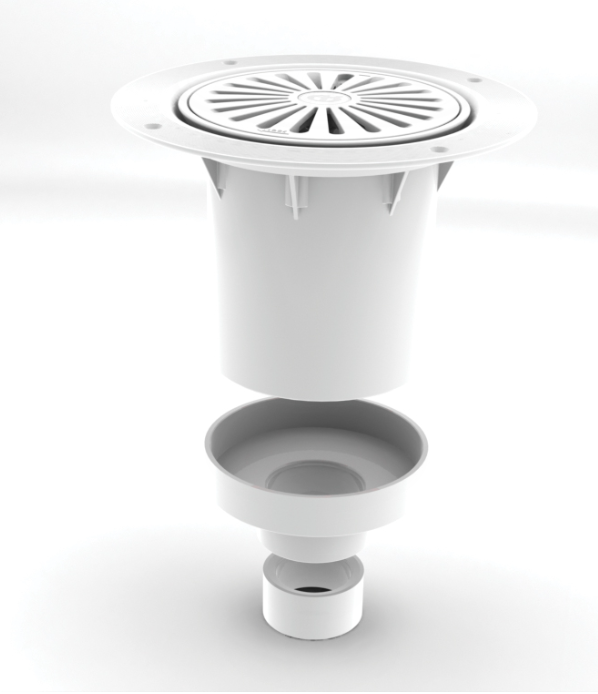

AKW TF75 Tuff Form Gravity Waste for Vinyl Floors – Bottom Outlet or Grey Horizontal Outlet
AKW TF75 Tuff Form Gravity Waste for Vinyl Floors – Bottom Outlet or Grey Horizontal Outlet - TF75 Bottom Outlet Waste (25408) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Usually Delivered 1-2 Working Days
AKW TF75 Tuff Form Gravity Waste for Vinyl Floors – Bottom Outlet o...
AKW TF75 Tuff Form Gravity Waste for Vinyl Floors – Bottom Outlet or Grey Horizontal Outlet - TF75 Bottom Outlet Waste (25408) is backordered and will ship as soon as it is back in stock.
Description
Description
AKW TF75 Tuff Form Gravity Waste for Vinyl Floors – Bottom Outlet or Grey Horizontal Outlet
The TF75 is AKW’s 75mm water seal gravity waste for the Tuff Form wet floor former when the floor is finished in vinyl safety flooring. The vinyl is clamped into the waste so water runs straight into the trap with no joint to leak.
This listing offers two TF75 versions that complement the standard white horizontal outlet TF75: the bottom outlet TF75 (25408), for when the pipe needs to drop vertically through the floor, and the grey TF75 (25106GR) with a horizontal outlet, which blends in with grey vinyl floors.
The deep 75mm water seal gives strong protection against drain smells, and the cover lifts out for cleaning and rodding. The standard white version is available here (25106).
Key features & benefits
- 75mm water seal gravity waste for Tuff Form formers
- For vinyl safety flooring – vinyl clamps into the waste
- Bottom outlet version for vertical pipe runs
- Grey horizontal outlet version to suit grey floors

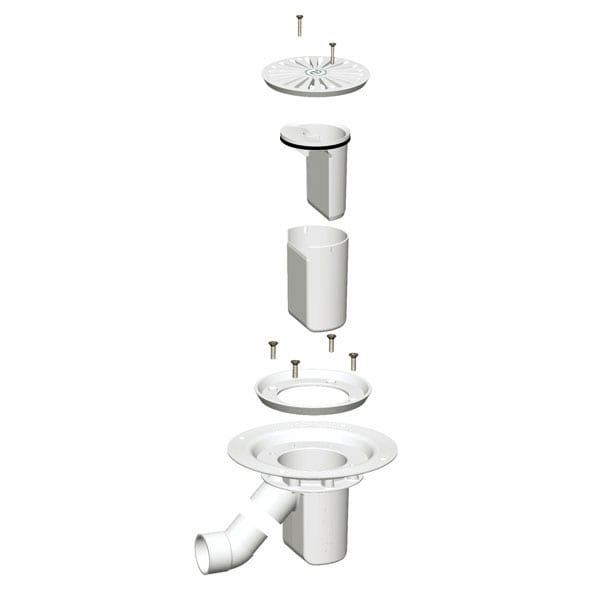

- Cover lifts out for cleaning and rodding
Bottom outlet or horizontal outlet?
Choose the bottom outlet TF75 when the waste pipe must go straight down – for example through a suspended timber floor into the void below. Choose the horizontal outlet when the pipe runs sideways between joists or within a screed.
The TF75 needs more depth below the former than the low-height wastes. If you are short of depth, look at the DW90 and GW90-2 low-height wastes. Still unsure? Our complete guide to AKW wet room wastes explains how to choose by floor finish and depth below the former, and our team can check your layout on 0333 772 4162.
Installation notes
Fit the waste into the Tuff Form former before laying the floor, connect the outlet with a continuous fall to the drain, then clamp the vinyl into the waste with the clamp ring.
Sizes & product codes
| Waste | AKW code | EAN |
|---|---|---|
| TF75 Bottom Outlet Waste (25408) | 25408 | 5055295109780 |
| TF75 Horizontal Outlet Waste – Grey (25106GR) | 25106GR | – |
Technical specification
| Waste | AKW TF75 gravity waste |
| Water seal | 75mm |
| Floor finish | Vinyl safety flooring |
| Outlets | Bottom outlet (25408) or horizontal outlet, grey (25106GR) |
| Fits | AKW Tuff Form and Tuff Form8 formers |
| Range | AKW Tuff Form |
Frequently asked questions
Can I use the TF75 with tiles?
No – for tiled floors use the stainless steel Tuff Form wastes.
Will it fit Tuff Form8?
Yes, the TF75 is listed as a waste option for Tuff Form8 too.
Is a replacement cover available?
Yes, see our TF75 replacement covers.
Downloads
Not sure which part you need? Call our team on 0333 772 4162 and we will check it against your installation before you order.
