AKW Toilet Raising Plinth – Choice of Height from 25mm to 100mm

AKW Toilet Raising Plinth – Choice of Height from 25mm to 100mm

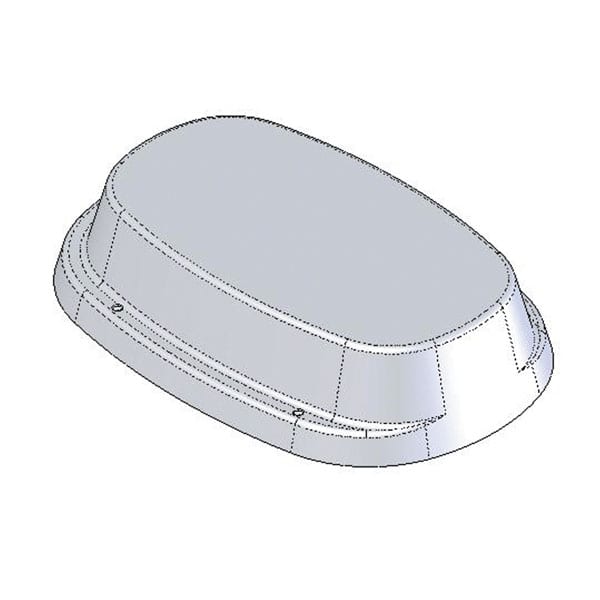

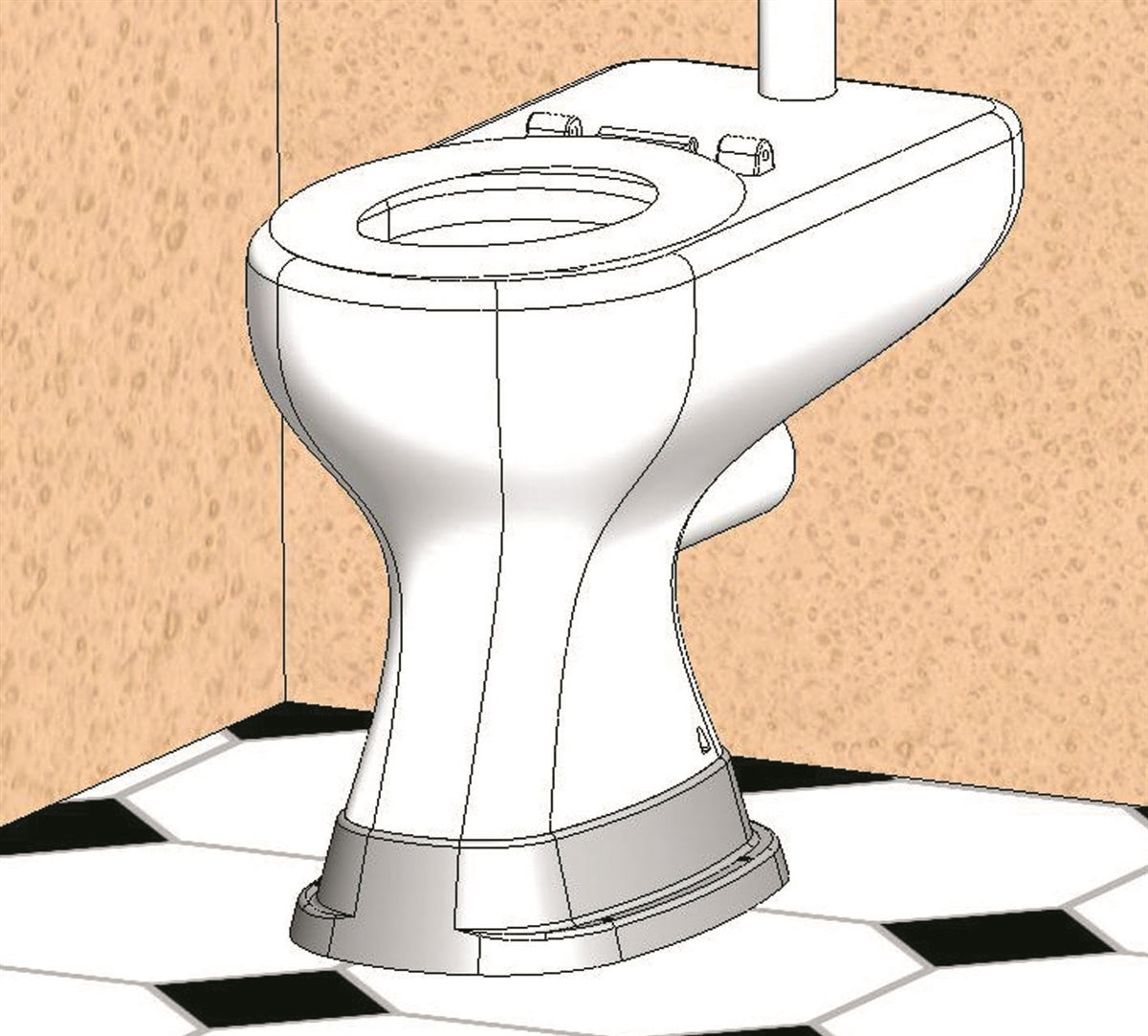

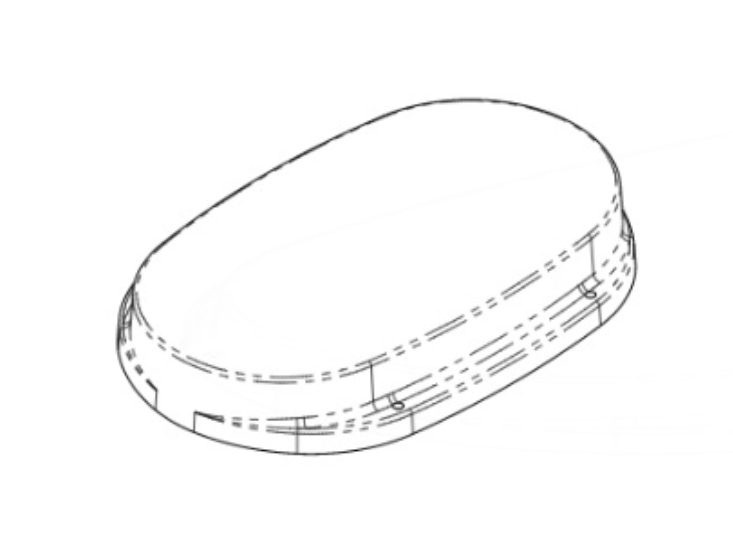

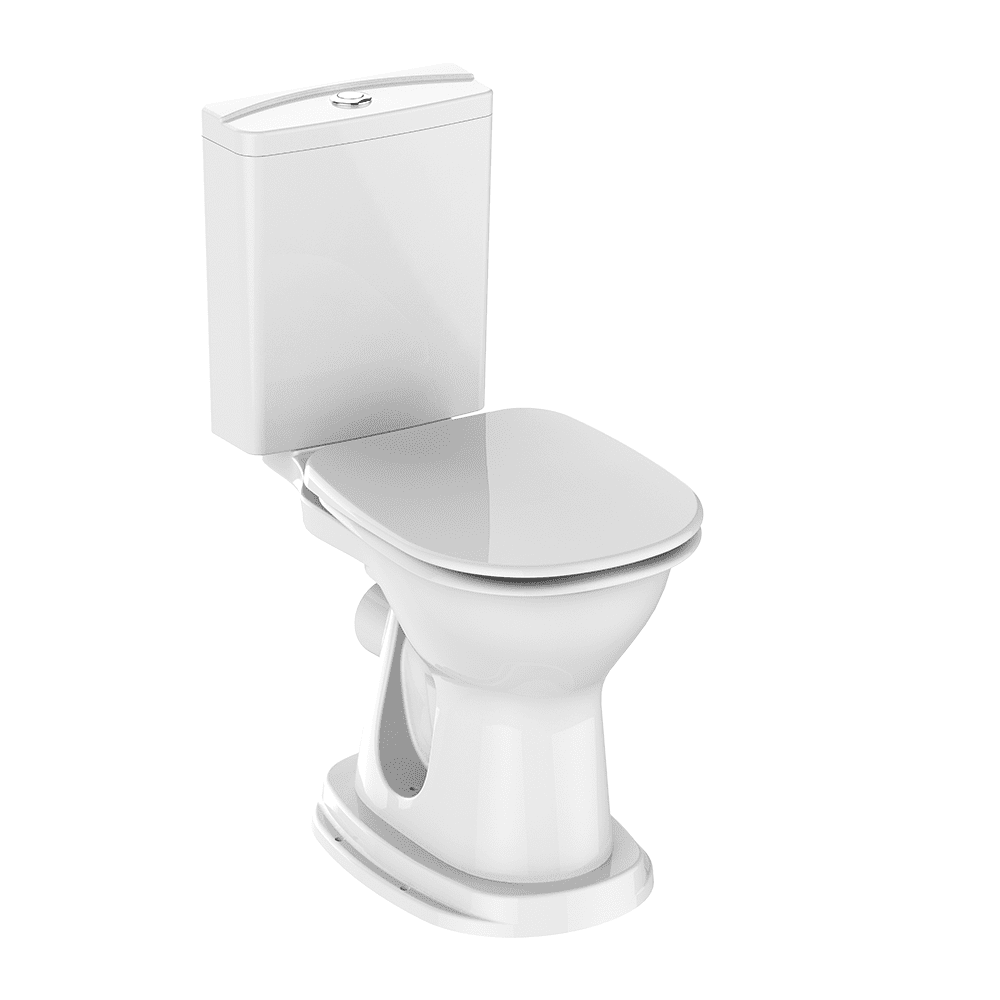

The AKW Toilet Raising Plinth is a strong, white moulded base that fits under an existing toilet pan to raise it. A higher toilet is easier to sit down on and stand up from, and can be brought level with a wheelchair seat to make side transfer easier – a simple, low-cost way to adapt a bathroom without replacing the toilet.

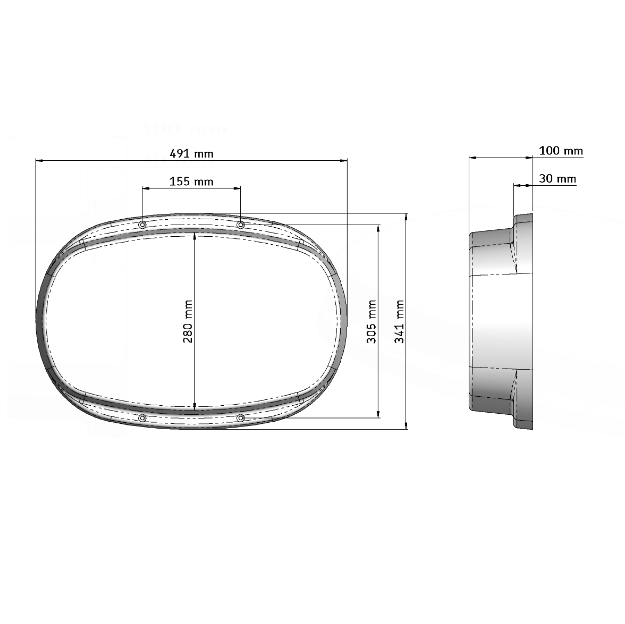

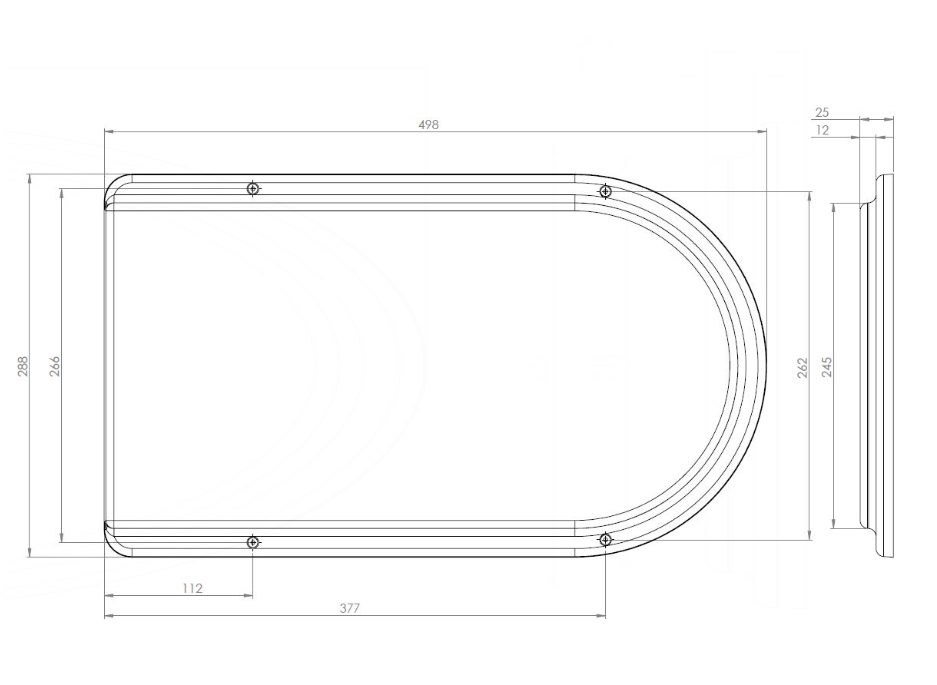

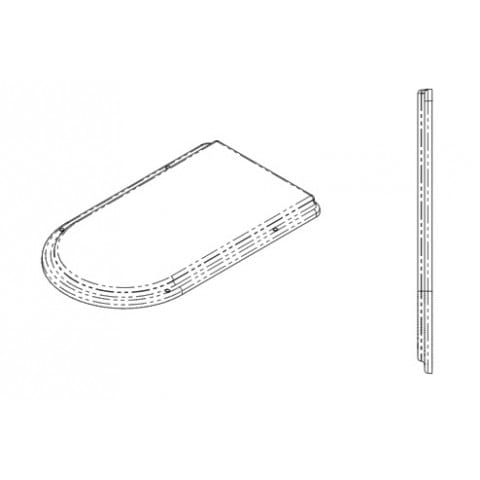

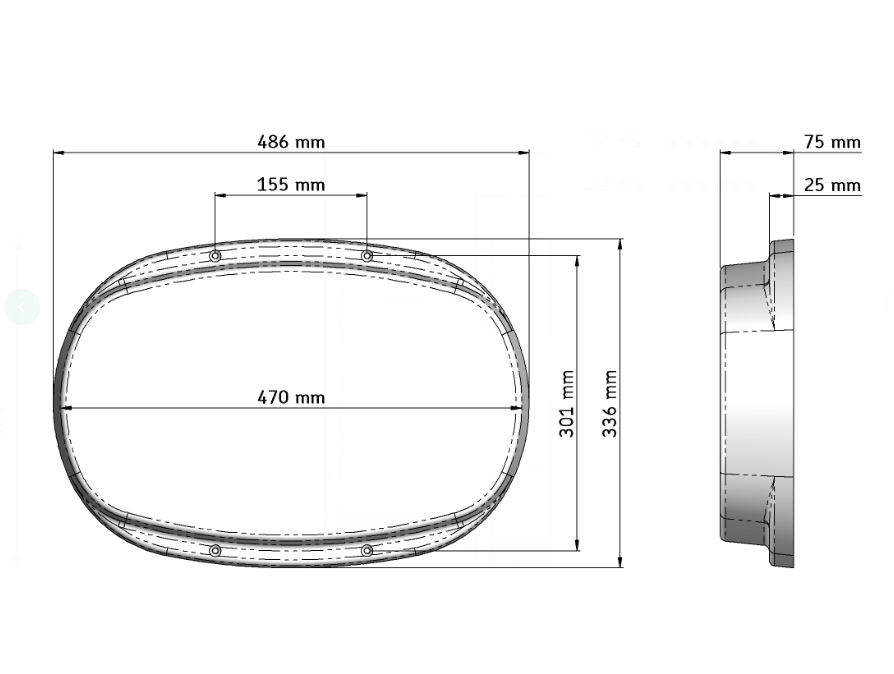

Choose from 25mm, 38mm, 50mm, 75mm or 100mm, including a 59mm plinth made for the AKW Livenza Plus toilet.

Key features & benefits

• Raises an existing toilet – no need to buy a new comfort height pan.
• Strong moulded construction in SMC (sheet moulding compound) or GRP, finished in white to blend with the toilet.
• Range of heights so you can match the toilet to the user or to a wheelchair seat.
• Easy to wipe clean.

Choosing the right height

Measure the current height from the floor to the top of the toilet seat, then decide how much higher it needs to be. For side transfer, aim to match the height of the wheelchair seat; a little extra height can make sitting down and standing up easier. Remember that the soil pipe and water supply connections will also need to rise by the plinth height. Not sure? Call us on 0333 772 4162.

Installation notes

• Remove the toilet pan, fix the plinth to the floor, then refit the pan on top.
• Allow for the extra height when connecting the pan to the soil pipe and the cistern supply.
• We recommend installation by a competent plumber.

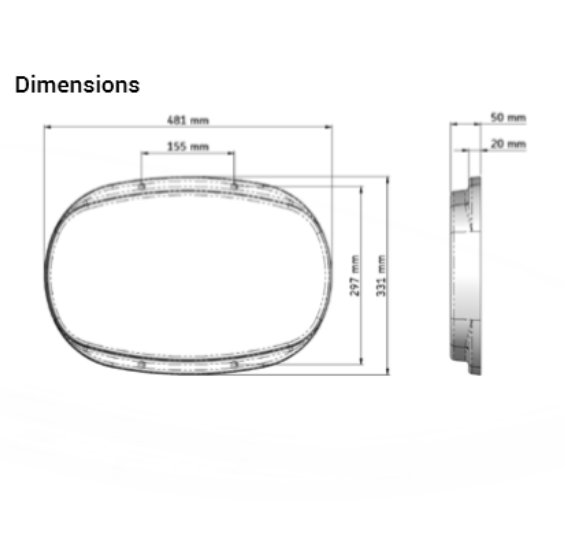

Sizes & product codes

Technical specification

Frequently asked questions

Will it fit my toilet?

Plinths suit most standard floor-standing toilet pans. Check the footprint of your pan against the plinth before ordering, or call us for help.

What is the 59mm plinth?

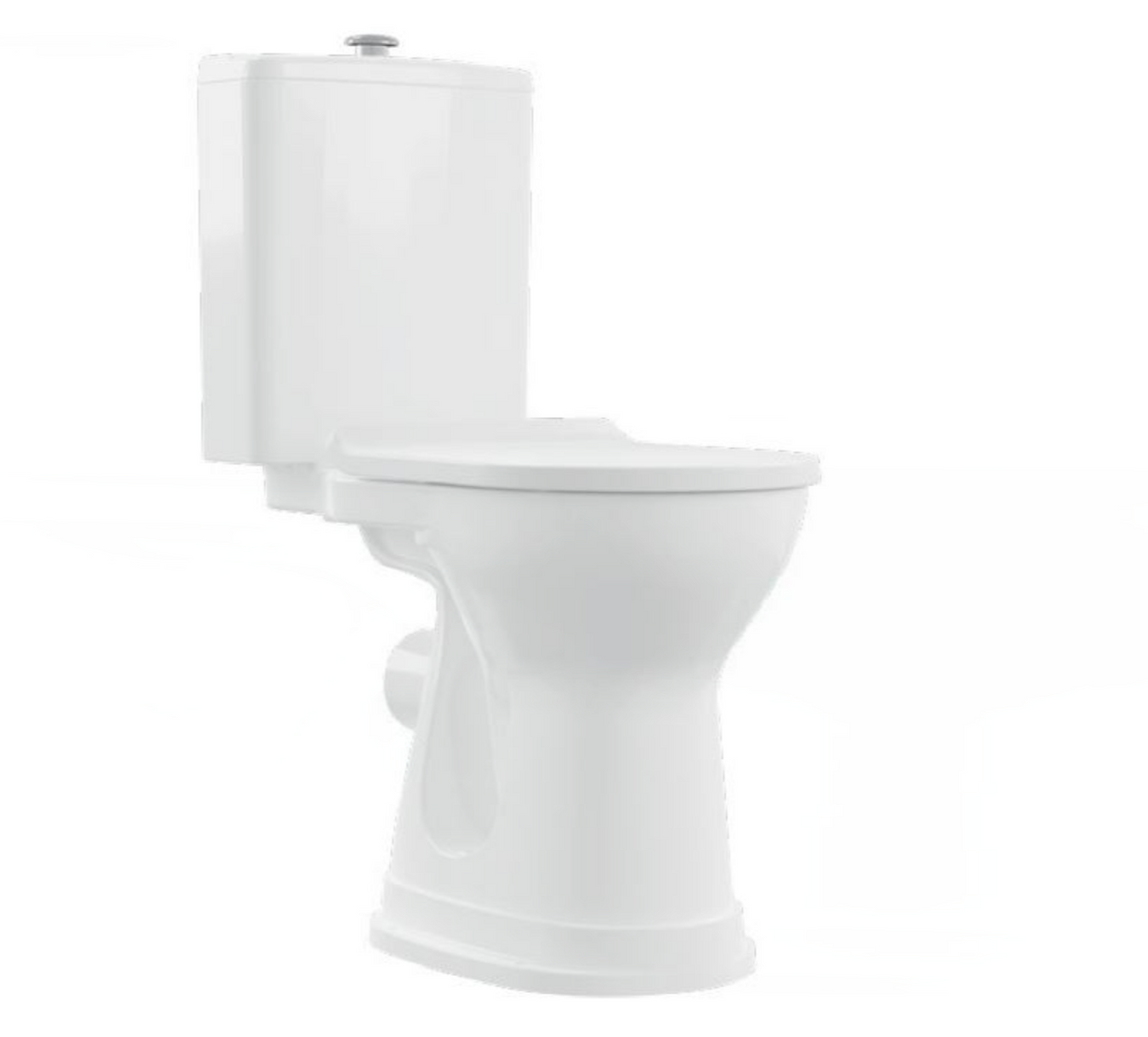

It is made for the AKW Livenza Plus close coupled toilet.

Do I need to move the pipework?

Yes – the soil connection and the water supply need to rise by the height of the plinth.
