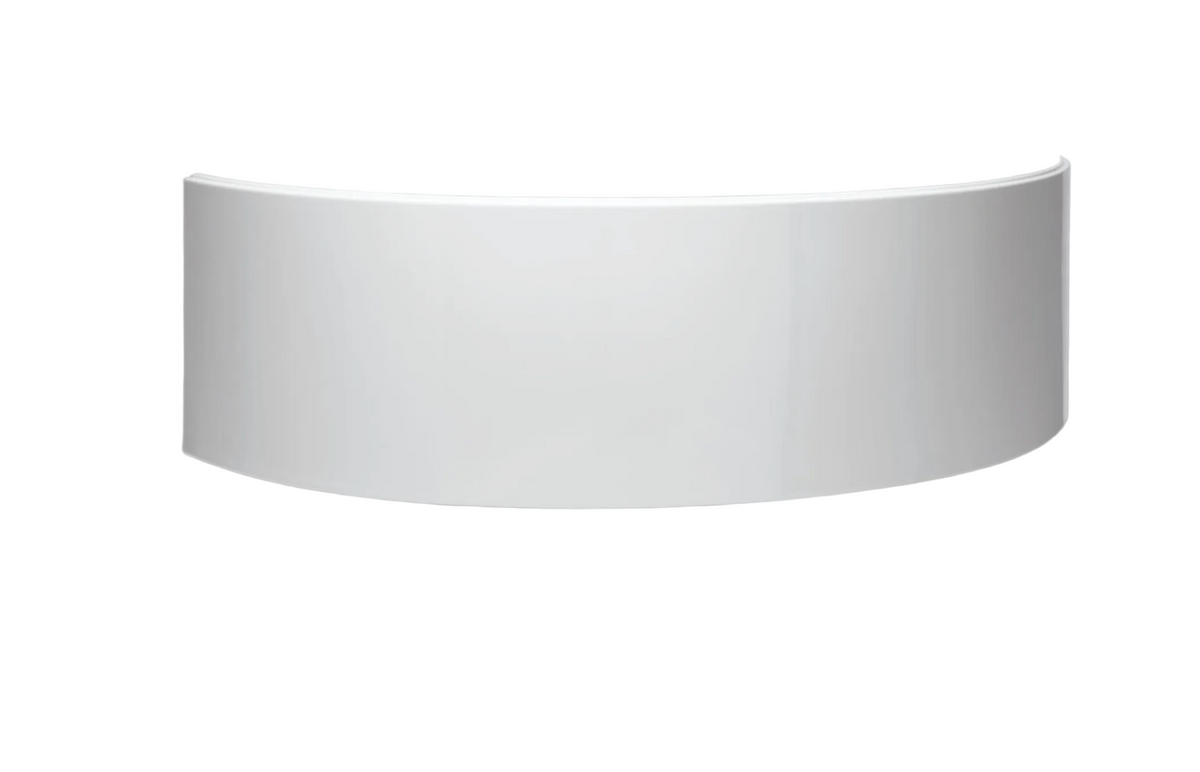

Carron Dove 1550 x 540mm Corner Bath Panel – White (02262 / 02263)

Carron Dove 1550 x 540mm Corner Bath Panel – White (02262 / 02263)

The panel for the Carron Dove 1550 x 950mm corner bath, made in two versions to go with Carron's two bath finishes: a standard panel for 5mm acrylic baths, and a Carronite panel for Carronite baths. Choose the one that matches the finish of your bath.

Curved to follow the bath

A corner bath panel is not a flat panel. It is moulded to follow the sweeping outer edge of the bath, so it is specific to the model and the size – a straight bath panel cannot be made to fit, and a corner panel from a different Carron corner bath will not follow the same curve.

The Dove is an offset bath sold in left and right hand, and Carron list one panel for both, so there is no hand to choose here.

Fits this bath

• Carron Dove 1550 x 950mm Corner Bath, left or right hand – order the standard panel for a 5mm acrylic bath (02232 / 02234), the Carronite panel for a Carronite bath (02233 / 02235)

Specification

Fitting tips

Level the bath so its rim sits at 540mm before offering up the panel – that is the height it is cut to. Offer it up dry first and check the curve follows the bath along its whole length before you fix anything; on a curved panel a small twist at one end shows up badly at the other. Fix it so it can be removed again: it is the only way back to the waste and trap if they ever need attention.
