AKW Contour P12 Peristaltic Shower Waste Pump – Choice of Standard Pump Only, Link or Link Pump Only
The Contour P12 from AKW is a peristaltic shower waste pump designed for near-silent, reliable drainage in showering areas where gravity drainage is not possible. A peristaltic pump moves water by squeezing a flexible tube rather than spinning an impeller in the water, which helps keep running noise very low.
The P12 has proportional speed control in its control box, keeping noise to a minimum with AKW SmartCare showers, and an efficient 24V DC motor for low running costs. The Link version connects directly to compatible showers – wirelessly to the flow sensor in AKW SmartCare electric showers, or to AKW thermostatic showers and other brands with a pump control output – so no separate flow switch is needed.
This listing offers the P12 as a standard pump only, a Link pump, or a Link pump only. The standard P12 with push-fit fittings is available here (05PP01).
Key features & benefits
- Near-silent peristaltic pump
- Proportional speed control – quiet with AKW SmartCare showers
- Link version connects directly to compatible showers
- Efficient 24V DC motor – low running costs
- Compatible with AKW wastes (22mm outlet), trays and showers
- 22mm inlet and outlet
Standard or Link?
Choose Link if you are fitting an AKW SmartCare electric shower or a shower with a pump control output – the pump starts with the shower without a separate flow switch. Choose Standard for other electric showers; standard kits use a flow switch, which is available in our P12 spares listing. Mixer showers need an additional flow switch and flow limiters.
“Pump only” versions do not include a waste: add a pumped waste such as the CUW01 or UPSW pumped wastes.
Installation notes
Fit with access for servicing. Electrical work must be carried out by a qualified electrician in line with BS 7671. Technical support from AKW: 01905 560219.
Sizes & product codes
| Pump | AKW code | EAN |
|---|---|---|
| Standard Pump Only (05PP01-A) | 05PP01-A | – |
| Link Pump (05PP01-L) | 05PP01-L | 5060424970285 |
| Link Pump Only (05PP01-LA) | 05PP01-LA | – |
Technical specification
| Pump type | Peristaltic |
| Motor | 24V DC |
| Flow | Up to 12 l/min |
| Connections | 22mm inlet and outlet |

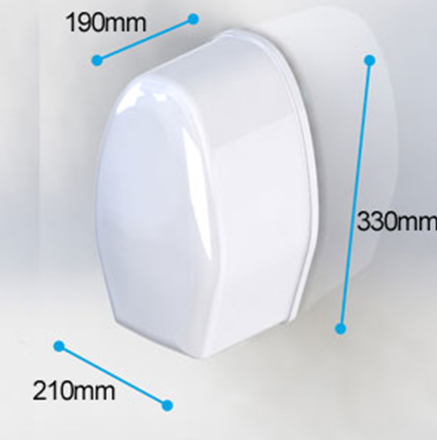

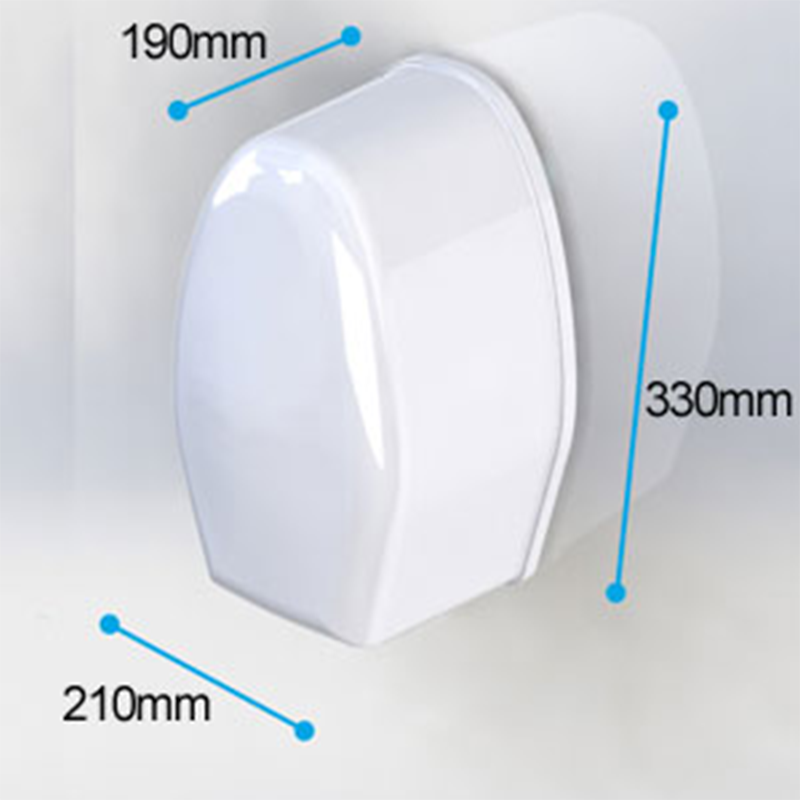

| Dimensions (cover) | 210 W x 330 H x 190 D mm |
| Control | Proportional speed control box |
| Link | Direct connection to AKW SmartCare and pump-control-output showers |
Frequently asked questions
What does Link mean?
The Link pump connects directly to a compatible shower so it starts automatically without a separate flow switch.
Is a waste included?
No, these versions are supplied without a waste.
Can it be used with a mixer shower?
Yes, with an additional flow switch and flow limiters.
Is it quiet?
AKW describe the P12 as near-silent thanks to its peristaltic design and speed control.
Downloads
Not sure which part you need? Call our team on 0333 772 4162 and we will check it against your installation before you order.
